Lenovo Legion T5 26iob6 Gaming Pc User Guide

Lenovo Legion T5 26IOB6 Gaming PC

OVERVIEW

PERFORMANCE

Processor

Processor Family
10th Generation Intel® Core™ i5 / i7 or 11th Generation Intel Core i5 / i7 / i9 Processor

Processor**

Operating System

Operating System**

• Windows® 11 Pro 64
• Windows 11 Home 64
• Windows 11 Home 64 Single Language
• Windows 10 Pro 64
• Windows 10 Home 64
• Windows 10 Home 64 Single Language
• No operating system

Graphics

Graphics

Notes:
The information of integrated graphics are not applicable for the models without integrated graphics (for the details, please refer to processor section)

Monitor Support

Monitor Support
Supports up to 4 independent displays via discrete graphics

Chipset

Chipset
Intel B560 chipset

Memory

• Max Memory[1]
  Up to 128GB DDR4-3200
• Memory Slots
  Four DDR4 UDIMM slots, dual-channel capable
• Memory Type**
  • DDR4-3200
  • DDR4-3200, Armor
• Memory Protection
  Non-ECC
  Notes:
  The max memory is based on the test results with current Lenovo® memory offerings. The system may support more memory as the technology develops.

Storage

Storage Support[1][2]
Up to five drives, 2x 3.5″ HDD + 2x M.2 SSD + 1x open 2.5 HDD Bay

• 3.5″ HDD up to 2TB each
• M.2 SSD up to 1TB each

Storage Type***

RAID
No support

Notes:

1. The storage capacity supported is based on the test results with current Lenovo storage offerings. The system may support larger storage as the technology develops.
2. 2.5” HDD bay is for customer self upgrade purpose and the hard drive is sold separately.

Removable Storage

Optical
None
Card Reader
No card reader

Multi-Media

Audio Chip
High Definition (HD) Audio, Realtek® ALC887 codec
Speakers
No speakers

Power Supply

Power Supply**

DESIGN

Input Device

Keyboard

• Lenovo Calliope Keyboard (USB connector), black
• No keyboard folio

Mouse

• Lenovo Calliope Mouse (USB connector), black
• No mouse

Mechanical

• Form Factor
  Tower (26L)
• Dimensions (WxDxH)
  205 x 396 x 411 mm (8.1 x 15.6 x 16.2 inches)
• Packaging Dimensions (WxDxH)
  370 x 485 x 550 mm (14.57 x 19.09 x 21.65 inches)
• Weight
  14 kg (30.86 lbs)
• Packaging Weight
  All models: Around 16 kg (35.27 lbs)
• Case Color
  Black
• Chassis**
  • Normal side cover
  • Transparent side cover
  • Transparent side cover and inner decorate cover
• Bays
  • 1x 2.5″ disk bay
  • 2x 3.5″ disk bay
• Expansion Slots
  • One PCIe 4.0 x16
  • One PCIe 3.0 x4
  • Three M.2 slots (one for WLAN, two for SSD)
• Cooling System (Fan & Cooler)***
  • (Optional) 1x front system fan, 1x rear system fan
  • (Optional) 1x rear system fan with ARGB
  • (Optional) 1x rear system fan
  • (Optional) 2x top system fan for airflow with ARGB, 2x front system fan with ARGB, 1x rear system fan for airflow with ARGB
  • (Optional) 2x front system fan with ARGB, 1x rear system fan for airflow with ARGB
  • (Optional) 65W basic cooler, 95W advance cooler, 150W premium cooler
  • (Optional) M.2 SSD heatsink or M.2. SSD DECO MYLAR heatsink
  • (Optional) CPU VRM heatsink
  • (Optional) PCH heatsink
• System Lighting***
  • (Optional) Internal ambient lighting
  • Legion OY iconic LED
• Others
  (Optional) Dust Filter (bottom-air-inlet & top-air-venting)

CONNECTIVITY

Network

• Onboard Ethernet
  Gigabit Ethernet, Realtek RTL8111H, 1x RJ-45
• WLAN + Bluetooth®[1]
  Wi-Fi® 6, 802.11ax 2×2 Wi-Fi + Bluetooth 5.1, M.2 card
  Notes:
  Bluetooth 5.2 is hardware ready but may run at a lower version due to OS limitation

Ports[1]

• Rear Ports[1][2]
  • 2x USB 2.0
  • 2x USB 3.2 Gen 1
  • 1x USB-C® 3.2 Gen 2 (support data transfer and 5V@3A charging)
  • 3x audio out (5.1 channel)
  • 1x Ethernet (RJ-45)
  • x power connector
• Top Ports
  • 2x USB 3.2 Gen 1
  • 1x headphone (3.5mm)
  • 1x microphone (3.5mm)
    Notes:
    1. The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed.
       • USB 2.0: 480 Mbit/s;
       • USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s;
       • USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s;
       • USB 3.2 Gen 2×2 (SuperSpeed USB 20Gbps): 20 Gbit/s;
       • Thunderbolt™ 3/4: 40 Gbit/s
    2. For video ports on discrete graphics, please see graphics section

SECURITY & PRIVACY

Security

BIOS Security

• Administrator password
• Power-on password

SERVICE

Warranty

Base Warranty**[1]

• 1-year courier or carry-in service
• 1-year mail-in service
•  1-year limited onsite service
• 2-year courier or carry-in service
• 3-year courier or carry-in service
• OB
  Notes:
  More information of warranty policy, please access https://pcsupport.lenovo.com/warranty.

ENVIRONMENTAL

Operating Environment

• Temperature
  Storage: -40°C (-40°F) to 60°C (140°F)
• Humidity
  • Operating: 20% to 80%
  • Storage: 10% to 90%
• Altitude
  • Operating: 0 m (0 ft) to 3048 m (10,000 ft)
  • Storage: 0 m (0 ft) to 12192 m (40,000 ft)

CERTIFICATIONS

Green Certifications

Green Certifications

• ENERGY STAR® 8.0 (only available for MT 90RS)
• ErP Lot 3
•  RoHS compliant
• Feature with ** means that only one offering listed under the feature is configured on selected models.
• Feature with *** means that one or more offerings listed under the feature could be configured on selected models.
• Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
• The specifications on this page may not be available in all regions, and may be changed or updated without notice.

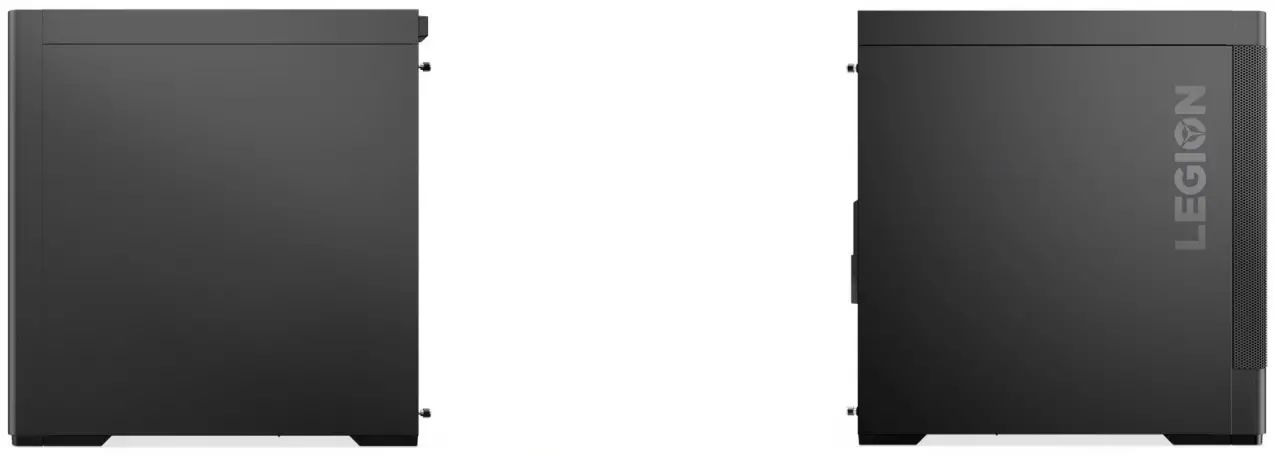

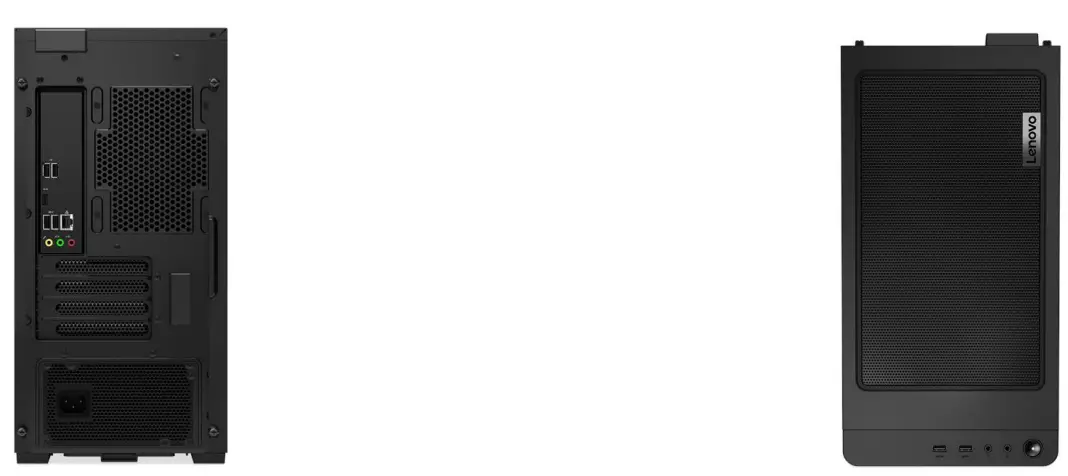

ANGLE VIEW
