User Guide

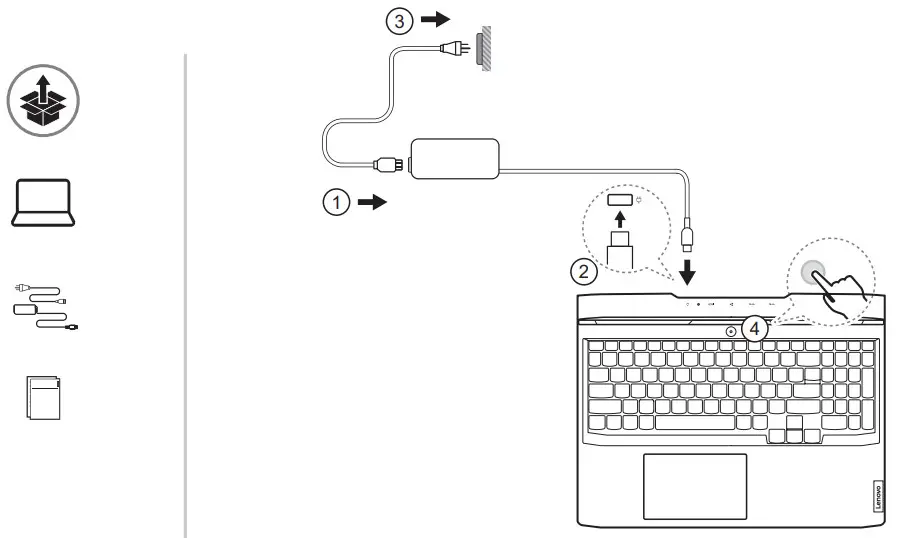

Get it started
Get it started
Product illustrations may not be exactly the same as the actual product.

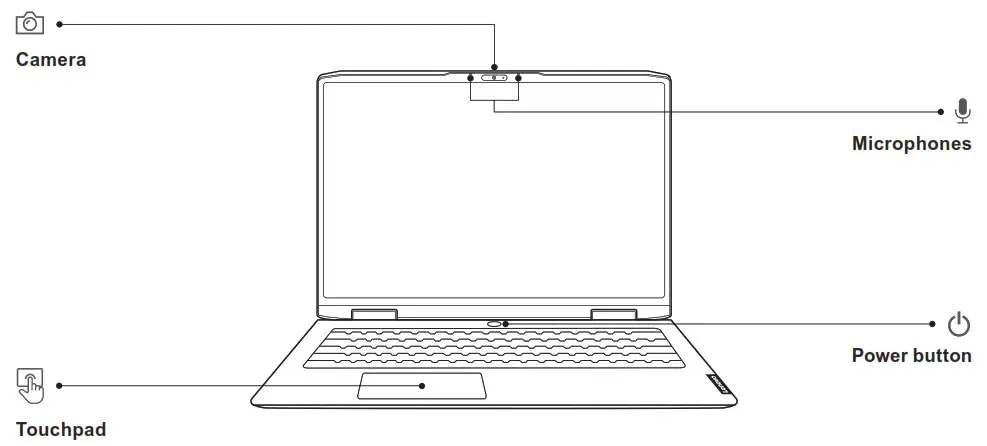

Overview
Overview

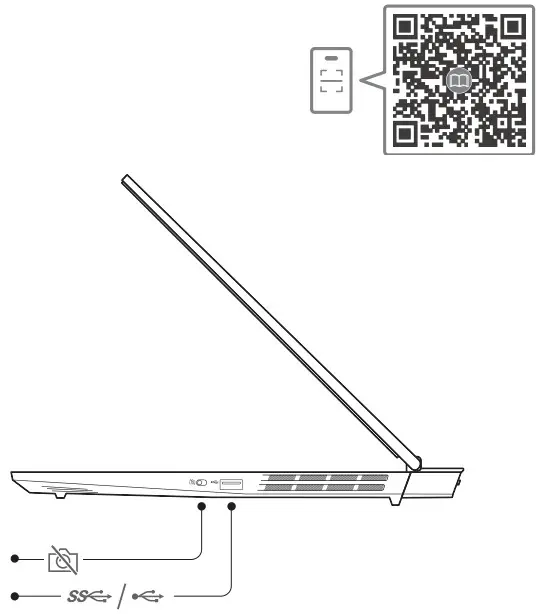

Camera switch
USB 3.2 Gen 1 port / USB 2.0 port
https://support.lenovo.com/docs/loq_15_16
Scan the User Guide QR code and read the statement on USB transfer rates.

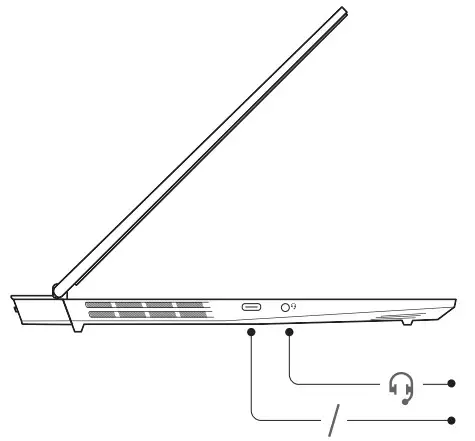

Combo audio jack
Multi-purpose USB Type-C® connector

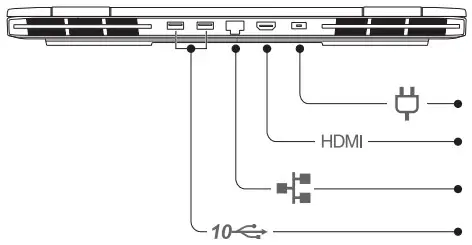

Power connector
HDMI™ connector
Ethernet connector
USB (3.2 Gen 2) Type-A connector
European Union (EU) / United Kingdom — radio frequency and power
This radio equipment operates with the following frequency bands and maximum radio- frequency power:
| Technology | Frequency band [MHz] | Maximum transmit power |
| WLAN 802.11b/g/n/ax | 2400 – 2483.5 | < 20 dBm |
| WLAN 802.11a/n/ac/ax | 5150 – 5725 | < 23 dBm |
| WLAN 802.11a/n/ac/ax | 5725 – 5875 | < 13.98 dBm |
| WLAN 802.11ax | 5945 – 6425 | < 23 dBm |
| Bluetooth BR/EDR/LE | 2400 – 2483.5 | < 20 dBm |
Note: Not all wireless bands may be enabled depending on your product configuration. Usage of this device is limited to indoor locations in the bands 5150–5350 MHz and 5945–6425 MHz.
