Lenovo V55t-15API Tower Desktop PC User Guide
Whats In the Box

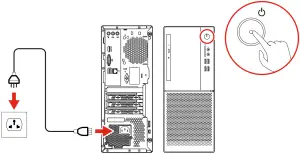

Initial Setup

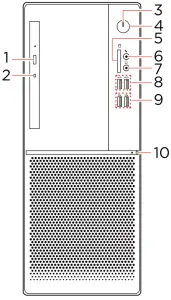

Overview
- * Optical drive eject button
- * Optical drive status indicator
- Power indicator
- Power button
- * Card reader slot
- Microphone connector
- Headphone connector
- USB 3.2 connectors Gen 1
- USB 2.0 connectors
- Storage drive status indicator

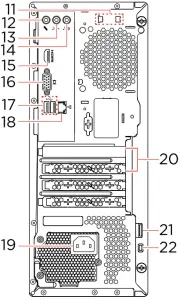

- Cable lock slots
- Microphone connector
- Audio line-out connector
- Audio line-in connector
- HDMITM out connector
- VGA out connector
- USB 2.0 connectors
- Ethernet connector
- Power cord connector
- PCI-Express card area
- Padlock loop
- Security-lock slot
Read the statement on USB transfer rate in the User Guide. Refer to the Safety and Warranty Guide for accessing the User Guide.
Additional information
European Union (EU) / United Kingdom (UK) — Radio Equipment Compliance
Hereby, Lenovo declares that the radio equipment type Lenovo V55t-15API/ Lenovo V55t-15ARE is in compliance with Directive 2014/53/EU. Lenovo V55t-15ARE is also in compliance with UK Radio Equipment Regulations SI 2017 No. 1206.
The full text of the system declarations of conformity are available at:
https://www.lenovo.com/us/en/compliance/eu-doc for EU and
https://www.lenovo.com/us/en/compliance/uk-doc for UK.
This radio equipment operates with the following frequency bands and maximum radio-frequency power:
Technology | Frequency band [MHz] | Maximum transmit power |
WLAN 802.11b/g/n | 2400 – 2483.5 | < 20 dBm |
| WLAN 802.11a/n/ac | 5150 – 5725 | < 23 dBm |
WLAN 802.11a/n/ac | 5725 – 5875 | < 13.98 dBm |
| Bluetooth BR/EDR/LE | 2400 – 2483.5 | < 20 dBm |
Usage of this device is limited to indoor use in the WLAN band 5150 – 5350 MHz.
LENOVO and LENOVO logo are trademarks of Lenovo. The terms HDMI and HDMI High-Definition
Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. All other trademarks are the property of their respective owners. © 2021 Lenovo.
E-manual
https://support.lenovo.com/docs/v55t_15api
Second Edition (June 2021)
© Copyright Lenovo 2021.
LIMITED AND RESTRICTED RIGHTS NOTICE
If data or software is delivered pursuant to a General Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-35F-05925.
