INATRUCTIONS
User Manual

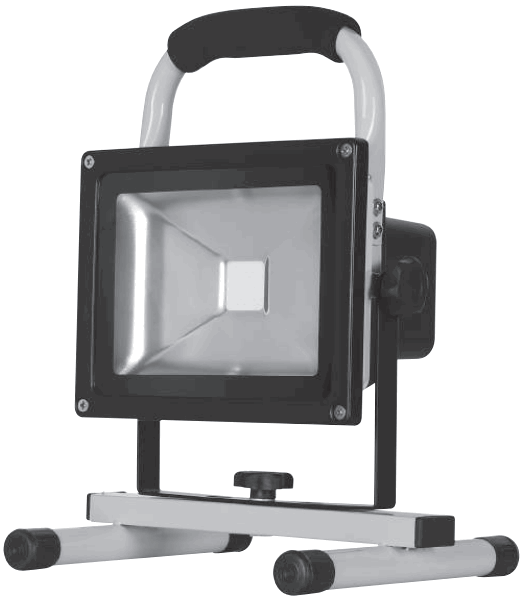

LDB13-20-30K LED Floodlight with Battery Laron 100
| Item Code | Rated Power | Lumen | Dimensions (mm) |
| LDB13-20-30K | 20 W | 1360 Im | 180x185x290 |
| LDB13-20-40K | |||
| LDB13-20-65K | |||
| LDB13-50-30K | 50 W | 3400 Im | 285x205x350 |
| LDB13-50-40K | |||
| LDB13-50-65K | |||
| LDB13-100-30K | 100 W | 68001m | 270x505x340 |
| LDB13-100-40K | |||
| LDB13-100-65K | |||
| LDB13-150-30K | 150 W | 10200Im | 300x605x360 |
| LDB13-150-40K | |||
| LDB13-150-65K | |||
| LDB13-300-65K | 300 W | 20400 Im | 460x220x490 |

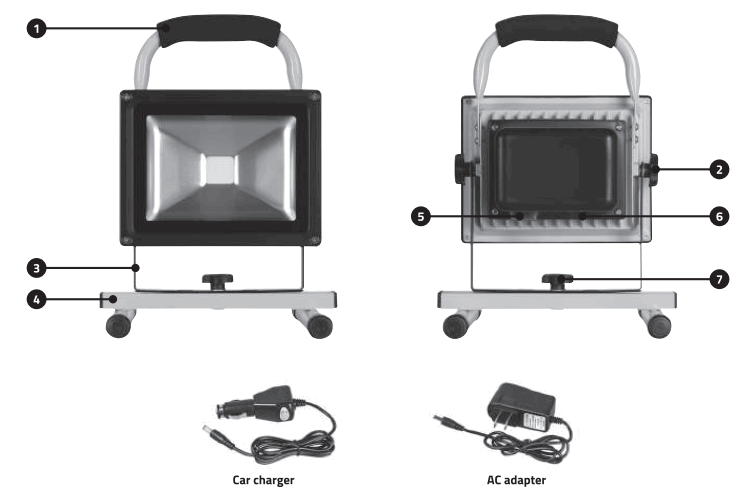

- Handle
- Fix screw
- U-shape bracket
- Stand bracket
- Power switch
- Charging port
- Stand bracket fix screw
Note: LED indictor Charging: LED indicator is red Fully charged: LED indicator turns to green
All the lamps are fully charged before delivery.
Please use the chargers which are supplied with the lamp.
Please do not turn on the lamp while charging.
Please do not use a modified or damaged charger.
Please do not charge the lamp longer than 24 hours.
Please do not disassemble the lamp.
Please recharge the lamp every six months when in stock.
WARNING
This device utilizes a rechargeable lithium-ion battery that can rupture, ignite and cause serious injury if being used improperly Please check the following safety rules:
- DO NOT place batteries or the lamp into fire or in places with high temperatures.
- DO NOT puncture or damage the batteries.
- DO NOT use the batteries that appear damaged.
- DO NOT immerse or expose the batteries to the water.
- DO NOT alter or modify the batteries. Ignoring these warnings may result in personal injury or property damage.
WARRANTY
If, under normal use, the product becomes defective due to a defect in material or workmanship, you will receive a new product during the warranty period.
Ledisons
Dorpsstraat 11
7958 RK Koekange
The Netherlands
