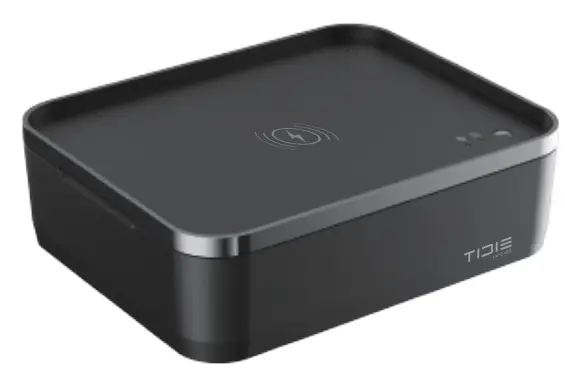

UVC-LED
Personal Valet Box
User Manual
Model No.: 607002-BLK

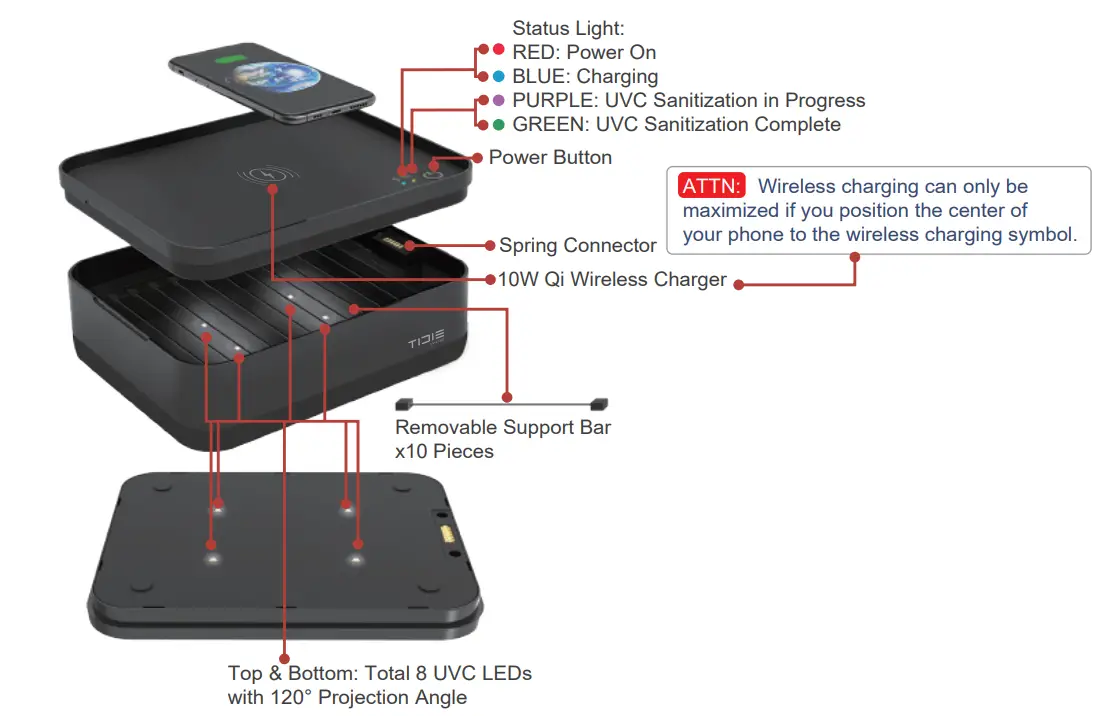

Function Introduction
CAUTION: UVC-LED can be harmful to the human skin and eyes when coming into contact. Use with adult supervision.
Status Light Descriptions
| UVC In Progress | Flashing purple light (5 mins) | Sanitization |
| UVC CompletePower | Solid green light | |
| Plugged In | Solid red light with blue light flashing 3 times | Wireless Charger |
| Standby Mode | Solid red light | |
| Charging Mode | Solid blue light | |
| Fully Charged | Solid blue light (For Samsung devices: Solid red light only) | |
| Foreign Metal Detected | Flashing red and blue light |

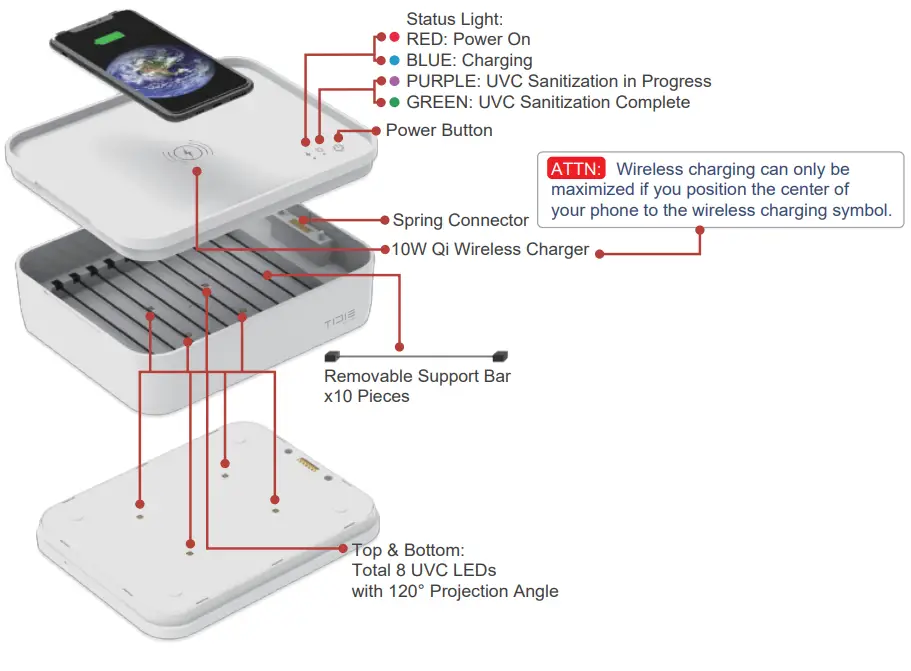

Features Specification
- Top & Bottom 8 UVC LEDs
- UVC LED: 120° Projection Angle
- QC 3.0 18W PSE
- 10W Qi Wireless Charger
- UVC Sanitization & LED Indicator
- Spring Connector

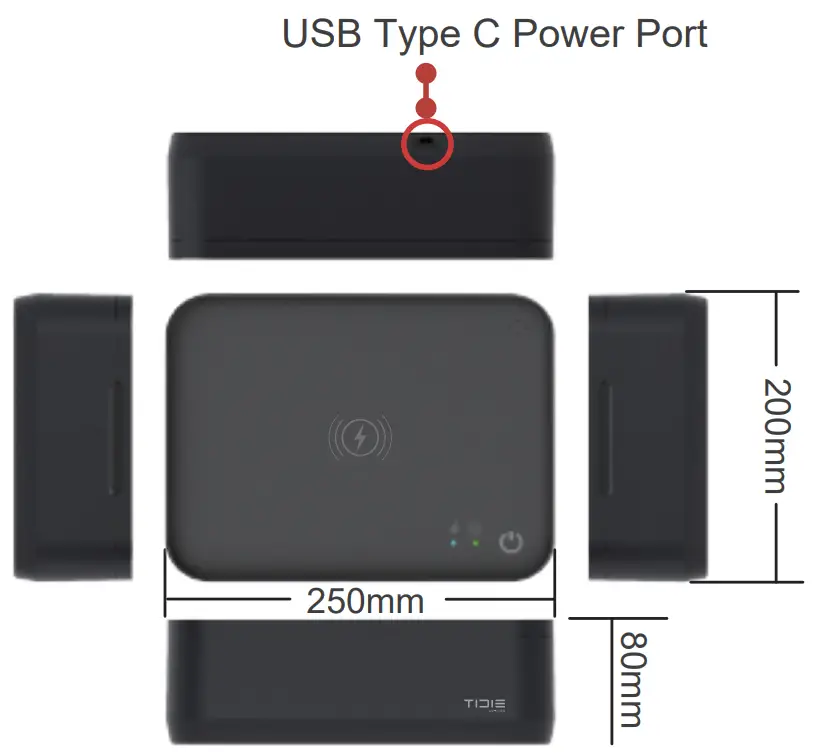

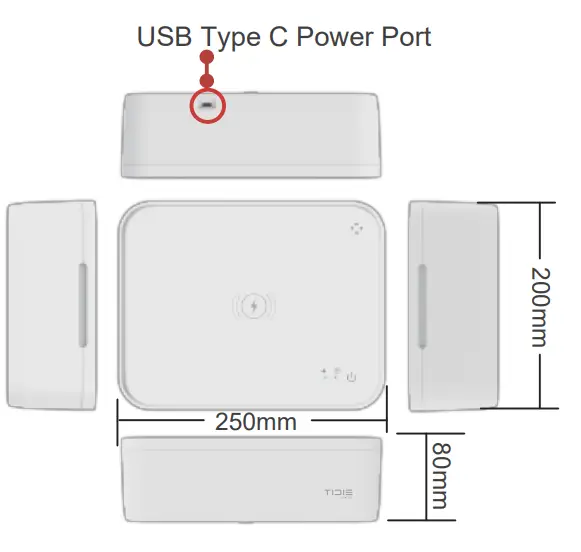

- USB Type C Power Port
| Product Name | UVC-LED Personal Valet Box |
| Model No. | 607002-BLK |
| Input | DC 5V 3A, 9V2A, 12V1.5A |
| Output | DC 9V1.1A (10W Max) |
| Product size | 25x20x8cm |
| Net weight | 1.1kg |
Step-by-Step Operations

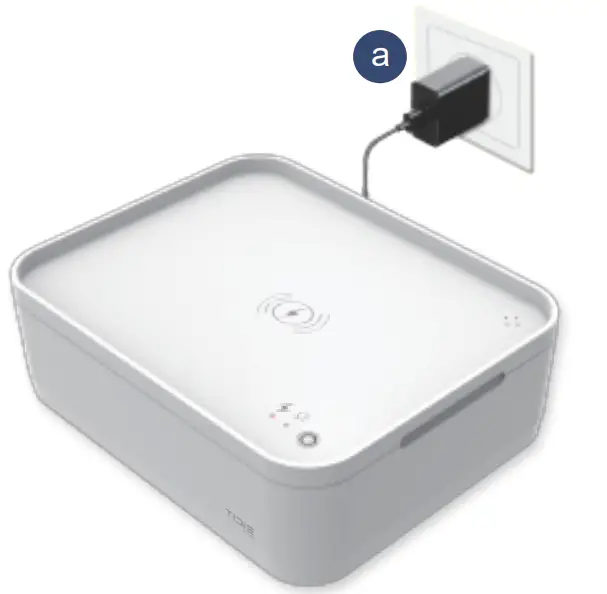

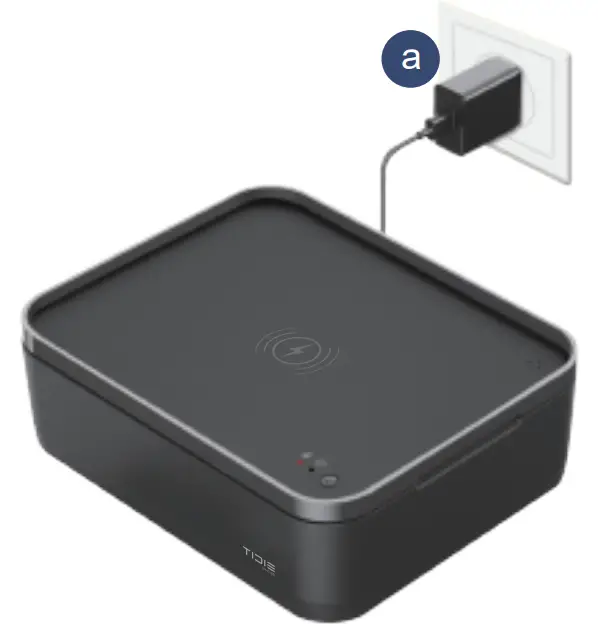

a. Plug in the Wall Charger a and Type-C Cable.

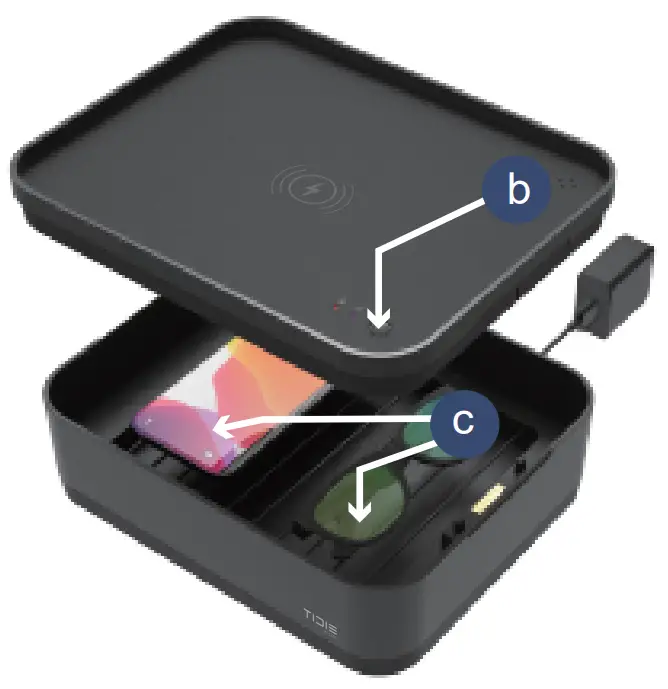

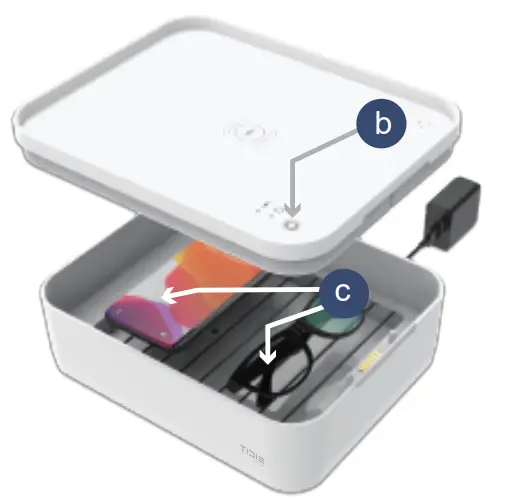

b. Place your devices on the bars and close the top lid.
c. If the signaling light is off, please check if the power cord is correctly plugged in.
3 Step-by-Step Operations

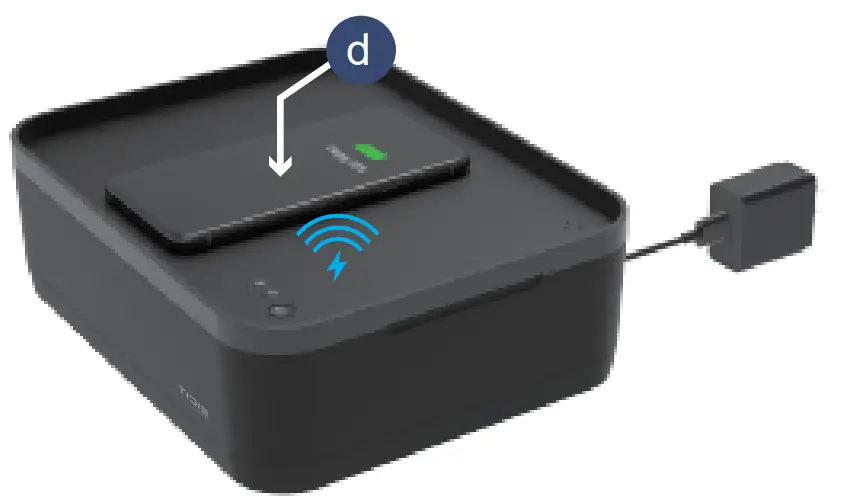

d. Place your phone on the top of the case for wireless charging.
Accessory

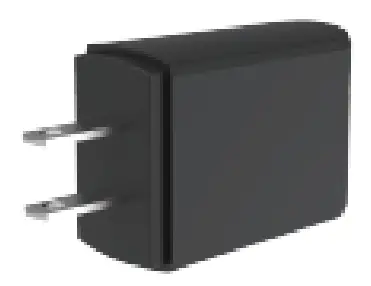

QC3.0 Power Adaptrer
- Input : 100-240Vac 50/60Hz 0.8A
- Power : 18W
- Output : 5V 3A, 9V 2A, 12V 1.5A
- Size : 50x35x20mm
- Color : Black
- Plug : US
- Weight : 50g

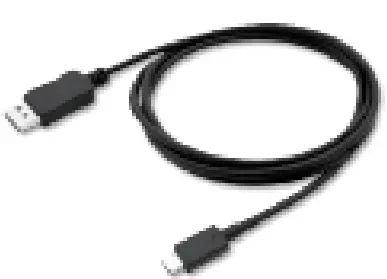

USB Type C Cable
- Material: PVC
- Length: 1.8M
- Color: Black
Notice
a. When the red and blue light flash at the same time, it indicates that there is a metal object on top of the wireless charger. This imposes risks of overheating the foreign metal object.
b. If the signaling light is off, please check if the power cord is correctly plugged in.
c. Avoid looking directly at the LED lights
d. This product is only operable under the altitude of 2000m.
e. This product can operate in temperatures between 0 and 40oC.
Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Non-modification Statement: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
FCC RF exposure statement:
The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. During the operation of the device, a distance of 15cm surrounding the device and 20 cm above the top surface of the device must be respected.
Package Content
- UVC-LED Personal Valet Box*1
- Wall Charger*1
- USB Type-C Cable*1
- User Manual*1
Tide Inc.
130 105th Ave SE Unit 310 Bellevue, WA 98004

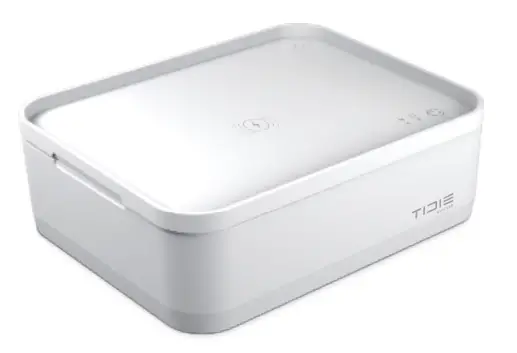

UVC-LED
Personal Valet Box
User Manual
Model No.: 607002-WHT
Function Introduction
CAUTION: UVC-LED can be harmful to the human skin and eyes when coming into contact. Use with adult supervision.
Status Light Descriptions
| UVC In Progress | Flashing purple light (5 mins) | Sanitization |
| UVC CompletePower | Solid green light | |
| Plugged In | Solid red light with blue light flashing 3 times | Wireless Charger |
| Standby Mode | Solid red light | |
| Charging Mode | Solid blue light | |
| Fully Charged | Solid blue light (For Samsung devices: Solid red light only) | |
| Foreign Metal Detected | Flashing red and blue light |
Features Specification
- Top & Bottom 8 UVC LEDs
- UVC LED: 120° Projection Angle
- QC 3.0 18W PSE
- 10W Qi Wireless Charger
- UVC Sanitization & LED Indicator
- Spring Connector
- USB Type C Power Port
| Product Name | UVC-LED Personal Valet Box |
| Model No. | 607002-BLK |
| Input | DC 5V3A, 9V2A, 12V1.5A |
| Output | DC 9V1.1A (10W Max) |
| Product size | 25x20x8cm |
| Net weight | 1.1kg |
Step-by-Step Operations
a. Plug in the Wall Charger a and Type-C Cable.
b. Place your devices on the bars and close the top lid.
c. If the signaling light is off, please check if the power cord is correctly plugged in.
3 Step-by-Step Operations
d. Place your phone on the top of the case for wireless charging.
Accessory
QC3.0 Power Adapter
- Input : 100-240Vac 50/60Hz 0.8A
- Power: 18W
- Output : 5V 3A, 9V 2A, 12V 1.5A
- Size : 50x35x20mm
- Color: Black
- Plug: US
- Weight: 50g
USB Type C Cable
- Material: PVC
- Length: 1.8M
- Color: Black
Notice
a. When the red and blue light flash at the same time, it indicates that there is a metal object on top of the wireless charger. This imposes risks of overheating the foreign metal object.
b. If the signaling light is off, please check if the power cord is correctly plugged in.
c. Avoid looking directly at the LED lights
d. This product is only operable under the altitude of 2000m.
e. This product can operate in temperatures between 0 and 40oC.
Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Non-modification Statement: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
FCC RF exposure statement:
The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. During the operation of device, a distance of 15cm surrounding the device and 20 cm above the top surface of the device must be respected.
Package Content
- UVC-LED Personal Valet Box*1
- Wall Charger*1
- USB Type-C Cable*1
- User Manual*1
Tide Inc.
130 105th Ave SE Unit 310 Bellevue, WA 98004
