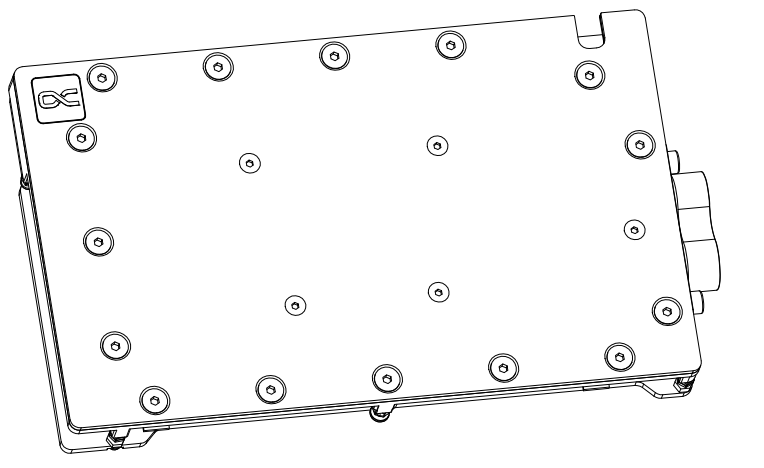

ES GeForce RTX 4090 with Backplate
Instruction Manual
Safety instructions
https://www.alphacool.com/download/SAFETY%20INSTRUCTIONS.pdf
Digital guide
https://www.alphacool.com#mmm_?ac=13395
Accessories
Check compatibility
Before starting the cooler assembly, compare your card with the pictures in our configurator. To do so, visit https://www.hwconfig.com and search for your graphics card or cooler model. For a definitiv identification, you can also compare the PCB number. The cooler was designed for a special PCB layout. Occasionally, graphics card manufacturers may revise the design of their card slightly, causing the cooler not to fit on later models. During assembly, please make sure taller parts have enough space around them and that the cooler does not damage your graphics card.
Alphacool International GmbH is not liable for assembly errors occurring due to negligence, such as selecting an incompatible cooler.
Prepare graphics card
Put the hardware on an antistatic mat. Begin dismantling the original cooler. Depending on the structure of the cooler, remove the screws at the back of the card and carefully unhook the fan connector first. If the original cooler uses thermal glue, extreme care should be taken as you can easily damage parts. Pick up all the items carefully. Next, clean the hardware of thermal paste or pad residues with a solvent (e.g. isopropanol alcohol).

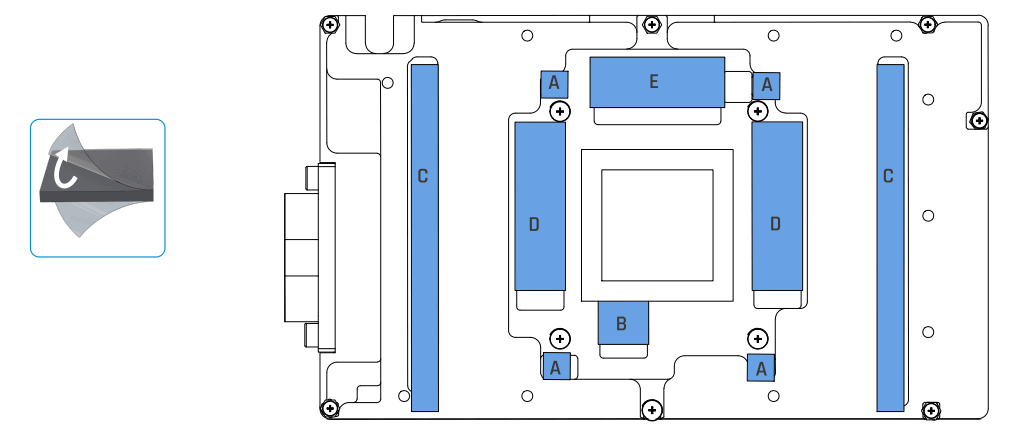

Place thermal pads on cooling block

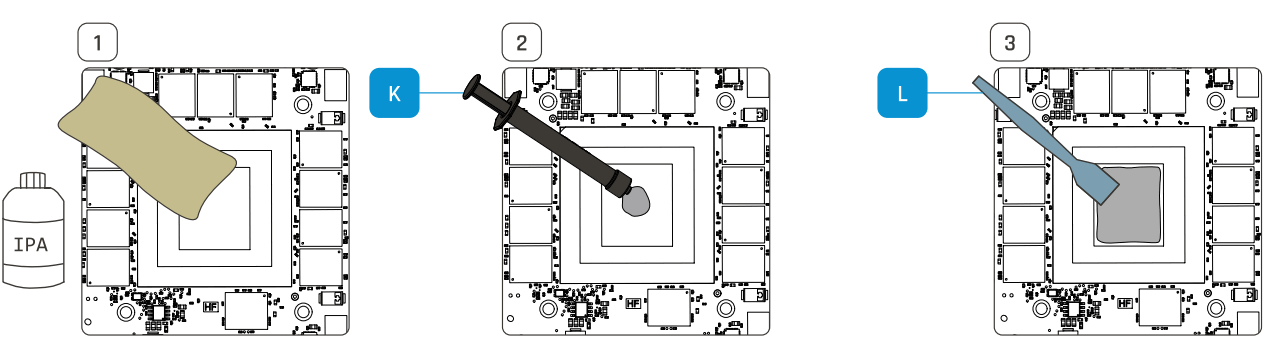

Apply thermal Grease

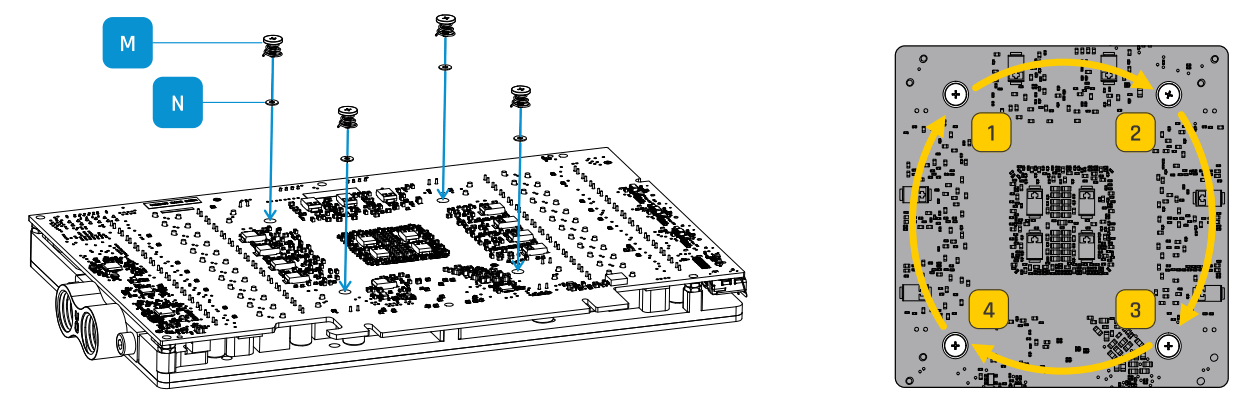

Install PCB

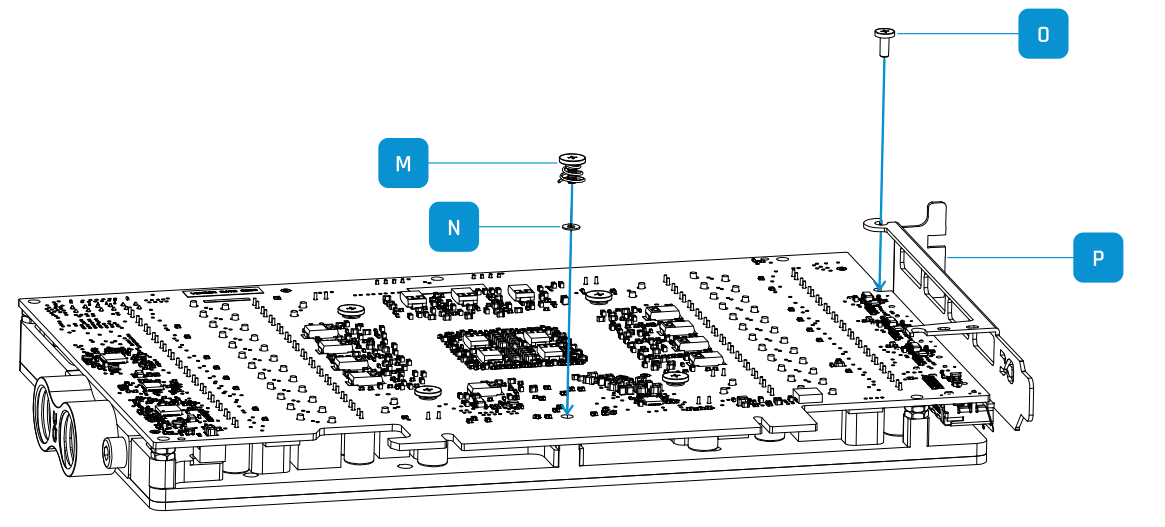

Install PCB and PCI Brocket

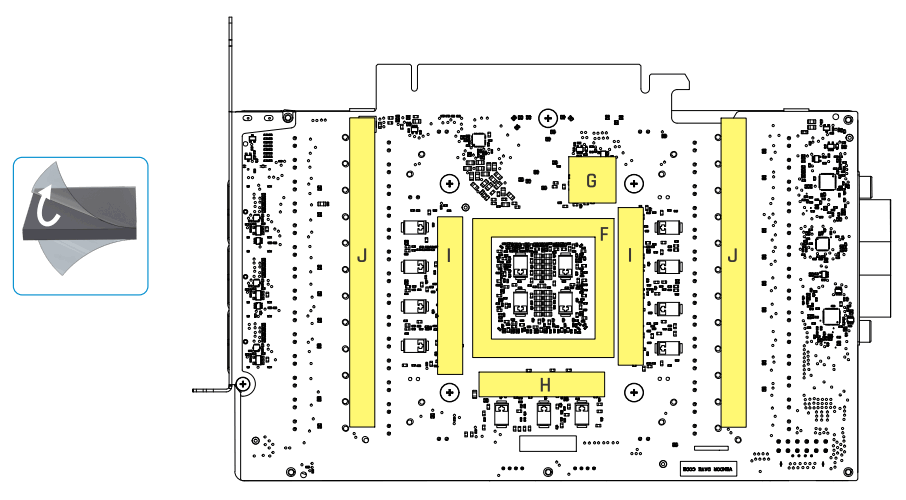

Place thermal pads on PCB backside

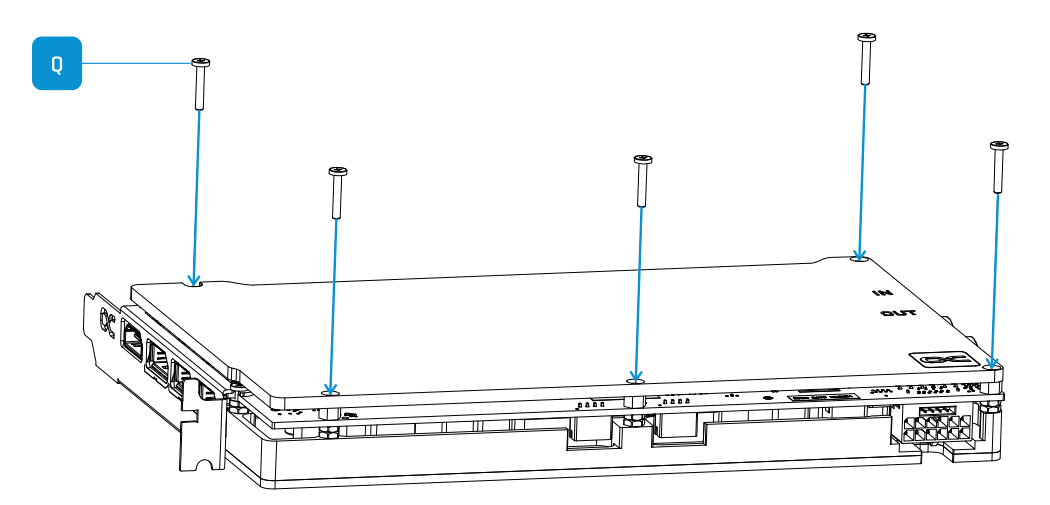

Mount backplate
