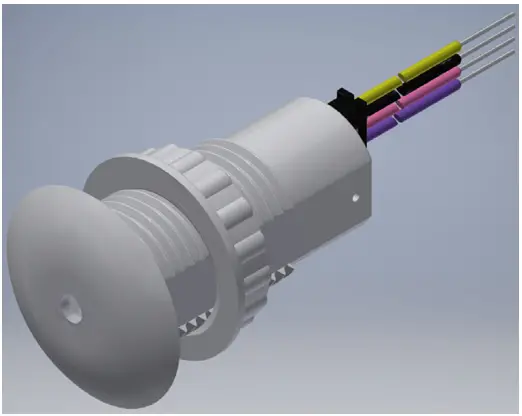

Zigbee PIR, Photo & Lighting Control
ON/OFF & 0‐10V Dimming
Zigbee Wireless
S830‐PL‐DZB
PIR + Light + Photo + Temp
Product Features
- Zigbee Wireless Control of Luminaries
- Zigbee Occupancy Sensor, & Photo Sensor
- 2.4GHz, +20dBm Zigbee transmit power
- 0-10V Analog Dimming Control, 50mA Sink
- Compatible with Electronic Ballasts & LED Drivers that comply with IEC60929 Annex E2, 0-10V Dimming.
- Best when used with Dim to Zero (Dim to OFF) Ballasts & LED Drivers
Safety and Compliance
- UL244A Listed
- FCC ID: 2AJ2N-S830-PL-DZB, FCC Class B
- Zigbee 3.0 compatible
- Mount 1/2 Inch Trade Size Knockout, Dust Proof Design IP50
Environmental
- Operating temperature: 0 to +60°C
- Storage temperature range: -10C to +70°C
- Humidity (non-condensing): 5% – 95%RH
- Cooling: Convection
- Vibration Frequency: 5-55Hz/2g, 30 minutes
- Impact resistance: 1g/s
Electrical Specifications at 25°C
- Input: UL Class 2 DC voltage 12VDC (10 to 14VDC)
- Input Current Draw: 60mA, 200mA Peak during transmit.
- 0-10V Dimming intended for use with Dim to Zero/Dim to OFF Ballasts and LED Drivers.
Part Numbers
| Part Number | Dimming US & CN Class 2 | Control | ON/OFF Control | Dimming 0-10V Analog | Photo Sensor | PIR Occupancy Sensor |
| S830-PL-DZB | YES | Zigbee 3.0 | YES via Dim | YES | YES | YES |
| S830-DZB | YES | Zigbee 3.0 | YES via Dim | YES | NO | NO |

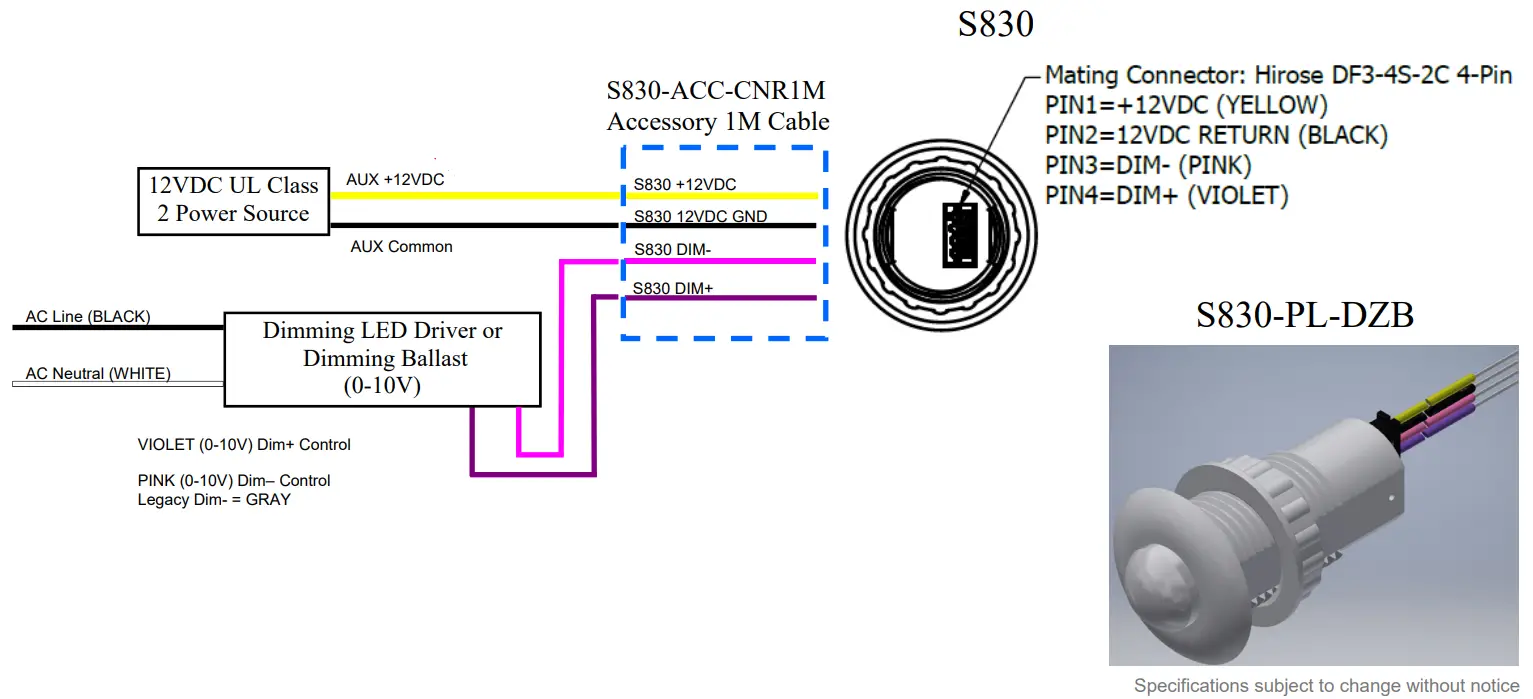

Typical Application Circuit

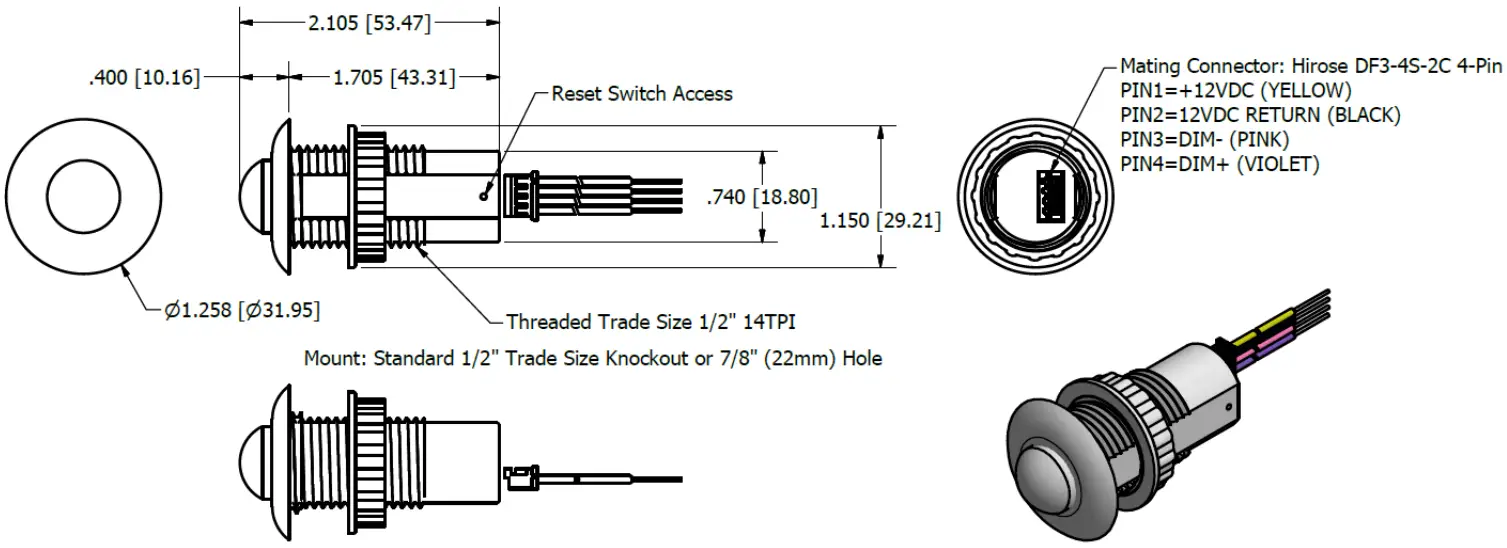

Mechanical Dimensions: Inches [mm]
Material: 5VA PC Plastic Case
Weight: TBD Grams (TBD oz.) Typical
Notes:
RED Occupancy LED Visible through PIR Lens.
GREEN Zigbee LED Visible through PIR Lens.

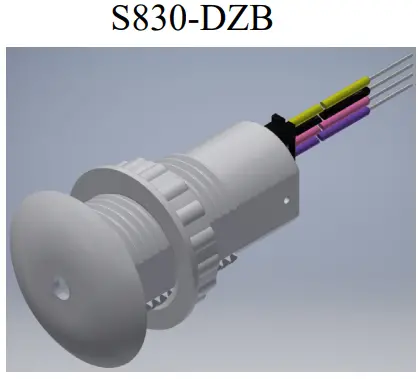

S830-DZB GREEN Zigbee LED Visible through Flat Cover Reset switch is located on the flat side of the case near the connector.
Labeling Example

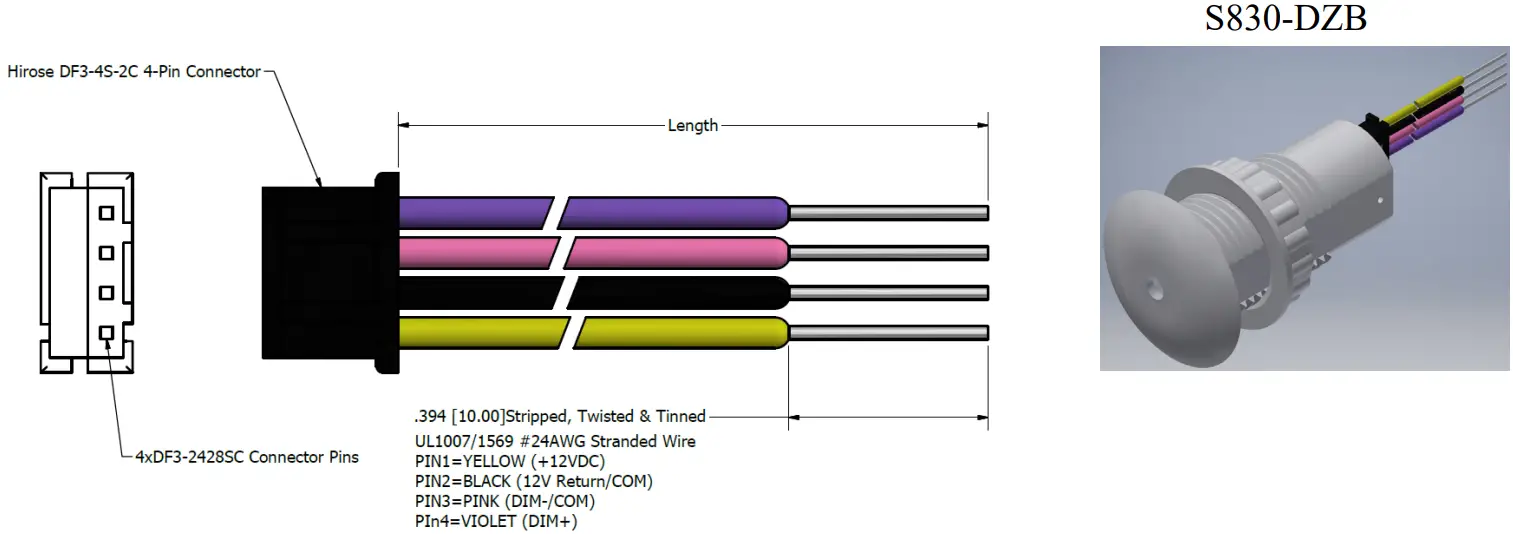

S830-ACC-CNR1M, 1 Meter Cable, mm (Scale ~5:1)
Input Specifications
| Parameter | Min. | Typ. | Max. | Notes/Conditions |
| Input Voltage | 10 | 12 | 14 | V DC, UL Class 2 Power Source |
| Input Current | —— | 60mA | 200mA Peak | mA DC, Peak occurs during transit |
| Zigbee Control Transmit Power | —— | —— | +20dBm | ON/OFF, 0-10V dimming & Photo Sensor, Standard Zigbee |
| Zigbee Control Receive | —— | -95dBm | —— | Zigbee Radio Receives Sensitivity |
| Photo Sensor Range | 1 | —— | 300fc | Precision Optical Filtering Matches the Human Eye |
Output Specifications
| Parameter | Min. | Typ. | Max. | Notes/Conditions |
| Operating Temperature (Ta) | O°C | —— | +60°C | Operating temperature range. |
| Storage Temperature (Ts) | -10°C | —— | +70°C | Nonoperating temperature range. |
| Operating Humidity | —— | —— | 95% RH | Relative Humidity, non-condensing. |
| Vibration | 5 Hz | —— | 55 Hz | 2G, 10 minutes/1 cycle, period 30 minutes, each along X, Y, Z axis. |
Safety & EMC Compliance
| Safety | Notes/Standards |
| UL/CUL Listed | UL910, CSA22.2 NO. 205 |
| CE | EN61347-1, EN61347-2-13 |
| 0-10V Class 2 Dimming Circuit | UL & cUL Class 2, Dim+ Violet/Dim– Pink. (Using a 12VDC UL Class 2 Power Source) |
| FCC | FCC ID 2AJ2N-S830-PL-DZB CH11 to CH25, Also Certified to FCC Class B, See Warnings on page 4. |

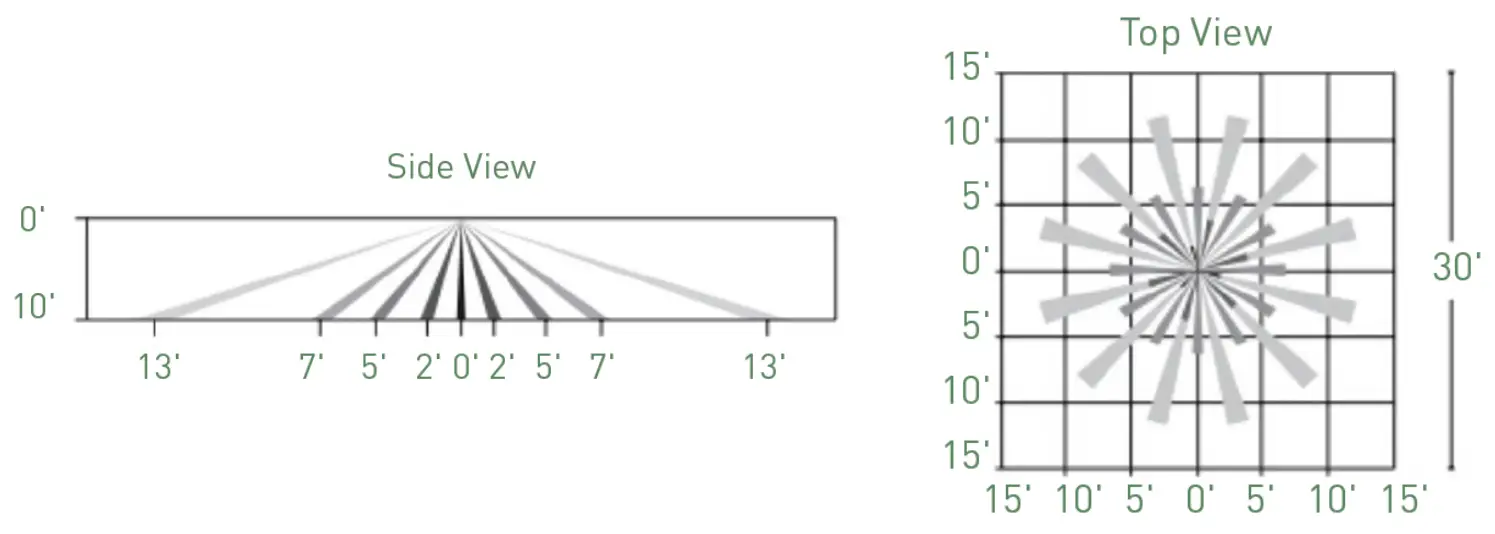

Standard Lens Coverage
FCC ID 2AJ2N-S830-PL-DZB: Channel 11 to 25
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
To maintain compliance with FCC’s RF exposure guidelines, the distance must be at least 20cm between the radiator and your body, and fully supported by the operating and installation configurations of the transmitter and its antenna(s).
Specifications subject to change without notic
© EuControls, Inc.
◙ Los Angeles, California
◙ T: 888 535-9580
◙ E: [email protected]
◙ www.EuControls.com
◙ Rev B – 08/05/2022
U.S. Patent Pending
EuControls - Intelligent and Wireless Lighting Controllers
