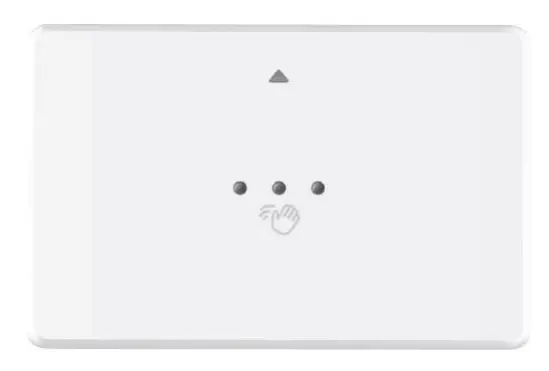

IKUU SSW01GHW-ZB Zigbee Handwave Switch
Included Accessories
Faceplate, Cut-out template, Mounting screws

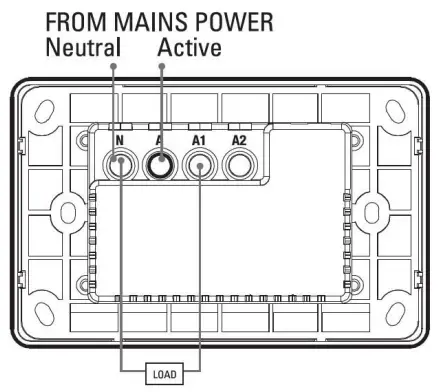

Wiring Diagram
Features
- Zigbee 3.0 compliant
- Neutral required
- Blue LED to indicate switch status
- Retrofit to standard mounting brackets
- White, UV resistant material
- Combination head screws
- On/off control via the app
- Customizable timers & schedules via the app
- Works with both Amazon Alexa and Google Assistant
- 3 year in-home warranty
Network/Device Requirements
| Connectivity | Zigbee |
| Requirements | Mercator Ikuü Zigbee hub |
| Protocol | IEEE 802.15.4 |
| Wireless Frequency | 2.4GHz |
| App Requirements | Mobile device running iOS or Android. (Refer to ikuu.com.au for minimum specs) |
Technical Specifications
| Colour | White |
| Neutral Required | Yes |
| Supply Voltage | 230 – 250V a.c. 50Hz |
| Standby Wattage | <0.05W |
| Operating Load | LED: 150W Incandescent: 2500W Motor Rating: M50 |
| IP Rating | IP20 (indoor use only) |
| Terminal Size | 6mm² (can fit up to 3 x 2.5mm² wires per terminal) |
| Rear Colour | Yellow |
| Housing Material | Polycarbonate |
| Contact Material | Brass |
| Weight | 142g |
| Dimensions | 115mm x 74mm x 44mm |
| Cut-out Dimensions | 80mm x 50mm |
| Mounting Centres | 84mm |
| Compliance / Standards | AS/NZS 4268, AS/NZS 60669.1, AS/NZS 60669.2.1, AS CISPR 15, AS/NZS CISPR 15, AS/NZS CISPR 32 |
Customer Support
This product is valid for 3 years in-home warranty from the date of purchase. Please retain proof of purchase and certificate of compliance from the installation to make a claim. Please visit https://www.mercator.com.au/productsupport/warranty for more information. For Mercator Ikuü contractor or end consumer support please visit www.ikuu.com.au or contact our customer service team on 1300 552 255 or via email at [email protected]
Download the app using the QR code or visit the iOS or Google Play store.
