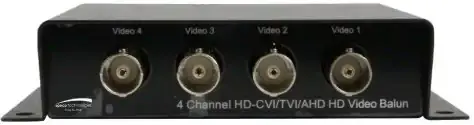

Speco TVIUTP4 4 Port HD TVI Video Balun User Manual
Introduction
TVIUTP4 is a 4-port video balun that uses twisted-pair cables to send HD-TVI up to 820’ (250M), with upto 5MP resolution.
Features
- HD-TVI Resolution up to 5MP
- HD-TVI Signal extension up to 820’ (250M) over UTP CAT5e/6 depending on resolution and cable quality.
- Also supports AHD, HD-CVI, and standard analog
- Male BNC to terminal block design.
- No power required.
- Built-in ESD, EFT (impulse noise) and transient protection.

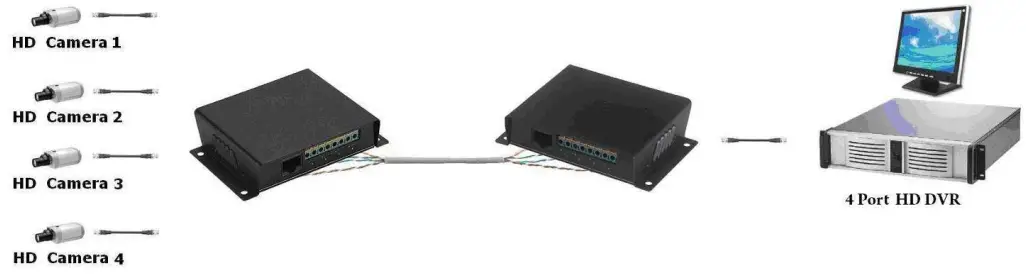

Installation View
HD-TVI/AHD/HDCVI/CVBS Video Balun Distance Chart
| HD-TVI | AHD | HDCVI | CVBS |
| 1080P 820’ (250M) 5MP 656’ (200M) | 1080P 820’ (250M) 4MP 656’ (200M) | 1080P 984’ (300M) 5MP 656’ (200M) | 984’ (300M) |
Panel View

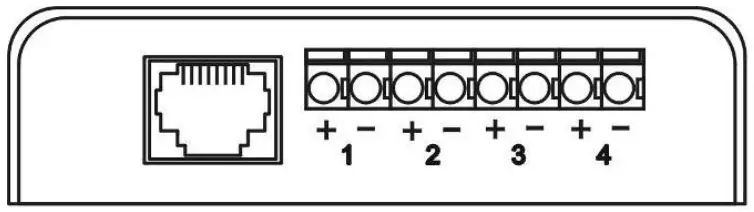

Front View

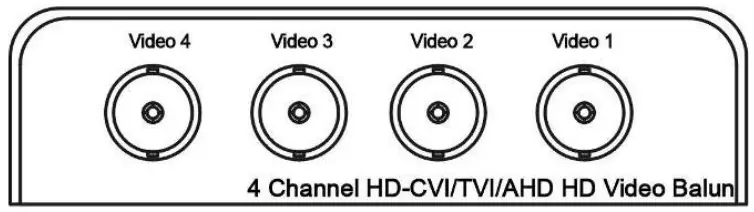

Rear View

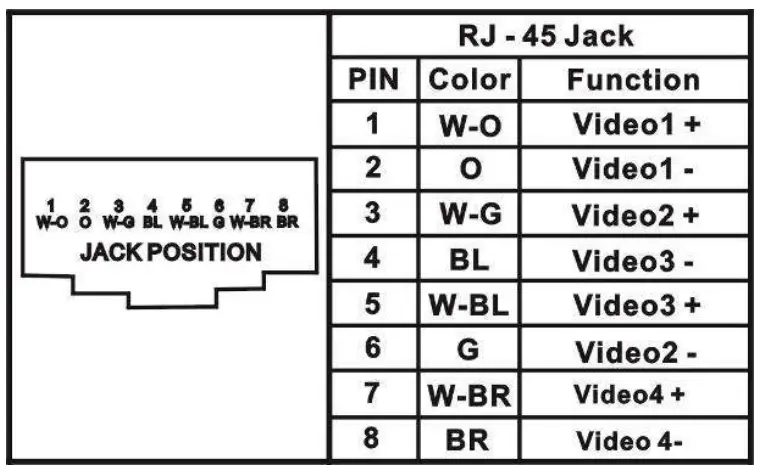

RJ-45 Jack Pin Defintion
NOTE : These devices is reversible, BNC connector ＝ RJ45
This installation should be made by a qualified service person and should conform to all local codes
Cable
Use high quality CAT5e UTP or CAT6 UTP cable. Refer to the distance chart for how long this cable can be run. The distance may be affected by the quality of cable, camera, recorder, etc.
Caution
- The cabling must be kept away from any equipment with an electromagnetic wave, i.e.: microwaves, radio equipment, high voltage, etc.
- Must use same video format camera to avoid any interference.
Specification
| ITEM NO. | ITVIUTP4 |
| Support | |
| Video Format | HD-TVI, AHD, HDCVI, CVBS |
| Max. Video Resolution | 5MP |
| Transmission Distance | Varies by resolution/format/Cable |
| Bandwidth | 50Hz to 60MHz (-3dB) |
| Ports & Interfaces | |
| Video Input/ Output | 4 x BNC (1V p-p, 7511) |
| Link Interface | x 8-Pin Terminal (UTP), 1 x RJ45 |
| Protection | |
| ESD Protection | 30 KV(Air), 15 KV (Contact), IEC 61000-4-2 |
| EFT Protection | 40A(5/50ns), IEC 61000-4-4 |
| Lightning Protection | 2A (8/24s), IEC 61000-4-5 |
| Response Time | <1 nS |
| Ambient Temperature | |
| Operation | 32 to 131°F (0 to 55°C) |
| Storage | -4 to 185°F (-20 to 85°C) |
| Humidity | Up to 95% |
| Physical Characteristics | |
| Dimensions | 4.3 x 3.2 x 1″ (110 x 80.6 x 26.3mm) |
| Weight | 0.4 Lbs (195g) |
Costumer Support
Speco Technologies is constantly developing and improving products.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.
Speco Technologies
. 200 New Highway .
Amityville . NY . 11701 .
