Puig logoGAS GAS SM700 ’22-

MOUNTING INSTRUCTIONS

REF 21474
WINDSHIELD NG SPORT

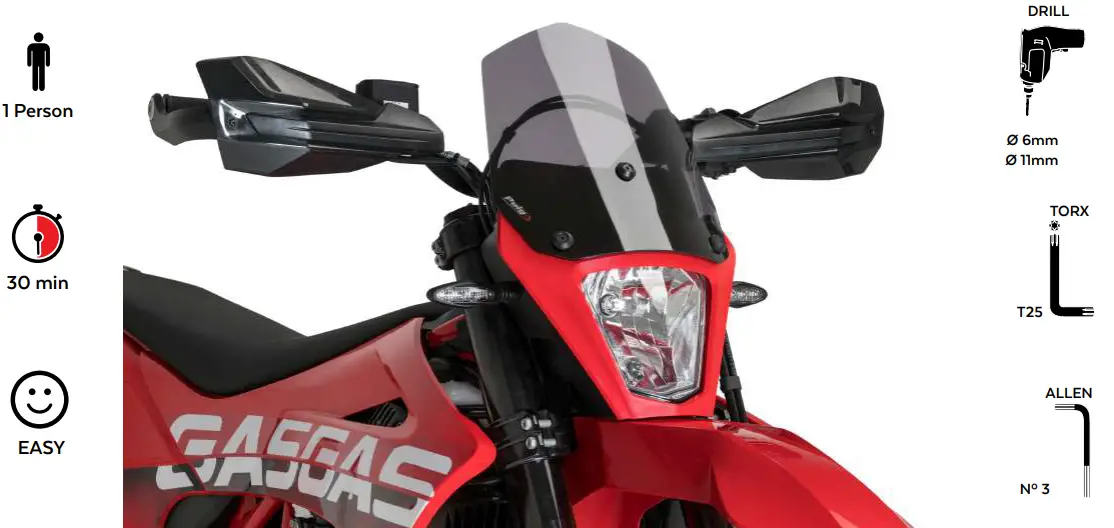

Puig SM700 ’22 Gas - Fig

ID. PARTDESCRIPTIONQTYREF.:
1Puig SM700 ’22 Gas - PARTSport screen121474F/H/W/NM3
2Puig SM700 ’22 Gas - PART 1Template1PLANTILLA-21474
3Puig SM700 ’22 Gas - PART 2Ø18xØ9xØ11×8 silentblock6SILENBGONE–064
4Puig SM700 ’22 Gas - PART 3Ø15xØ9×7,5 Bush with flange3CASQUI-1A—324
5Puig SM700 ’22 Gas - PART 4M5 Bush with flange3CASQUI——517
6Puig SM700 ’22 Gas - PART 5M6 DIN9021 Ø18xØ6,5×1,6 metallic washer1 ARANDPD9021-037
7Puig SM700 ’22 Gas - PART 6Ø9,5xØ14,3×12,7 mm  nylon arrowhead1 DISTANCIADOR—
8Puig SM700 ’22 Gas - PART 7M5x35 DIN7991 screw1TORNIA535–293
9Puig SM700 ’22 Gas - PART 8Ø20xØ6x5mm Plastic conical washer3ARANDENND20-030
10Puig SM700 ’22 Gas - PART 9M5x16 DIN7991 screw2TORNI-D7991-867
11Puig SM700 ’22 Gas - PART 10M5 DIN7991 screw cap3TAPON——–92
12Puig SM700 ’22 Gas - PART 11Cable ties1ABR-00101100539

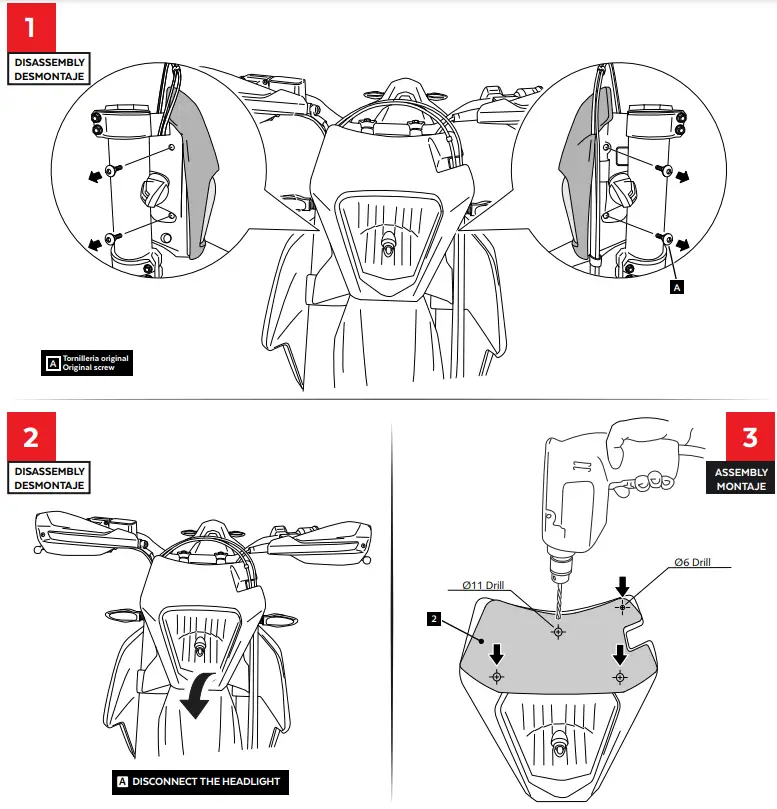

Puig SM700 ’22 Gas - Fig 3Puig SM700 ’22 Gas - Fig 3

www.puig.tv
www.puigusa.com
[email protected]
[email protected]
V0.01/23
Created by: www.rrdisseny.cat
