Greetings from OPPO Mobile
This guide will show you how to use the phone and its important functions. You may also visit OPPO’s official website to get more information about the phone.

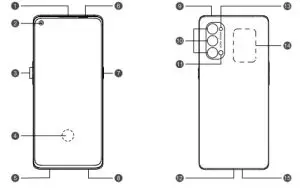

- Receiver & Speaker
- Front Camera
- Volume Key
- Screen Fingerprint
- SIM card tray
- Ambient Light Sensor
- Power Key & Screen Lock Key
- Speaker
- Sub MIC
- Rear Camera
- Laser focus
- USB Jack & Earphone Jack
- Flash
- NFC
- Main MIC
How to reboot the phone
Press and hold the Power Button and Volume Up Button at the same time until the OPPO boot animation is displayed to reboot the phone.
Regulatory
Steps to search Regulatory: Go to Settings-About Phone—Regulatory
How to Transfer Old Mobile Content to a New Mobile
You can use the OPPO Clone Phone to easily transfer photos, videos, music, contacts, messages, apps, etc from your old phone to the new one.
- If your previous phone was a non-OPPO Android phone, search “OPPO Clone Phone” in the Google Play store and install the app. You can also scan the QR code below to install it. If your previous phone was an OPPO phone, you don’t need to install this app. Then run Clone Phone on both phones and follow the on-screen instructions.
https://i.clonephone.coloros.com/download - If your previous phone was an iPhone, run “Clone Phone” on your new phone, and follow the onscreen instructions to migrate your data from your iCloud account.
Accessories and Software Information
You are provided with the following standard accessories:
1 Phone, 1 Charger, 1 Earphone, 1 USB data cable, 1 Safety Guide, 1 Quick Guide,
1 SIM Ejector Tool, 1 Protective Case.
The product software version is: ColorOS V7.2
For the most recent information about accessories and software, please see the DoC (Declaration of Conformity) at www.oppo.com/en/certification.
CLASS 1 LASER PRODUCT
Class 1 Laser Information
This device is classified as a Class 1 Laser product per IEC60825-1:2014. This device contains a Laser that could be damaged during repair or disassembly, which could result in hazardous exposure to infrared laser emissions that are not visible. This equipment should be serviced by OPPO or an authorized service provider.
Specification
Product | CPH2089 | |
| Main screen parameter | 16.5cm(6.5″) | |
| Dimension | 159.6×72.5×7.6(mm) | |
| Battery | DC 7.74V 1955mAh/15.13Wh(Min) DC 7.74V 2000mAh/15.48Wh(Typ) (Equaling to DC 3.87V 3910mAh/15.13Wh(Min) DC 3.87V 4000mAh/15.48Wh(Typ) ) | |
| Camera | 48Megapixels+13Megapixels +12Megapixels Rear 32Megapixels Front | |
| Operating temperature | 0°C-35°C | |
| SAR Values | CE SAR | 0.892W/kg(Head) 1.318W/kg(Body) |
| RCM SAR | 1.493W/kg(Head) 1.444W/kg(Body) | |
Note: The SAR values above are the highest values reported for this device.
Radio Waves Specifications
Radio | Frequency | Max. Output Power |
| GSM | 850MHz | 32.5±1dBm |
| 900MHz | 33±1dBm | |
| 1800MHz | 30±1dBm | |
| 1900MHz | 29.5±1dBm | |
| WCDMA | Bands 1/5/6/8/19 | 24±1dBm |
| Bands 2/4 | 23.5±1dBm | |
| LTE FDD | Bands 1/3/4/28/66 | 23.5±1dBm |
| Bands 2/7 | 23±1dBm | |
| Bands 5/8/12/17/18/19/20/26 | 24±1 dBm | |
| Band 32 | / | |
| LTE TDD | Bands 38/39/40/41 | 23.5±1dBm |
| Band 42 | 23±1dBm | |
| 5G NR | n1/n3/n28/n38 | 23±1dBm |
| n40/n41/n77/n78 | 23±1.2dBm | |
| n5/n8/n20 | 23.5±1dBm | |
| n7 | 22.5±1dBm | |
| Bluetooth | 2.4-2.4835GHz | 8.5±2dBm(EIRP) |
| 2.4G Wi-Fi | 2.4-2.4835GHz | 16±2dBm(EIRP) |
| 5G Wi-Fi | 5.15-5.35GHz; 5.47-5.725GHz | 15±2.5dBm(EIRP) |
| 5.725-5.85GHz | 10±2.5dBm(EIRP) | |
| NFC | 13.56MHz | 42dBuA/m @10m |
™ The N-Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries.
Copyright 0 Guangdong OPPO Mobile Telecommunications Corp., Ltd. 2020. All rights reserved.
