Wireless Audio Glasses
User Guide

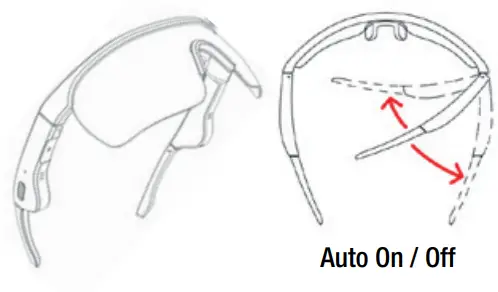

Pair and connect
Soundeus Soundglasses 5S
would like to pair it with your phone
Cancel……………….. Pair
First-time pair

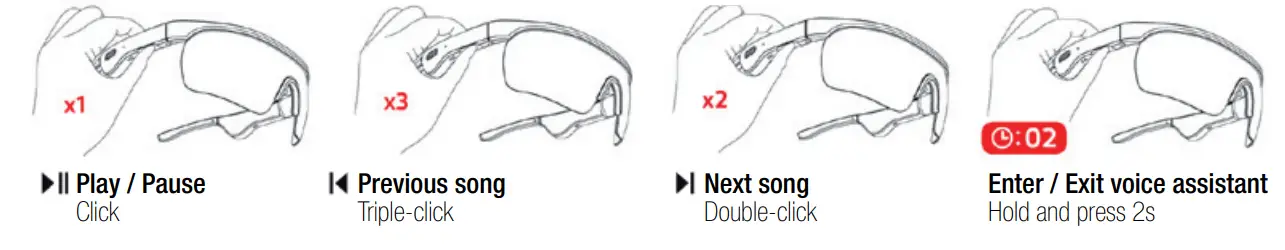

Controls for music

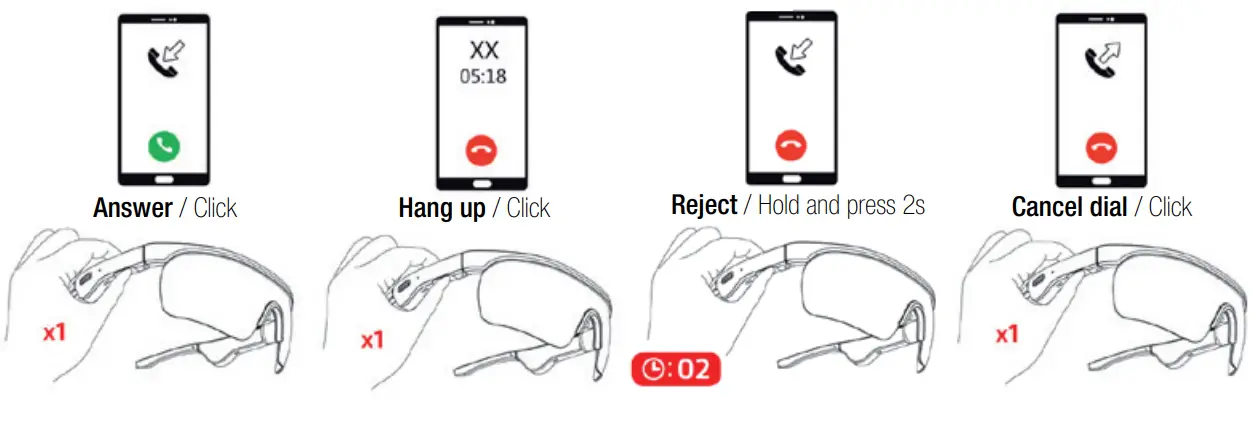

Controls for calling

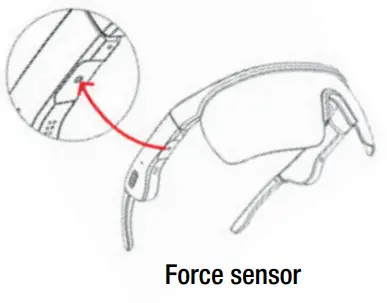

Manual operations
 |  |

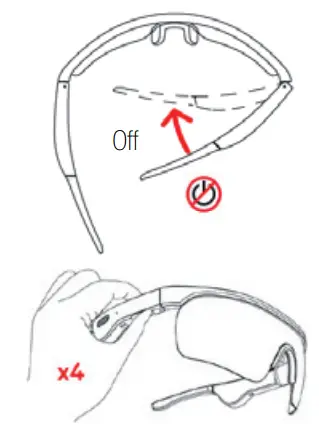

| Enter pairing mode (The current state is power on) Hold and press 5s / Red and blue LED quickly flashes alternately | Reset (The current state is pairing) 4 click / Red and blue LED are on for 2s at the same time |

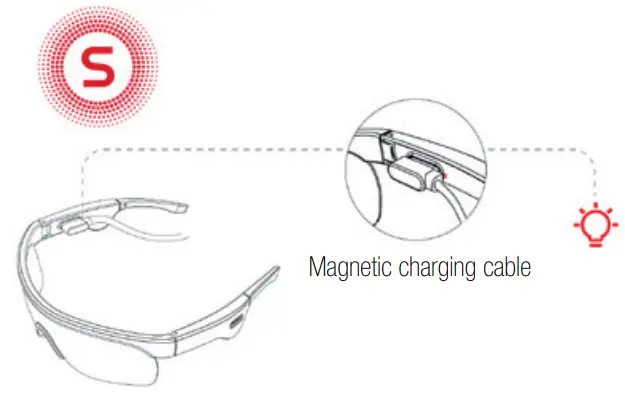

The Battery status of audio glasses
Charging: Red light on
Finished charging: Red light off
Low power: Red light flashing 4 times every minute
Disassemble the lens
 | |

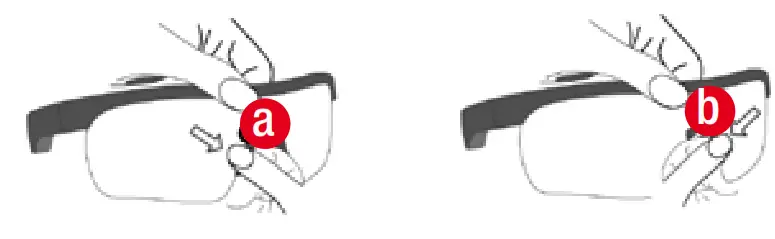

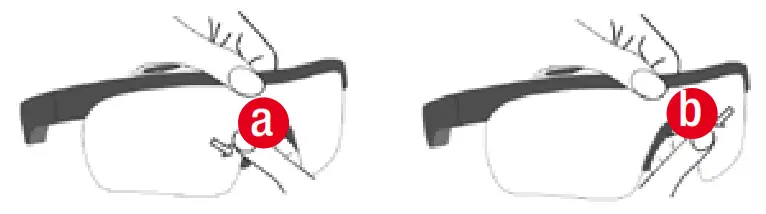

| Hold the frame and lens with your fingers, first pull down the side of the nose pad a, and move the lens out of the nose pad slot. | Pull down on the side of the nose pad b to move the lens out of the nose pad slot. |
 | |

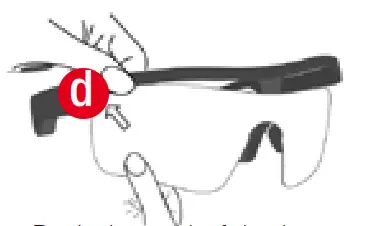

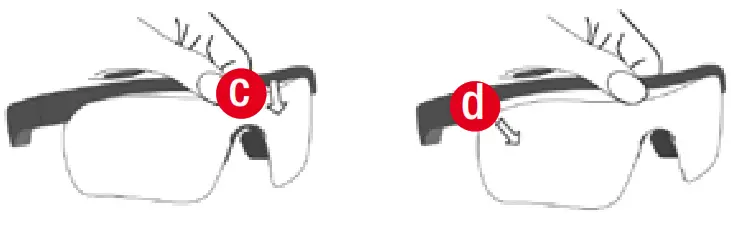

| Push the lens down from point c to move the lens out of the upper frame slot. | Push the lens down from the frame point d to move the lens out of the frame slot. |
 |  |

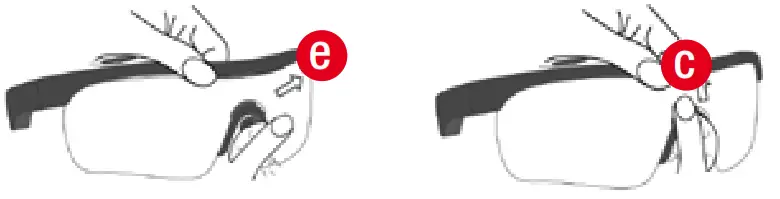

| Push the lens down from the frame e to move the lens out of the frame slot. | Push the end of the lens upwards into the slot at point d of the lens frame. |
 | |
| Slightly bend the end of the other side of the lens and push it up into the slot at point e of the lens frame. | Push the lens up into the card slot at the frame point c. |
 | |
| Push the lens down into the slot at the nose pad a and fix it. | Push the lens down into the slot at the nose pad b and fix it. |
Safety Warnings and maintenance
Continuous exposure to loud music can cause hearing damage. Improper handling, damage, or improper repair of the
device, battery, and accessories can result in an explosion or fire.
Product disposal
This symbol indicates that the product should not be discarded as unsorted municipal waste. In order to properly dispose of the product, take it to designated collection points. For more details, contact your local authority or the nearest collection point.
Safety instructions
For the proper disposal of el. products, follow the local waste disposal regulations in your country.
The battery in the product is not removable, so dispose of the product as a whole.
This product complies with all the essential requirements of the relevant EU directives.
We reserve the right to make changes to the text, design, and technical specifications Without prior notice.
Distribution Czech Republic: Praha Music Center, s.r.o.,
Ocelářská 937/39; 190 00 Praha 9; http://www.pmc.cz
Warranty / post-Warranty service PMC: Praha Music Center, s.r.o.
Rakovnická 2665, 440 01 Louny;
Tel.: +420226011197; E-mail.: [email protected]
Praha Music Center
