Multi-functional Scooter Seat for Nanobot Kick Scooter
User Manual
The pictures shown are for illustrations purposes only .
The actual product may vary.

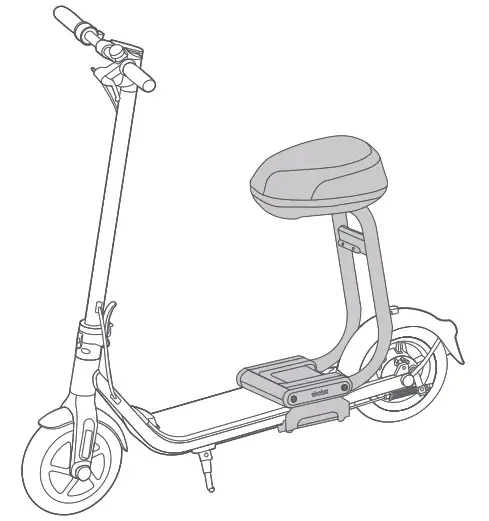

D40X Multi-Functional Scooter Seat for Nanobot Kick Scooter
Welcome
The multi-functional scooter seat for Nanobot Kick Scooter is designed for the Nanobot Kick Scooter D series. Enjoy a comfortable ride on your seat with it.
The pictures shown are for illustrations purposes only .
The actual product may vary.

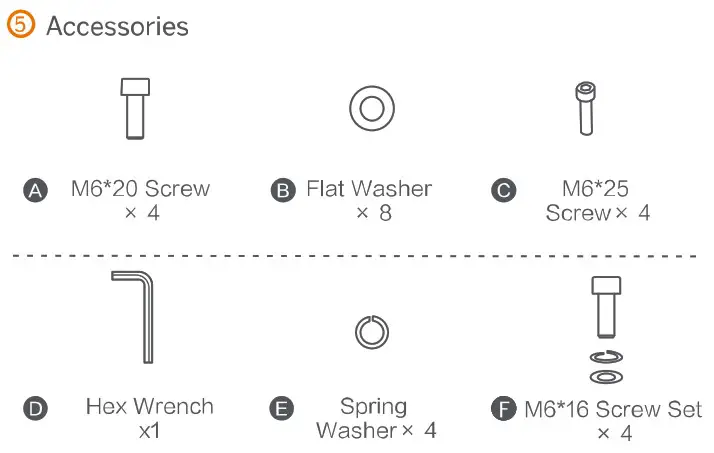

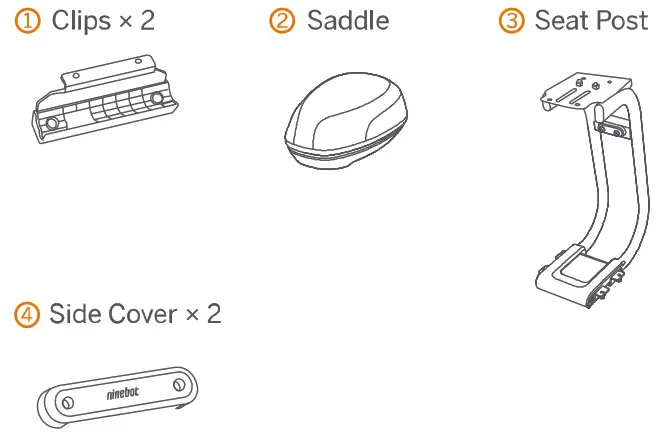

Packing List
Diagram
Installation and Usage
- Seat installation

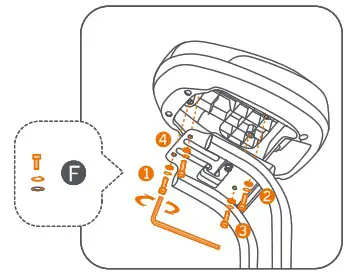

1. Place the saddle on the seat post, and tighten the screw set in order.

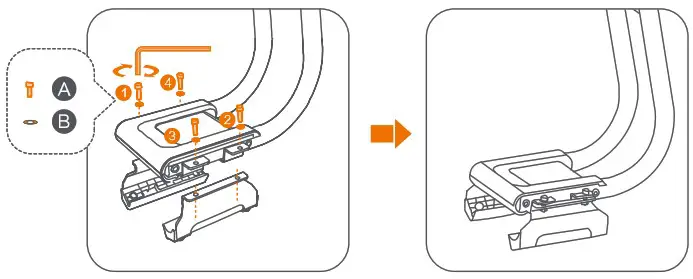

2. Install the clips and pre-tighten the screw set in order.

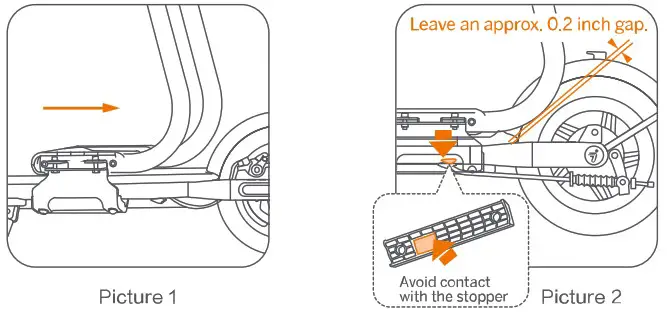

3. Place the seat assembly on the middle of the footboard (illustrated as Picture 1), and move it to the position illustrated as Picture 2.
* Watch out for the location of the avoiding rubber stopper.
4. Tighten the screws in order.
5. Install the two side covers.

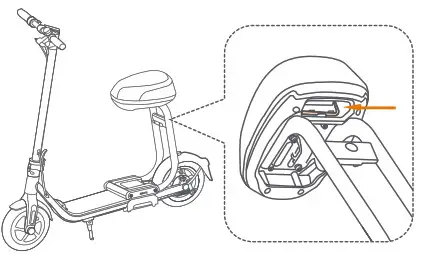

6. After installation, store the hex wrench below the seat.
- Ride in Sitting Position
2. Install the clips and pre-tighten the screw set in order.
3. Place the seat assembly on the middle of the footboard (illustrated as Picture 1), and move it to the position illustrated as Picture 2.
4. Tighten the screws in order.
5. Install the two side covers.
6. After installation, store the hex wrench below the seat.
Caution!
- The scooter is designed for one rider only.
- Make sure that the saddle and the seat post are mounted firmly before each ride.
- Do not fold the scooter after installing the scooter seat.
Specifications
| Product Name | Multi-functional Scooter Seat for Nanobot Kick Scooter |
| Size | 13.6 x 8.07 x 25.2 in (346 x 205 x 640 mm) |
| Net Weight | 9.71bs (4.4 kg) |
| Seat post | Stable dual seat post |
| Height | 22.0 in (56 cm) |
| Material | Highly-elastic foam sponge |
| Max. Load | 265 lbs (120 kg) |
| Compatible with | Nanobot Kicks Cooter D Series (D40X) |
Trademark
Ninebot is the registered trademark of Nanobot (Beijing) Tech.
Co., Ltd; The respective owners reserve the rights of their trademarks referred to in this manual. We have attempted to include description and instructions for all the functions of the
Scooter Seat for Nanobot Kick Scooter at the time of printing.
However, due to constant improvement of product features and changes of design, your seat may differ slightly from the one shown in this document.
©2022 Ninebot (Beijing) Tech Co, Ltd. All rights reserved.
After-sales Service
For aftersales service information, please visit our official website.
