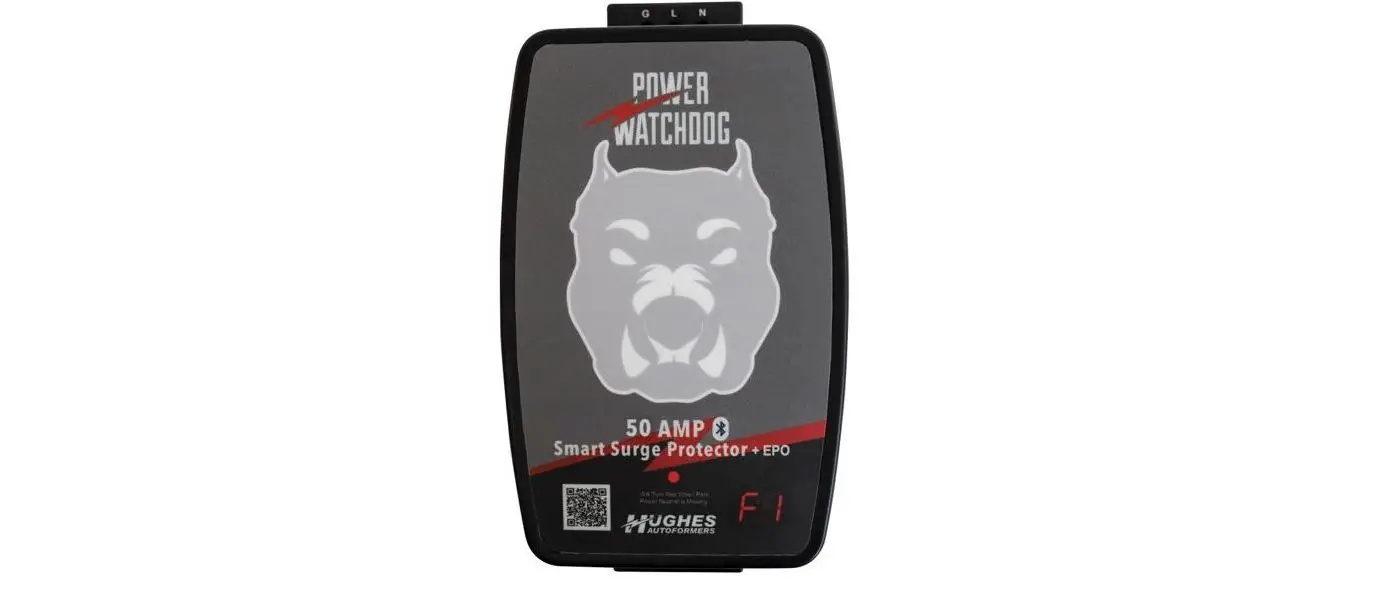

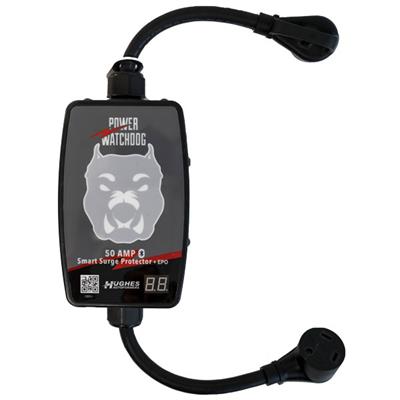

POWER WATCHDOG 50 Amp Bluetooth Surge Protector with Auto Shutoff- Portable
- Step One:
Loosen and unscrew the top and bottom cable gland connectors.
- Step Two:

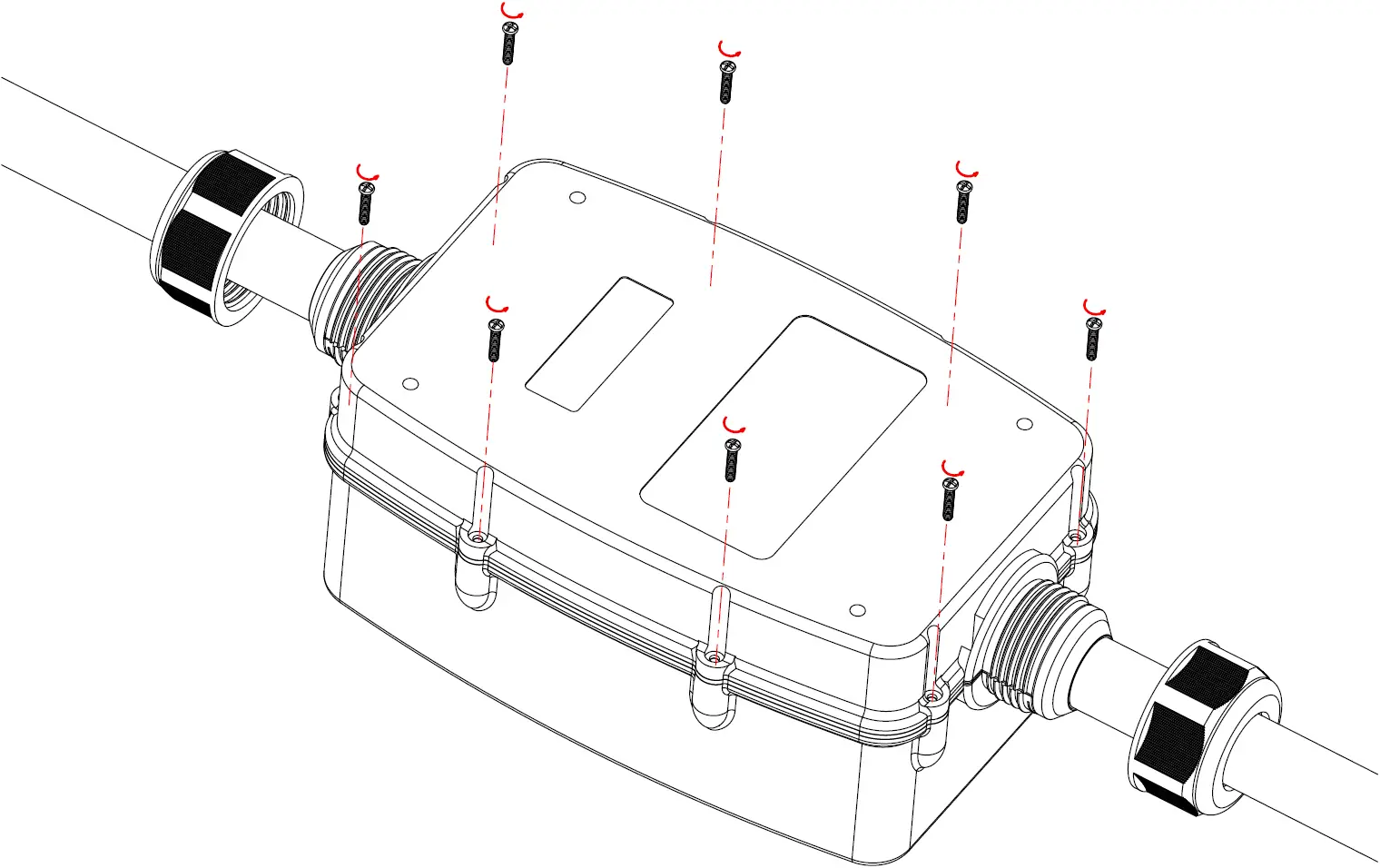

Unscrew the 8 Phillips screws on the back side of the unit.
- Step Three:

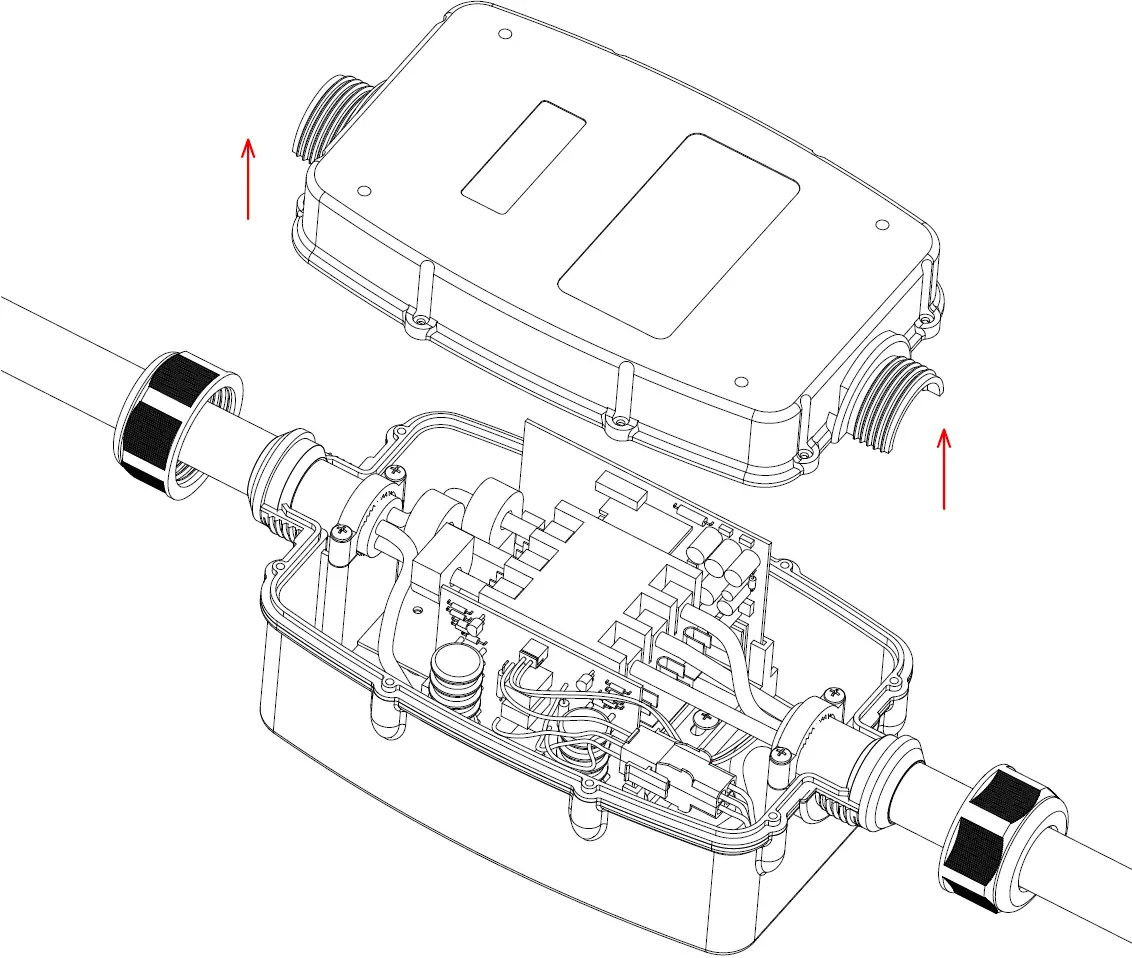

Carefully separate the top and bottom halves of the Power Watchdog Unit.
- Step Four:

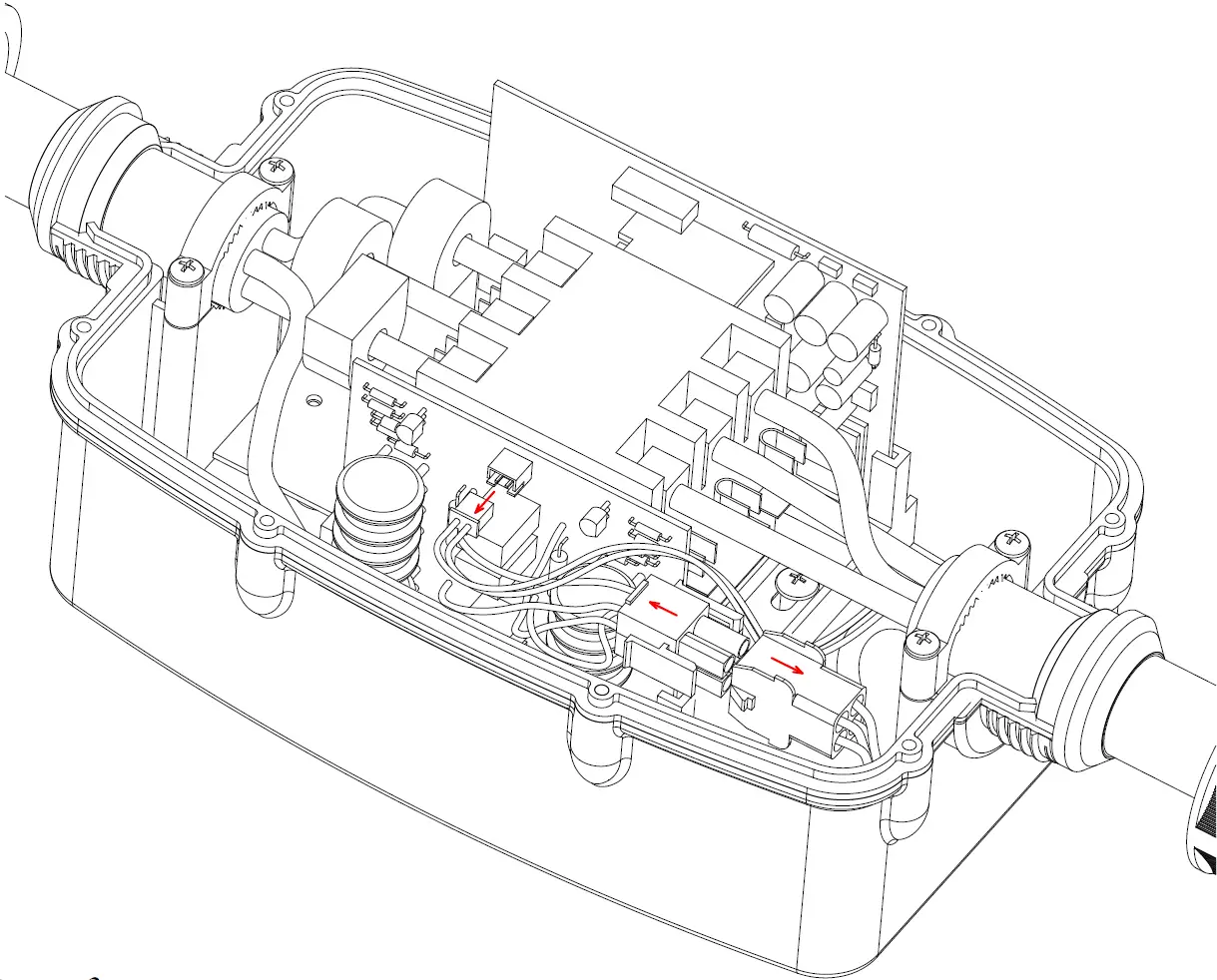

Unclip the connections. Take note of where these connections come from.
- Step Five:

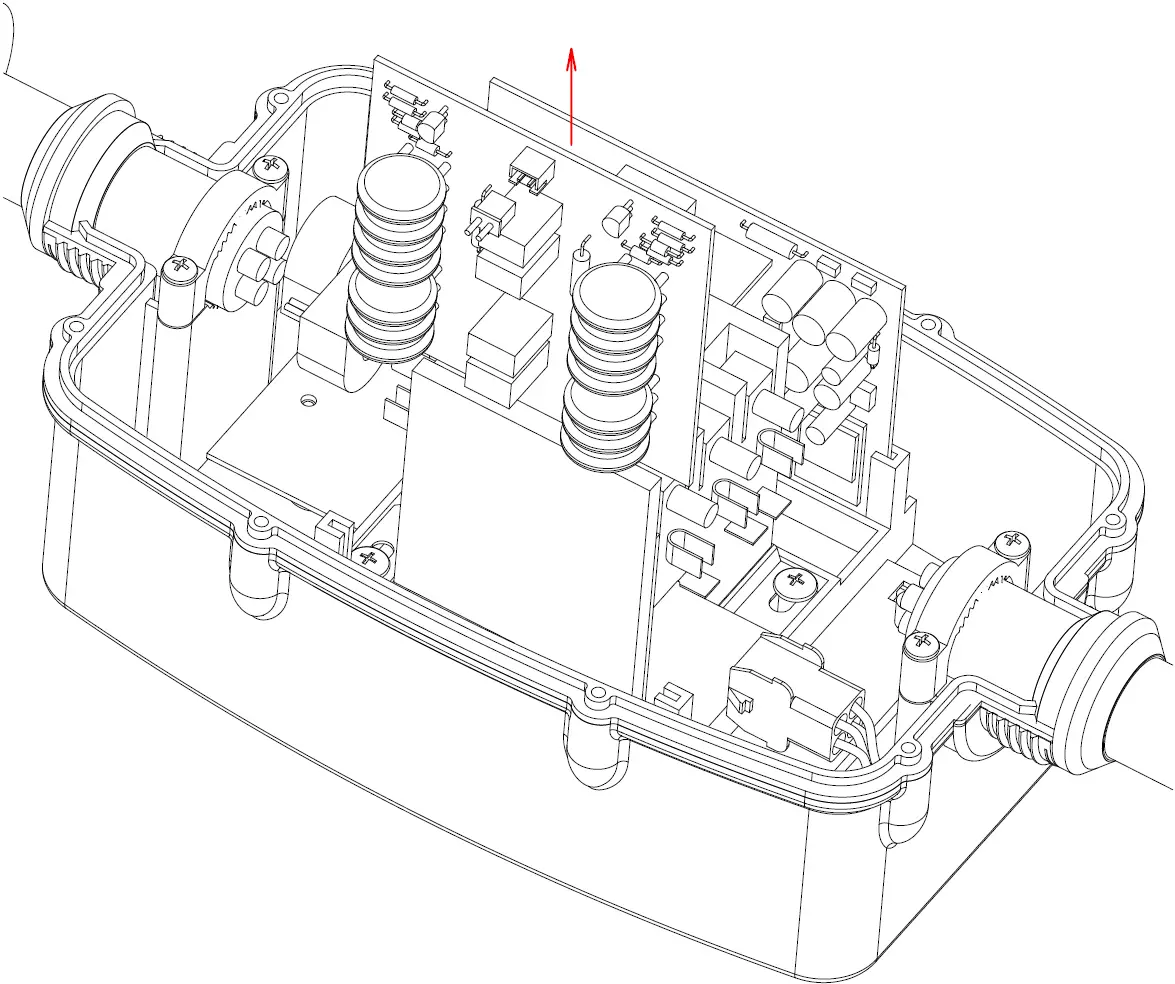

Carefully slide out the used up surge module.
- Step Six:

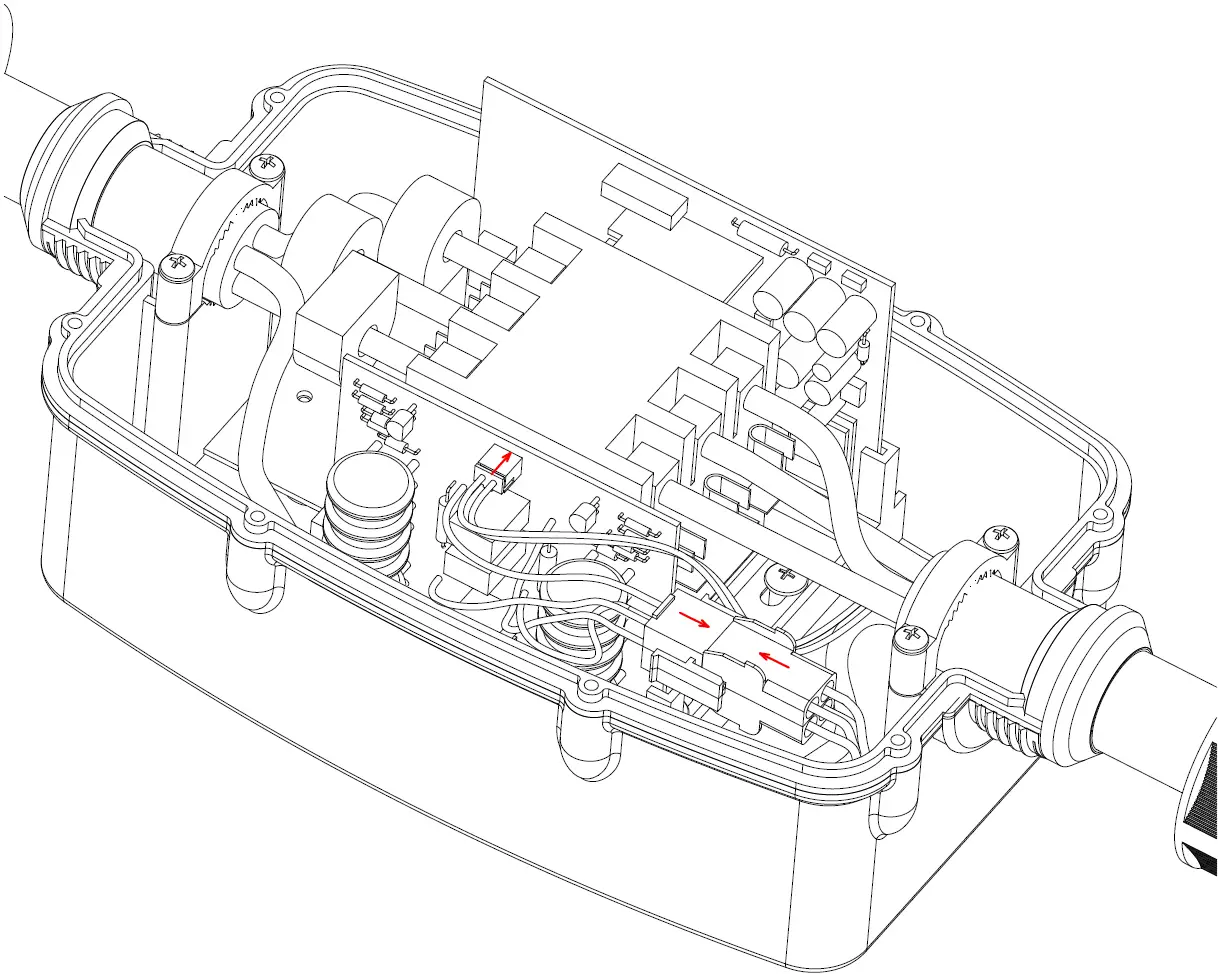

Slide in the new surge module into the slots inside the Power Watchdog unit. clip the connections.
- Step Seven:

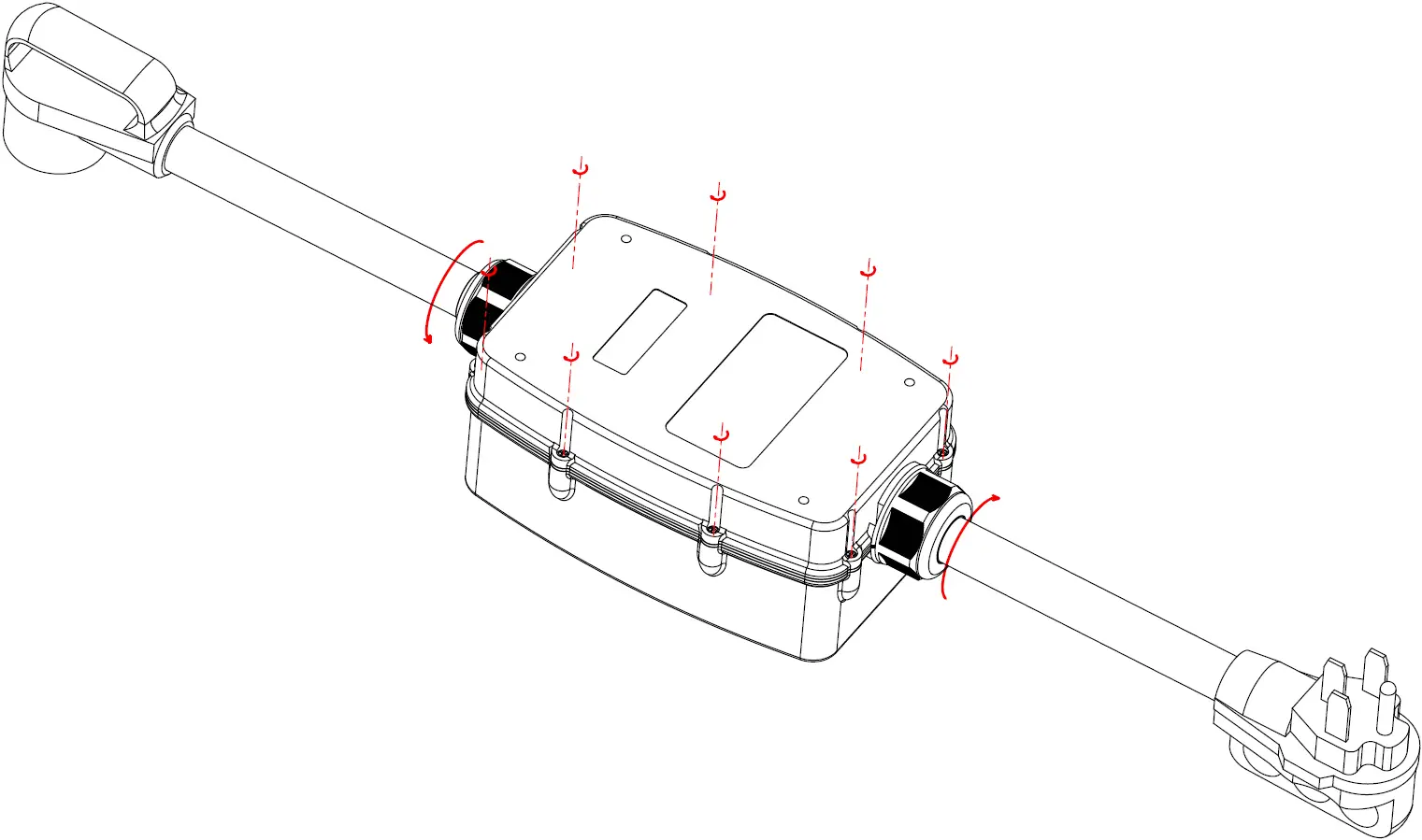

Place top and bottom halves together, re-screw all the screws, tighten down the cable gland connectors.
