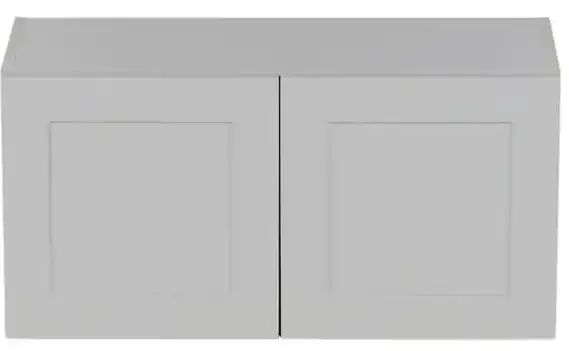

HAMPTON BAY CM3012W-WH Cambridge Shaker Assembled 30x12x12.5 Inch Wall Cabinet
Planning Guide
- Measure and note the ceiling height and any existing soffits.
- Measure and note all wall lengths.
- Check corner squareness at the floor level, at the top of the base cabinets, and at the top and bottom of wall cabinets to determine if you will have any areas that will require adjustments during cabinet installation.
- Measure and note the location of obstacles along each wall, recording their height, width, and depth from the outside edge to the outside edge, including doors, windows, outlets, vents, and pipe chases.
- Identify and note existing plumbing, electrical, and lighting center lines on all walls including:
- Plumbing
- Range hook-up
- Light switches
- Electrical outlets
- Lighting fixtures
- Phone jacks
- Heating/air vents (including locations in the floor)

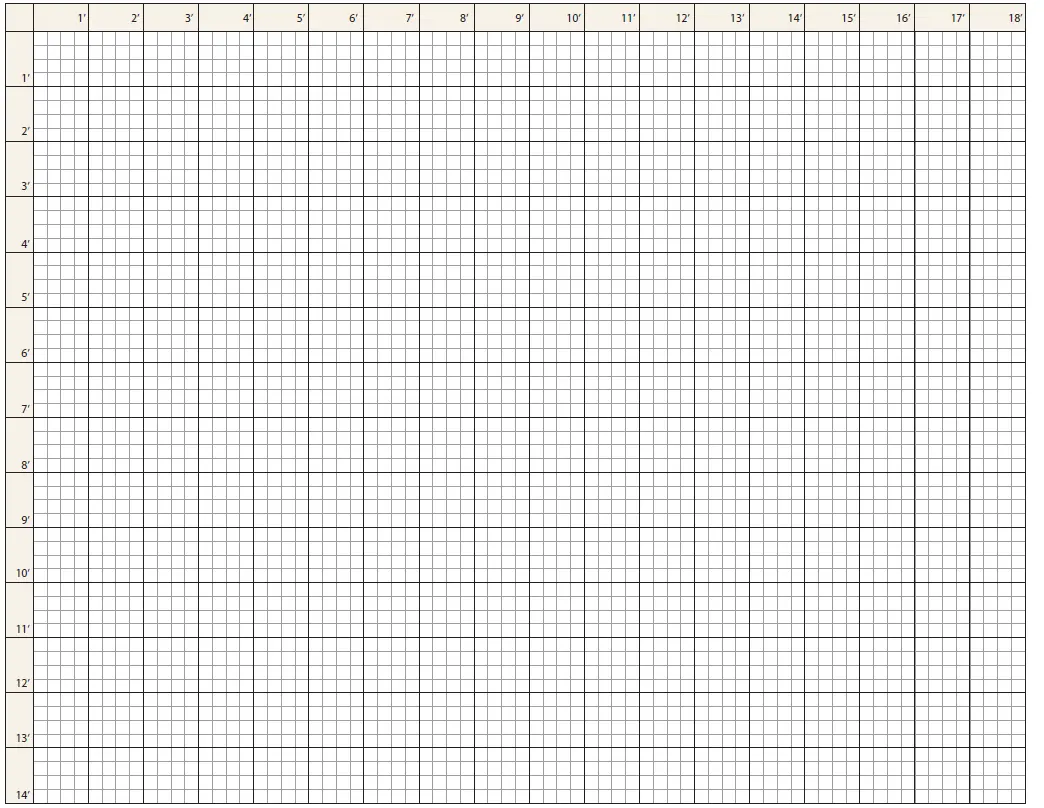

Cabinetry Planning Grid
Measured in feet. Scale: each square represents 3 inches

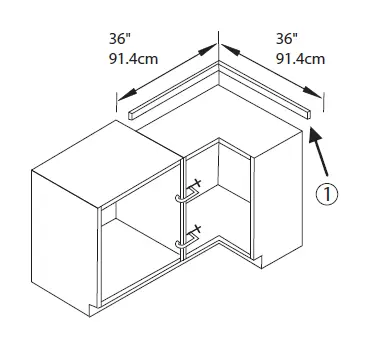

Corner Base Cabinet Installation

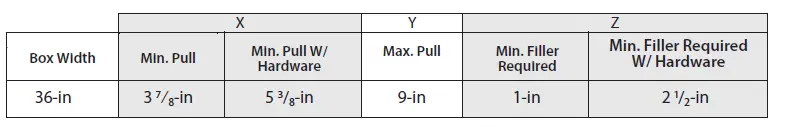

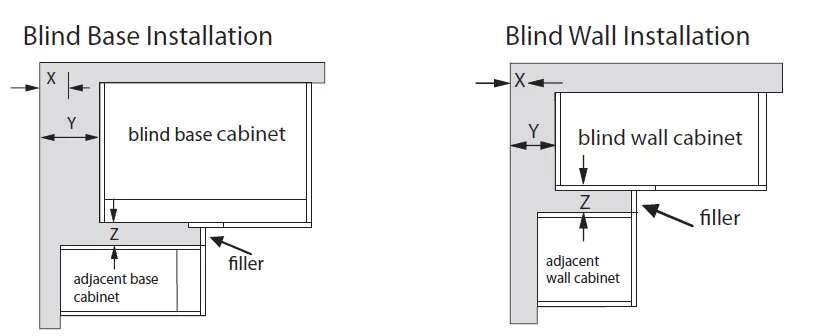

Blind Base Cabinet Installation
Blind Wall Cabinet Installation
Filler needed for proper cabinet installation
