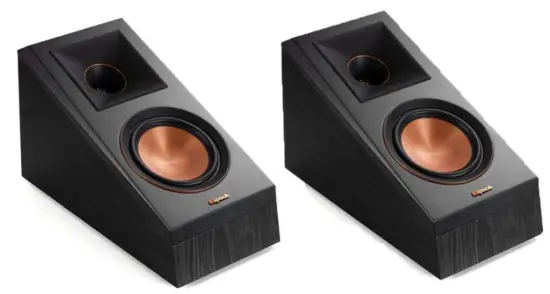

Klipsch RP 500SA Dolby Atmos Surround Sound Speakers Product
REFERENCE
- the standard, the benchmark, the point used for comparison
- the embodiment of the legendary Klipsch sound
LOUD AND PROUD SINCE 1946
In 1946, Paul W. Klipsch revolutionized the audio industry by creating our proprietary horn technology and the acoustic principles that are the driving force behind our highly acclaimed signature sound. Today, we remain true to PWKs vision and pack the better part of a centurys worth of sweat and genius into every product we make. These speakers are the result of our obsession with that aural perfection. Experience the power, detail and emotion of Klipsch Reference Series. We are the Keepers of the Sound.
BEFORE YOU START

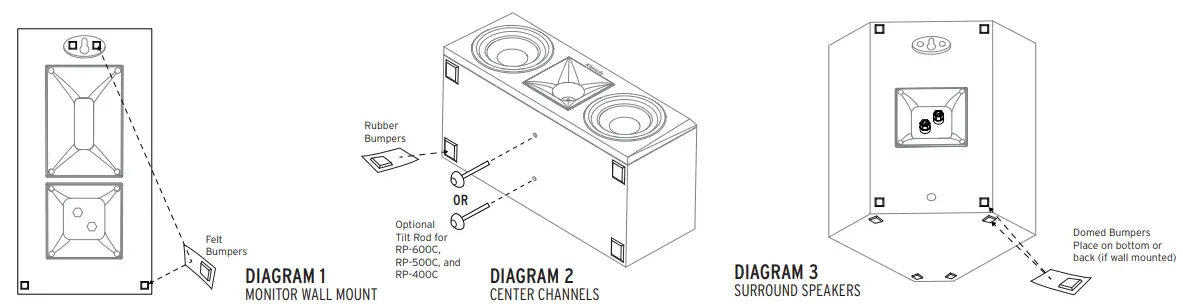

Some Klipsch® speakers have feet and other accessories that may need to be installed prior to use. Please refer to Diagrams 1, 2, 3 and 4 for installation.
ROOM PLACEMENT
Left and Right Main Channel Speakers
For optimum performance, Klipsch Group, Inc. (KGI) suggests placing your speakers 6 to 15 feet (1.8 to 4.6m) apart. They may also be toed-in slightly for better stereo imaging. The listening position should be about 1 to 1.5 times the distance separating the speakers. Refer to Figures 1 and 3 for connection and placement.
Center Channel Speakers
Center channel speakers are designed to place dialogue and primary sounds so that they appear to come from the video screen. The speakers should therefore be placed as close to the screen as possible, preferably directly on top of or below the screen. Refer to Figures 1, 2 and 3 for connection and placement.
Rear Surround Channel Speakers
Klipsch WDST surround speakers should be placed approximately 2 feet above the listening position. Typically this will be about 5-7 feet above the floor. The surrounds should be placed on the walls directly adjacent to the listening position. Another option would be on the wall behind the listening position. The final surround speaker placement depends on your room’s characteristics. They are designed to recreate the sense of space and ambience that many of today’s surround sound technologies provide. Refer to Figures 1, 3 and 4 for connection and placement.
CONNECTION
Conventional Connection
Using 16-12 gauge speaker wire, connect the RED “positive” (+) terminal of the LEFT speaker to the RED “positive” (+) terminal of your amplifier’s LEFT channel. Connect the BLACK “negative” (–) terminal of the LEFT speaker to the BLACK “negative” (–) terminal of your amplifier’s LEFT channel. Repeat this procedure for connecting all remaining speakers to the appropriate amplifier channels. Refer to Figure 3. Make sure that no bare wires from any of the connections touch any other terminals as this could cause a short and damage your equipment. Reference Premiere are equipped with dual binding posts. If single wire connection is used, the terminal connecting bar should remain in place. If Bi-wire or Bi-amp connection is used, the terminal connecting bar must be removed. Please see your receiver’s manual for further instructions.
Amplifier Requirements
Klipsch speakers are highly efficient and will operate easily on a wide variety of amplifiers. All Klipsch speakers are 8-ohm compatible and can be driven to very high levels with low distortion. Due to the high output levels Klipsch speakers are capable of reproducing, exercise caution with the volume control. Excessive volume over long periods can permanently damage your hearing. Overdriving your amplifier could also damage your speakers. Check with your dealer or amplifier manual to make sure your particular amplifier is best suited to your application. We want you listening for a lifetime.

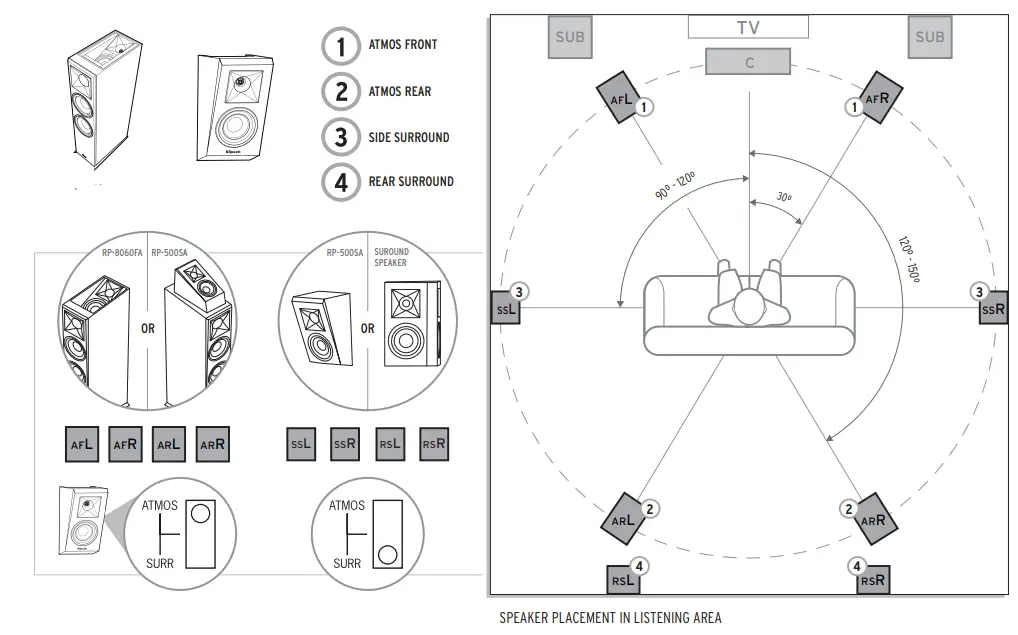

REFERENCE PREMIERE WITH DOLBY ATMOS® TECHNOLOGY

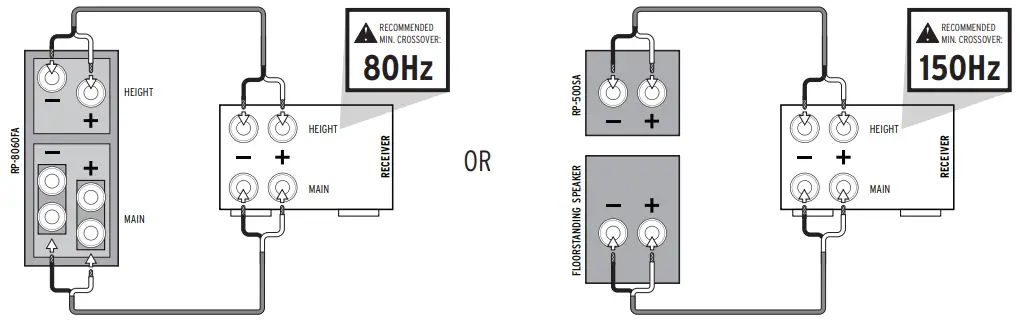

CONNECTIONS

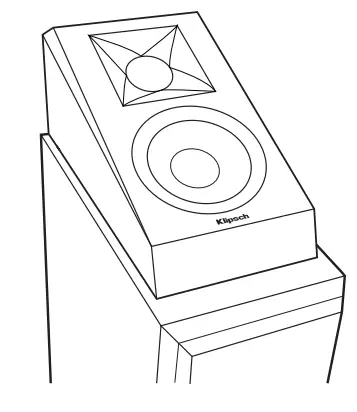

ELEVATION SPEAKER

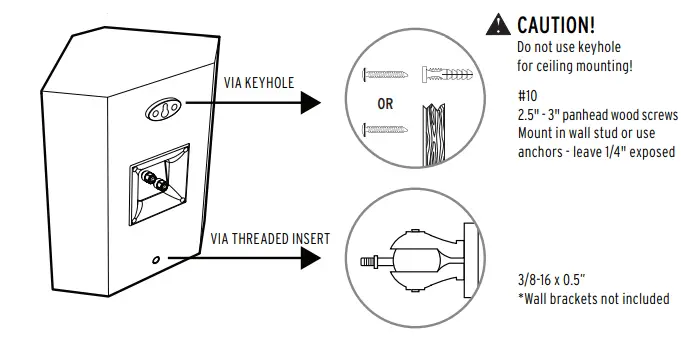

WALL MOUNTING
CARE AND CLEANING
The only thing you should ever need to do to your speakers is dust them occasionally. Never apply any abrasive or solvent-based cleaner or any harsh detergent. You can clean the grilles with the brush attachment of a vacuum cleaner.
PRODUCT REGISTRATION
Register your product online at www.klipsch.com/register
- Keep up-to-date on new products and promotions.
- Your personal information will never be resold.
- This registration information is not used for warranty purposes. Please retain your receipt for warranty claims.
FAQs
The optimal location for surround speakers is equidistant from the listener, on either side and somewhat behind them. There should be at least one metre between the listener and the speakers. To experience this symmetry in a 7.1 system, use the two additional surround speakers as well.
A complete surround-sound system requires two to three speakers in front of you, two to three speakers on either side of you, and two to three speakers behind you. The audio stream is split up into a large number of channels so that the various speakers can provide a variety of sound information. The loudest sounds come from the front speakers.
The centre channel speaker is the most important speaker in a surround sound setup because it does the most of the work. Because it is front and centre on your screen, the centre channel is the one that faithfully reproduces the majority of the dialogue and action in a movie.
When installing immersive audio speakers, place the surround speakers about two feet above sitting ear height, which is often 6 feet. When using immersive formats, it can be difficult to determine what height is optimal because some experts believe surround speakers should be positioned at ear height, with tolerances up to 2 feet above ear height.
Surround sound speakers must be powered in order to function. Wired speakers are connected to the receiver/amplifier through long cords (power source). Batteries, a tiny AC power cable (like that of a small appliance), or a previous charge can all power wireless speakers.
Surround speakers can be utilised as front speakers by flipping the connectors on the AV receiver’s back speakers. The music that should be played through your front speakers will instead be heard through your surround speakers, but the sound quality might not be the same.
In the space, the front speakers should be placed a little lower than the surround speakers. Ideally, 1 to 2 feet above head height when seated. This is done so that a background sound can be created in your room using the surround channels. Therefore, you should gain if they are a little further away from your ears.
The most adaptable option is an AV receiver, but there are also other choices including an all-in-one home theatre system and a soundbar system with surround speakers. Place the surround speakers around the room after installing the audio system. There are a variety of wireless speaker systems, but speaker wire is still the most popular way to connect them.
Through the use of surround sound, multiple audio channels from speakers that surround the listener improve the fidelity and depth of sound reproduction (surround channels). The cinemas were where it was initially employed.
The best distance between the speakers and the listening positions is five feet (1.5 metres), but three feet (0.9 metres) would do, advised David Campbell.
Surround speakers and rear surround speakers are the same in theory. Since rear speakers are not used in the 5.1 sound system configuration, the only variation is where they are placed in the space, which depends on the type of surround system used.
The three main types of surround sound are 5.1, 6.1, and 7.1 channels. The numbers show how many speakers are required for that style of surround sound system. The number after the “.” indicates how many subwoofers there are, and the number before the “.” indicates how many regular speakers there are.
A home theatre system is unquestionably a wise investment if you prefer to watch movies in the best possible quality at home. You can invest as much time and money as you want in building a home theatre, and you’ll get more in return. In all likelihood, the investment will be profitable.
The person speaking to you from behind or to your left is referred to as the left speaker.
The answer is unquestionably yes, provided that the amplifier you’re using supports surround sound. In a typical arrangement, up to five ceiling speakers would be connected back to an AVR, however this setup is complicated, requires a number of wires, and doesn’t provide the user with a great experience.
The majority of people are unaware that surround sound and Bluetooth are incompatible. Due to a few practical considerations, Bluetooth is not suitable for true 5.1, 7.1, or 7.2 surround sound. Two further technologies that make Bluetooth more difficult are THX and Dolby Atmos.
