Braun Hair Clippers For Men User Guide

Braun Hair Clippers for Men

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using this appliance. When disconnected, the hand-held part of this shaving appliance may be used in a bath or shower. For safety reasons, the appliance can only be operated cordless.
DANGER
To reduce the risk of electric shock:

1. The charger unit is not for immersion in water or for use in shower.
2. Do not reach for an appliance that has fallen into water. Unplug immediately.
3. Do not place, store or charge the appliance where it can fall or be pulled into a tub or sink. Do not place in or drop into water or other liquid.
4. Except when charging, always unplug this appliance from the electrical outlet immediately after use.
5. This appliance is provided with a special cord set with an integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it.
6. Do not use an extension cord with this appliance.
7. Unplug this appliance before cleaning.

WARNING
To reduce the risk of burns, fire, electric shock, or injury to persons:

1. Close supervision is necessary when this appliance is used by, on, or near children or persons with disabilities.
2. Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.
3. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or if the power supply has been dropped into water. Return the appliance to a service center for examination and repair.
4. Keep the cord away from heated surfaces.
5. Never drop or insert any object into any opening of this appliance.
6. Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
7. Do not use this appliance with a damaged or broken cutter or comb, as serious skin injuries may occur.
8. Always attach the plug to the appliance first, then to the outlet.
   To disconnect, turn all controls off, then remove the plug from the outlet.
9. When plugging to an electrical outlet outside North America, use a plug adapter to match the outlet’s pin configuration.
10. Caution: The battery used in this device may present a fire or chemical burn hazard if mistreated. Do not disassemble, heat above 100 °C (212 °F) or incinerate.
11. Only use the special cord set provided with the appliance.
    SAVE THESE INSTRUCTIONS
    This appliance is designed for household use only.

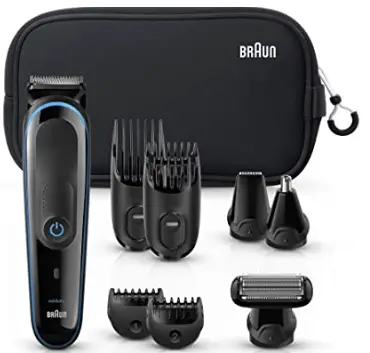

Description

1. Sliding beard comb (3 – 11 mm in 2 mm steps)
   • Sliding hair comb (13 – 21 mm in 2 mm steps)
   • Release button sliding combs
   • Fix comb 1 (1 mm)
   • Fix comb 2 (2 mm)
2. Trimmer head
   • Ear & nose trimmer head
   • Detailed trimmer head
   • Body groomer head
3. On/off button
4. Charging indicator
5. Power socket
6. Special cord set (design can differ)
   For electric specifications, see printing on the special cord set.

Charging

Recommended ambient temperature for charging is 41 °F to 95 ° F / 5 °C to 35 °C. The battery may not charge properly or at all under extreme low or high temperatures. Recommended ambient temperature for trimming is 60 °F to 95 °F / 15 °C to 35 °C. Do not expose the appliance to temperatures higher than 122 °F / 50 °C for extended periods of time.

• Connect the appliance (switched off) via the special cord set (6) to an electrical outlet.
• A full charge takes approx. 1 hour and provides up to 60 minutes of cordless operation time.
• Once the appliance is completely charged, discharge it through normal use. Then recharge again to full capacity.

Charging indicator (4)

• The charging indicator blinks green when the appliance is being charged and during cordless usage.
• When the battery is fully charged, it shines permanently green provided the appliance is connected to an electrical outlet.
• The charging indicator flashes red when the battery is running low. You should be able to finish your current trimming or shaving sequence.

Usage

Exchange the attachments only when the appliance is switched off.
To turn the appliance on, push the on/off button (3).
Beard Trimming / Hair Clipping
Sliding combs (1a, 1b): Place one of the combs over the trimmer head (2a).
Press the release button (1c) and slide the comb to your desired length.
Fixed combs (1d, 1e): Click one of the combs onto the trimmer head (2a).

• Trim against hair growth by guiding the flat comb part over the skin.
• Do not force the appliance through the hair faster than it can be cut.
• Avoid clogging the comb with hair. Remove and clean it from time to time.

Precision and Contour Trimming
Use the trimmer head (2a) without comb attachment or the detailed trimmer head (2c) for shaping sideburns, mustaches and partial short beards.
Ear/Nose Trimming

• Remove any head and click the ear & nose trimmer head (2b) onto the handle of the appliance.
• Carefully guide the appliance to the hair to be trimmed so that they reach into the cutting cage. Avoid introducing the trimmer more than 5 mm (1/4˝) into nose or ear.

Body grooming
Remove any head and click the body groomer head (2d) onto the handle.
It is designed for shaving and trimming of hair on legs, chest and underarms. Use it on dry skin only.

Cleaning and maintenance

• Switch off the appliance.
• Take off any head and comb.
• Use the brush to clean the heads, combs and the appliance. Do not clean the foil of the body groomer head with the brush as it may be damaged.
• The handle, the heads and the combs can be cleaned under running water. Rinse until all residues have been removed. Let all parts dry completely before reassembling them
• To keep the trimmer working properly, oil it with light machine oil (not included) regularly.

Battery removal

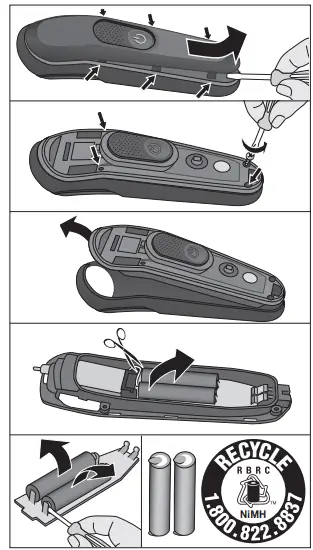

This appliance contains rechargeable batteries. Before disposing of the appliance, disassemble the housing as shown, remove the rechargeable batteries and recycle or dispose of properly, according to local guidelines.
Caution: Disassembling the appliance will destroy it and invalidate the warranty.

Subject to change without notice.

How to obtain service in the USA 60-day money-back satisfaction guarantee

Should your Braun product require service, please call 1-800-BRAUN 11 (272-8611) to be referred to the Authorized Braun Service Center closest to you.
To obtain service:

1.  Carry the product into the Authorized Braun Service Center of your choice or,
2. Ship the product to the Authorized Braun Service Center of your choice.
   Pack the product well.
   Ship the product prepaid and insured (recommended).
   Include a copy of your proof of purchase to verify warranty coverage, if applicable.
   To obtain original Braun replacement parts and accessories:

Contact a Braun Authorized Service Center.
Please call 1-800-BRAUN 11 (272-8611) to be referred to the  Authorized Braun Service Center closest to you.
To speak to a Braun Consumer Service Representative: Please call 1-800-BRAUN 11 (272-8611).

How to obtain service in Canada 60-day money-back satisfaction guarantee

Should your Braun product require service, please call 1-800-387-6657 to be referred to the Authorized Braun Service Center closest to you.
To obtain service:

1. Carry the product into the Authorized Braun Service Center of your choice or,
2. Ship the product to the Authorized Braun Service Center of your choice.

Pack the product well.
Ship the product prepaid and insured (recommended).
Include a copy of your proof of purchase to verify warranty coverage, if applicable.
To obtain original Braun replacement parts & accessories:
Contact a Braun Authorized Service Center.
Please call 1-800-387-6657 to be referred to the Authorized Braun
Service Center closest to you.
To speak to a Braun Service Representative:
Please call 1-800-387-6657.

A 60-day money-back satisfaction guarantee for men’s grooming products

Braun Shavers
Braun Trimmers
Once you have tried your new Braun product, we are confident you will appreciate its performance. We suggest using the product regularly for 2 to 3 weeks. If you are not satisfied with the product, please call 1-800-211-6661 for instructions on how to return the product. Return the unit and all parts within 60 days of purchase. Retain original cash receipt, product and all product parts, including the box. Do not return to the retailer for guarantee fulfillment.
Please note: No refunds will be made for any product damaged by accident, neglect or unreasonable use. Your product must be shipped in its original packaging, with your
original sales slip indicating the date of purchase. Please include the following information when you return your product:

FOR USA ONLY 2-year limited warranty

Braun warrants this Braun product to be free of defects in material and workmanship for a period of two years from the date of original purchase. If the product exhibits such a defect, Braun will, at its option, either repair or replace it for the consumer without charge.
Please call 1-800-Braun 11 (800-272-8611) to be referred to the authorized Braun Service Center closest to you. This warranty does not cover damage resulting from accidents,
misuse, abuse, dirt, water, tampering, unreasonable use, normal wear, servicing performed or attempted by unauthorized service agencies or failure to provide reasonable and necessary maintenance, including recharging.
ALL IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO 2 YEARS FROM DATE OF THE ORIGINAL PURCHASE. IN NO EVENT WILL BRAUN BE RESPONSIBLE FOR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have
other legal rights which vary from state to state.
