JRHBS Series High Output and High Ambient Round High Bay
Instruction Manual
PRODUCT DESCRIPTION
The Jademar JRHBS Round High-Bay luminaire is designed to deliver high efficacy, high lumen packages and precise opal control to illuminate the most challenging applicaandard LED Technology offers the soluo enhance products at all levels of commercial and industrial uses requiring the best opolor.
The JRHBS High Efficacy High-Bay luminaire offers several industry standard mounoduct to be posior upgrade opportuni or new installaange of industrial applica
FEATURES
- Housing: Symmetrical design for consistent installed results. A large number of heat sinks for maximum heat dissipaect added into the system, more energy would be saved and pretenance than HID technology.
- Condenser Lens is both high temperature resistant and aestheally pleasing to achieve maximum output luminous ux.
- Efficiency higher than 160lm/W, designed to replace 750W and 1000W HID while consumes 250W and 340W.
- Open the drive compartment cover from below to facilitate inspec assembly.
- 120 degree lens guarantees light intensity and light uniformity.
- Mounable for Hook or 3/4” Conduit pendant. Hook (default included) or Conduit pendant way for different applica
- Opan be offered for maximizing energy savings.
- Optment dial allows the fixture to meet higher ambient temperature requirements.
- Operaemperature is -40C to 65C (-40F to 149F).
- Resistant to shock and vibra
- UL/cUL IP66 wet locaC qualified.
- AkzoNobel Powder Coated Aluminum Cast Profile
- Corrosion Resistant with 168 Hours of Salt Spray TesTM- B117-73 standards
CONTROLS FEATURES
- Opel Microwave Occupancy Sensor
- Bluetooth® Indoor Controls Op
- Handheld Remote Control for Sensor Programming
- EM Pack Op
- Power cord length opvailable
- 6kV Surge Protector Built Into Driver
CERTIFICATIONS & COMPLIANCES
PERFORMANCE SUMMARY
| Primary Input Power | 250W / 340W |
| Average Efficacy | 161 lm/W on average |
| Input Voltage | 120-277VAC / 347-480VAC Options |
| CCT Options | 4000K / 5000K |
| Controls Options | Bi-Level Microwave Occupancy Sensor and Bluetooth® Indoor Controls Options |
| CRI | >70 Standard |
| Ambient Temperature | -40°C to 65°C (-40°F to 149°F) |
| Certifications & Compliances | UL Listed / DLC Pending |
| Lifetime Based on TM21 | L70 ≥ 174,000 Hrs / L80 ≥ 129,000 Hrs/L90 ≥ 81,000 Hrs |
| Limited Warranty | 10 Years |

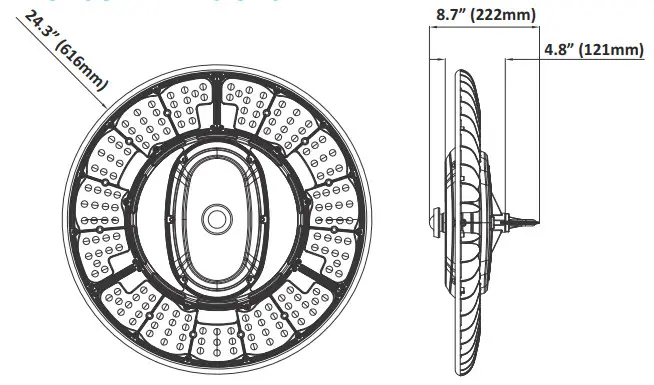

PRODUCT DIMENSIONS
Weight
250W: 16.27lbs
340W: 17.57

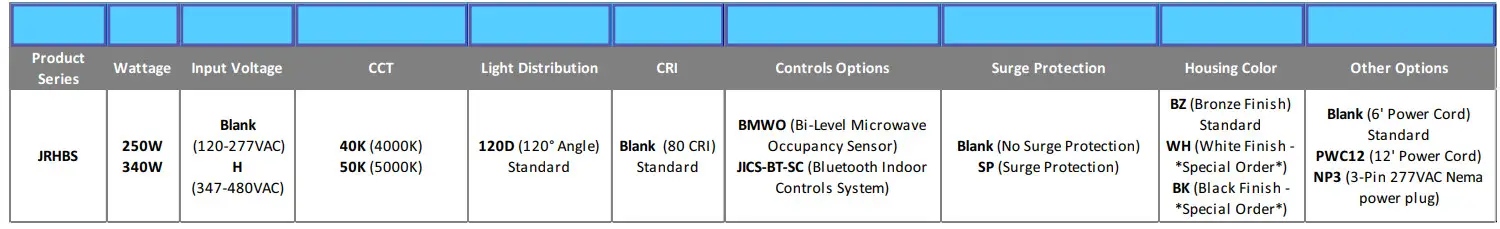

SPECIFICATION SUBMITTAL DETAIL
FIELD INSTALLED OPTIONS
| RCS-75-34 | 34 (3/4″) Swivel Canopy 4” for Round/Octagonal J-BOX with cover |
| SCS-75-34 | 34 (3/4″) Swivel Canopy 4” for Square J-BOX with cover |
| RSC-RM-34-18P | 34 (3/4″) with 18″ pipe Swivel Canopy 4” for Round/Octagonal J-BOX Rapid Mount w/Hinged Door |
| SSC-RM-34-18P | 34 (3/4″) with 18″ pipe Swivel Canopy 4” for Square J-BOX Rapid Mount w/Hinged Door |
LUMEN PERFORMANCE AND ELECTRICAL DATA
| Model Number | JRHEIS-250W | JRHELS-340W | |||||||
| Nominal Wattage | 250W | 340W | |||||||
| Input Voltage | 120-277V | 347-480V | 120-277V | 347-480V | |||||
| Color Temperature (CCT) | 4000K | 5000K | 4000K | 5000K | 4000K | 5000K | 4000K | 5000K | |
| Lumens (Im) | 40,000 | 40,100 | 40,300 | 41,000 | 54,300 | 55,500 | 54,300 | 55,500 | |
| Nominal Efficacy (Im/W) | 160 | 160 | 161 | 164 | 160 | 163 | 160 | 163 | |
| Ambient Working Temperature | 40°C to 65°C (-40°F to 149°F) | ||||||||
| CRI | >70 | ||||||||
| Light Distribution | 120° PC Optics Standard | ||||||||
| Certifications & Compliances | FCC / UL Listed / DLC Pending | ||||||||
| Dimming / Control Options | Bi-level Microwave Occupancy Sensor w/ Hand-held Remote Control Option | ||||||||
| Power Factor | >0.9 | ||||||||
| THD | >15% | ||||||||
| Lifetime Based on TM21 | L70 @ 174,000Hrs / L80 @ 129,000Hrs / L90 @ 81,000Hrs | ||||||||
| Housing Material | AkzoNobel Powder Coated Aluminum Cast Profile | ||||||||
| Limited Warranty | 10 Years Limited | ||||||||
MOUNTING OPTIONS – PENDANT SWIVEL CANOPY TYPES

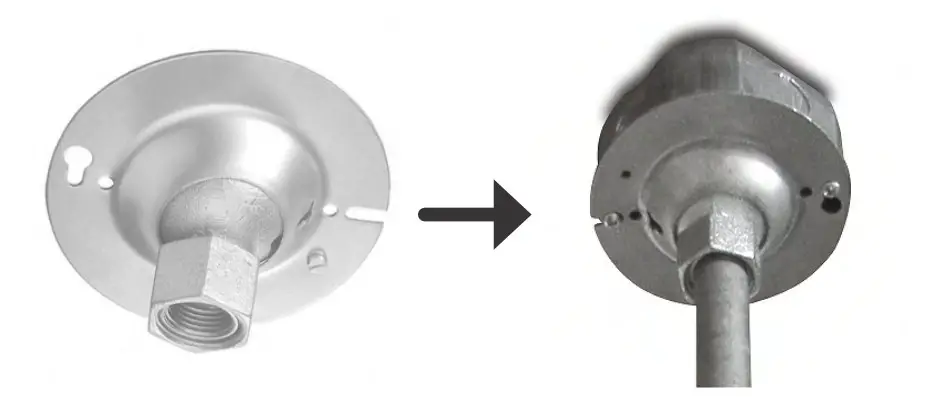

Swivel Canopy 4” for Round/Octagonal J-BOX with cover:
RCS-75-12 or 34 (1/2″ / 3/4)

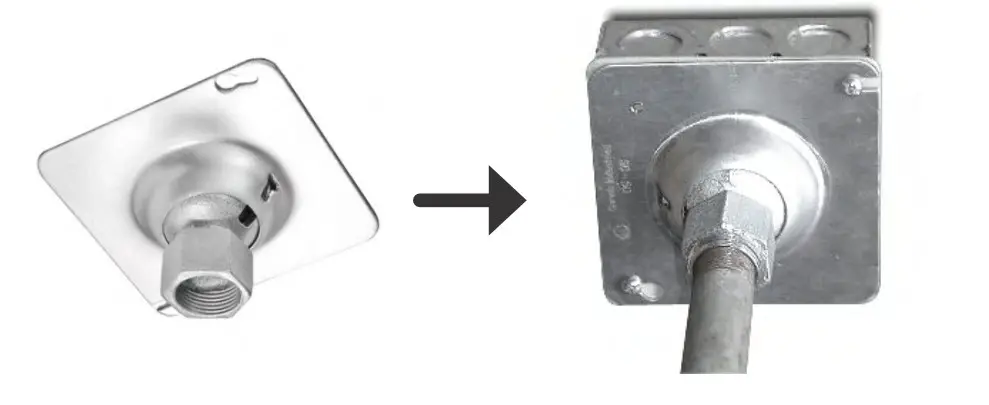

Swivel Canopy 4” for Square J-BOX with cover:
SCS-75-12 or 34 (1/2″ / 3/4)

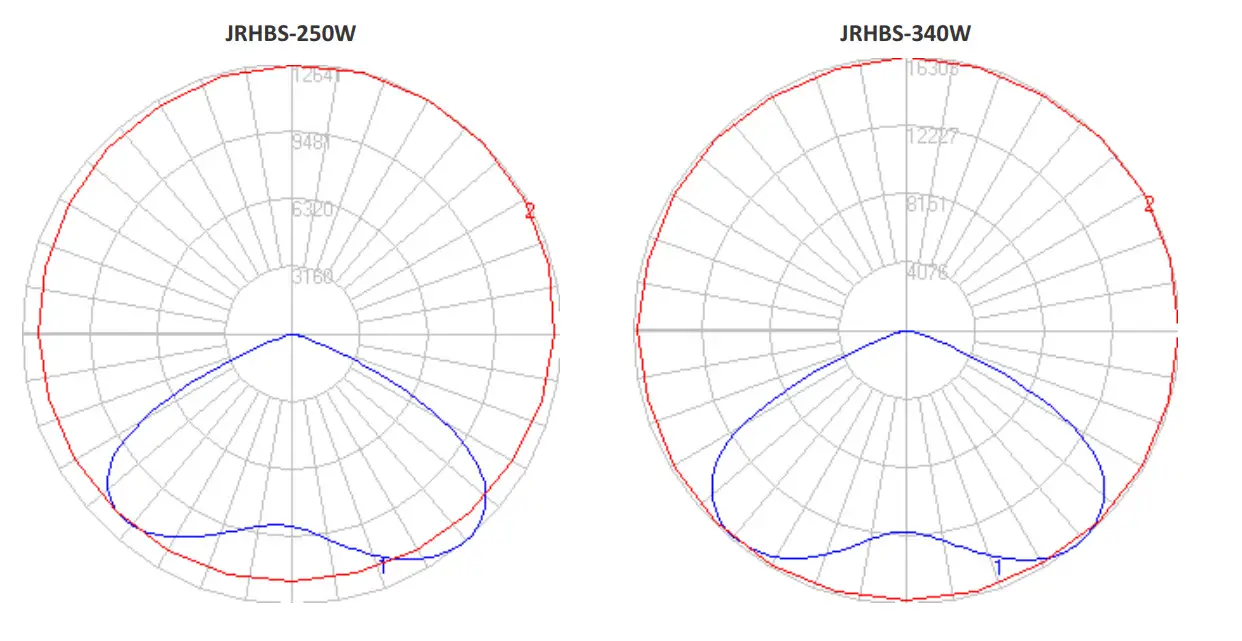

PHOTOMETRY
