Urban Factory Upb05uf Juicee Max Portable Power Pack User Guide

URBAN factory UPB05UF JUICEE MAX Portable Power Pack

Features

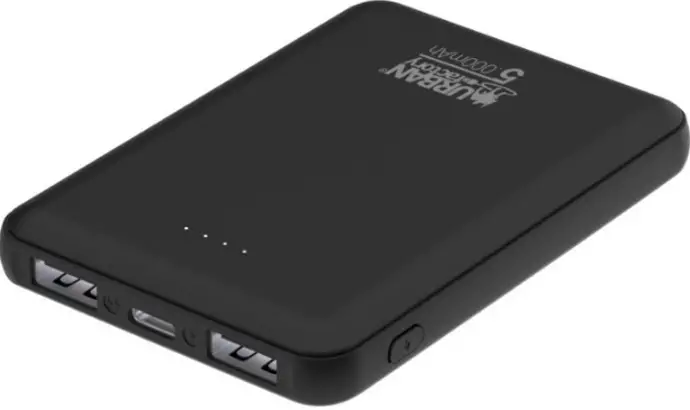

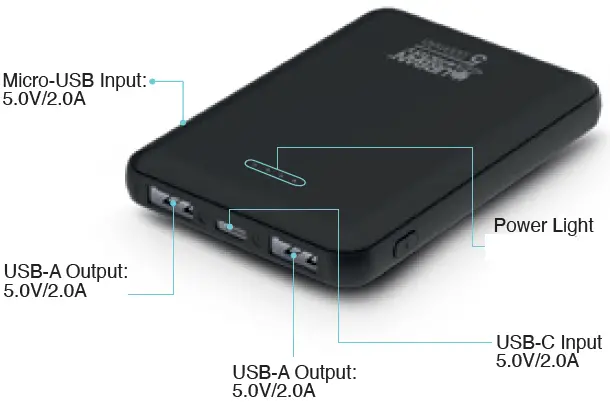

Product Appearance

Specifications

• Battery type: A grade high-energy density Polymer cell
• Capacity: 5 000mAh – 18,5Wh
• USB-C Input: DC 5V 2.0A
• USB-A Output (1 & 2): DC 5V 2.0A
• Micro-USB Input: DC 5V 2.0A

Into the box

• 1* Powerbank
• 1*Micro-USB / USB-A Cable 30CM
• 1*User Guide

Display light

Indicator light

• 4 lights on the device to show the capacity
  • Flashing
  • Switch off
  • Lighting
  • Power bank will check and show the percentage of capacity when power on.

CHARGE THE POWER BANK

CHARGE THE POWER BANK
Display	Lights	Level	Notes
1 Flashing		0%–25%	The power bank is full when all the lights are ON.
1		25%–50%
2		50%–75%
3		75%–100%
4		100%

CHARGE THE DEVICES

CHARGE THE DEVICES
Display	Lights	Level	Notes
1 Flashing		0%–25%	Power bank is full when all the lights are ON.
1		25%–50%
2		50%–75%
3		75%–100%
4		100%

Charging instructions

Charge the Powerbank

• Connect the USB-A cable port to a charging device and the other end to the USB-C or the Micro-USB input connector.
• After connecting, the power bank will automatically be charged and the current power level on the battery status indicator will flash.

How to use the battery

• Connect your device on the battery with the appropriate cable. The battery will discharge automatically and the power indicator will turn off after 5s.

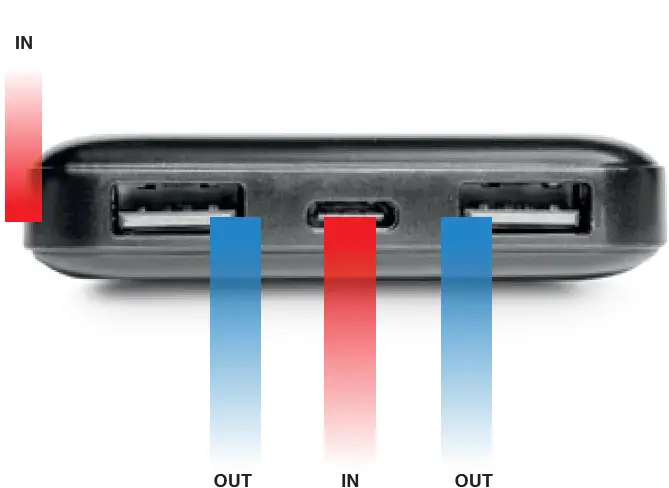

• USB Output: Charge your smartphone or tablet
• Micro-USB or USB-C Intput: Charge your Powerbank

Storage

If you don’t use the battery

1. Recharge the battery to half capacity and keep it in a cool and dry place.
2. It is recommended to perform a complete charging and discharging every 3 months.

Safety instruction

• Do not throw the battery into fire, it might burn, explode or releae toxic gas.
• Do not connect postive and negative poles.
• Do not store battery with other metallic materials.
• Do not open the battery and do not drop it into water, the battery needs to keep dry.
• Stop using the battery if leaking, heating itself, out of shape, smelling or any abnormal phenomenon.
• Use the battery at room temperature between 10°C and 30°C.
• Do not charge with a non certified device.

Warning

1. Do not charge the battery and your external device at the same time.
2. Do not let cables be connected to the USB outputs if the battery is not in use.
3. If your device required a higher voltage than the battery, your device might not charge or not fully charge.
4. If your device required lower voltage than the battery, the battery might overcharge or damage your device.

Declaration of Conformity

URBAN FACTORY hereby declares that the UPB05UF power bank complies with the essential requirements and other relevant provisions of Directive 2014/53 / EU.

• Headquarters: Urban Factory, 57 rue de la Convention 75015 Paris FRANCE
• Product Name: JUICEE MAX: USB-C / USB-A POWERBANK 5.000MAH
• Reference: UPB05UF

To which this statement relates is in conformity with the following European and international normative document(s).

European Low Voltage Directive (Directive LVD 2014/35/EU )

• EN 62368-1: 2014 + A11: 2017

Regulation 1907/2006 (REACH)

EMC (Directive 2014/30/EU)

• EN 55032 : 2015 + A1: 2020
• EN 55035 : 2017 + A11: 2020
• EN 61000-3-2: 2019; EN 61000-3-3: 2013 + A1: 2019

Signed in Paris

• Name and function

• 20th December 2021 by
  • Thierry Zeitoun
  • General Manager

Contact

• Contact: [email protected]
• Tel: +33 (0)1 45 78 45 78
• URBAN-FACTORY.COM
