Aukey Ls02 Fitness Tracker Smartwatch User Manual

LS02 Fitness Tracker Smartwatch
User Manual

Thank you for purchasing the AUKEY LS02 Smartwatch.
Please read this user manual carefully and keep it for future reference. If you need any assistance, please contact our support team with your product model number and  Amazon order number.

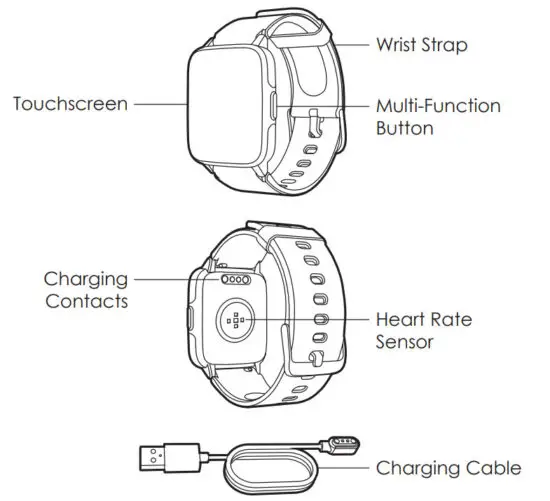

Product Diagram

Specifications

Getting Started

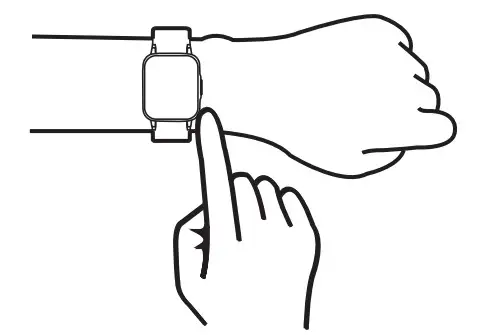

Wearing

For maximum comfort, it’s recommended that you wear the watch one finger-width away from your wrist bones with the strap fastened firmly but not too tight.
Note

• A loose watch strap on your wrist may affect data collection of the heart rate sensor

Installing the AUKEY Fit App

Long-press the multi-function button to turn on the watch, and use your phone to scan the QR code on the watch screen or below to download and install the ‘AUKEY Fit’ app
for data sync. This app is also available in your phone’s app store.

http://app.aukey.com/download/international.html

Note

• For stable and continuous connection between AUKEY LS02 Smartwatch and AUKEY Fit App, please ensure that the Bluetooth function of your device is on and AUKEY Fit App on your device is running in the background.

Pairing
Follow in-app instructions to pair the watch with your phone via Bluetooth.

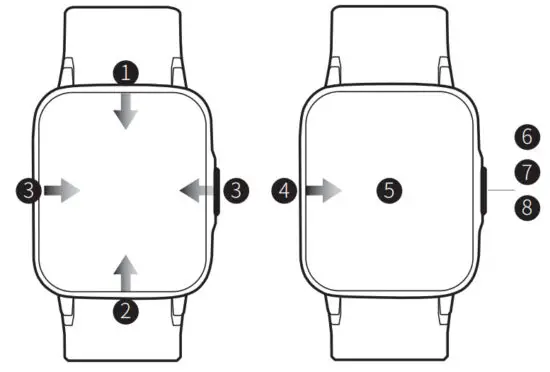

Operating the Watch

1. Swipe down from the top of the homepage to open quick settings
2. Swipe up from the bottom of the homepage to open the control panel
3. Swipe left or right across the homepage to switch to other main pages
4. Swipe right from the left edge of pages within other functions to go back a level
5. Press and hold on the homepage for 3 seconds to quickly switch watch faces
6. Press and hold the multi-function button for 3 seconds to turn on/off the watch
7. Short-press the multi-function button to return to the homepage from other main pages or go back a level from within other functions
8. Short-press the multi-function button to pause or resume an activity

Note

• The practical operation may vary slightly from the description above. Please refer to in-app instructions for guidance on the operation

Functions

	Activities 12 activity modes: Jogging, fast walking, mountain climbing, outdoor cycling, treadmill running, spinning, yoga, gym workout, integrated training, basketball, soccer, and rowing
	Heart Rate Continuous heart rate monitoring and you can view previous heart rate data anytime
	Sleep Records of your sleeping times S. states in detail
	Weather Check the weather conditions and real-time temperatures for the next 3 days
	Music Control Control the music playing on your mobile device (music can’t be stored on the watch)
	Breath Training Helps you control your breathing for relaxation
	Stopwatch Precisely time events
	Timer Set a countdown timer
	Alarm Clock Set, adjust, and delete alarms
	Sedentary Reminder Reminds you to get up and move about if you stay seated too long

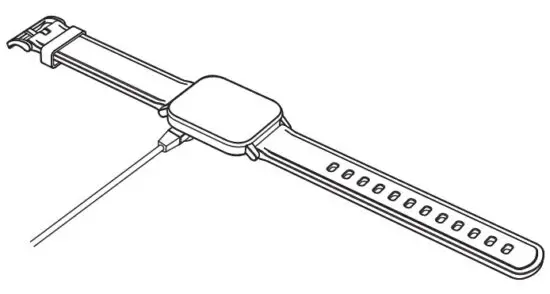

Charging

1. Connect the charging cable to a standard 5V USB charger with 0.5A or higher output
2. Connect the charging cable to the watch with the metal charging contacts in proper contact

Notes

• Charge the watch for over 2 hours before the first use
• If the watch battery is completely drained, the watch may take 1 minute to show the charging status icon after being connected to the power
• Gently clean and dry the charging contacts before charging

Product Care & Use

• Avoid tight watch wearing in daily use and keep the area of watch contact clean & dry. Rinse the wrist strap regularly. If you experience skin irritation from wearing the watch, take it off, and consult a doctor
• Do not operate the watch underwater. Wipe off the water before pressing the button or operating the touchscreen

Warranty & Customer Support

For questions, support, or warranty claims, contact us at the address below that corresponds with your region. Please include your Amazon order number and product model number.

Amazon US orders: [email protected]
Amazon EU orders: [email protected]
Amazon CA orders: [email protected]
Amazon JP orders: [email protected]
*Please note, that AUKEY can only provide after-sales service for products purchased directly from AUKEY. If you have purchased from a different seller, please contact them directly for service or warranty issues.

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Caution
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Aukey Technology Co., Ltd.
www.aukey.com | [email protected]
Room 102, Building P09, South China City Electronics trading center, Longgang District, Shenzhen, Guangdong, China
FCC ID: 2ATIH-LS02
