ZARAH 60|90

Range Hood

10032761 10029385

www.klarstein.com

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

TECHNICAL DATA

Item number	10032761, 10029385
Power supply	220-240 V ~ 50/60 Hz
Note: You can purchase an activated carbon filter separately for this cooker hood under item number 10030727. Please visit our website: www.klarstein.co.uk

SAFETY INSTRUCTIONS

Thank you for purchasing this cooker hood. Please read the instruction manual carefully before you use the cooker hood, and keep it in a safe place.
The installation work must be carried out by a qualified electrician or competent person. Before you use the cooker hood, make sure that the voltage (V) and the frequency (Hz) indicated on the cooker hood are exactly the same as the voltage and the frequency in your home.
The manufacturer and the agent will not bear any responsibility for the damage caused by inappropriate installation and usage.
Children under the age of 8 must not use the cooker hood.
The appliance is not intended for commercial use, but only for household and similar environments.
The cooker hood and its filter mesh should be cleaned regularly in order to keep it in good working order.
Before cleaning, switch the power off at the main supply.
Clean the cooker hood according to the instruction manual and keep the cooker hood from the danger of burning.
Prohibit putting the cooker hood by fire.
If the appliance does not function normally, contact the manufacturer or a specialist company.
This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
If the range hood is used at the same time as appliances burning gas or other fuels, the room must be adequately ventilated.
Do not flambe under the range hood. Accessible parts may become hot when used with cooking appliances.

Important hints on installation

The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
Regulations concerning the discharge of air have to be fulfilled.

Important notes about the extraction mode

WARNING
Risk of poisoning from exhaust gases sucked back. Never operate the device in extraction mode simultaneously with an open flue appliance when there is not adequate airflow guaranteed.

Open flue combustion equipment (for example, gas, oil, wood or coal-fired heaters, tankless water heaters, water heaters) pulls combustion air from the room and runs it through an exhaust pipe or chimney to the outside. In the extraction mode, indoor air is removed from the kitchen and the adjacent rooms – without sufficient air intake this creates a vacuum. Toxic gases from the chimney or extraction flue can thereby be sucked back into the living spaces.

Always ensure that a sufficient supply of fresh air is guaranteed and that the air can circulate.
An air supply / extractor box alone does not ensure compliance with the limit value.

Safe operation is only possible when the negative pressure in the room where the appliance is located does not exceed 4 Pa (0.04 mbar). This can be achieved when the air required for combustion can flow through openings that are not closable, for example in doors, windows, in conjunction with an air supply / extractor box or through other technical measures. In any case, consult a qualified chimney sweep who can assess the entire ventilation of your house and propose appropriate measures for adequate ventilation.

If the hood is used exclusively in the recirculation mode, unrestricted operation is possible.

Important note on disassembly of the device

Disassembly is similar to installation/assembly in reverse order.
Take a second person to help you during disassembly to avoid injuries.

INSTALLATION

Preparation

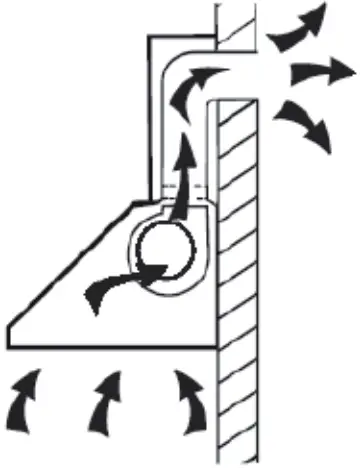

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminium, flexible pipe or inflammable material with an interior diameter of 150 mm).

• Before installation, turn the unit off and unplug it from the outlet.
• The cooker hood should be placed at a distance of 65~75 cm above the cooking plane for best effect.

KLARSTEIN 10032761 Zarah 90 Wall-Mounted Extractor Hood Preparation 1

Installation (Vent outside)

Note: When the range hood and appliance supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must be not exceed 4 Pa (4 x 10-5 Bar).

1	2

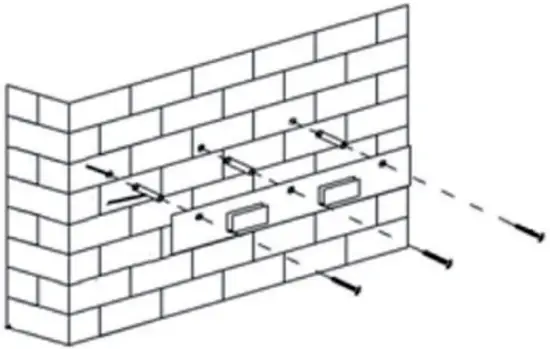

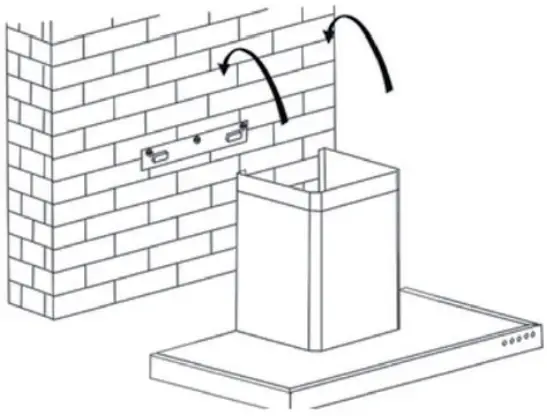

Drill 3 x 8 mm holes to accommodate the bracket. Screw and tighten the bracket onto the wall with the screws & screw plugs provided.	Offer up the cooker hood and hang onto the wall bracket hook.

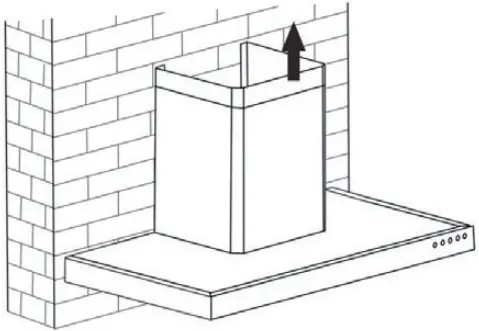

Chimney Installation

1	2

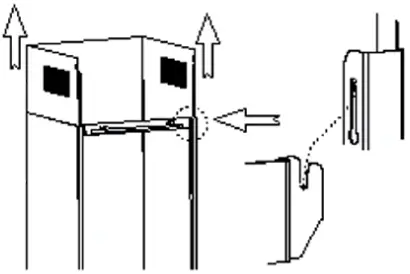

Put the upper chimney into lower chimney .Then pulling out the upper chimney upwards. Adjust to reach the height required.	Sliding the chimney to adjust the chimney height. When the height you required is reached, then hang the fixing hole to the fixing screws as showed in picture.

Installation (Vent inside)

If you do not have an outlet to the outside, exhaust pipe is not required and the installation is similar to the one show in section “Installation (Vent outside)”.

Installing the Carbon Filter

Note: Carbon filter is not standard accessory, these can be purchased as an accessory.

1	2

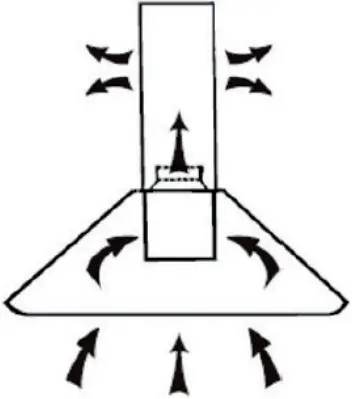

Activated carbon filter can be used to trap odours.	In order to install the activated carbon filter, the grease filter should be detached first. Press the lock and pull it downward.

3	4

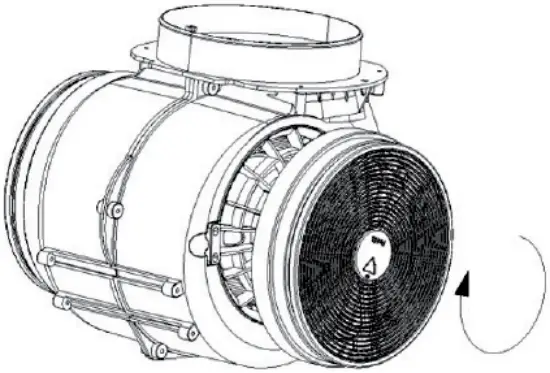

Plug the activated carbon filter into the unit and turn it in clockwise direction. Repeat the same on the other side. Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous. When activated carbon filter attached, the suction power will be lower.	Remove all blue protective film on chimney and cooker hood, the installation is now finished.

BUTTON FUNCTIONS

	Depress this button to turn off the motor.
	Low - Depress this button to enter into low speed and again to turn off motor.
	Medium - Depress this button to enter into medium speed and again to turn off motor.
	High - Depress this button to enter into high speed and again to turn off motor.
	Turn on/off light.

BULB AND LAMP REPLACEMENT

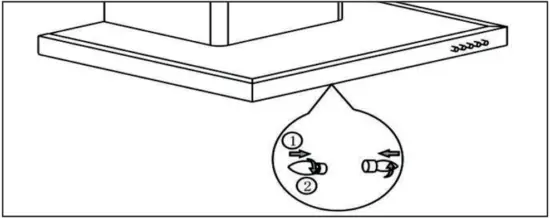

Replacing Bulbs

Switch the unit off and unplug the appliance. Remove the lamp cover by unscrewing the 2 screws.
Unscrew the incandescent bulb. Replace with the same type and rated bulb:
Incandescent Bulb E 14: max 40 W

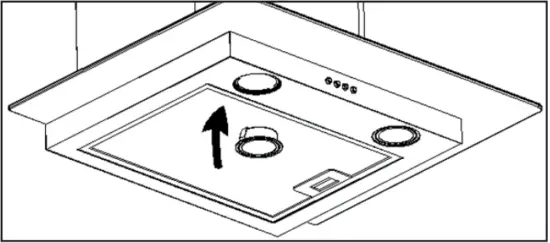

Replacing Halogen & LED Lamps

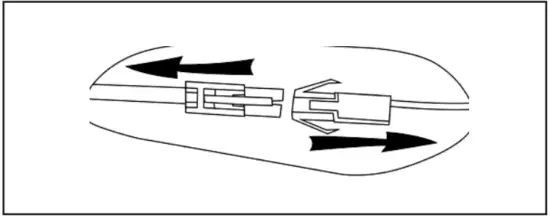

Disconnect the light wiring point which is located within the hood, (behind the grease filer).
Then use a screw driver remove the bulb holders and wiring from the hood. Replace with the same type and rated lamp:
Halogen lamo: max 20 W
LED Lamp: max 1.5 W

CLEANING AND MAINTENANCE

Turn off the cooker hood before cleaning and maintenance and unplug the appliance from the wall outlet. The exterior surfaces are susceptible to scratches and stains. Therefore, do not use abrasive cleaners and wipe away any alkaline or acidic residue (lemon juice, vinegar) immediately after cleaning.

Stainless Steel Surfaces

The stainless steel must be cleaned regularly to ensure a long service life. Use stainless steel cleaner. Always wipe along the grain of the stainless steel to prevent scratching.

Control Panel

The control panel can be cleaned with a damp cloth and a mild dishwashing detergent. Before cleaning, make sure the cloth is clean and well wrung. Use a dry, soft cloth to remove excess moisture after cleaning.

Monthly Cleaning for Grease Filter

Clean the filter every month can prevent any risk of fire. The filter collects grease, smoke and dust, so the filter is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

TROUBLESHOOTING

Fault	Cause	Solution
Light on, but fan does not work	The fan blade is jammed.	Switch of the unit and repair by qualified service personnel only
Light on, but fan does not work	The motor is damaged.
Both light and fan do not work	light bulb burn.	Replace the bulb with correct rating.
Both light and fan do not work	Power cord looses.	Plug in to the power supply again.
Serious vibration of the unit	The fan blade is damaged.	Switch of the unit and repair by qualified service personnel only.
	The fan motor is not fixed tightly.
	The unit is not hung properly on the bracket.	Take down the unit and check whether the bracket is in proper location.
Suction performance not good	Too long distance between the unit and the cooking plane	Readjust the distance to 65-75 cm

PRODUCT DATA SHEET

Information according to Regulation (EU) No. 65/2014
Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:20 11+A11:2014+A12:2015

Item number	10032761, 10029385
Description	Symbol	Value	Unit
Annual Energy Consumption	AEC_hood	54.0	kWh/year
Energy Efficiency class		B
Fluid Dynamic Efficiency	FDE_hood	24.4
Fluid Dynamic Efficiency class		B
Lighting Efficiency	LE_hood	54	Lux/W
Lighting Efficiency class		A
Grease Filtering Efficiency	GFE_hood	93	%
Grease Filtering Efficiency class		B
air flow at minimum and maximum speed in normal use, intensive or boost excluded		351.5 / 601.7	m³/h
air flow at intensive or boost setting		–	m³/h
airborne acoustical A-weighted sound power emissions at minimum and maximum speed available in normal use		55 / 72	dB
airborne acoustical A-weighted sound power emissions at intensive or boost setting		–	dB
power consumption in off mode	P_o	–	W
power consumption in standby mode	P_s	–	W
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

Information according to Regulation (EU) No. 66/2014
Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:20 11+A11:2014+A12:2015

Item number	10032761, 10029385
Description	Symbol	Value	Unit
Annual Energy Consumption	AEC_hood	54.0	kWh/year
Time increase factor	f	1.1
Fluid Dynamic Efficiency	FDE_hood	24.4
Energy Efficiency Index	EEI_hood	60.8
Measured air flow rate at best efficiency point	Q_BEP	340.8	m³/h
Measured air pressure at best efficiency point	P_BEP	342	Pa
Maximum air flow	Q_max	601.7	m³/h
Measured electric power input at best efficiency point	W_BEP	132.7	W
Nominal power of the lighting system	W_L	1	W
Average illumination of the lighting system on the cooking surface	E_middle	54	Lux
Measured power consumption in standby mode	P_o	–	W
Measured power consumption off mode	P_s	–	W
Sound power level	L_WA	72	dB
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

NOTES ON ENVIRONMENTAL PROTECTION

During cooking, make sure that there is sufficient air supply so that the cooker hood can operate efficiently and with low operating noise.
Adjust the fan speed to the amount of steam produced during cooking. Use the intensive mode only when necessary. The lower the fan speed, the less energy is consumed.
If large amounts of steam are produced during cooking, select a higher fan speed in good time. If the cooking steam has already dispersed in the kitchen, the cooker hood must be operated longer.
Switch off the cooker hood when you no longer need it.
Switch off the lighting when you no longer need it.
Clean the filter at regular intervals and replace it if necessary to increase the effectiveness of the ventilation system and prevent fire hazards.
Always put the lid on when cooking to reduce cooking steam and condensation.

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
