Panasonic Na-s056fr1 Washer Dryer User Manual

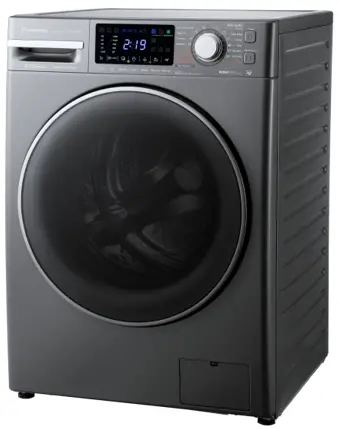

NA-S056FR1 Washer Dryer
User Manual

NA-S056FR1 Washer Dryer

Washer Dryer(Household Use)
Model No:
NA-S056FR1 NA-S106FR1 NA-S96FR1
NA-S106FC1 NA-S956FC1 NA-S96FC1
 It is essential to read these instructions.
Thank you for purchasing this product.
– Read these instructions carefully for optimum performance and safety before use.
– Keep this manual for future reference.

AWW9901CA9C0-0C0

Safety Precautions

  WARNING
May cause serious injury or death

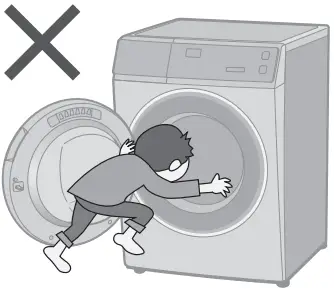

Children must not use it alone.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

Setting the Child Lock. (P. 30)

May cause fire or electric shock

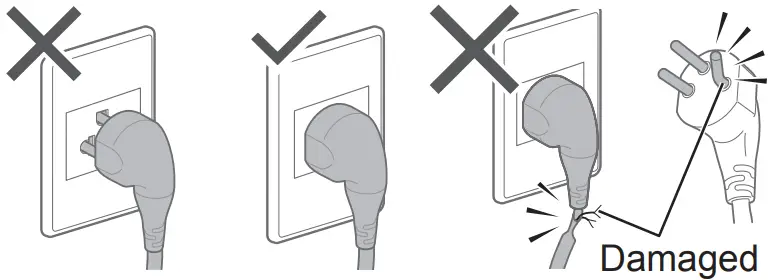

Do not touch it with wet hands.	Do not hold or pull on the cord.	Do not use.

Fully insert it.	Do not use.

If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

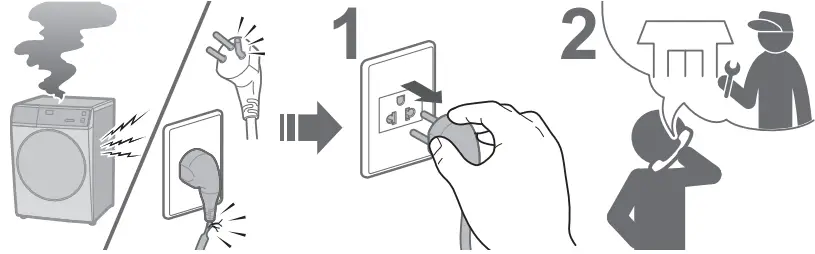

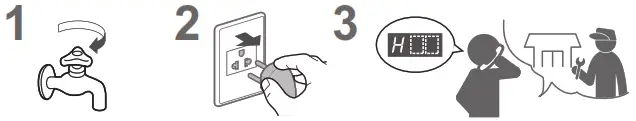

In case of failure or damaged power cord, stop use and ask the electrical technician.	Securely insert the ground prong. Ask the electrical technician for a new socket.	Use a socket appropriate for this appliance.

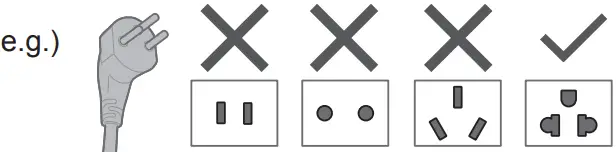

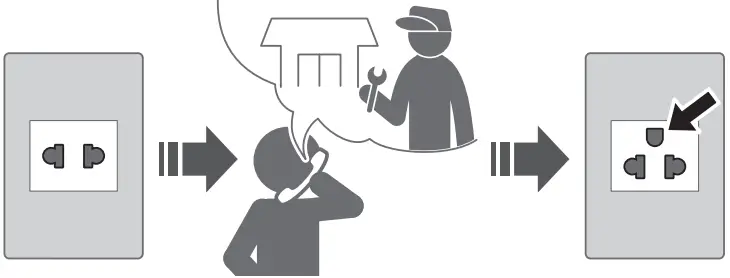

		The plug shape, socket shape, and rating requirement vary with the region.

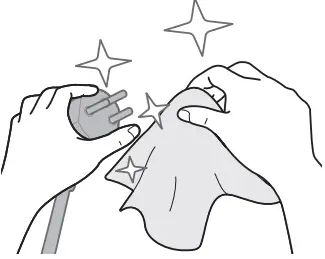

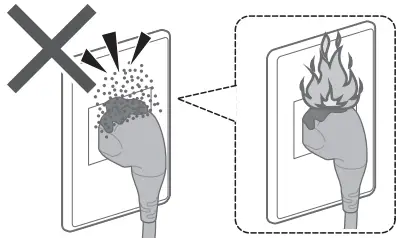

Accumulated dust may cause a fire.	Wipe the power plug periodically.	Keep away from flammable materials.

May cause failure

Do not disassemble, repair or modify it by yourself.

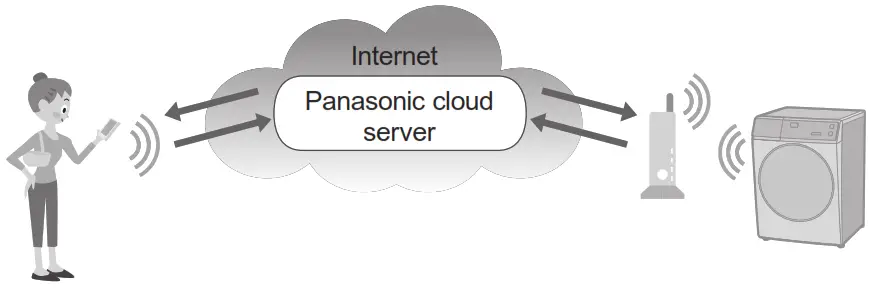

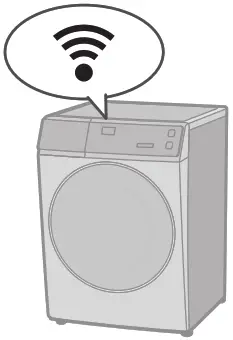

When using the “Panasonic SmartApp+” app (Cause of malfunction due to radio waves from the appliance)
S056FR1/S106FR1 S96FR1/S106FC1
S96FC1 (For Singapore only)

• Keep at least 15 cm away from the mounting part of the cardiac pacemaker.
• Keep away from medical equipment and automatic control equipment (automatic doors, fire alarms, etc.).

WARNING
May cause a fire (For safety use of the dryer)

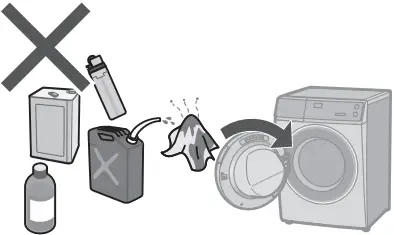

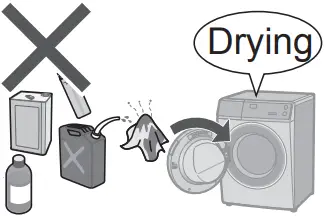

Do not dry items soiled with flammable materials.		• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes, wax removers, and cosmetic oils must not be dried in the appliance even after having been washed.

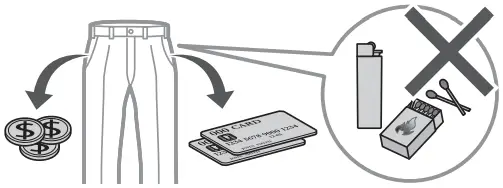

Empty all pockets.		Make sure that no objects are left in any of the pockets. Pay particular attention to cigarette lighters and matches. They may cause a fire.

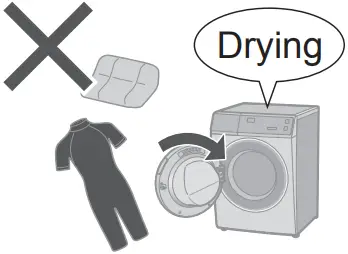

Do not dry items made of rubber, etc.		• Items such as foam rubber (latex foam), shower caps, waterproof textiles, airtight fabrics, rubber-backed articles, and clothes or pillows fitted with foam rubber pads should not be dried in the appliance. Such materials may be destroyed and thereby damage the appliance. • Do not dry unwashed items in the appliance.

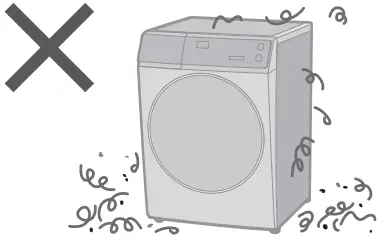

The lint must not be allowed to accumulate around the appliance.		Observe the following. • Never stop the appliance before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated. • The appliance is not to be used if industrial chemicals have been used for cleaning. • The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.

CAUTION
May cause water leakage

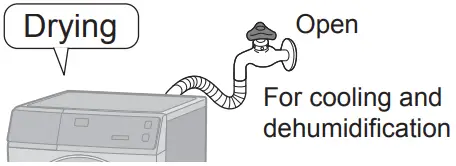

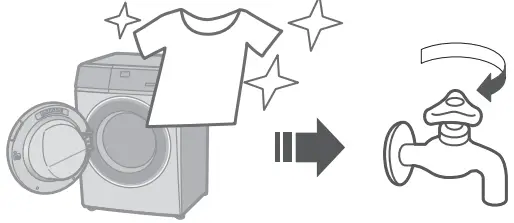

Turn off the water faucet.

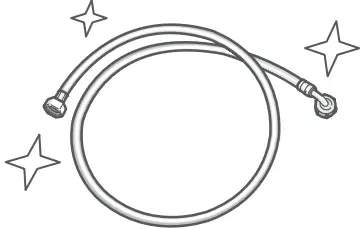

Use new hose sets.

• New hose sets supplied with the appliance are to be used and old hose-sets should not be reused.

May cause injury

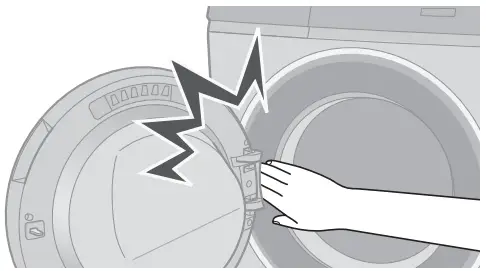

Be careful not to get your fingers caught.

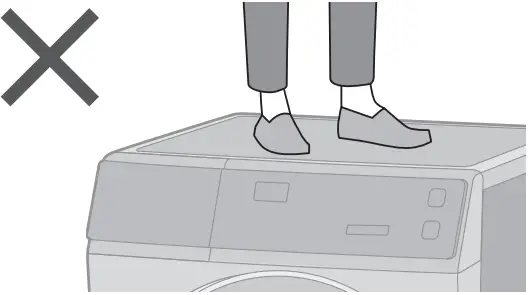

Do not climb on the appliance.

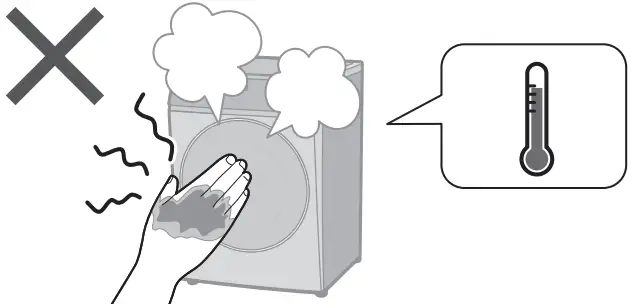

Do not touch it when it is hot.

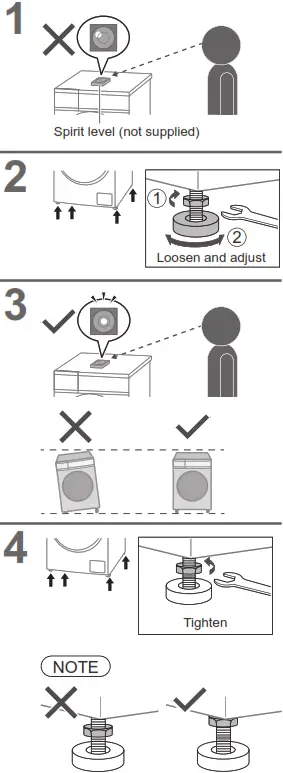

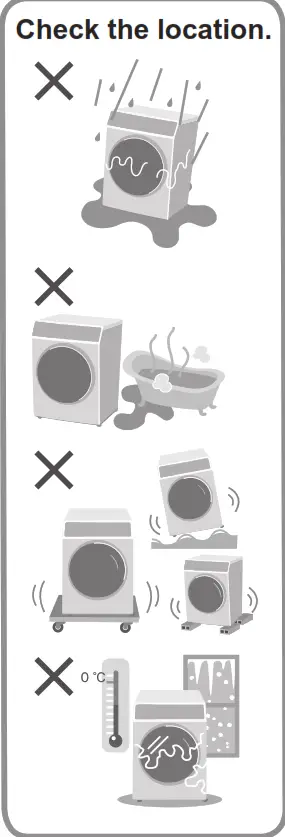

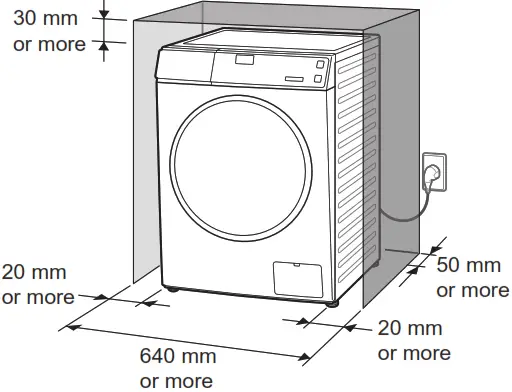

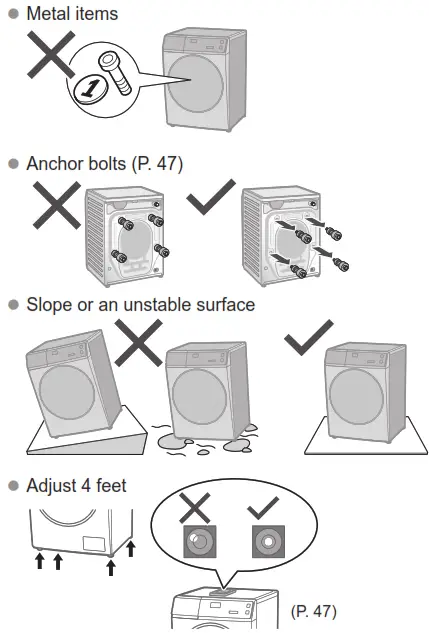

Install the appliance correctly.

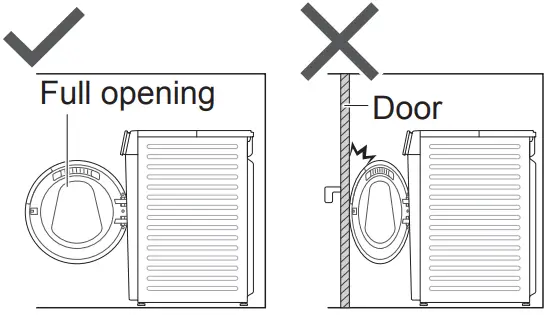

• The appliance must not be installed behind a lockable door, a sliding door, or a door with a hinge on the opposite side to that of the appliance, in such a way that a full opening of the appliance door is restricted.

„ For the maximum mass of dry cloth and pressure of tap water, see P. 63.
CAUTION
May cause failure

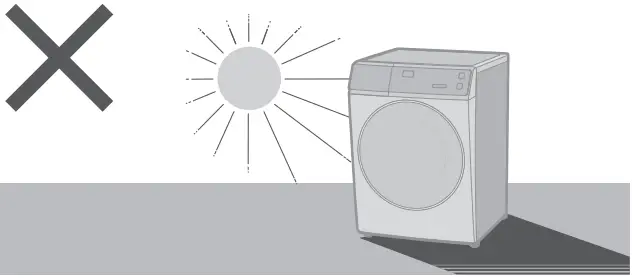

Keep away from heat and direct sunlight.

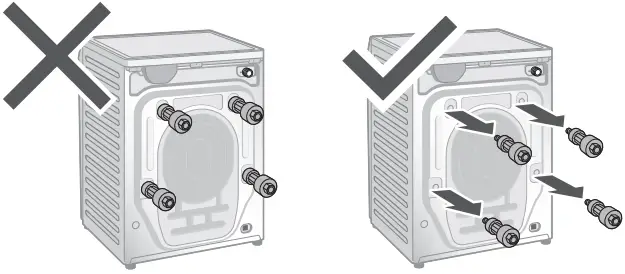

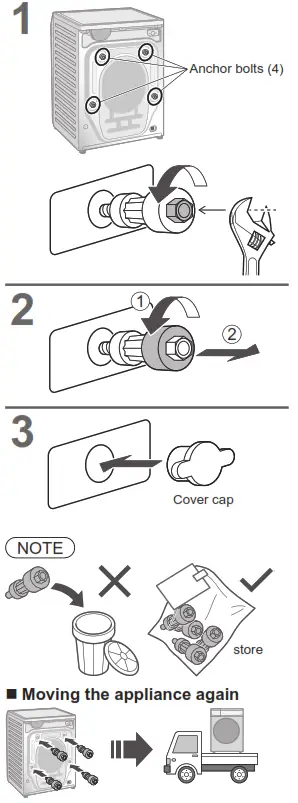

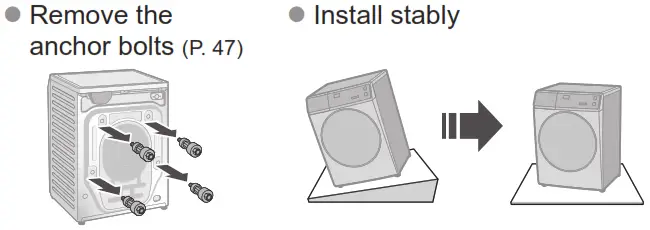

Remove anchor bolts before operation.

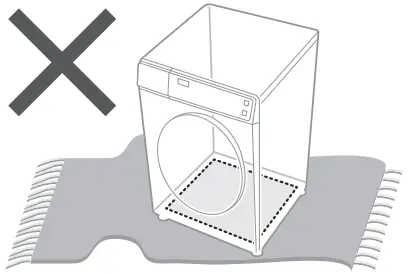

Do not obstruct.

• Do not obstruct the openings of the bottom face with carpet, etc.

Do not use hot water.

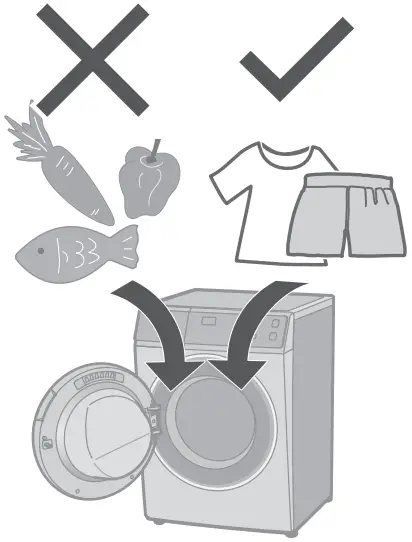

For machine-washable items only.

• This appliance is intended to be used in households.
  This appliance is not intended to be used in applications such as:
  – staff kitchen areas in shops, offices, and other working environments;
  – farm houses;
  – by clients in hotels, motels, and other residential type environments;
  – bed and breakfast type environments;
  – areas for communal use in blocks of flats or in launderettes.

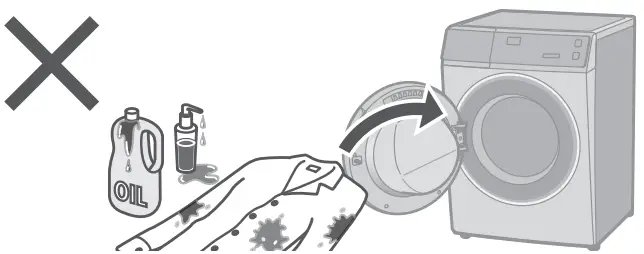

Do not wash excessively oily clothes.

Follow the instructions.

• Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.

Checking Your Washing Machine

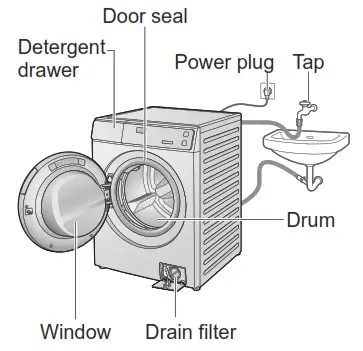

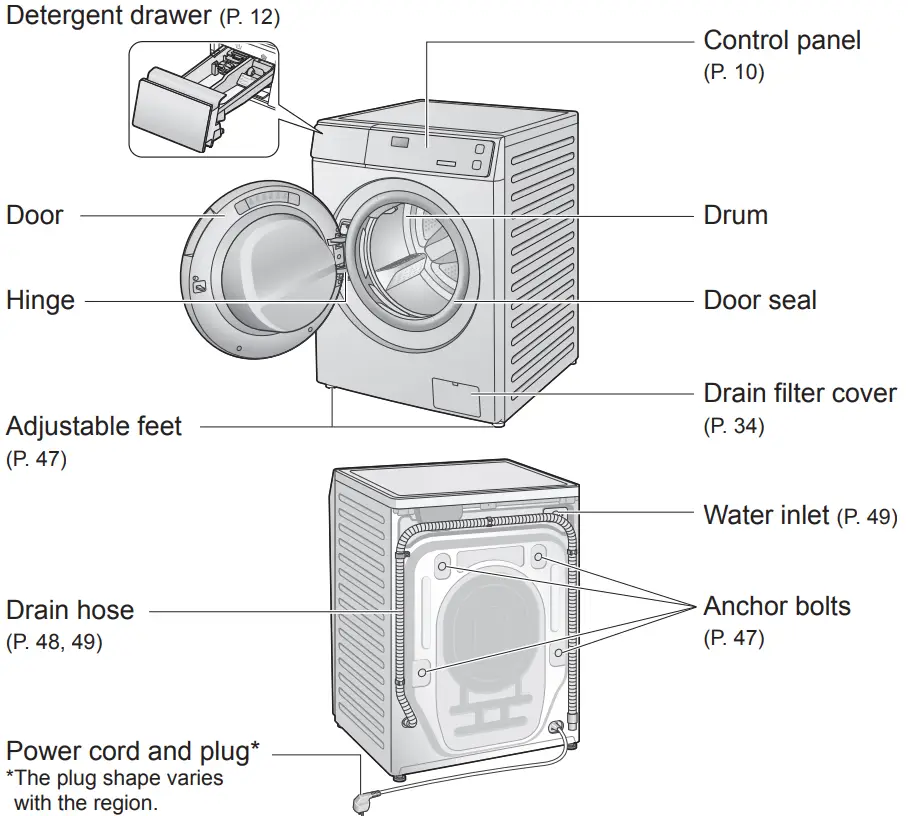

Part names

Accessories

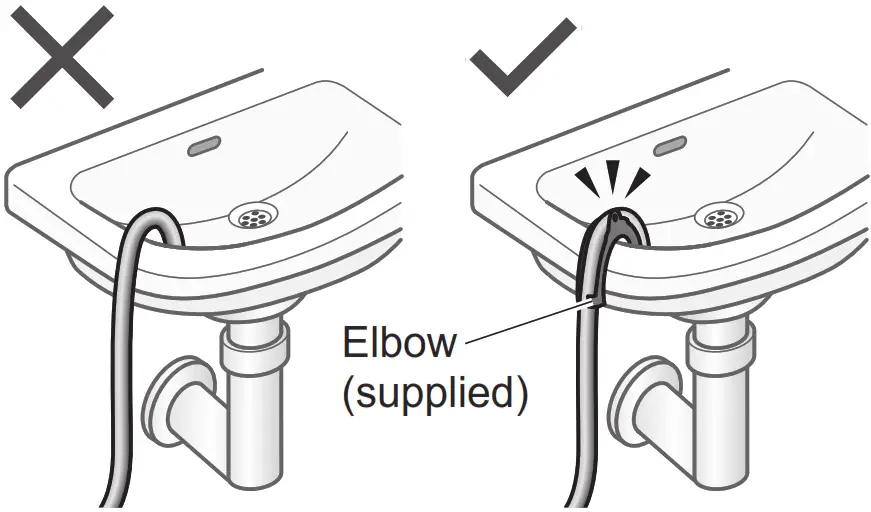

Elbow (1) (P. 49)	Cover caps (4) (P. 47)	Water supply hose (1) (P. 48, 49)	Bottom cover (1) / Screw (1) (P. 46)

Before Washing

Preparing laundry

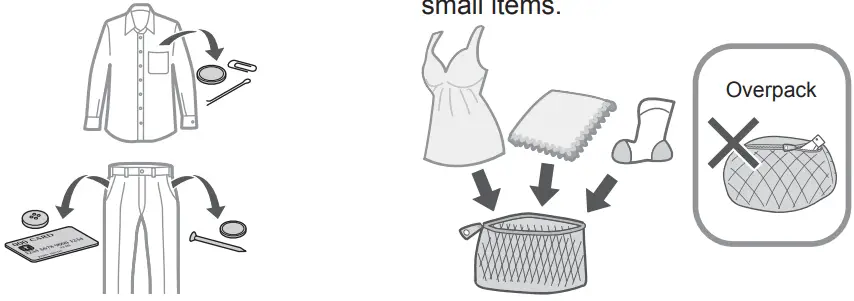

Before putting clothes in the drum

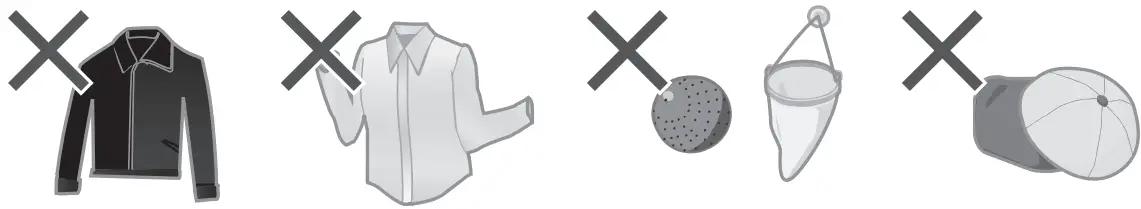

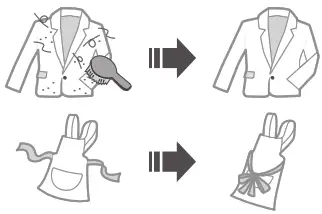

• Remove foreign objects.	• Use laundry nets for delicates and small items.

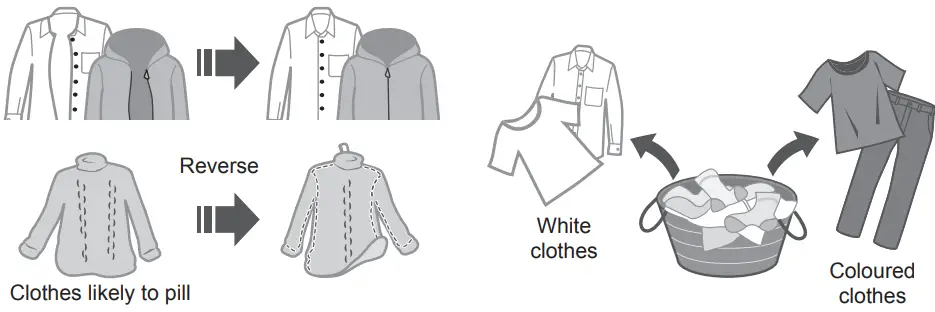

Pre-laundry check

• Wash separately.

Clothes likely to pill

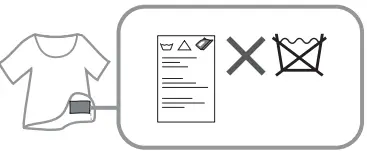

• Observe care labels.
• Pretreat for heavy stains.

NOTE

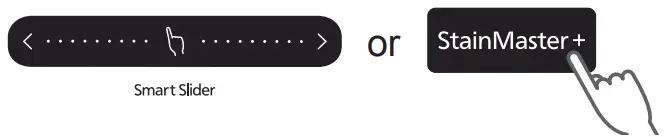

• “Stain Master+” programs (P. 16, 17) are recommended for removing stains.

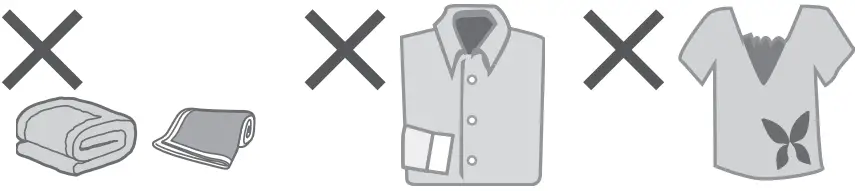

Cannot wash or dry

Leather / fur	Silk, rayon, and cupro (Blended fabric)	Commercially available washing aids	Cap with hardcore materials
Cushion, Pillow, etc.	Urethane/rubber backed or thick mats	Paper diapers	Others … • Wrinkled and embossed articles • Crepe fabric • Deformable clothing (blazers, ties, dresses, etc.) • Velvet

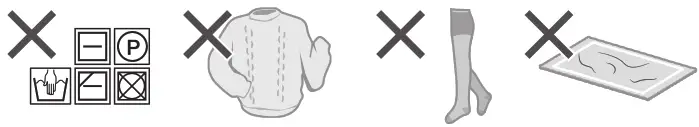

Cannot dry

Any of the above marks	Woollen clothing	Tights or pantyhose	Mats and other items with hair of pets attached
Quilts	Starched clothing	Clothing with laces or embroidery, new synthetic fibers, etc.

NOTE

• May cause clothing deformation, damage, and harm or malfunction to the appliance.

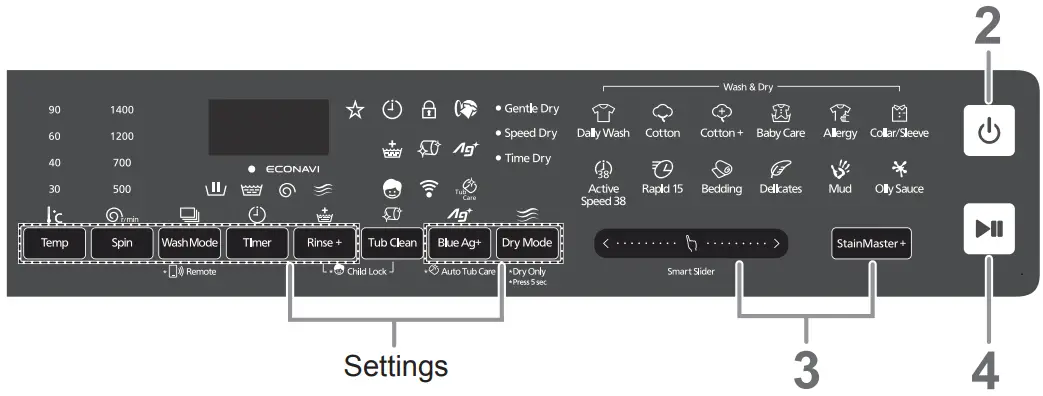

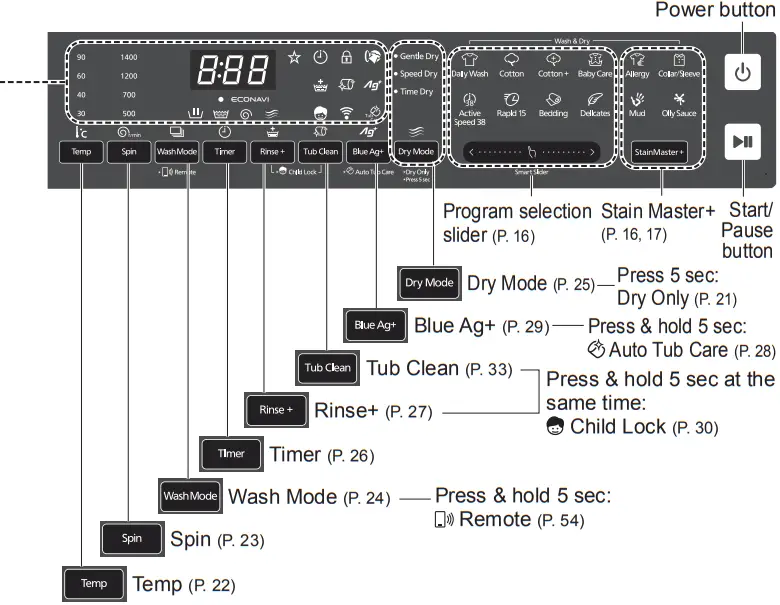

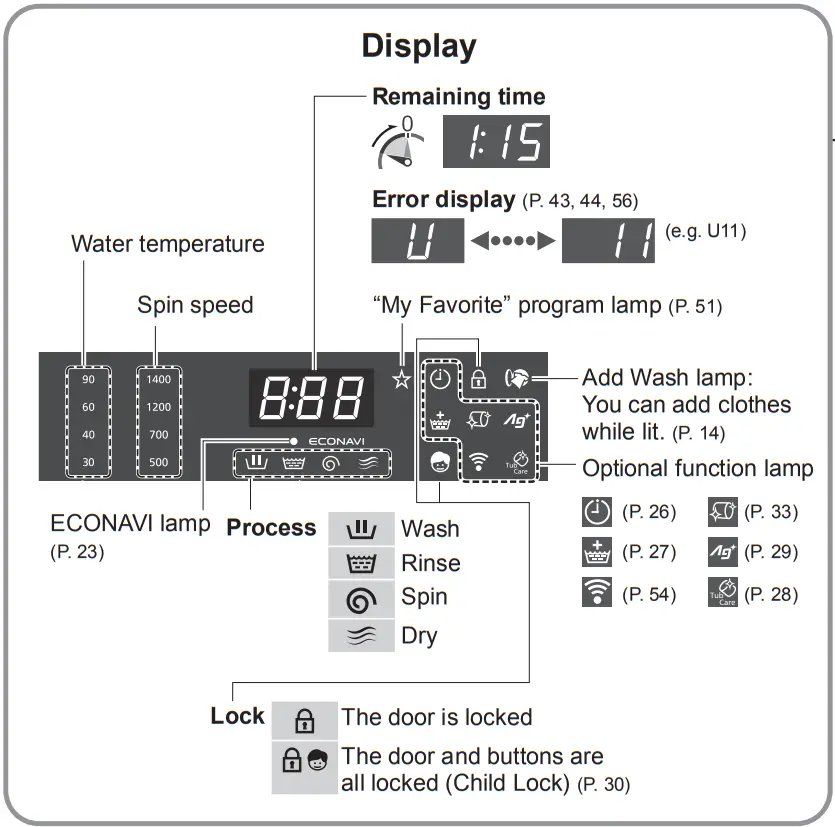

Control Panel

• Images in these instructions are of the NA-S056FR1 unless otherwise indicated.
• NA-S106FC1/NA-S956FC1/NA-S96FC1


Control buttons

• NA-S056FR1/NA-S106FR1/NA-S96FR1

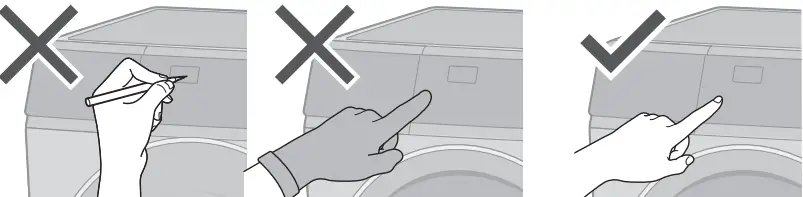

Touch operation

• If water, detergent, or softener gets on, turn it off and wipe off with a towel, etc. immediately. (Cause of malfunction)

NOTE

• Turn off back on	• No operation auto power off

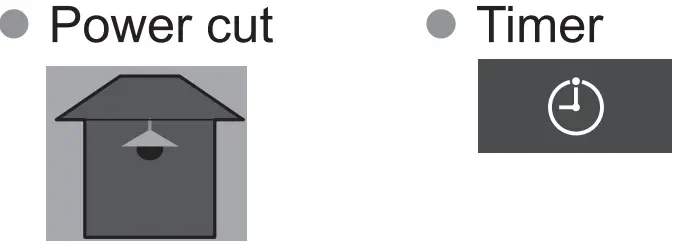

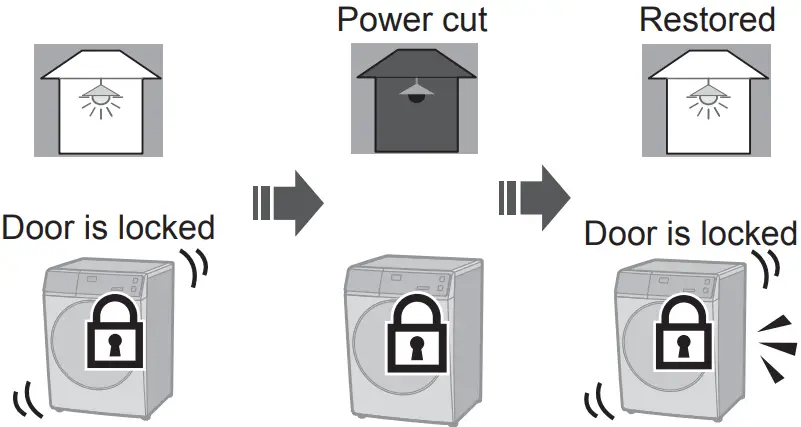

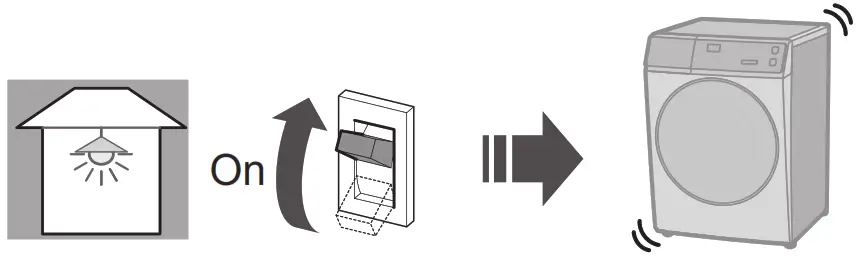

• In case of a power failure
  When the power recovers, operation resumes from where it stopped. (Auto Restart)

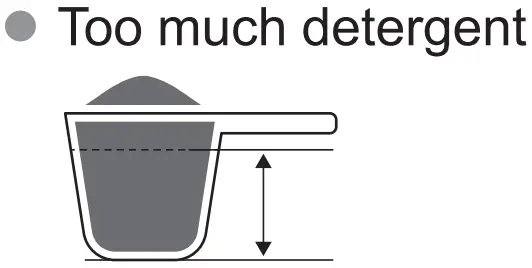

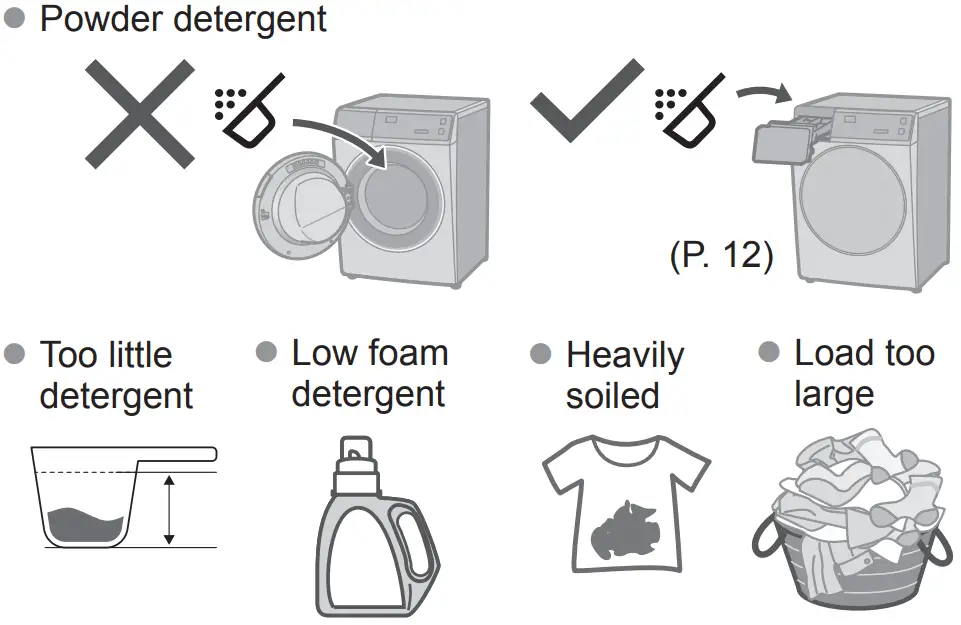

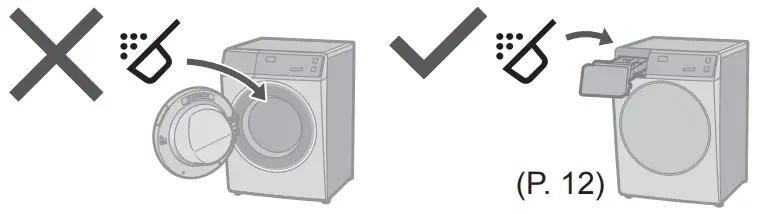

Detergent

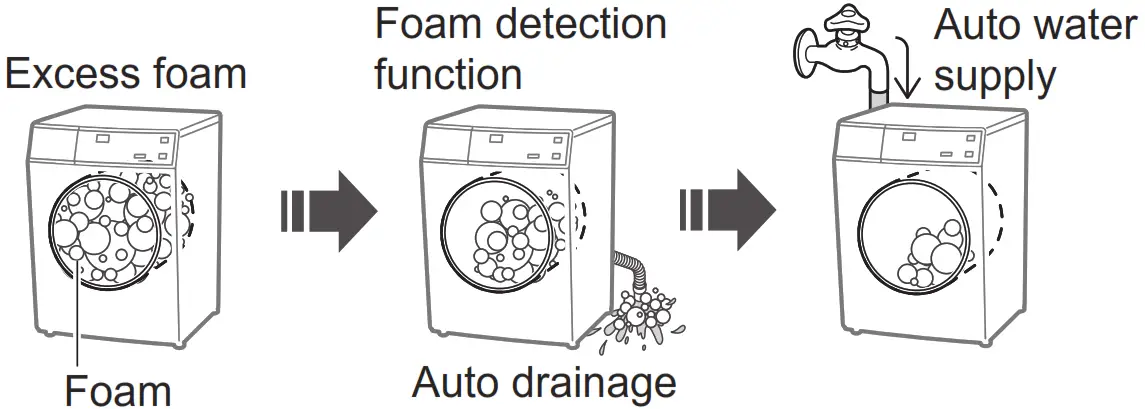

Use a low foam detergent.

• To prevent powder detergent from remaining in the detergent drawer:

Detergent

Fabric softener

Washing & Drying

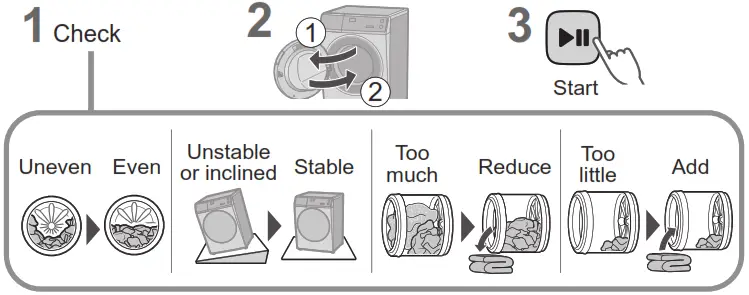

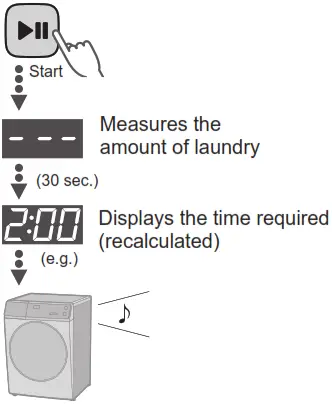

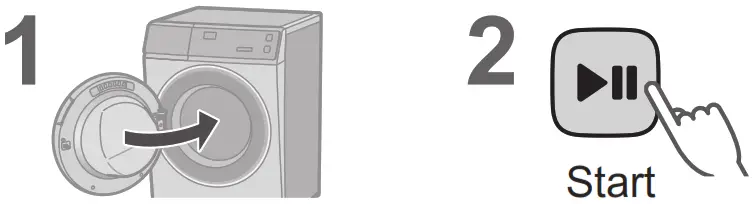

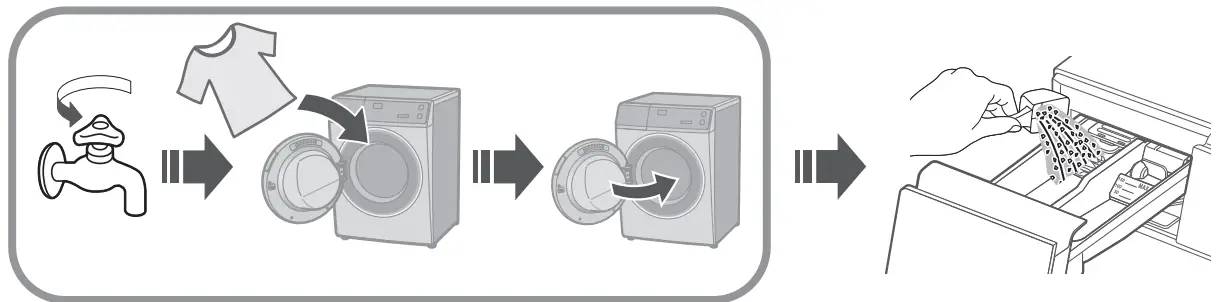

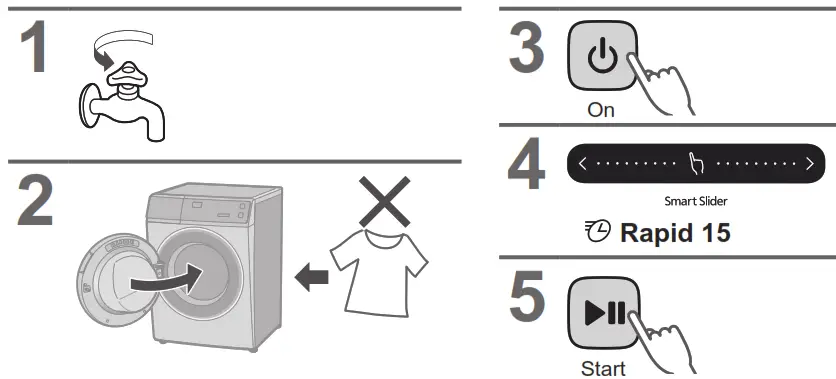

Basic Method

NOTE

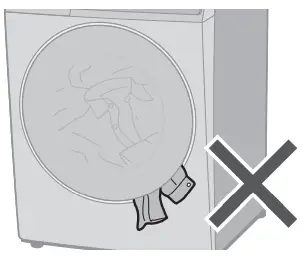

• Do not let laundry get caught in the door.

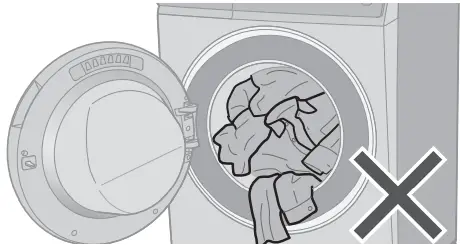

• Do not overfill the drum with laundry.

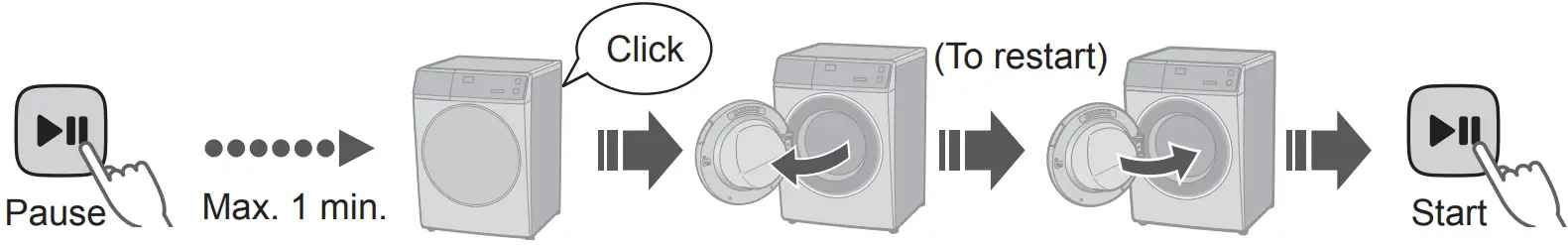

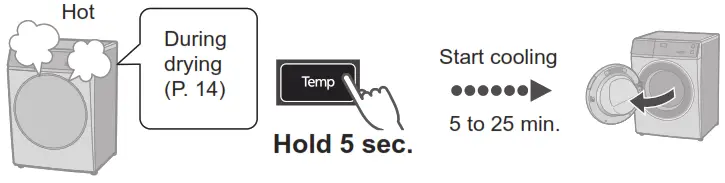

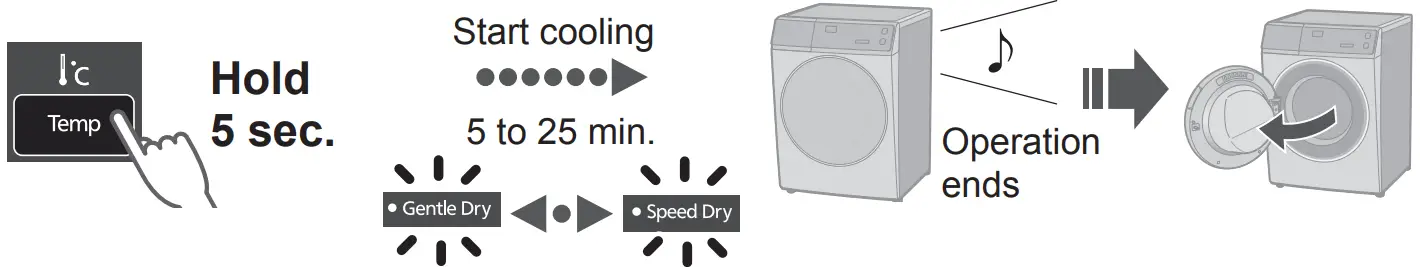

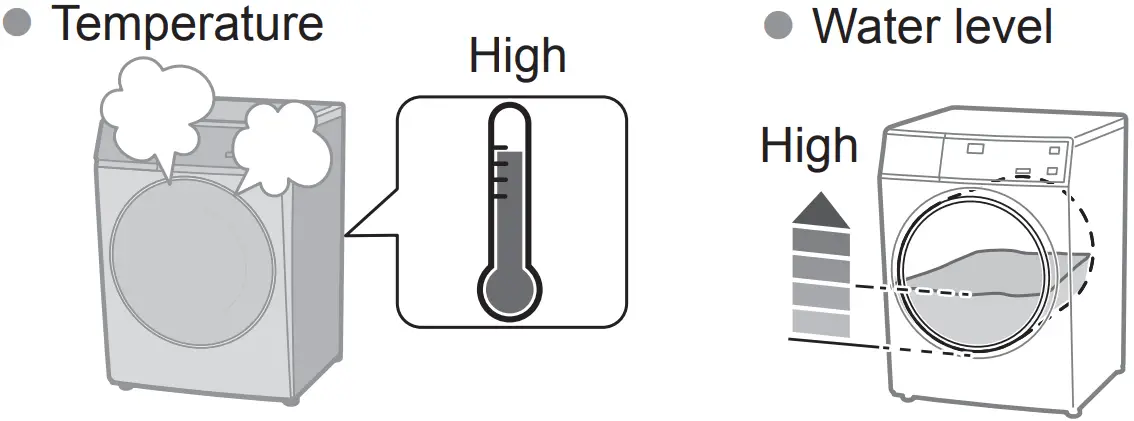

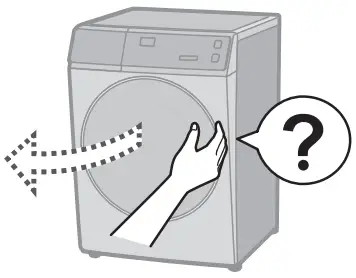

• To open the door during operation
  • During washing
  (You can add clothes when lit.)• During drying

NOTE

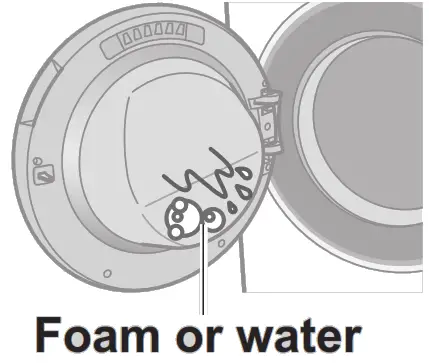

• The door does not open (P. 37)


  1
  2
  3
  Select a program. (P. 16) • Changing the settings. Settings Temp (P. 22) Spin (P. 23) Wash Mode (P. 24) Timer (P. 26) Rinse+ (P. 27) Auto Tub Care S106FC1/S956FC1/S96FC1 (P. 28) Blue Ag+; Auto Tub Care S056FR1/S106FR1/S96FR1 (P. 28, 29) Dry Mode (P. 25)
  4
  5

Program List

WASH & DRY / WASH

Program	Description	Max load (kg)					Total time
		Wash				Dry
		S056FR1	S106FR1/ S106FC1	S956FC1	S96FR1/S96FC1		WASH	WASH & DRY
Daily Wash	• Everyday clothes (Quicker than the “Cotton” program)	10.5	10.0	9.5	9.0	6.0	1.30	4:53-7:25
Cotton	• Everyday clothes	10.5	10.0	9.5	9.0	6.0	2:54	6:10-8:50
Cotton +	• Gentle wash with extra time	10.5	10.0	9.5	9.0	6.0	3:00	6:18-8:18
Baby Care	• Clothes for babies & sensitive skin Rinsing thoroughly	5.0					2:20	5:45-7:35
Tub Clean	• Cleaning the drum.	None					3:45	4:25
	For the following stains
Allergy	• For ticks and pollen	10.5	10.0	9.5	9.0	6.0	3:15	5:53-9:13
Collar/Sleeve		10.5	10.0	9.5	9.0	6.0	3:10	6:35-8:30

WASH

Program	Description	Max load (kg)
		S056FR1	S106FR1/S106FC1	S956FC1	S96FR1/S96FC1	Total time
Active Speed 38	• Small loads	5.0				0:38
Rapid 15	• Small loads of lightly soiled	2.0				0:15
Bedding	• Large items	3.0				1:30
Delicates	• Washing gently	2.0				0:50
	For the following stains
Mud		10.5	10.0	9.5	9.0	3:30
Oily Sauce		10.5	10.0	9.5	9.0	3:00

DRY

Program	Description	Max load (kg)	Total time
Dry OnlyHold 5 sec.	• Used to dry clothes.	6.0	1:54 – 6:00

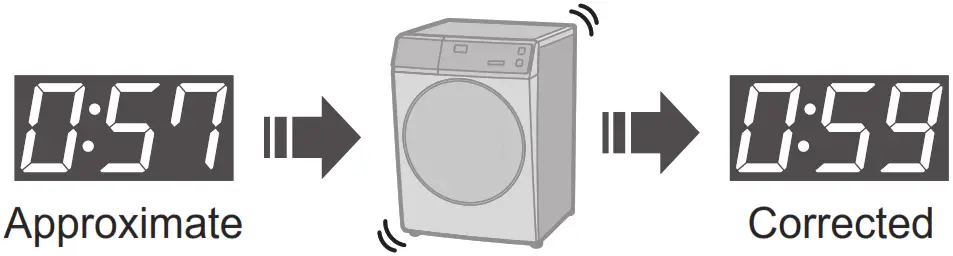

• Total time is approximate (When the standard water supply rate is 15 L / min). For each program’s default water temperature.

Details of Programs

Program	Settings	Auto setting			Temp (°C)
		Temp (°C)	Spin (r/min)	Dry
WASH & DRY	Daily Wash	40	1200	Gentle	Cold, 30, 40, 60
	Cotton	40	1200	Gentle	Cold, 30, 40, 60
	Cotton +	60	1400	Gentle	Cold, 30, 40, 60
	Baby Care	40	1400	Gentle	Cold, 30, 40, 60
	Allergy	90	1200	Gentle	60, 90
	Collar/Sleeve	40	1200	Gentle	40
	Tub Clean	40	1200	Speed	40
WASH	Daily Wash	40	1200	–	Cold, 30, 40, 60
	Cotton	40	1200	–	Cold, 30, 40, 60
	Cotton +	60	1400	–	Cold, 30, 40, 60
	Baby Care	40	1400	–	Cold, 30, 40, 60
	Allergy	90	1200	–	60, 90
	Collar/Sleeve	40	1200	–	40
	Tub Clean	40	1200	–	40
	Active Speed 38	40	1200	–	Cold, 30, 40
	Rapid 15	Cold	1200	–	Cold
	Bedding	Cold	700	–	Cold, 30
	Delicates	30	500	–	Cold, 30, 40
	Mud	40	1200	–	40
	Oily Sauce	40	1200	–	40
DRY	Dry Only	–	*¹	Gentle	–

NOTE

• For normally soiled laundry at the rated capacity, we recommend using the “Cotton +, 60 °C, 1400 r/min” which is tested in accordance with IEC 60456 for the energy and water efficiency aspects.
• The actual water temperature may differ from the declared cycle temperature.
• These results depend on water pressure, water hardness, water inlet temperature, room temperature, type and amount of load, degree of soiling, utilized detergent, fluctuations in the main electricity supply, and chosen additional options.

Washing & Drying Tips

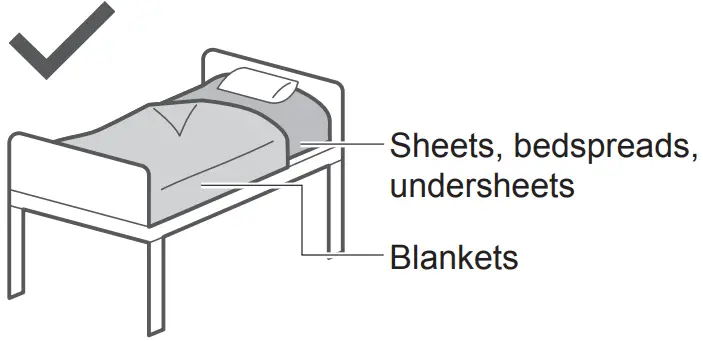

Bedding

• Washable items(Wash) (Handwash)
• 100 % cotton or 100 % synthetic

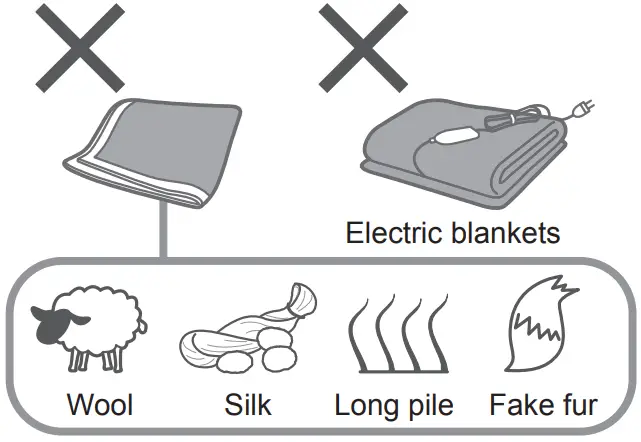

Not washable items

NOTE

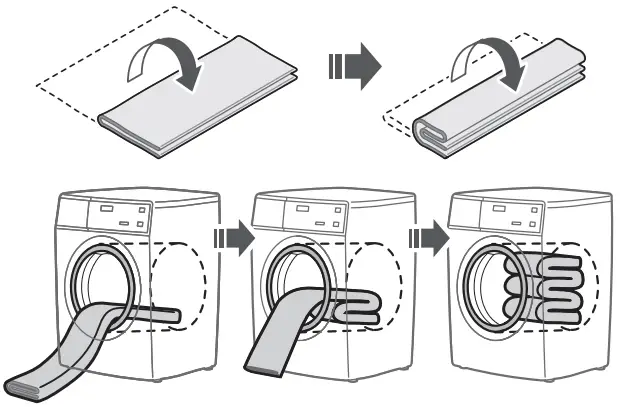

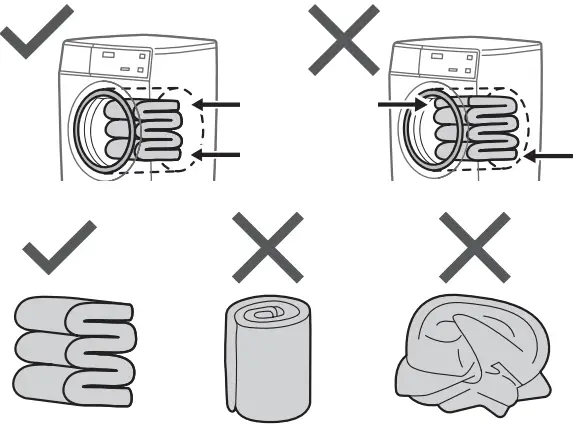

Putting blankets into the drum

NOTE

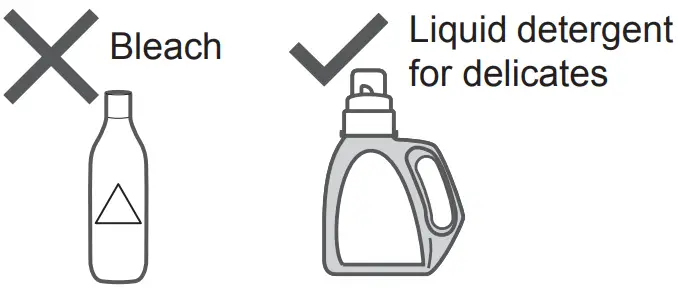

Delicates
When washing

• To rinse fully, use the “Rinse+” function. (P. 27)
  NOTE

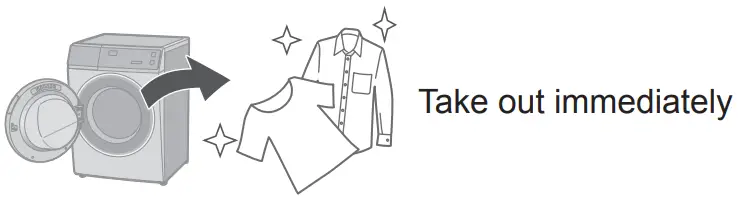

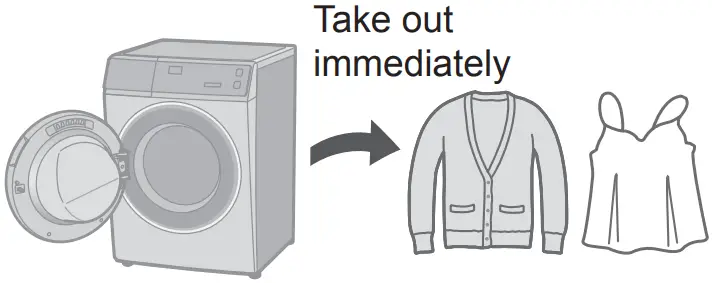

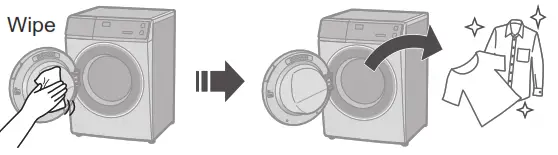

After operation ends

Dry Only
You can change dry modes depending on the clothes.

	Hold 5 sec. (for Dry Only)
Select Dry Mode.

DryMode	Description
GentleDry	For heat-sensitive clothes(Max. 6.0 kg).
speedy	For clothes not easy to bewrinkle (Max. 6.0 kg).
timed	• For clothes easy to bewrinkled. Thinner plain woven and crepe texture etc. • For a small amount of laundry(Max. 0.5 kg). *Time: 30 min. *After drying: Take out immediately • For half-dry clothes. *Time: 30 min. and more

Changing Program Settings

Preparing

• Sort the laundry and put it into the drum. (P. 8)
• Add the detergent. (P. 12)

on	Select a program. (P. 16)
Change the program’s settings.
•Available options and setting ranges are different depending on the program. (P. 18) • An alarm sounds if you select an option that is unavailable.	START

Temp
Change the washing temperature.

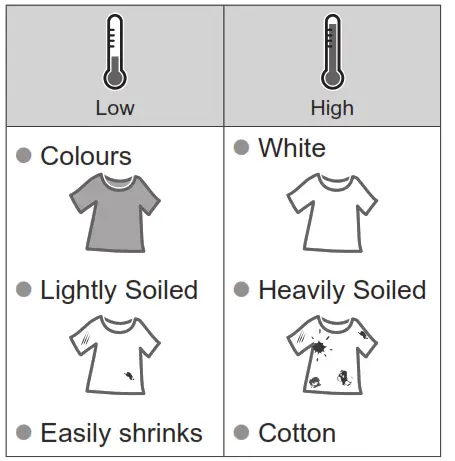

Setting guide

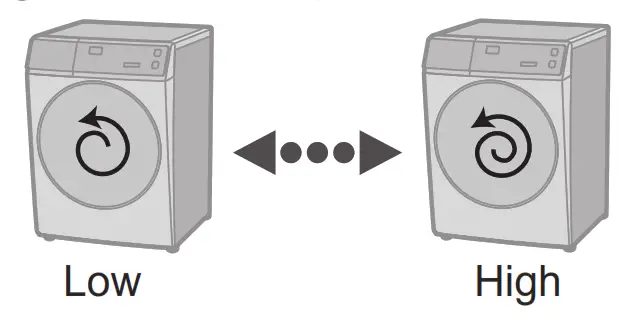

Spin

Change the spin speed

Setting guide

Low	High
To reduce wrinkling	To dry more thoroughly

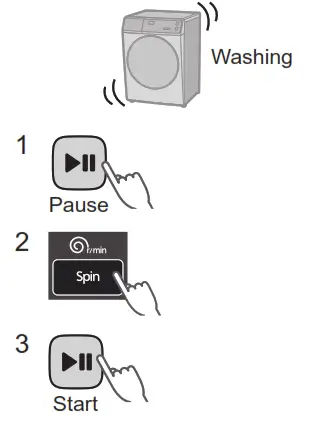

To change the setting while washing

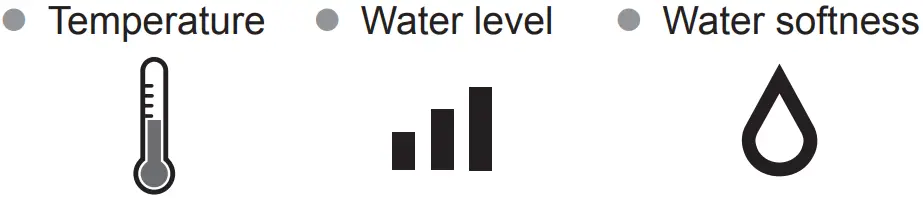

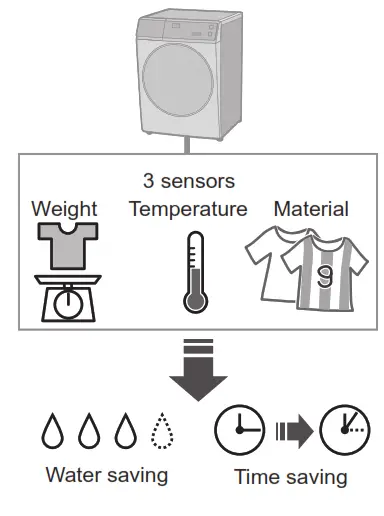

ECONAVI

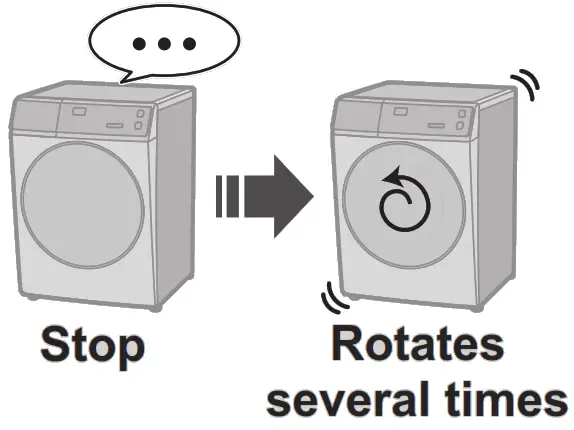

“Cotton” and “Daily Wash” programs

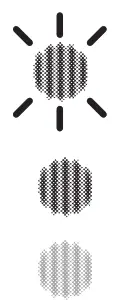

Lamp indications

	Detecting
	ECONAVI enabled
	ECONAVI disabled

Changing Program Settings (continued)

Preparing

• Sort the laundry and put it into the drum. (P. 8)
• Add the detergent. (P. 12)

on	Select a program. (P. 16)
Available options and setting ranges are different depending on the program. (P. 18) An alarm sounds if you select an option that is unavailable.	START

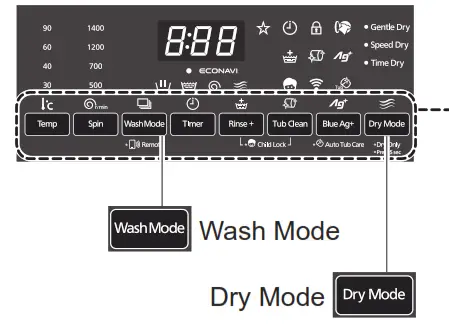

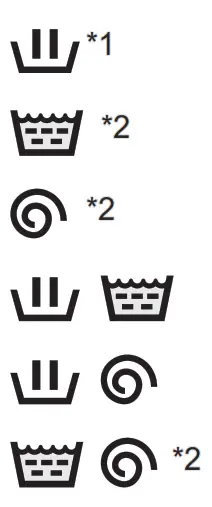

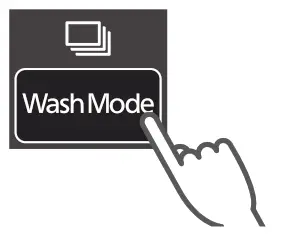

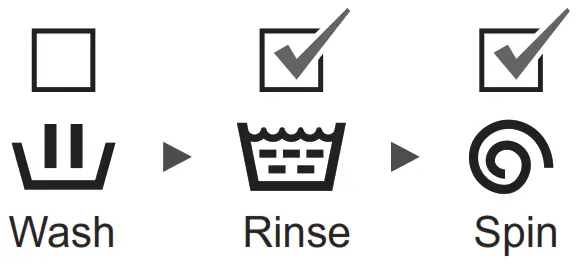

Wash Mode
Select a combination of wash, rinse, and spin.

	Wash
	Rinse
	Spin
	Wash and rinse
	Wash and spin
	Rinse and spin

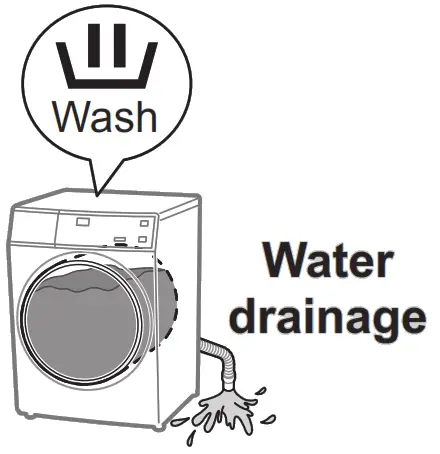

• Water is drained after the wash process.
• Drains first if there is water in the drum.

WASH & DRY Dry Mode

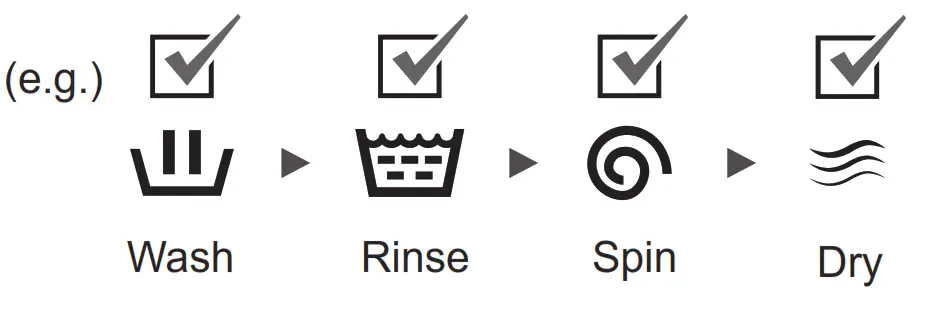

Select a combination of processes:

Dry Mode (P. 21)
Preparing

• Sort the laundry and put it into the drum. (P. 8)
• Add the detergent. (P. 12)

	2.
1. ON	Select a program. (P. 16)
3. Change the program’s settings.	4.
Available options and setting ranges are different depending on the program. (P. 18) An alarm sounds if you select an option that is unavailable.	START

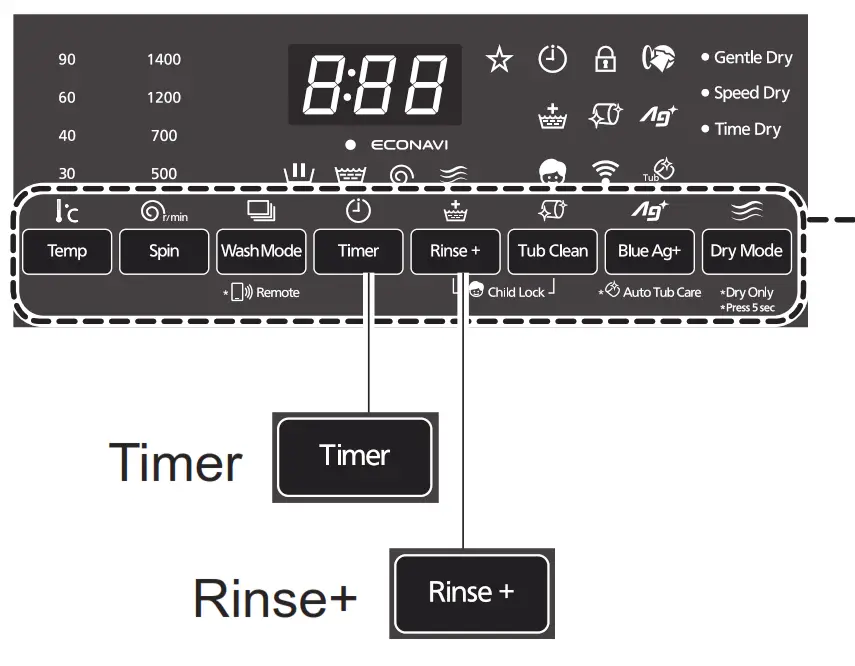

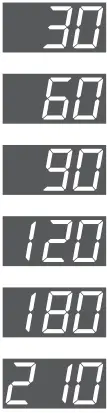

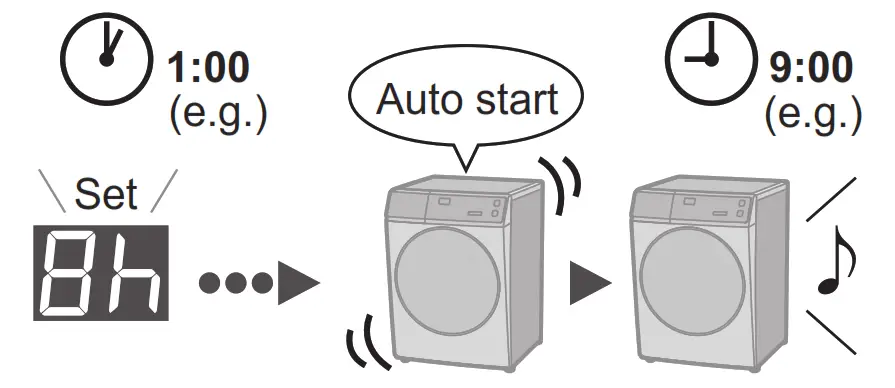

Timer
Set how many hours later to finish the operation. (Up to 24 hours)

3. To check a preset time
To cancel settings
All settings are cancelledTurn off.
NOTE

Not available: P. 19

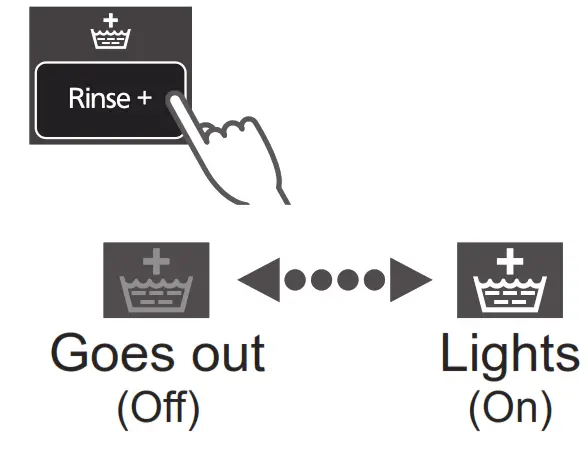

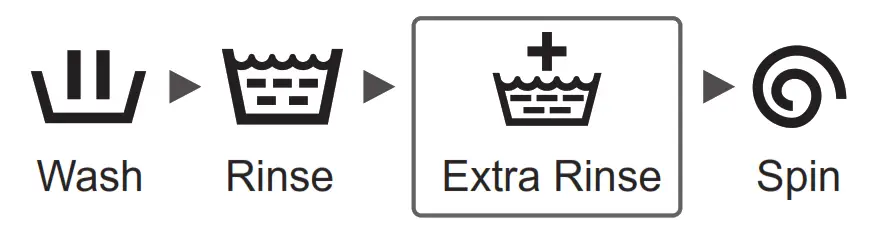

Rinse+
Add an extra rinse.

3.

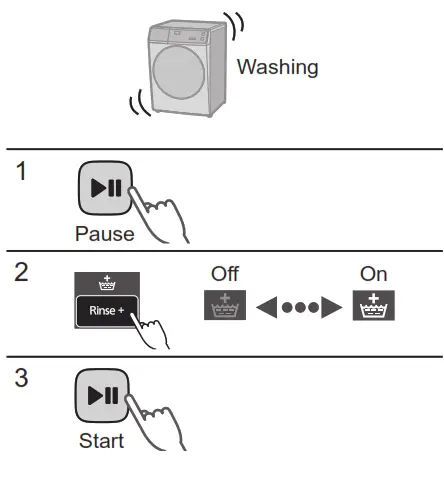

To change the setting while washing

Preparing

• Sort the laundry and put it into the drum. (P. 8)
• Add the detergent. (P. 12)

1.
3. Change the program’s settings.• Available options and setting ranges are different depending on the program. (P. 18)
   • An alarm sounds if you select an option that is unavailable.
4.

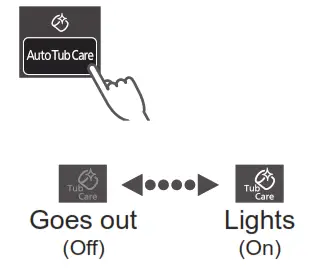

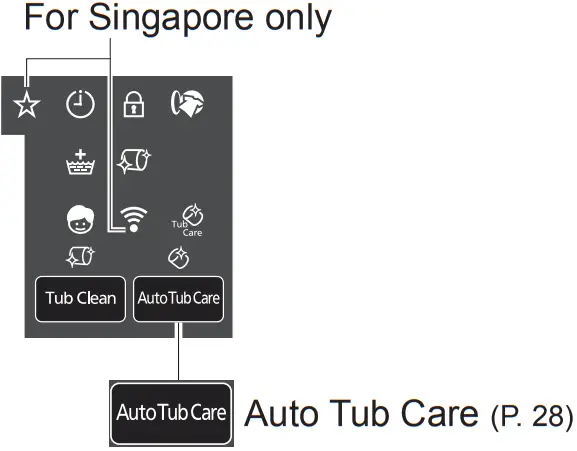

Auto Tub Care
Add tub cleaning process.

3. S056FR1/S106FR1/S96FR1
Hold 5sec
S106FC1/S956FC1/S96FC1NOTE

• The setting is memorized.

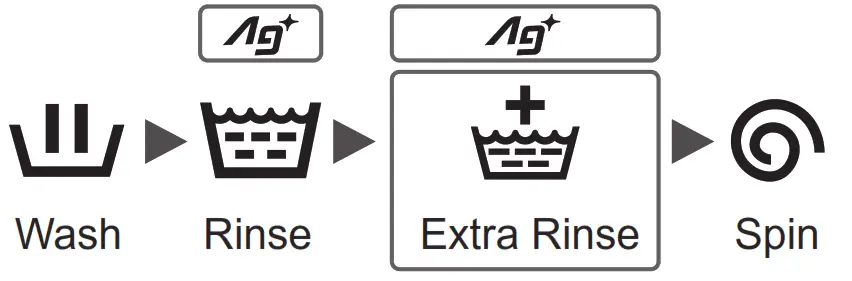

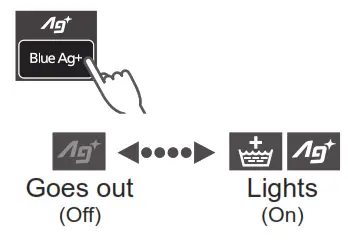

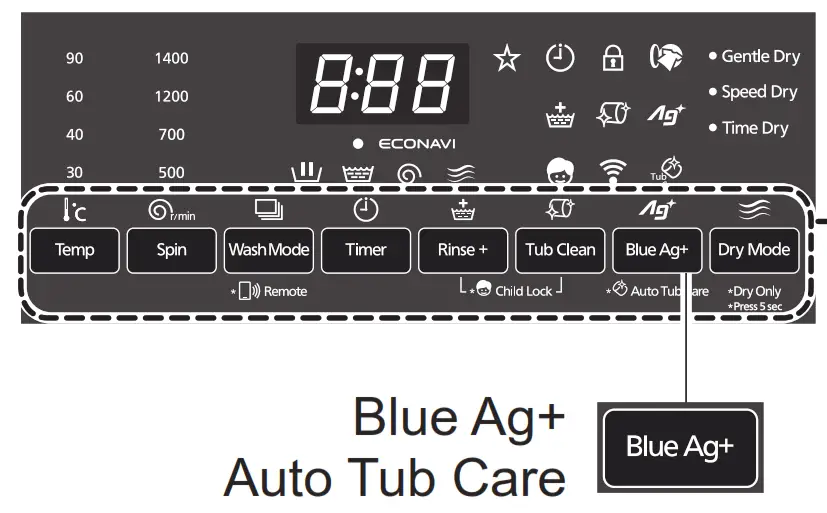

 Blue Ag+

S056FR1/S106FR1/S96FR1
Bacteria elimination function (Max. 3.0 kg).

3.

Service life for Ag+ case

• “Blue Ag+” works about 300 to 350 times (for about 7 years if used once a week).
• Replace the case when the contents are decreased.

• Replace
  (P. 33)

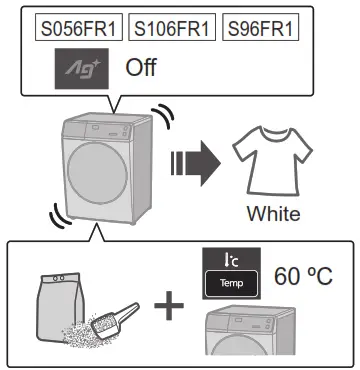

• Wash without “Ag+”

NOTE

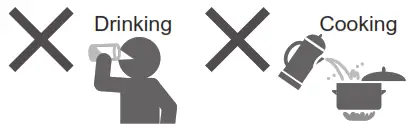

• Do not use the water for other purposes.
• The kind of clothes, detergent, softener, and water hardness may affect the result.

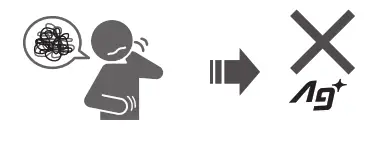

• Stop use if itchy, etc.

Changing Appliance Settings

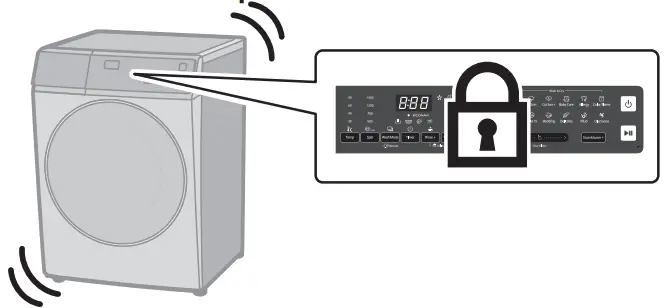

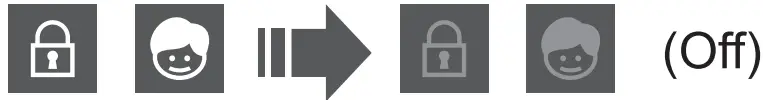

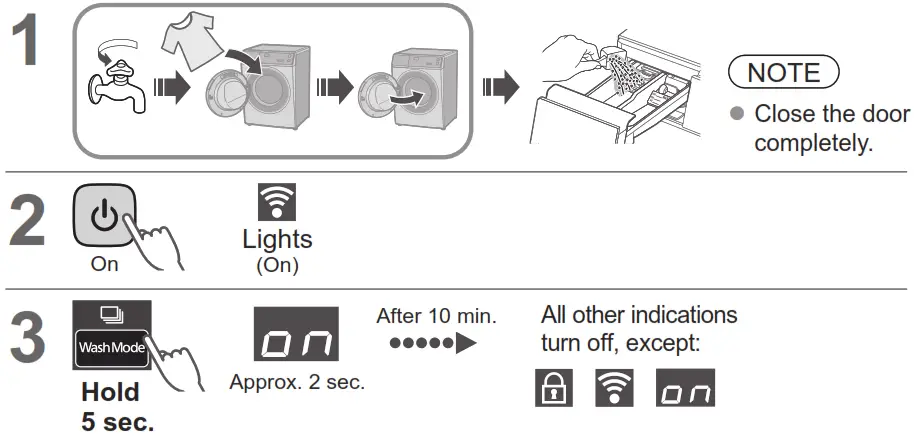

Setting the Child Lock

To cancel:
Same procedure

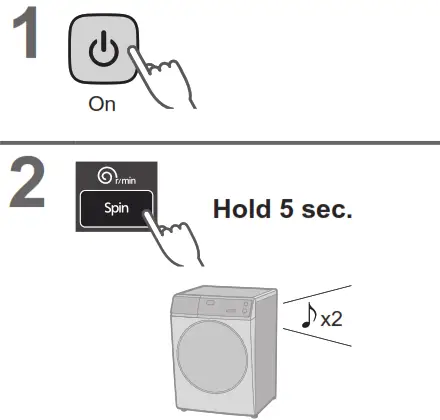

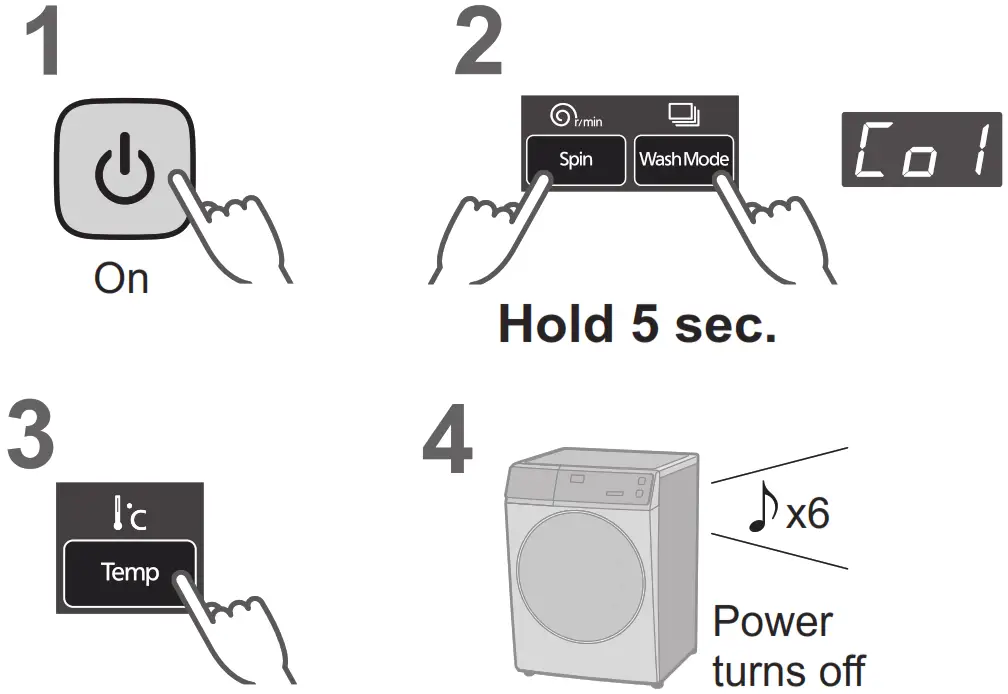

Canceling the buzzer

To reset:
Same procedure

Maintenance

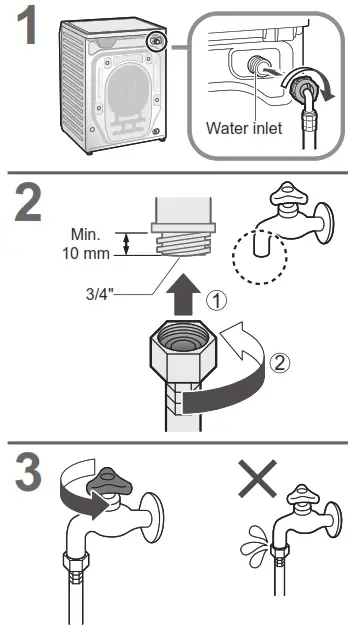

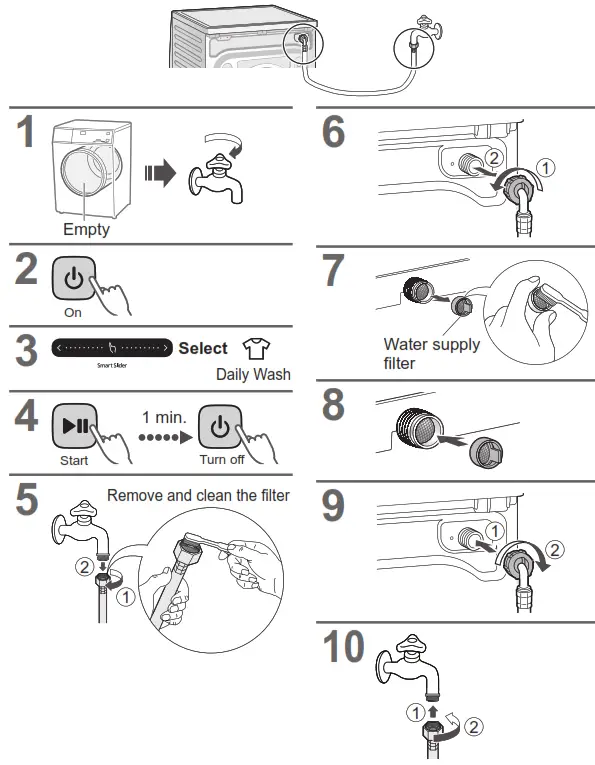

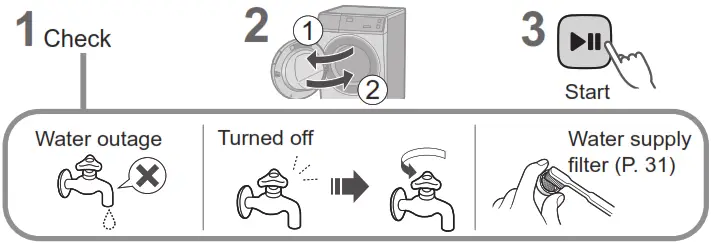

Water supply filter
If water does not flow smoothly

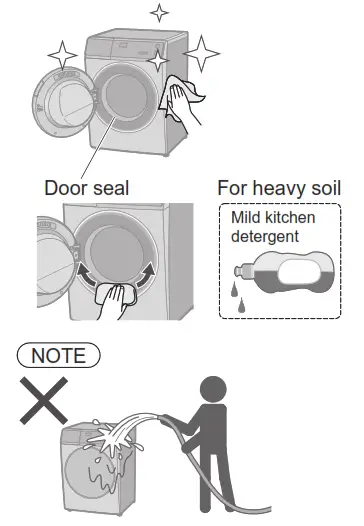

Appliance

• Do not use gritty cleaners or thinners, or products containing alcohol or paraffin oil.

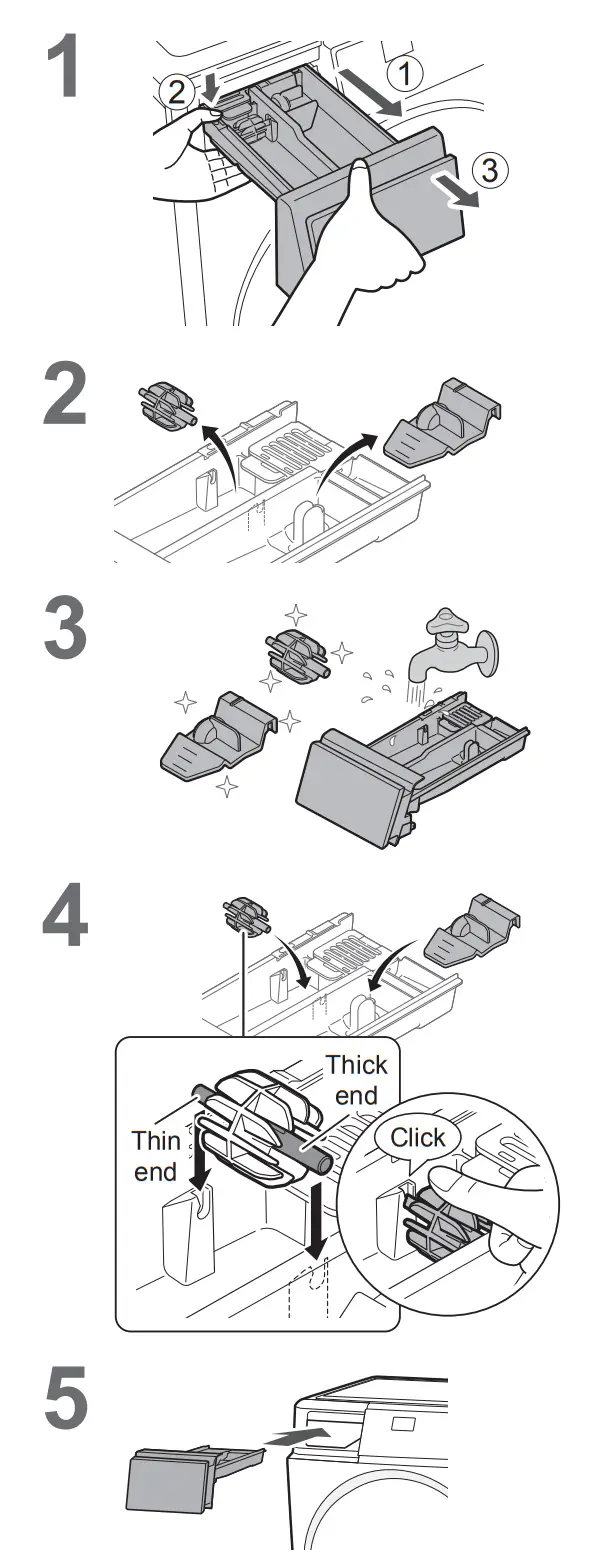

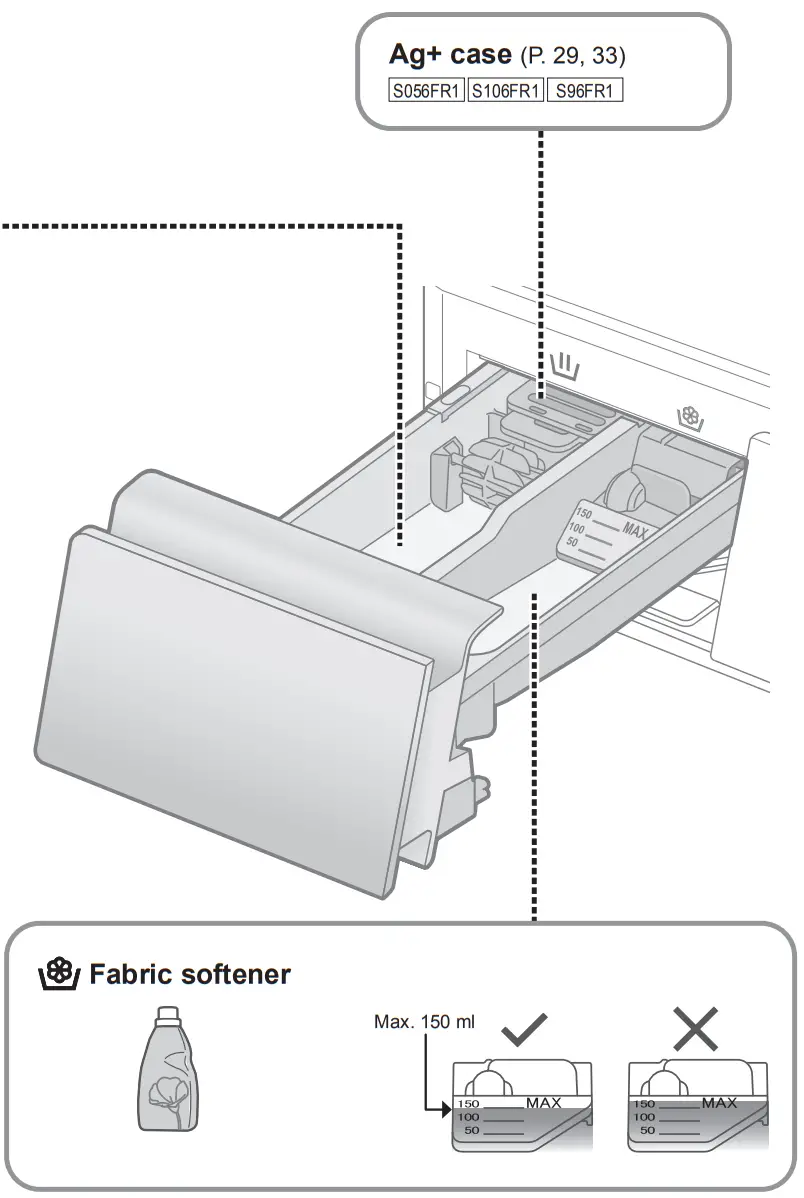

Detergent drawer

If the contents are decreased

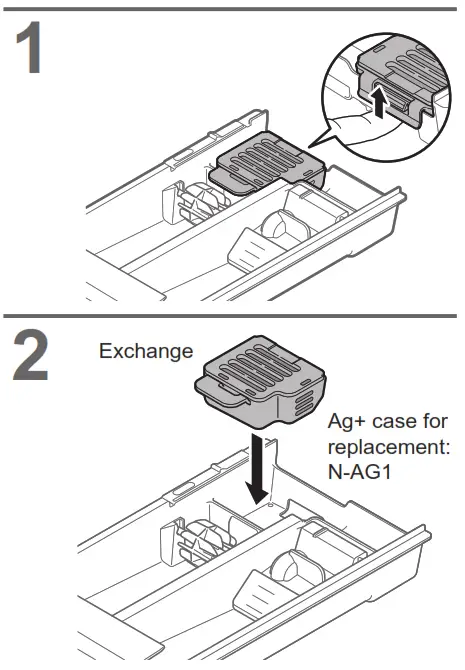

Change Ag+ case

S056FR1/S106FR1/S96FR1

NOTE

• You cannot open an Ag+ case.

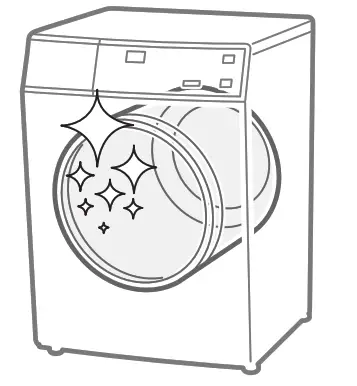

Drum
Once a month or if flashes <Tub Clean>

NOTE

• If the “Tub Clean” program is not run, the indicator goes off when the other program is run 3 times.

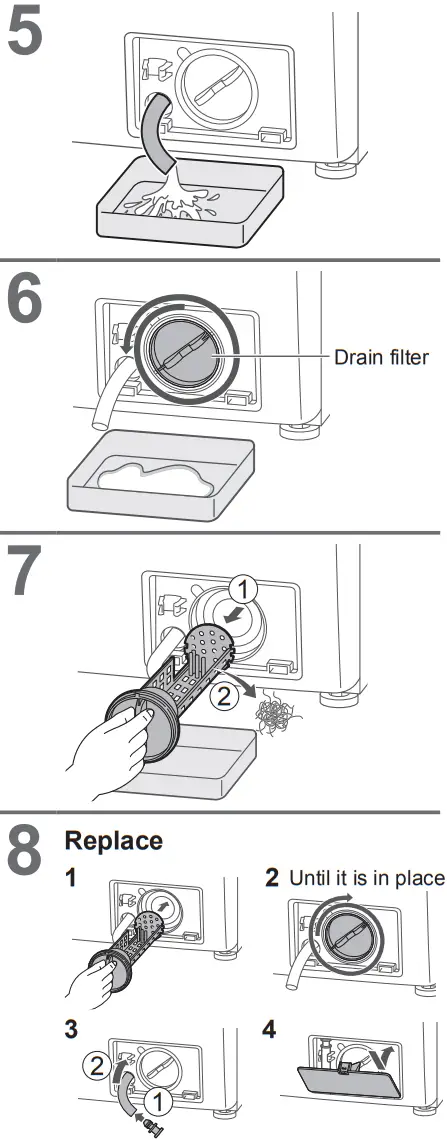

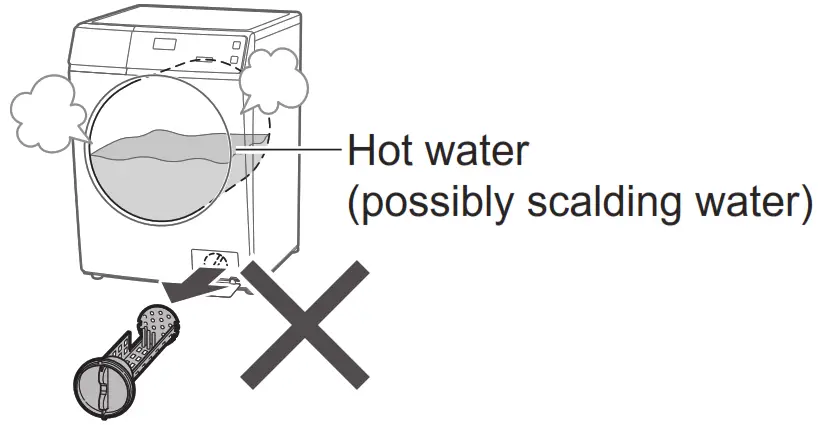

Drain filter
Once a month
Be sure to drain the water in the drum before this procedure.

CAUTION

For Better Results

Symptoms	Tips for a nice finish

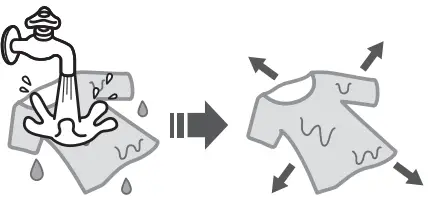

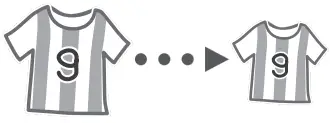

Shrunken clothes	If cotton products have shrunk by drying • Moisten and stretch.

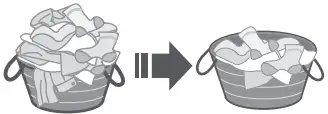

Hand feeling changes by wrinkles	• Reduce clothing amount.• Select dry mode. (P. 21)Depending on the clothes • After drying
• Drying is insufficient • Drying is uneven	• Reduce clothing amount.• Turn on.

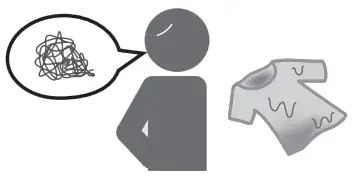

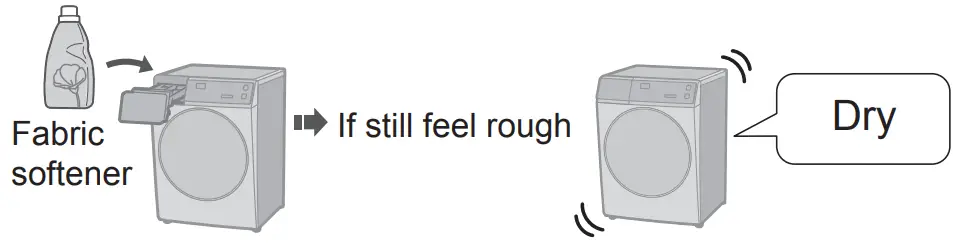

Feel rough	• When towels feel rough after washing

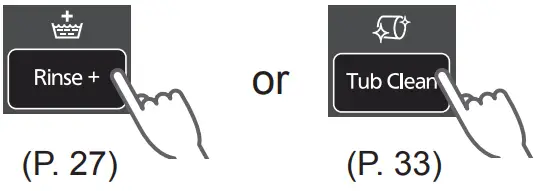

Lint is attached	• “Rinse+” or “Tub Clean”

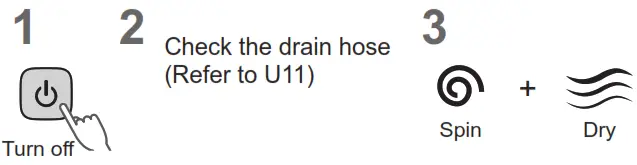

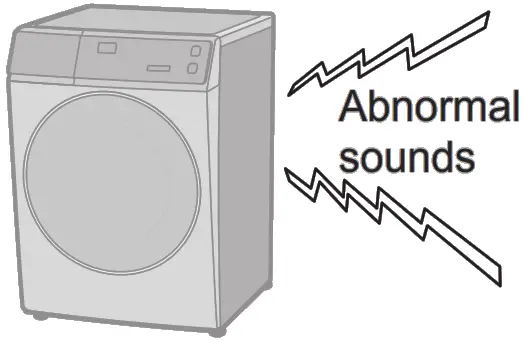

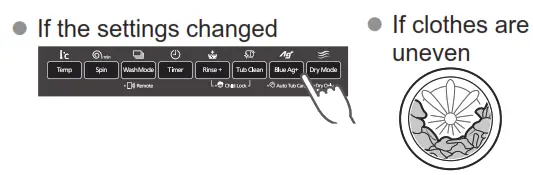

Troubleshooting

	Symptoms	Points to be checked

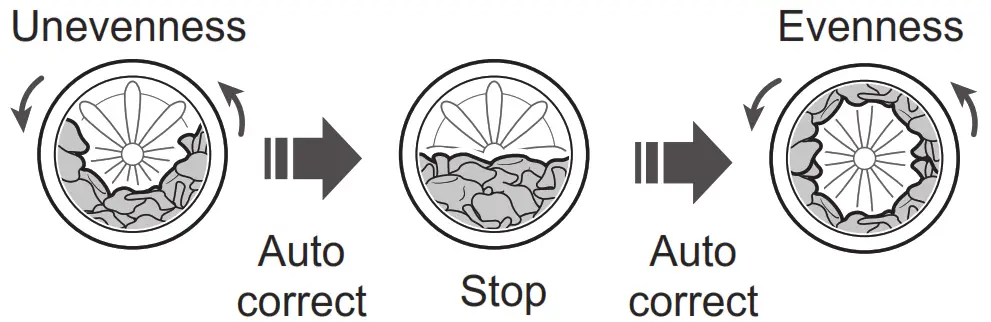

Main unit		…Possible cause • During an operation

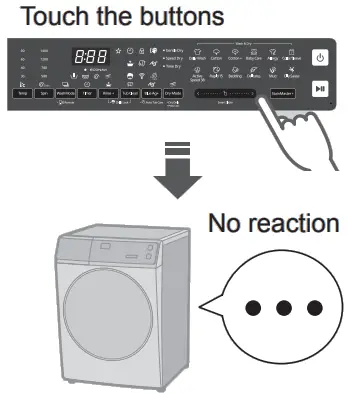

		…Try • Child Lock (P. 30)
	No operation	… Check
		… Try
	Odor of rubber The door does not open	… Possible cause
		… Try
		… Possible cause
		… Check
		… Try • Child Lock (P. 30)• During an operation
		NOTE
Detergent and foam	After washing	… Check
		… Possible cause • The amount of foam varies.
	Not enough	… Check
	Too much	… Check
Wash	During a wash	… Possible cause
Dry	Drying takes too long	… Check
		… Try • Check the location
Rinse/Spin	During the spin process	… Possible cause
		… Try
	After washing

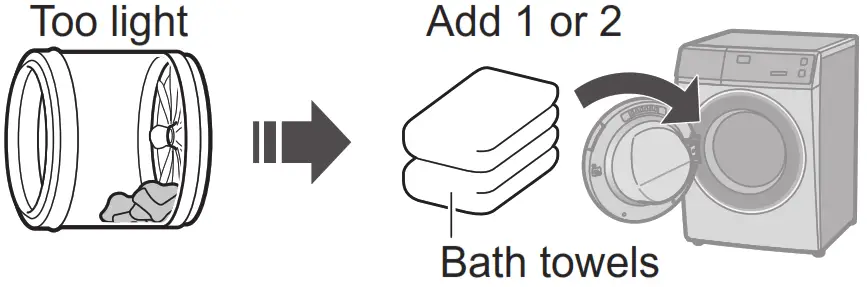

	Spin changes to rinse	… Possible cause • If clothes are uneven, this appliance automatically corrects unevenness using the rinse process.
Laundry	If the laundry yellows	…Try

Time	During a wash	… Possible cause • Remaining time is corrected during operation.
		The remaining time may increase.
	Remaining time	… Possible cause The displayed time is a guideline.

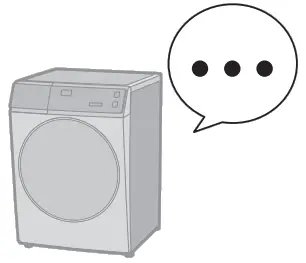

Noise	During water drainage	… Possible cause • This is normal. The drain pump is working.
	The sound of the fan rotating	… Possible cause • This is normal. The fan cools electric parts.
	The motor emits a sound	…Possible cause • This is normal. The motor will make a short sound when the drum engages.
	Unusual noise (or vibration)
Others		… Check • When the power recovers, operation resumes from where it stopped.

Error Display

Error Display	Points to be checked
Unable to drain
Door is open
Unable to spin
Unable to supply water
Unable to drain during drying
Unable to spin

„ Information

Unable to open

Installation

Choosing the Right Location

Make sure to ask a service person for installation.

• Do not install the appliance by yourself.
• Follow this installation method. If you do not, Panasonic will not be liable for any accidents or damages.

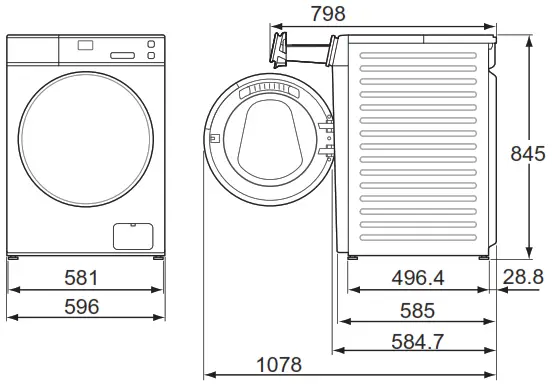

Appliance dimensions

„ Set-in installation

• Do not let the metallic portions of the appliance come into contact with metal sinks or other appliances.

Moving and Installing

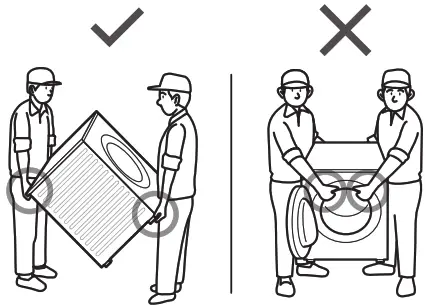

Carrying the appliance
Do not do it alone.

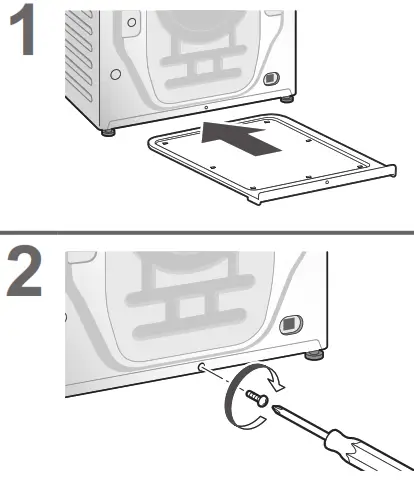

Installation of the bottom cover

Removing the anchor bolts	Leveling the appliance

Connecting the Hoses
Connect the hoses properly to prevent water leaks.

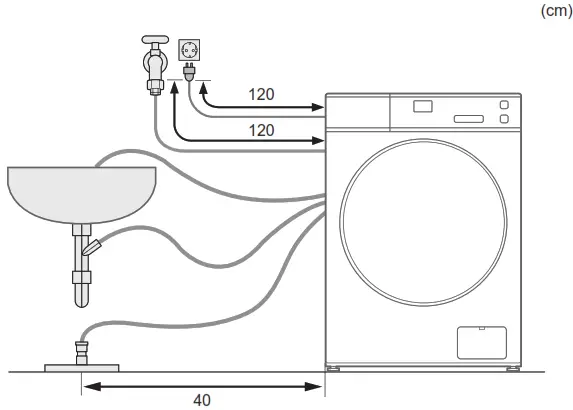

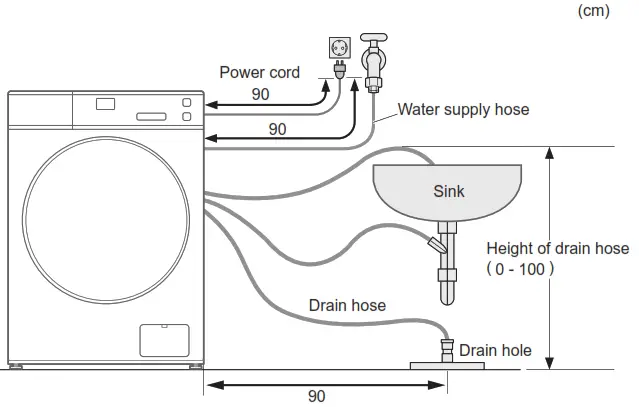

Maximum connection distances for hoses and the power cord
Right side connection

Left side connection

Water supply hose
Connecting the water supply hose
CAUTION

• Tighten the nut firmly.
• Do not twist, squash, modify or cut the hose.

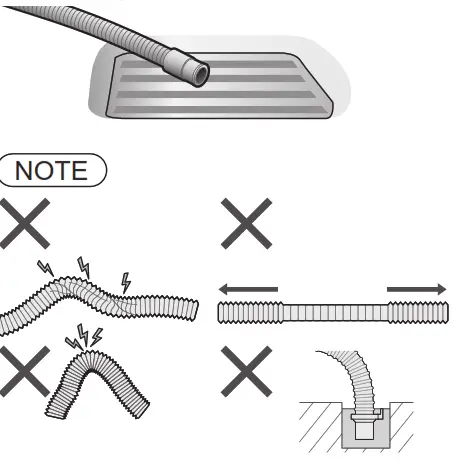

Drain hose

• Draining to a sink or wash basin
  NOTICE

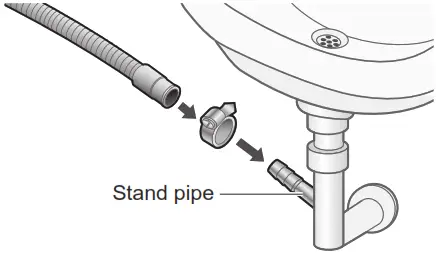

• Draining to a stand pipe
• Draining to a drain hole

Test Run

Checking after a test run

Problem	Causes and Measures
Water leaks	Connect the water supply hose properly
	See P. 43.

Panasonic SmartApp+

S056FR1/S106FR1/S96FR1/S106FC1/S96FC1 (For Singapore only)
More convenient with your smartphone
You can use the service using the “Panasonic SmartApp+”.

Support program selection from program history.
You can operate the washing machine or set the timer with the application.
We have the “My Favorite” program.
You can create original programs with your favorite settings.

• Up to 10 programs for each operation (WASH, WASH & DRY, DRY).

Notification of washing status and end of the operation.
Clothes can be taken out immediately after washing.

• The contents, functions, and designs of this service are subject to change or termination without prior notice.

Required Equipment and Environment

Let’s check the equipment required to use the app.
Android or iOS (iPhone) smartphone
■ Android or iOS (iPhone) smartphone
• About supported OS

https://www.panasonic.com/fiot/wash/?utm_source=fiot&utm_medium=qrcode&utm_campaign=fiotoiqr

■ Internet environment
Please confirm that it is a broadband line.
Example) FTTH (optical fiber), ADSL, CATV (cable television), etc.
Internet communication charges will be borne by the customer.

■ Wireless LAN router
Use a wireless LAN router to connect to the internet.

NOTE

• Make sure that the wireless LAN router has a communication standard of 2.4 GHz band. (Communication standards: IEEE802.11b, IEEE802.11g, IEEE802.11n) Other than the above cannot be used.
• Models that only support WEP cannot be used.
• As a security measure, be sure to use a wireless LAN router that can set the encryption method WPA3, WPA2, or WPA.
• We recommend WPA3 and WPA2 (AES) as encryption methods.
• We do not guarantee the operation of all wireless LAN routers. (Mobile router is not guaranteed to work.)

Initial Settings

1. Install the “Panasonic SmartApp+” (free)
   • You can find the link to download the application from “Panasonic Website”. https://www.panasonic.com/fiot/wash/
   Panasonic Websitehttps://www.panasonic.com/fiot/wash/?utm_source=fiot&utm_medium=qrcode&utm_campaign=fiotoiqr
   • Alternatively, you can search for the “Panasonic SmartApp+” app on Google Play (Android) or App Store (iOS) and install the app.
   • You can also scan the link to install the app from the QR code pasted on the washing machine.
2. Follow the instructions displayed on the screen of the app and register the washing machine.
   • Operate in a position where you can check the display on the washing machine.
   • It cannot be operated while the washing machine is running.

Using the “Panasonic SmartApp+”
After the initial setting is completed, you can use the app.

Preparing to use the “Remote” function
You need to prepare the washing machine before going out.

NOTE

• To cancel the remote control mode and unlock the door → turn the power off.
• When there is no remote control from the app, the remote control mode is released after 23 hours. During remote control mode, all buttons on the appliance (except ) are disabled. You can only control the washing machine from the app. After 23 hours, the normal screen is displayed and the remote control is disabled.

To check the communication status with the lamp on the control panel.

	Light up	Communicate (Connected)
	Blinking	Trying to communicate (Connecting to server)
	Off	Not connected

■ Lamp position

Initializing

• When you stop using the “Panasonic SmartApp+” • Suspected use due to unauthorized access • If the appliance is a pre-owned machine • When you dispose of or transfer the washing machine

Reset the wireless LAN settings to the default settings. (Operate on the washing machine) You should also stop using the service the app.

Error Display

Error display	Causes & Measures
U81	Failed to connect the washing machine and the wireless LAN router. Check the following. • The router is not turned on. → Turn on the power. • The distance between the router and the washing machine is too long.→ Bring the router closer. • There is a device that uses radio waves, such as a microwave oven, nearby. →Keep a distance. → Stop using the device or wait a while and try again. • Multiple devices are connected to the router. →Turn off the power of the device you are not using.
U82	• Communication error with the server. • There may be a problem with your internet connection. →If you do not know the cause, contact your provider, carrier, or router manufacturer.
U83	• In “Backup connection”, the SSID or password of the router is incorrect. →Check the description of the router. • Failed to connect the washing machine and the router. →Check the above “U81”.
U84	• “Scan connection” failed. Check the following. • The Bluetooth® setting on your smartphone is turned off. • The QR code cannot be read correctly. → Make sure that the Bluetooth® setting is ON and then connect again. If you still cannot connect, please try “Backup connection”.
The app displayed words like “Cannot communicate with the washing machine.”	• Communicate again after a while or check the connection status by the following method.

Usage for wireless LAN/Bluetooth®

■ Usage Restrictions
Please note that there are the following restrictions on use. Panasonic is not liable for any incidental damages resulting from the failure to comply with the restrictions and the use or inability to use the machine.

• Do not connect to a wireless network that you do not have permission to use. A wireless network (SSID*) that you do not have permission to use during an automatic search of the wireless network environment may be displayed, but if you connect, it may be considered as unauthorized access.
• Do not use in a place where a magnetic field, static electricity, or radio interference is generated.
  If you use it near the following devices, communication may be interrupted or the speed may slow down.
  • Microwave oven
  • Other wireless LAN / Bluetooth®  devices
  • Other devices that use radio waves in the 2.4 GHz band (digital cordless phones, wireless audio devices, game consoles, PC peripherals, etc.)
  • Metal objects that easily reflect radio waves
  * A name used to identify a specific network on a wireless LAN. If this SSID matches on both devices, communication is possible.

■ Security measures

• Since the wireless LAN uses radio waves to send and receive data, there is a risk of unauthorized access. Take security measures to ensure the safety of your data. (P. 52) Please note that we are not responsible for any problems that occur without taking security measures.
• For the password (encryption key) of the wireless LAN router, refer to the instruction manual of the wireless LAN router and set it in consideration of security.

■ About firmware

• This machine has a function to connect to our firmware update server via the Internet and automatically update its own firmware to the latest version. Since wireless communication is temporarily interrupted during the update, communication may be interrupted or the speed may slow down.
• Do not analyze or modify the firmware.

Copyright, etc.

• Android and Google plays are trademarks or registered trademarks of Google LLC.
• iPhone is a trademark of Apple Inc., registered in the U.S. and other countries.
• The App Store is a service mark of Apple Inc.
• “WPA™”, “WPA2™” and “WPA3™” are trademarks of “Wi-Fi Alliance®”.
• QR Code is a registered trademark of DENSO WAVE INCORPORATED.
• Bluetooth® word mark and logo are registered trademarks owned by Bluetooth SIG, Inc.
• Panasonic Corporation uses these marks under license. Other trademarks and trade names are the property of their respective owners.
• Other names, company names, product names, etc. described in this manual are trademarks or registered trademarks of their respective companies. Some ™ and® marks are not included in the text.

■ About software
This product consists of the following types of software.

1. Software developed by or for Panasonic Corporation (Panasonic)
2. Software owned by a third party and licensed to Panasonic
3. Conditionally licensed open-source software

The software classified in (3) above is distributed with the expectation that it will be useful on its own, but we do not warrant any implied guarantee of “commerciality” or “fitness for a specific purpose”. No warranty is given, including.
JSON
Copyright (c) 2009 Dave Gamble
Copyright (c) 2009-2017 Dave Gamble and JSON contributors
Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the “Software”), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:
The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.
THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES, OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT, OR OTHERWISE, ARISING FROM, OUT OF, OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
wpa_supplicant
Copyright (c) 2005-2009, Jouni Malinen <[email protected]>
Copyright (c) 2008, Jouni Malinen <[email protected]>
wpa_supplicant
Copyright (c) 2003-2019, Jouni Malinen <[email protected]> and contributors All Rights Reserved.
This program is licensed under the BSD license (the one with the advertisement clause removed).
If you are submitting changes to the project, please see the CONTRIBUTIONS file for more instructions.
License
This software may be distributed, used, and modified under the terms of the BSD license:
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions, and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions, and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. Neither the name(s) of the above-listed copyright holder(s) nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
Mbed TLS

RealtekSDK

Apache License
Version 2.0, January 2004
http://www.apache.org/licenses/
TERMS AND CONDITIONS FOR USE, REPRODUCTION, AND DISTRIBUTION

1. Definitions.
   “License” shall mean the terms and conditions for use, reproduction, and distribution as defined by Sections 1 through 9 of this document.
   “Licensor” shall mean the copyright owner or entity authorized by the copyright owner that is granting the License.
   “Legal Entity” shall mean the union of the acting entity and all other entities that control, are controlled by, or are under common control with that entity. For the purposes of this definition, “control” means (i) the power, direct or indirect, to cause the direction or management of the such entity, whether by contract or otherwise, or (ii) ownership of fifty percent (50%) or more of the outstanding shares, or (iii) beneficial ownership of such entity.
   “You” (or “Your”) shall mean an individual or Legal Entity exercising permissions granted by this License. “Source” form shall mean the preferred form for making modifications, including but not limited to software source code, documentation source, and configuration files.
   “Object” form shall mean any form resulting from mechanical transformation or translation of a Source form, including but not limited to compiled object code, generated documentation, and conversions to other media types.
   “Work” shall mean the work of authorship, whether in Source or Object form, made available under the License, as indicated by a copyright notice that is included in or attached to the work (an example is provided in the Appendix below).
   “Derivative Works” shall mean any work, whether, in Source or Object form, that is based on (or derived from) the Work and for which the editorial revisions, annotations, elaborations, or other modifications represent, as a whole, an original work of authorship.
   For the purposes of this License, Derivative Works shall not include works that remain separable from, or merely link (or bind by name) to the interfaces of, the Work and Derivative Works thereof.
   “Contribution” shall mean any work of authorship, including the original version of the Work and any modifications or additions to that Work or Derivative Works thereof, that is intentionally submitted to Licensor for inclusion in the Work by the copyright owner or by an individual or Legal Entity authorized to submit on behalf of the copyright owner. For the purposes of this definition, “submitted” means any form of electronic, verbal, or written communication sent to the Licensor or its representatives, including but not limited to communication on electronic mailing lists, source code control systems, and issue tracking systems that are managed by, or on behalf of, the Licensor for the purpose of discussing and improving the Work, but excluding communication that is conspicuously marked or otherwise designated in writing by the copyright owner as “Not a Contribution”.
   “Contributor” shall mean Licensor and any individual or Legal Entity on behalf of whom a Contribution has been received by the Licensor and subsequently incorporated within the Work.
2. Grant of Copyright License.
   Subject to the terms and conditions of this License, each Contributor hereby grants to You a perpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable copyright license to reproduce, prepare Derivative Works of, publicly display, publicly perform, sublicense, and distribute the Work and such Derivative Works in Source or Object form.
3. Grant of Patent License.
   Subject to the terms and conditions of this License, each Contributor hereby grants to You a perpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable (except as stated in this section) patent license to make, have made, use, offer to sell, sell, import, and otherwise transfer the Work, where such license applies only to those patent claims licensable by such Contributor that is necessarily infringed by their Contribution(s) alone or by a combination of their Contribution(s) with the Work to which such Contribution(s) was submitted. If You institute patent litigation against any entity (including a cross-claim or counterclaim in a lawsuit) alleging that the Work or a Contribution incorporated within the Work constitutes a direct or contributory patent infringement, then any patent licenses granted to You under this License for that Work shall terminate as of the date such litigation is filed.
4. Redistribution.
   You may reproduce and distribute copies of the Work or Derivative Works thereof in any medium, with or without modifications, and in Source or Object form, provided that You meet the following conditions:
   (a) You must give any other recipients of the Work or Derivative Works a copy of this License; and
   (b) You must cause any modified files to carry prominent notices stating that You changed the files; and
   (c) You must retain, in the Source form of any Derivative Works that You distribute, all copyright, patent, trademark, and attribution notices from the Source form of the Work, excluding those notices that do not pertain to any part of the Derivative Works; and
   (d) If the Work includes a “NOTICE” text file as part of its distribution, then any Derivative Works that You distribute must include a readable copy of the attribution notices contained within such NOTICE file, excluding those notices that do not pertain to any part of the Derivative Works, in at least one of the following places: within a NOTICE text file distributed as part of the Derivative Works; within the Source form or documentation, if provided along with the Derivative Works; or, within a display
   generated by the Derivative Works, if and wherever such third-party notices normally appear. The contents of the NOTICE file are for informational purposes only and do not modify the License. You may add Your own attribution notices within Derivative Works that You distribute, alongside or as an addendum to the NOTICE text from the Work, provided that such additional attribution notices cannot be construed as modifying the License.
   You may add Your own copyright statement to Your modifications and may provide additional or different license terms and conditions for the use, reproduction, or distribution of Your modifications, or for any such Derivative Works as a whole, provided Your use, reproduction, and distribution of the Work otherwise complies with the conditions stated in this License.
5. Submission of Contributions.
   Unless You explicitly state otherwise, any Contribution intentionally submitted for inclusion in the Work by You to the Licensor shall be under the terms and conditions of this License, without any additional terms or conditions.
   Notwithstanding the above, nothing herein shall supersede or modify the terms of any separate license agreement you may have executed with the Licensor regarding such Contributions.
6. Trademarks.
   This License does not grant permission to use the trade names, trademarks, service marks, or product names of the Licensor, except as required for reasonable and customary use in describing the origin of the Work and reproducing the content of the NOTICE file.
7. Disclaimer of Warranty.
   Unless required by applicable law or agreed to in writing, Licensor provides the Work (and each Contributor provides its Contributions) on an “AS IS” BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied, including, without limitation, any warranties or conditions of TITLE, NON-INFRINGEMENT, MERCHANTABILITY,  or FITNESS FOR A PARTICULAR PURPOSE. You are solely responsible for determining the appropriateness of using or redistributing the Work and assume any risks associated with Your exercise of permissions under this License.
8. Limitation of Liability.
   In no event and under no legal theory, whether in tort (including negligence), contract, or otherwise, unless required by applicable law (such as deliberate and grossly negligent acts) or agreed to in writing, shall any Contributor be liable to You for damages, including any direct, indirect, special, incidental, or consequential damages of any character arising as a result of this License or out of the use or inability to use the Work (including but not limited to damages for loss of goodwill, work stoppage, computer failure or malfunction, or any and all other commercial damages or losses), even if such Contributor has been advised of the possibility of such damages.
9. Accepting Warranty or Additional Liability.
   While redistributing the Work or Derivative Works thereof, You may choose to offer, and charge a fee for, acceptance of support, warranty, indemnity, or other liability obligations and/or rights consistent with this License. However, in accepting such obligations, You may act only on Your own behalf and on Your sole responsibility, not on behalf of any other Contributor, and only if You agree to indemnify, defend, and hold each Contributor harmless for any liability incurred by, or claims asserted against, such Contributor by reason of your accepting any such warranty or additional liability.
   END OF TERMS AND CONDITIONS

APPENDIX: How to apply the Apache License to your work.
To apply the Apache License to your work, attach the following boilerplate notice, with the fields enclosed by brackets “[]” replaced with your own identifying information. (Don’t include the brackets!) The text should be enclosed in the appropriate comment syntax for the file format. We also recommend that a file or class name and description of purpose be included on the same “printed page” as the copyright notice for easier identification within third-party archives.
Copyright [yyyy] [name of copyright owner]
Licensed under the Apache License, Version 2.0 (the “License”);
you may not use this file except in compliance with the License.
You may obtain a copy of the License at http://www.apache.org/licenses/LICENSE-2.0
Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an “AS IS” BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.
lwIP

Copyright (c) 2001, 2002 Swedish Institute of Computer Science. All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions, and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions, and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. The name of the author may not be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE AUTHOR “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
This file is part of the lwIP TCP/IP stack.
Author: Adam Dunkels <[email protected]> FreeRTOS
Copyright (C) 2017 Amazon.com, Inc. or its affiliates.
All Rights Reserved.
Copyright (C) 2019 Amazon.com, Inc. or its affiliates.
All Rights Reserved.
The FreeRTOS kernel is released under the MIT open-source license, the text of which is provided below.
This license covers the FreeRTOS kernel source files, which are located in the /FreeRTOS/Source directory of the official FreeRTOS kernel download. It also covers most of the source files in the demo application projects, which are located in the /FreeRTOS/Demo directory of the official FreeRTOS download. The demo projects may also include third-party software that is not part of FreeRTOS and is licensed separately to FreeRTOS. Examples of third party software include header files provided by chip or tools vendors, linker scripts, peripheral drivers, etc. All the software in subdirectories of the /FreeRTOS directory is either open source or distributed with permission, and is free for use. For the avoidance of doubt, refer to the comments at the top of each source file.
License text: ————-
Copyright (C) 2019 Amazon.com, Inc. or its affiliates.
All Rights Reserved.
Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the “Software”), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:
The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.
THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT, OR OTHERWISE, ARISING FROM, OUT OF, OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

Specifications

For Singapore

For the Philippines

Complies with
IMDA Standards
DB01017
Panasonic Corporation
https://www.panasonic.com
© Panasonic Appliances (Vietnam) Co., Ltd. 2022
A0822-0(S)(P)
Printed in Vietnam
08-2022

References

• Amazon.com. Spend less. Smile more.
• Licenses
• Apache License, Version 2.0
• 「スマホで洗濯」について | 洗濯機・衣類乾燥機 | Panasonic
• Panasonic SmartApp+ helps anytime, anywhere
