tp-link AX3000 Wi-Fi 6 Bluetooth 5.0 PCle Adapter User Guide
Highlights

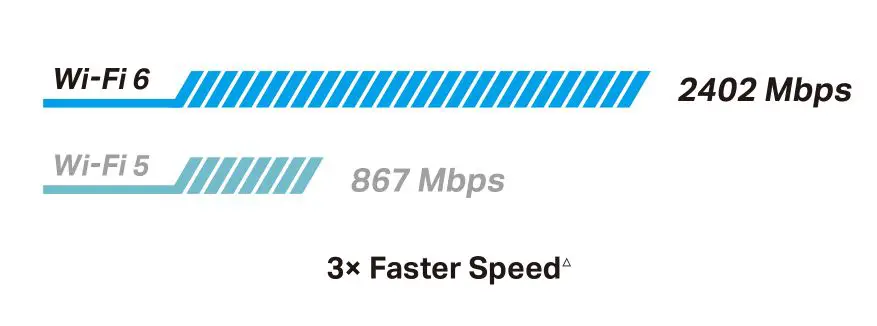

Next-Gen Wi-Fi Technology
Powerful and consistent signals to perfectly pair with Wi-Fi 6 routers supported 160 MHz bandwidth.§

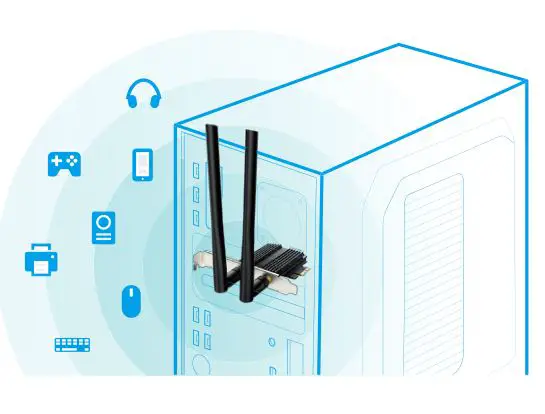

Bluetooth 5.0 Technology
Archer TX50E is compatible with the latest Bluetooth 5.0 Technology, achieving 2× faster speed and 4× broader coverage than Bluetooth 4.2 to connect as more devices as you want and enjoy the smoother experience than ever.***
Highlights
Specifications

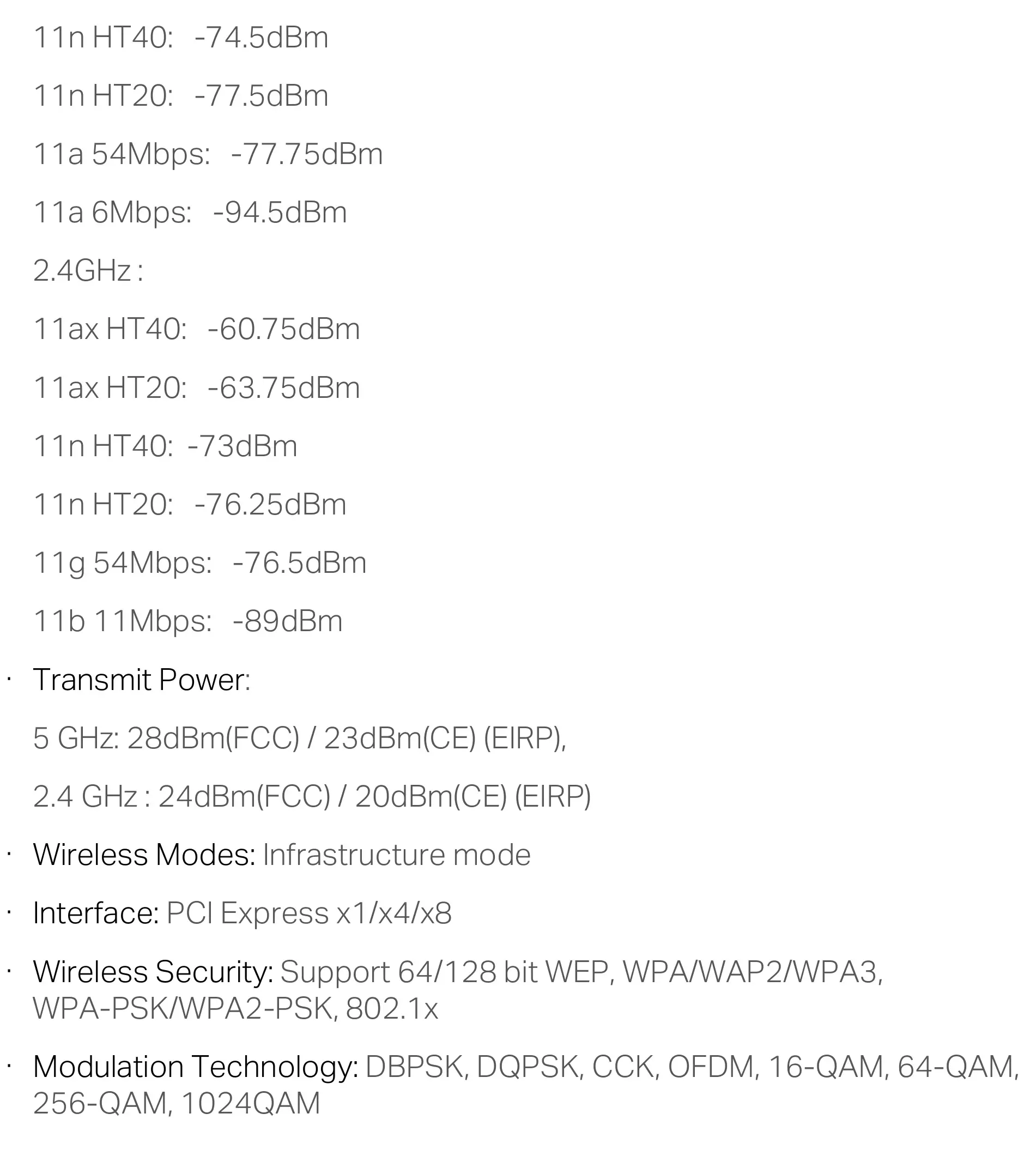

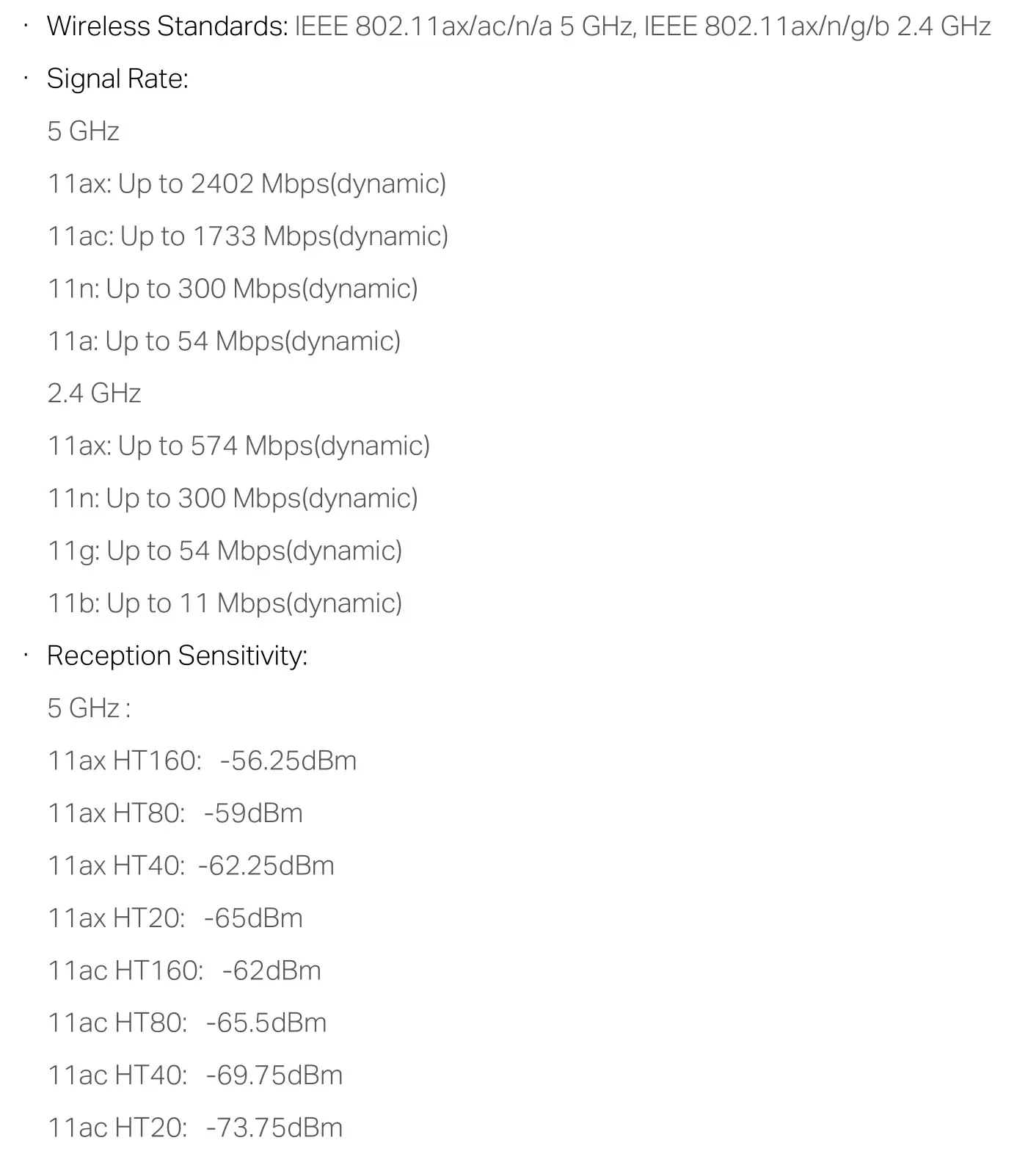

WLAN Features
Specifications
Bluetooth Features
- Standards and Protocols: Bluetooth 5.0, Bluetooth 4.2, Bluetooth 4.0
- Interface: USB 2.0
- Bluetooth Profiles: Archer TX50E supports the native BT profiles implemented in
Windows 10.
* For the latest information on Windows 10 BT profiles, please refer to
https://support.microsoft.com/en-us/help/10568/windows-10-supported-bluetooth-profiles
Hardware
- Chipset: Intel Wi-Fi 6 Chipset
- Antennas: Two High-Gain Dual Band Antennas
- Dimensions: 3.7 × 4.8 × 0.8 in (95.2 ×120.8 ×21.5 mm)
Others
- Package Contents
AX3000 Wi-Fi 6 Bluetooth 5.0 PCIe Adapter
Archer TX50E
Two 5 dBi High Gain Antennas
Low-Profile Bracket
Bluetooth Header Cable
Quick Installation Guide
Resource CD - Certification
FCC, CE, RoHS - System Requirements
Windows 10 (64-bit) only**** - Environment
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
For more information, please visit
https://www.tp-link.com/products/details/?model=Archer+TX50E_V1
or scan the QR code left
Attention: This device may only be used indoors in all EU member states and EFTA countries.
Specifications are subject to change without notice. TP-Link is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. Copyright ©2020 TP-Link Technologies Co., Ltd. All rights reserved. †
Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and number of connected devices are not guaranteed and will vary as a result of network conditions, AP limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and AP location. ‡
Use of Wi-Fi 6 (802.11ax), and features including OFDMA, MU-MIMO, HT160 and 1024-QAM require APs to also support the corresponding features. §
Functionality of Archer TX50E may be restricted on some computing systems and platforms. Please try to update the device’s driver for feature compatibility. △802.11ax 2×2 160 MHz enables 2402 Mbps maximum theoretical data rates, 3× faster than standard 802.11ac 2×2 80 MHz (867 Mbps) and nearly 6x faster than baseline 1x1ac (433 Mbps) Wi-Fi as documented in IEEE 802.11 wireless standard specifications, and require the use of similarly configured 802.11ax wireless network routers.
“Up to 75% lower latency” is based on Intel simulation data of 802.11ax with and without OFDMA using 9 clients. Average latency without OFDM is 36ms, with OFDMA average latency is reduced to 7.6ms. Latency improvement requires that the AP and all clients support OFDMA. **Use of WPA3TM requires APs to also support the corresponding feature.
***Several new features are introduced in the Bluetooth Core Specification 5.0 Release, including 2× faster speed and 4× broader coverage compared with Bluetooth 4.2.
Supported Bluetooth profiles
