Asus Pce-ax1800 Ax1800 Dual-band Bluetooth 5.2 Pcie Wifi Adapter User Guide

ASUS PCE-AX1800 AX1800 Dual-Band Bluetooth 5.2 PCIe WiFi Adapter

Setting up a Home Network

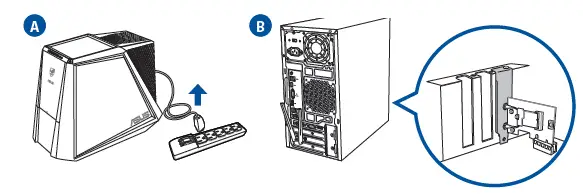

1. Turn off your computer, unplug the power cord, and open the system cover. Insert the PCE-AX1800 wireless adapter onto the PCI Express x1 slot, and ensure that it is seated completely.

2. Download the driver on ASUS official website and double click on “setup” to install WiFi driver or Bluetooth driver.

3. Install WiFi Driver:

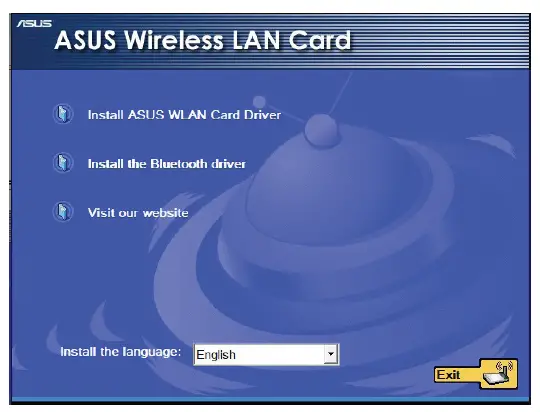

   Click install ASUS WLAN Card driver and follow onscreen instruction to complete the WiFi installation.

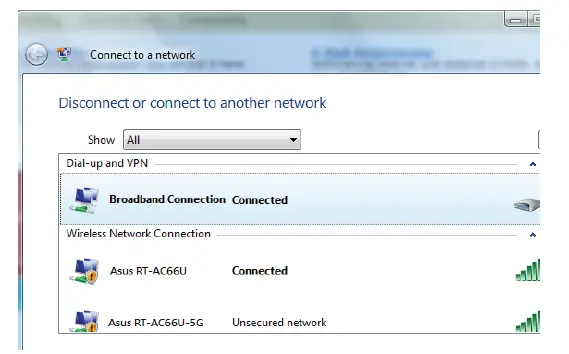

   When the setup is complete, connect your desktop PC to the Internet wirelessly via PCE-AX1800.

4. Install Bluetooth Driver:

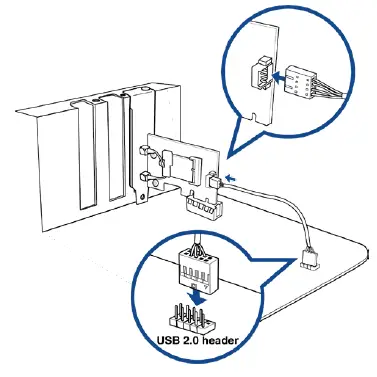

   Connect one end of the bundled USB cable to the USB port on PCE-AX1800 and the other end to the F_USB connector on the motherboard. Click install the Bluetooth driver and follow the onscreen instructions to complete the Bluetooth installation.

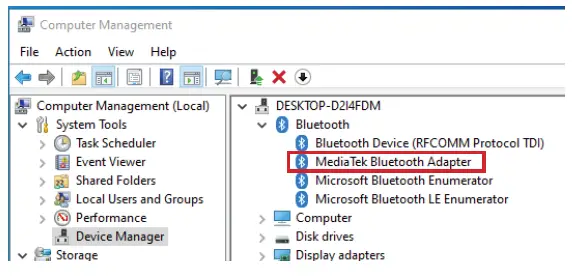

5. Open Device Manager. You can find PCE-AX1800 in the list if Bluetooth is successfully installed.

   1.  Turn off your computer, unplug the power cord, and open the system cover. Insert the PCE-AX1800 wireless adapter onto the PCI Express x1 slot, and ensure that it is seated completely.
   2. Download the driver on ASUS official website and double click on “setup” to install WiFi driver or Bluetooth driver.
   3. Install WiFi Driver:
      Click install ASUS WLAN Card driver and follow onscreen instruction to complete the WiFi installation. When the setup is complete, connect your desktop PC to the Internet wirelessly via PCE-AX1800.
   4.  Install Bluetooth Driver:
      Connect one end of the bundled USB cable to the USB port on PCE-AX1800 and the other end to the F_USB connector on the
      motherboard. Click install ASUS Bluetooth driver and follow the onscreen instructions to complete the Bluetooth installation.
   5. Open Device Manager. You can find PCE-AX1800 in the list if Bluetooth is successfully installed.

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference.
•  This device must accept any interference received, including interference that may cause undesired operation.
  This equipment has been tested and found to comply with the limits for a class B digital device, pursuant
  to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
•  Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

WARNING! Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Prohibition of Co-location
This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.
IMPORTANT NOTE:
Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. To maintain compliance with FCC exposure compliance requirement, please follow operation instruction as documented in this manual.

WARNING! This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter.

Compliance Statement of Innovation, Science and Economic Development Canada (ISED)

This device complies with Innovation, Science and Economic Development Canada licence exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems. CAN ICES-003(B)/NMB-003(B)
Radio Frequency (RF) Exposure Information
The radiated output power of the ASUS Wireless Device is below the Innovation, Science and Economic Development Canada radio frequency exposure limits. The ASUS Wireless Device should be used in such a manner such that the potential for human contact during normal operation is minimized. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator any part of your body.
This device has been certified for use in Canada. Status of the listing in the Innovation, Science and Economic Development Canada’s REL (Radio Equipment List) can be found at the following web address:
http://www.ic.gc.ca/eic/site/ceb-bhst.nsf/eng/h_tt00020.html
Additional Canadian information on RF exposure also can be found at the following web:
https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html

Safety Notices

• Use this product in environments with ambient temperatures between 0°C(32°F) and 40°C (104°F).
•  Refer to the rating label on the bottom of your product and ensure your power adapter complies with this rating.
• DO NOT place on uneven or unstable work surfaces. Seek servicing if the casing has been damaged.
•  DO NOT place or drop objects on top and do not shove any foreign objects into the product.
•  DO NOT expose to or use near liquids, rain, or moisture. DO NOT use the modem during electrical storms.
•  DO NOT cover the vents on the product to prevent the system from getting overheated.
•  DO NOT use damaged power cords, accessories, or other peripherals.
•  If the Adapter is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer.
•  To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system.
• DO NOT mount this equipment higher than 2 meters.
