ThinkSystem Intel S4610 Mainstream SATA 6Gb SSDs Product Guide

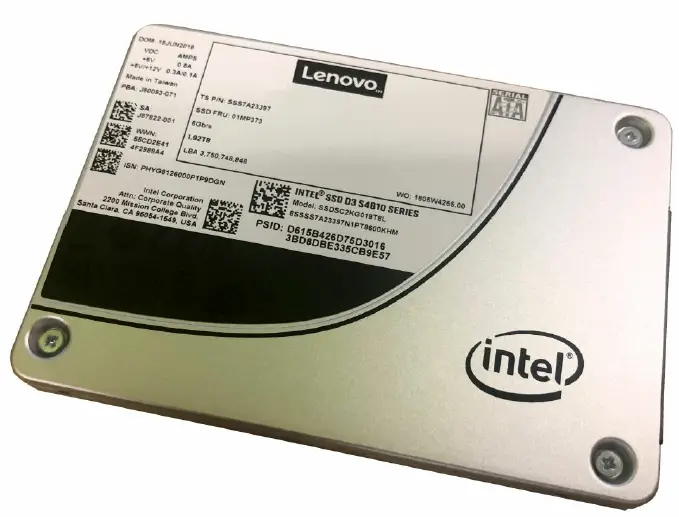

The Intel S4610 Mainstream SATA solid-state drives (SSDs) for Lenovo servers are advanced data center SSDs optimized for mixed read-write performance, endurance, and strong data protection. Compared with the Intel S4600 series, these new drives offer improved performance and lower latency. The Intel SSD S4610 drive with 3 full drive writes per day (DWD) is an excellent choice as a cache in transactional applications and high-speed storage for enterprise databases. The Intel S4610 Enterprise Mainstream SATA solid-state drive is shown in the following figure.

Did you know?
By combining the Intel 3D NAND TLC Flash Memory technology and Intel’s latest controller, the design of Intel S4610 Mainstream SATA SSDs delivers consistent performance, reduced power consumption, and end-to-end data protection, as well as being optimized for endurance and IOPS/watt. Rigorous testing of Intel S4610 Mainstream SATA SSDs by Lenovo through the ServerProven® program ensures a high degree of storage subsystem compatibility and reliability. Providing additional peace of mind, these drives are covered under the Lenovo warranty.

Part number information

The following table lists the ordering information for drives for ThinkSystem servers.

Table 1. Ordering information for ThinkSystem

Features

The Intel S4610 Mainstream SATA SSDs have the following features:

• Industry-standard 2.5-inch or 3.5-inch form factors
• Cost-effective Intel 3D NAND TLC Flash Memory
• Endurance of 3 drive writes per day (DWPD) for 5 years, using Intel High Endurance Technology (HET).
• SATA TLC solid-state drive with high read performance and consistently low latencies to fulfill client needs in the enterprise space
• High reliability and enhanced ruggedness
• Energy savings, with typical write power consumption as low as 2.4 W per drive
• Absence of moving parts to reduce potential failure points in the server S.M.A.R.T. support
• Advanced Encrypting Standard (AES) 256-bit encryption
• Full end-to-end data path protection
• Thermal throttling to extend the life of the drive
• Enhanced power loss data protection

The key difference between Performance SSDs such as the S3710 SSDs, Mainstream SSDs such as the S4610 SSDs, and Entry SSDs, such as the S4510 SSDs, is their endurance (life expectancy). SSDs have a huge, but finite, number of program/erase (P/E) cycles, which determines how long the drives can perform write operations and thus their life expectancy. Mainstream SSDs have better endurance than Entry SSDs but at a higher cost/IOPS ratio. SSD write endurance is typically measured by the number of programs/erase cycles that the drive can incur over its lifetime, which is listed as TBW in the device specification. The TBW value that is assigned to a solid-state device is the total bytes of written data that a drive can be guaranteed to complete. Reaching this limit does not cause the drive to immediately fail; the TBW simply denotes the maximum number of writes that can be guaranteed. A solid-state device does not fail upon reaching the specified TBW, but at some point after surpassing the TBW value (and based on manufacturing variance margins), the drive reaches the end-of-life point, at which time the drive goes into read-only mode. Because of such behavior, careful planning must be done to use SSDs in the application environments to ensure that the TBW of the drive is not exceeded before the required life expectancy. For example, the S4610 960 GB drive has an endurance of 6.0 PB of total bytes written (TBW). This means that for full operation over five years, the write workload must be limited to no more than 3,288 GB of writes per day, which is equivalent to 3.4 full drive writes per day (DWPD). For the device to last three years, the drive write workload must be limited to no more than 5,479 GB of writes per day, which is equivalent to 5.7 full drive writes per day.

Technical specifications

The following table presents technical specifications for the Intel S4610 Mainstream SATA SSDs.

Table 2. Technical specifications

Server support

The following tables list the ThinkSystem servers that are compatible.

Table 3. Server support (Part 1 of 3)

Table 4. Server support (Part 2 of 3)

Table 5. Server support (Part 3 of 3)

Operating system support

SATA SSDs operate transparently to users, storage systems, applications, databases, and operating systems. Operating system support is based on the controller used to connect to the drives. Consult the controller product guide for more information:

• RAID controllers: https://lenovopress.com/servers/options/raid
• SAS HBAs: https://lenovopress.com/servers/options/hba

Warranty

The Intel S4610 Mainstream SATA SSDs carry a one-year, customer-replaceable unit (CRU) limited warranty. When the SSDs are installed in a supported server, these drives assume the system’s base warranty and any warranty upgrades. Solid-state State Memory cells have an intrinsic, finite number of program/erase cycles that each cell can incur. As a result, each solid-state device has a maximum amount of program/erase cycles to which it can be subjected. The warranty for Lenovo solid state drives (SSDs) is limited to drives that have not reached the maximum guaranteed number of program/erase cycles, as documented in the Official Published Specifications for the SSD product. A drive that reaches this limit may fail to operate according to its Specifications.

Physical specifications

The S4610 Mainstream SATA SSDs have the following physical specifications. Dimensions and weight (approximate, without drive tray):

• Height: 7 mm (0.3 in.)
• Width: 70 mm (2.8 in.)
• Depth: 100 mm (4.0 in.)
• Weight: 63 g (2.2 oz lb) (66 g for the 1.92 TB drives)

Shipping dimensions and weight – 2.5-inch drives (approximate):

• Height: 63 mm (2.5 in.)
• Width: 174 mm (6.9 in.)
• Depth: 133 mm (5.2 in.)
• Weight: 434 g (1.0 lb)

Shipping dimensions and weight – 3.5-inch drives (approximate):

• Height: 95 mm (3.7 in.)
• Width: 257 mm (10.1 in.)
• Depth: 193 mm (7.6 in.)
• Weight: 484 g (1.1 lb)

Operating environment

The S4610 Mainstream SATA SSDs are supported in the following environment:

• Temperature: 0 to 70 °C (32 to 158 °F)
• Temperature (non-operating): -55 to 95 °C (-67 to 203 °F)
• Relative humidity: 5 – 95% (noncondensing)
• Maximum altitude: 3,050 m (10,000 ft)

Agency approvals

The Intel S4610 Mainstream SATA SSDs conform to the following regulations:

• FCC Title 47, Part 15B, Class B
• CA/CSA-CEI/IEC CISPR 22:02 EN 55024: 1998
• EN 55022: 2006
• EN-60950-1 2nd Edition
• UL/CSA EN-60950-1 2nd Edition
• Low Voltage Directive 2006/95/EC
• C-Tick: AS/NZS3584
• BSMI: CNS 13438
• KCC Article 11.1
• RoHS DIRECTIVE 2011/65/
• EU WEEE Directive 2002/96/EC

Related publications and links

For more information, see the following documents:

• Lenovo ThinkSystem storage options product page: https://lenovopress.com/lp0761-storage-options-for-thinksystem-servers
• Intel SSD Data Center S4610 Series product page: https://www.intel.com/content/www/us/en/products/memory-storage/solid-state-drives/data-center-ssds/dc-d3-s4610-series.html
• ServerProven for SSDs: http://www.lenovo.com/us/en/serverproven
• Lenovo Press product guides for RAID controllers: https://lenovopress.com/servers/options/raid
• Lenovo RAID Introduction: https://lenovopress.com/lp0578-lenovo-raid-introduction
• Lenovo RAID Management Tools and Resources: https://lenovopress.com/lp0579-lenovo-raid-management-tools-and-resources

Related product families

Product families related to this document are the following:

• Drives
