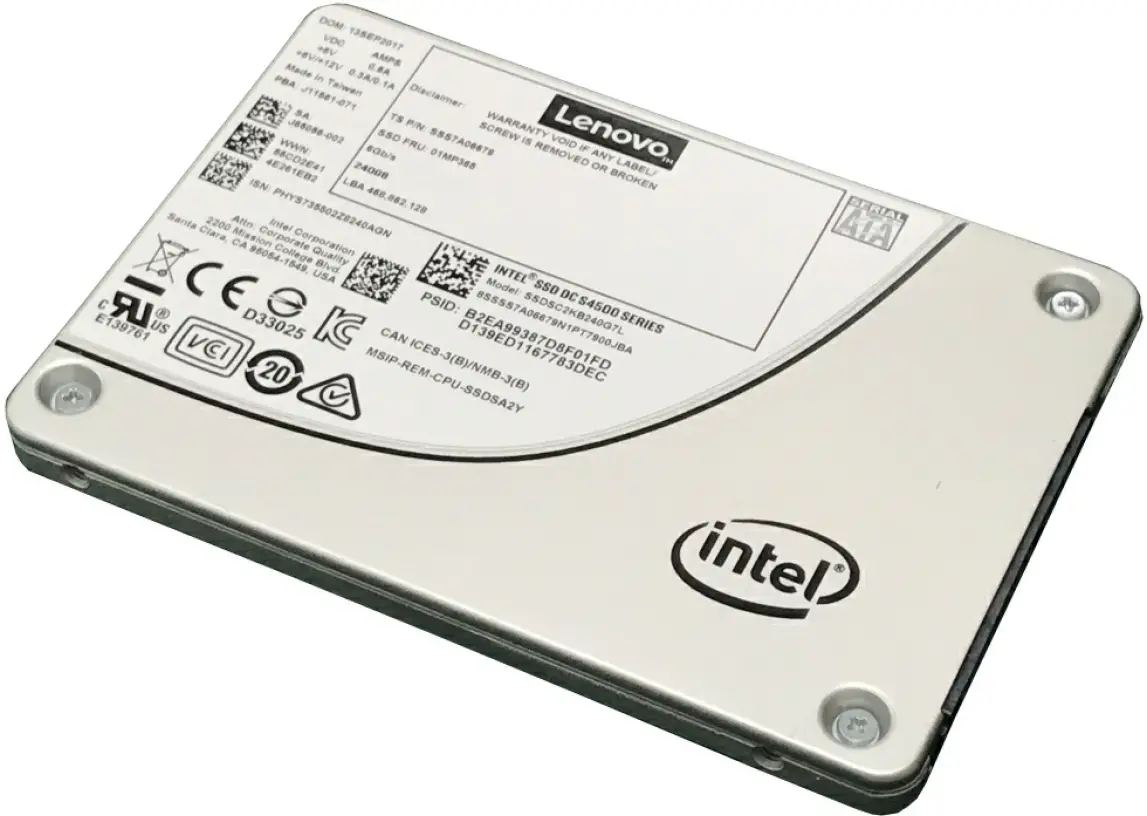

Lenovo Intel S4500 Entry SATA 6Gb SSDs

The Intel S4500 Entry SATA solid-state drives (SSDs) for Lenovo servers use Intel 3D NAND TLC Flash Memory technology with a 6Gbps SATA interface to provide an affordable solution with industry leading performance. Compared with the Intel S3520 series, these new drives offer improved performance and lower latency. The S4500 SSDs are optimized for read-intensive applications such as boot, web servers, lower data rate operational databases and analytics.
Did you know?
By combining the latest Intel 3D NAND TLC Flash Memory technology with Intel’s latest controller technology, the design of the S4500 Entry SATA SSDs delivers consistent performance, reduced power consumption, and end-to-end data protection, as well as being optimized for IOPS/watt and cost/IOPS. Rigorous testing of S4500 Entry SATA SSDs by Lenovo through the Server Proven program assures a high degree of storage subsystem compatibility and reliability. Providing additional peace of mind, these drives are covered under Lenovo warranty.

Features

The Intel S4500 Entry SATA SSDs have the following features:

• 2.5-inch or 3.5-inch form factors
• Cost-effective Intel 3D NAND TLC Flash Memory
• Endurance of 1 drive writes per day (DWPD) for 5 years, using Intel Standard Endurance Technology (SET).
• SATA TLC solid-state drive with high read performance and consistently low latencies to fulfill client needs in the enterprise space
• High reliability and enhanced ruggedness
• Energy savings, with 5.6 W typical power consumption per drive
• Absence of moving parts to reduce potential failure points in the server
• S.M.A.R.T. support
• Advanced Encrypting Standard (AES) 256-bit encryption
• Full end-to-end data path protection
• Thermal throttling to extend the life of the drive
• Enhanced power loss data protection

SSDs have a huge but finite number of program/erase (P/E) cycles, which affect how long they can perform write operations and thus their life expectancy. Enterprise Entry SSDs typically have a better cost per read IOPS ratio but lower endurance and performance compared to Enterprise Performance SSDs. SSD write endurance is typically measured by the number of program/erase cycles that the drive can incur over its lifetime, which is listed as total bytes written (TBW) in the device specification. The TBW value that is assigned to a solid-state device is the total bytes of written data that a drive can be guaranteed to complete. Reaching this limit does not cause the drive to immediately fail; the TBW simply denotes the maximum number of writes that can be guaranteed. A solid-state device does not fail upon reaching the specified TBW. However, at some point after surpassing the TBW value (and based on manufacturing variance margins), the drive reaches the end-of-life point, at which time the drive goes into read-only mode. Because of such behavior, careful planning must be done to use SSDs in the application environments to ensure that the TBW of the drive is not exceeded before the required life expectancy. For example, the S4500 Entry 960 GB drive has an endurance of 1,860 TB of total bytes written (TBW). This means that for full operation over five years, write workload must be limited to no more than 1,019 GB of writes per day, which is equivalent to 1.1 full drive writes per day (DWPD). For the device to last three years, the drive write workload must be limited to no more than 1,699 GB of writes per day, which is equivalent to 1.8 full drive writes per day.

Technical specifications

The following table presents technical specifications for the Intel S4500 Entry SATA SSDs.
Technical specifications

Server support – ThinkSystem
The following tables list the ThinkSystem servers that are compatible.

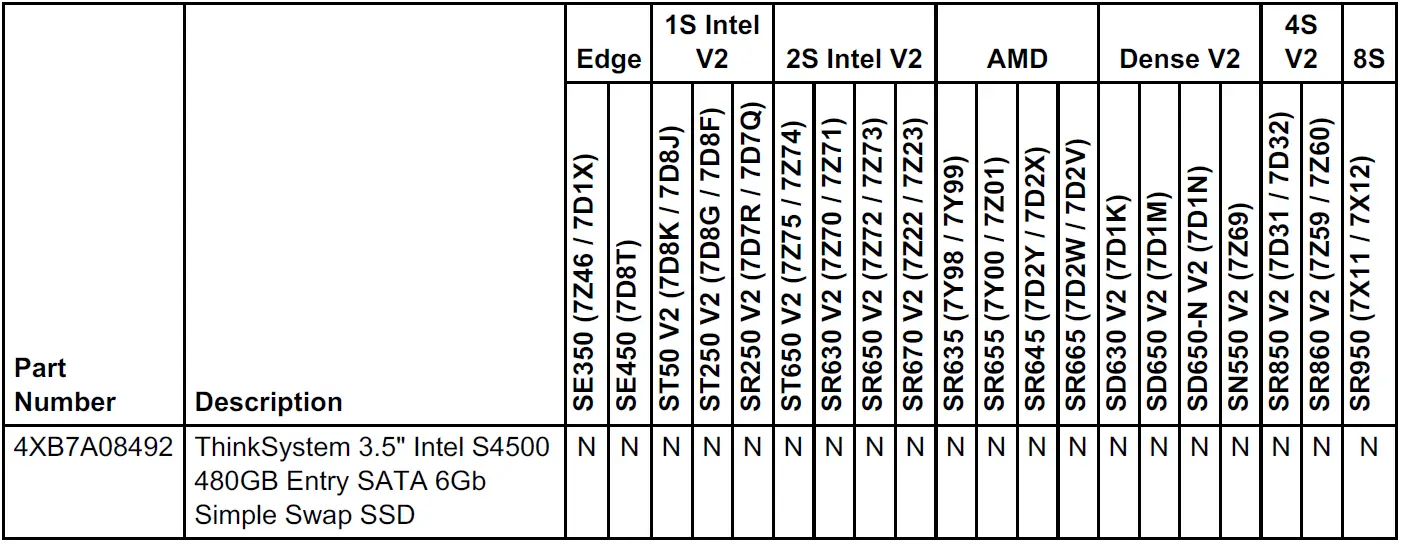

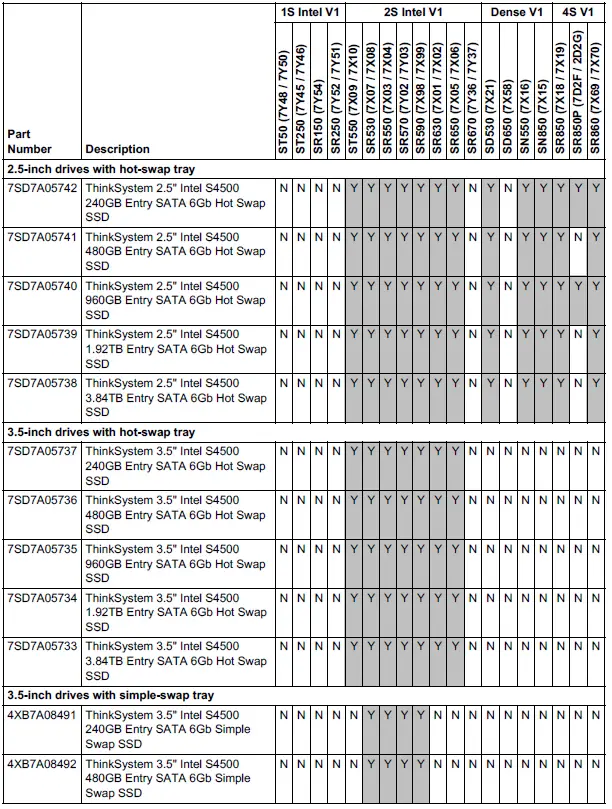

Server support – ThinkSystem (Part 1 of 2)

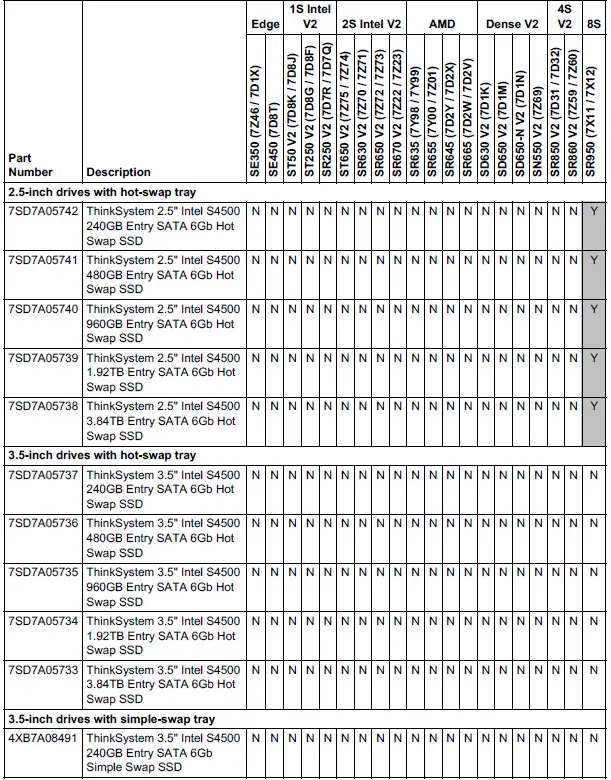

Server support – ThinkSystem (Part 2 of 2)

Server support – System x

The following tables list the System x servers that are compatible.
Support for System x and dense servers with Xeon E5/E7 v4 and E3 v5 processors
Support for System x and dense servers with Xeon E5/E7 v4 and E3 v5 processors

Support for System x and dense servers with Intel Xeon v3 processors
Support for servers with Intel Xeon v3 processors

Server support – Think Server
The following tables list the Think Server systems that are compatible.
Support for Think Server systems with E5 v4 or E3 v6 processors
Support for sd350: The drives supported with the sd350 are listed in System x table.
Support for Think Server Generation 5 servers with E5 v4 or E3 v6 processors

Support for Think Server systems with E5 v3 and E3 v5 processors
Support for Think Server systems with E5 v3 and E3 v5 processors

Server support – Flex System

The following table lists the compatibility information for Flex System servers.
Tip: For the ThinkSystem SN550 and SN850, see the ThinkSystem table.
Support for Flex System servers

Operating system support

SSDs operate transparently to users, storage systems, applications, databases, and operating systems. Operating system support is based on the controller used to connect to the drives. Consult the controller product guide for more information:

• RAID controllers: https://lenovopress.com/servers/options/raid
• SAS HBAs: https://lenovopress.com/servers/options/hba

Warranty

The Intel S4500 Entry SATA SSDs carry a one-year, customer-replaceable unit (CRU) limited warranty. When the SSDs are installed in a supported server, these drives assume the servers’s base warranty and any warranty upgrades. Solid State Memory cells have an intrinsic, finite number of program/erase cycles that each cell can incur. As a result, each solid state device has a maximum amount of program/erase cycles to which it can be subjected. The warranty for Lenovo solid state drives (SSDs) is limited to drives that have not reached the maximum guaranteed number of program/erase cycles, as documented in the Official Published Specifications for the SSD product. A drive that reaches this limit may fail to operate according to its Specifications.

Physical specifications

The drives have the following physical specifications (approximate, without the tray):

• Height: 7 mm (0.3 in.)
• Width: 70 mm (2.8 in.)
• Depth: 100 mm (4.0 in.)
• Weight: 63 g (2.2 oz lb) (66 g for the 1.92 TB and 3.84 TB drives)

Shipping dimensions and weight – 2.5-inch drives (approximate, including the tray):

• Height: 63 mm (2.5 in.)
• Width: 174 mm (6.9 in.)
• Depth: 133 mm (5.2 in.)
• Weight: 434 g (1.0 lb)

Shipping dimensions and weight – 3.5-inch drives (approximate, including the tray):

• Height: 95 mm (3.7 in.)
• Width: 257 mm (10.1 in.)
• Depth: 193 mm (7.6 in.)
• Weight: 484 g (1.1 lb)

Operating environment

The SSDs are supported in the following environment:

• Temperature: 0 – 70°C (32 – 158°F)
• Relative humidity: 5 – 95% (noncondensing)
• Maximum altitude: 3,050 m (10,000 ft)

Agency approvals
The Intel S4500 Entry SATA SSDs conform to the following regulations:

• FCC Title 47, Part 15B, Class B
• CA/CSA-CEI/IEC CISPR 22:02
• EN 55024: 1998
• EN 55022: 2006
• EN-60950-1 2nd Edition
• UL/CSA EN-60950-1 2nd Edition Low Voltage Directive 2006/95/EC C-Tick: AS/NZS3584
• BSMI: CNS 13438
• KCC Article 11.1
• RoHS DIRECTIVE 2011/65/EU
• WEEE Directive 2002/96/EC

Related publications and links
For more information, see the following documents:

• Lenovo ThinkSystem storage options product web page
  https://lenovopress.com/lp0761-storage-options-for-thinksystem-servers
• Lenovo System x storage options product web page
  https://www3.lenovo.com/us/en/data-center/servers/server-options/system-x-options/server-storage/c/system-x-storage
• Intel SSD Data Center S4500 Series product page
  https://www.intel.com/content/www/us/en/products/memory-storage/solid-state-drives/data-center-ssds/dc-s4500-series.html
• Server Proven for SSDs
  http://static.lenovo.com/us/en/serverproven/xseries/storage/hssdmatrix.shtml
• Lenovo Press product guides for RAID controllers
  https://lenovopress.com/servers/options/raid
• Lenovo RAID Introduction
  https://lenovopress.com/lp0578-lenovo-raid-introduction
• Lenovo RAID Management Tools and Resources
  https://lenovopress.com/lp0579-lenovo-raid-management-tools-and-resources

Related product families
Product families related to this document are the following:

• Drives
