PM883 Entry 6Gb SATA SSDs
Owner’s Manual

PM883 Entry 6Gb SATA SSDs

The Lenovo PM883 Entry SATA solid-state drives (SSDs) in capacities ranging from 240 GB to 7.86 TB are general-purpose SSDs based on the Samsung PM883 platform. They are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.

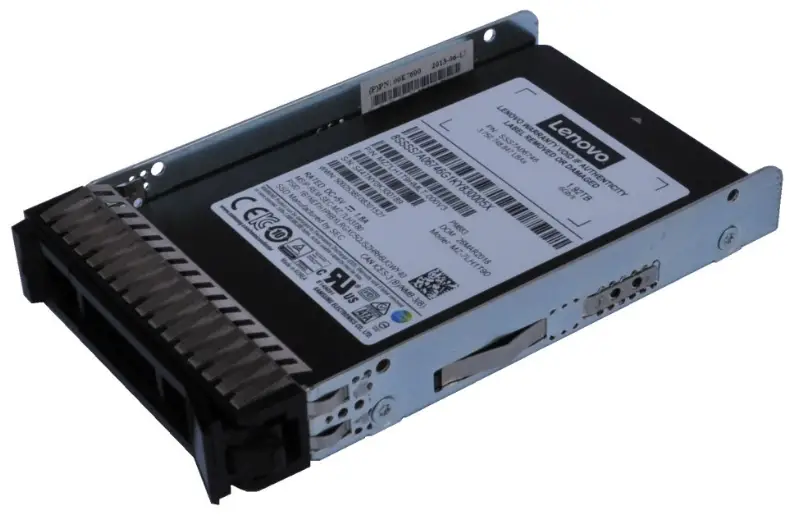

Figure 1. Lenovo ThinkSystem 2.5″ PM883 Entry SATA 6Gb Hot Swap SSD

Did you know?
Lenovo Entry SSDs are suitable for read-intensive and general-purpose data center workloads. Overall, these SSDs provide outstanding IOPS/watt and cost/IOPS for enterprise solutions and are an excellent choice for applications such as web serving, hyper-scale cloud, content delivery, caching, databases, and analytics.
Click here to check for updates

Part number information

The following table lists the part numbers and feature codes for ThinkSystem servers.
Table 1. Ordering part numbers and feature codes – ThinkSystem

The part numbers include the following items:

• One 2.5-inch solid-state drive in a ThinkSystem hot-swap tray
• 3.5-inch drive options include a 2.5-inch-to-3.5-inch conversion tray
• Documentation flyer

Features

• The Entry SATA SSDs have the following features:
• Low-cost, read-intensive SSD from Samsung
• 2.5-inch or 3.5-inch industry-standard form factor with hot-swap tray
• 6 Gbps SATA interface
• Advanced ECC Engine and End-to-End Data Protection
• Samsung 32-layer V-NAND stacks the vertical NAND layers in three dimensions, solving the cell-to-cell interference that causes data corruption in planar NAND.
• Protect data integrity from unexpected  power loss with Samsung’s advanced power-loss protection architecture
• Supports Self-Monitoring, Analysis, and Reporting Technology(S.M.A.R.T).
• Dynamic Thermal Guard Protection protects the SSD from overheating by automatically controlling the speed of the CPU relative to its core temperature

Entry SSDs and Performance SSDs have similar read and write IOPS performance, but the key difference between them is their endurance (or lifetime) (that is, how long they can perform write operations because SSDs have a finite number of program/erase (P/E) cycles). Entry SSDs have a better cost/IOPS ratio but lower endurance compared to Performance SSDs. SSD write endurance is typically measured by the number of program/erase (P/E) cycles that the drive incurs over its lifetime, listed as the total bytes of written data (TBW) in the device specification.
The TBW value assigned to a solid-state device is the total bytes of written data (based on the number of P/E cycles) that a drive can be guaranteed to complete (% of remaining P/E cycles = % of remaining TBW). Reaching this limit does not cause the drive to immediately fail. It simply denotes the maximum number of writes that can be guaranteed. A solid-state device will not fail upon reaching the specified TBW. At some point based on the manufacturing variance margin, after surpassing the TBW value, the drive will reach the end-of-life point, at which the drive will go into a read-only mode.
Because of such behavior by Entry solid-state drives, careful planning must be done to use them only in read-intensive or mixed up to 70% read/30% write environments to ensure that the TBW of the drive will not be exceeded before the required life expectancy.
For example, the 480 GB PM883 Entry drive has an endurance of 683 TB of total bytes written (TBW). This means that for full operation over five years, the write workload must be limited to no more than 374 GB of writes per day, which is equivalent to 0.8 full drive writes per day (DWPD). For the device to last three years, the drive writes workload must be limited to no more than 624 GB of writes per day, which is equivalent to 1.3 full drive writes per day.

Technical specifications

The following tables present technical specifications for the PM883 Entry 6Gb SATA SSDs.
Table 2. Technical specifications

Server support

The following tables list the ThinkSystem servers that are compatible.

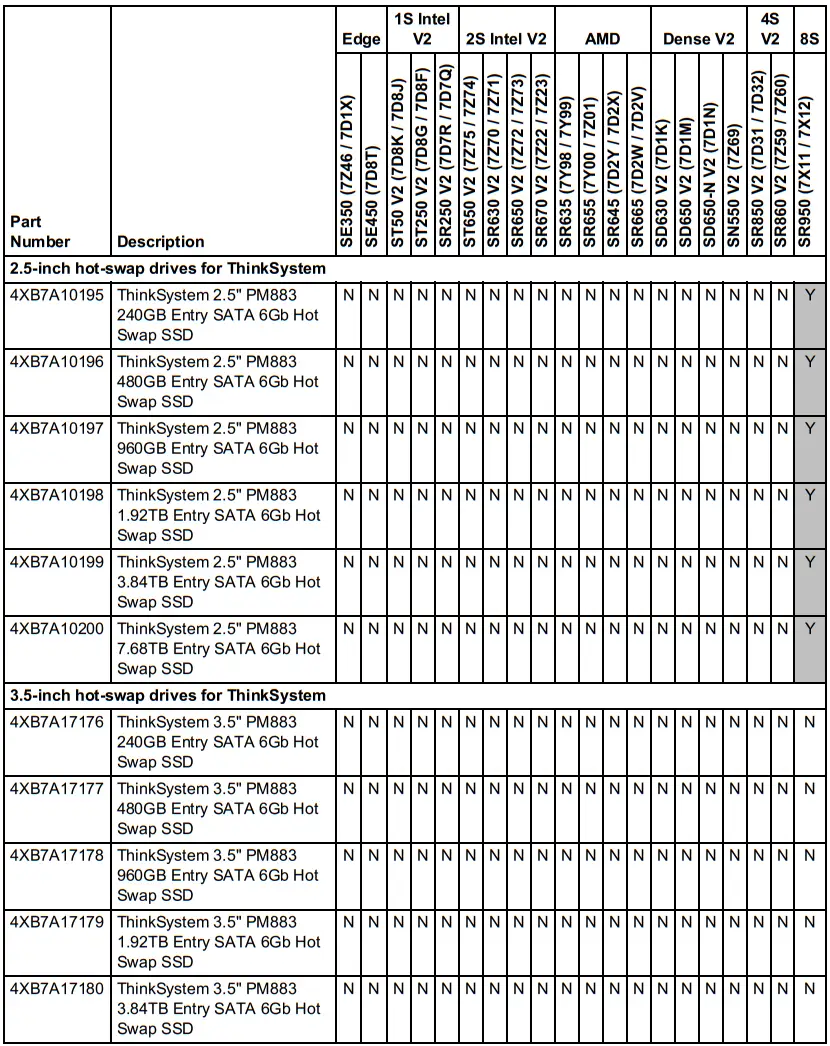

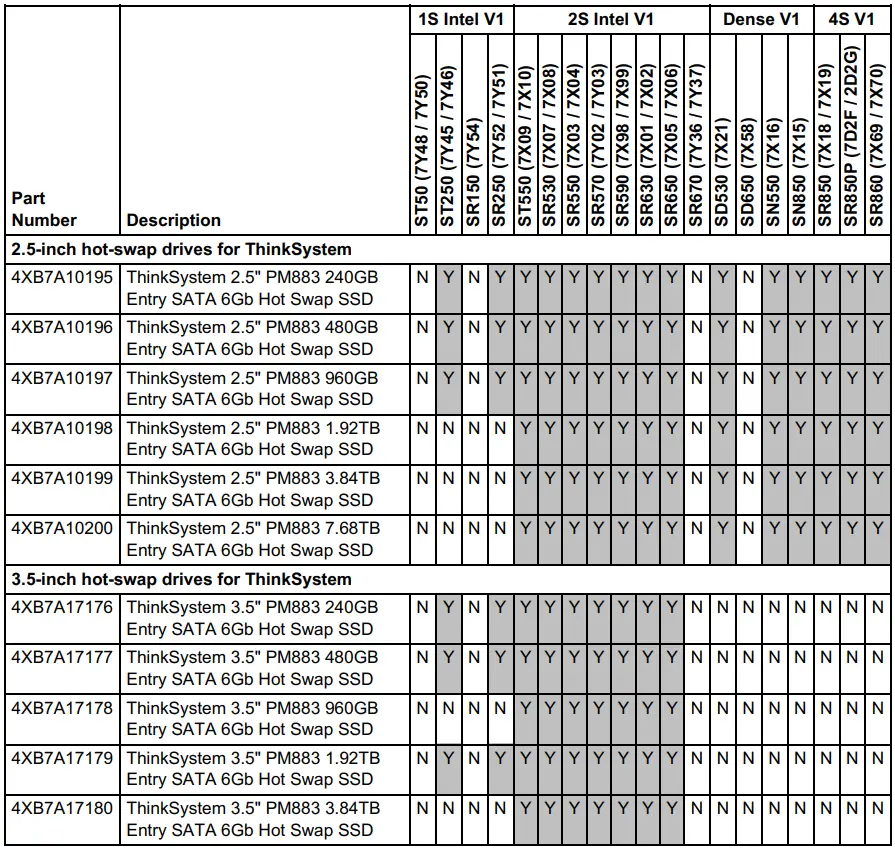

Table 3. Server support (Part 1 of 2)Table 4. Server support (Part 2 of 2)Operating system support
SSDs operate transparently to users, storage systems, applications, databases, and operating systems.
Operating system support is based on the controller used to connect to the drives. Consult the controller product guide for more information:

• RAID controllers: https://lenovopress.com/servers/options/raid
• SAS HBAs: https://lenovopress.com/servers/options/hba

Warranty

The PM883 Entry 6Gb SATA SSDs carry a one-year, customer-replaceable unit (CRU) limited warranty.
When the SSDs are installed in a supported server, these drives assume the system’s base warranty and any warranty upgrades.
Solid-state State Memory cells have an intrinsic, finite number of program/erase cycles that each cell can incur.
As a result, each solid-state device has a maximum amount of program/erase cycles to which it can be subjected. The warranty for Lenovo solid state drives (SSDs) is limited to drives that have not reached the maximum guaranteed number of program/erase cycles, as documented in the Official Published Specifications for the SSD product. A drive that reaches this limit may fail to operate according to its Specifications.
Physical specifications
The PM883 Entry 6Gb SATA SSDs have the following physical specifications:
Dimensions and weight (approximate, without the hot-swap tray):

• Height: 7 mm (0.3 in.)
• Width: 70 mm (2.8 in.)
• Depth: 100 mm (4.0 in.)
• Weight: 58 g (2.1 oz)

Shipping dimensions and weight for the 2.5-inch drives (approximate):

• Height: 63 mm (2.5 in.)
• Width: 133 mm (5.2 in.)
• Depth: 174 mm (6.9 in.)
• Weight (hot-swap): 433 g (1.0 lb)

Operating environment

The PM883 Entry 6Gb SATA SSDs are supported in the following environment:

• Temperature: 0 – 70 °C (32 – 158 °F)
• Relative humidity: 8 – 85% (noncondensing)
• Maximum altitude: 3,050 m (10,000 ft)

Agency approvals
The PM883 Entry 6Gb SATA SSDs conform to the following regulations:

• UL
• TUV
• FCC
• CE Mark
• C-Tick Mark
• BSMI (Taiwan)
• KCC (Korea EMI)

Related publications and links
For more information, see the following documents:

• Lenovo ThinkSystem network adapter summary
  https://lenovopress.com/lp0765-networking-options-for-thinksystem-servers
• Lenovo server options product page
  https://www.lenovo.com/us/en/data-center/options/
• Lenovo RAID Introduction
  https://lenovopress.com/lp0578-lenovo-raid-introduction
• Lenovo RAID Management Tools and Resources
  https://lenovopress.com/lp0579-lenovo-raid-management-tools-and-resources
• Lenovo Press ServeRAID Adapter Quick Reference
  http://lenovopress.com/tips0054
• ThinkServer Option Compatibility Matrix (OCM)
  http://www.lenovo.com/accessoriesguide

Related product families
Product families related to this document are the following:

• Drives
