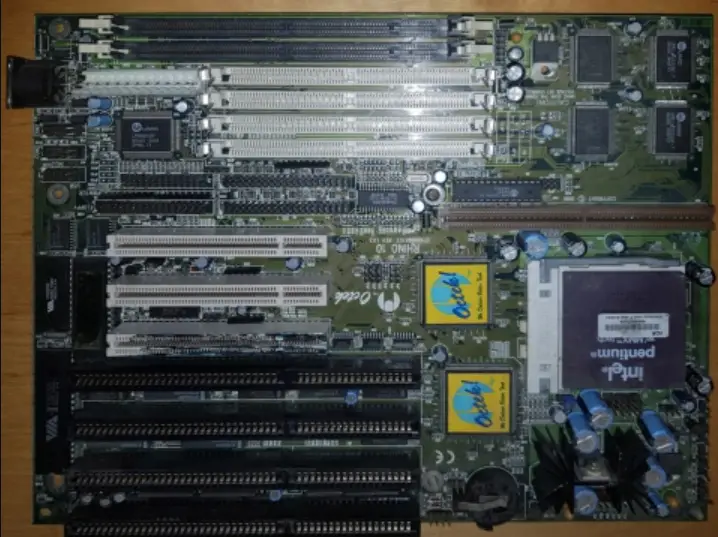

RHINO TH99 Generated Jumper Motherboard User Manual
Specification
- Device: Type Mainboard
- Processor: Pentium Pro
- Processor Speed: 150/166/180/200MHz
- Chip Set: Intel 440FX
- Maximum Onboard Memory: 256MB (EDO supported)
- Cache: Unidentified
- BIOS: Unidentifed
- Dimensions: 244mm x 305mm
- I/O Options: 32-bit PCI slots (4), 16-bit ISA slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, PS/2 keyboard port, serial ports (2), IR connector, ATX power connector

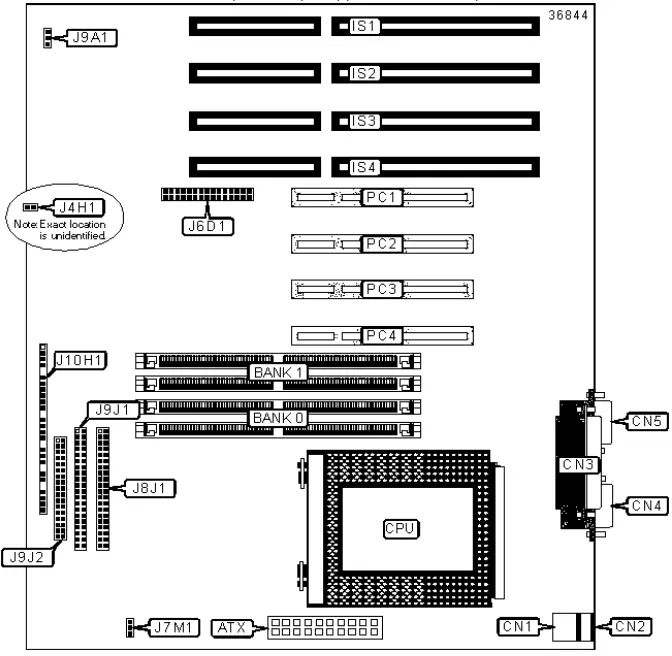

Overview
Connections
| Purpose | Location | Purpose | Location |
| ATX power connector | ATX | IDE interface 1 | J9J1 |
| PS/2 mouse port | CN1 | Floppy drive interface | J9J2 |
| PS/2 keyboard port | CN2 | Power switch | J10H1/Pins 1 & 2 |
| Parallel port | CN3 | Green PC connector | J10H1/Pins 3 & 4 |
| Serial port 1 | CN4 | IR connector | J10H1/Pins 6 – 11 |
| Serial port 2 | CN5 | IDE interface LED | J10H1/Pins 13 – 16 |
| 16-bit ISA slots | IS1 – IS4 | Power LED | J10H1/Pins 18 – 20 |
| CPU fan power | J7M1 | Reset switch | J10H1/Pins 22 & 23 |
| IDE interface 2 | J8J1 | PC speaker | J10H1/Pins 24 – 27 |
| Auxillary fan power | J9A1 | 32-bit PCI slots | PC1 – PC4 |
USER CONFIGURABLE SETTINGS
| Function | Label | Position | |
| VID support enabled | J4H1 | Open | |
| VID support disabled | J4H1 | Closed | |
| » | Flash boot block – normal mode | J6D1 | Pins 4 & 6 closed |
| Flash boot block – recovery mode | J6D1 | Pins 2 & 4 closed | |
| » | CMOS memory normal operation | J6D1 | Pins 20 & 22 closed |
| CMOS memory clear | J6D1 | Pins 18 & 20 closed | |
| » | Password enabled | J6D1 | Pins 27 & 29 closed |
| Password disabled/clear password | J6D1 | Pins 25 & 27 closed | |
| » | CMOS setup access enabled | J6D1 | Pins 26 & 28 closed |
| CMOS setup access disabled | J6D1 | Pins 28 & 30 closed | |
| On board speaker enabled | J10H1 | Pins 26 & 28 closed | |
| On board speaker disabled | J10H1 | Pins 28 & 30 closed | |
| Note: Pin 1 on J6D1 is not indicated. | |||
SIMM CONFIGURATION
| Size | Bank 0 | Bank 1 |
| 8MB | (2) 1M x 36 | None |
| 16MB | (2) 2M x 36 | None |
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
| 24MB | (2) 2M x 36 | (2) 1M x 36 |
| 32MB | (2) 4M x 36 | None |
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
| 40MB | (2) 4M x 36 | (2) 1M x 36 |
| 48MB | (2) 4M x 36 | (2) 2M x 36 |
| 64MB | (2) 8M x 36 | None |
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
| 72MB | (2) 8M x 36 | (2) 1M x 36 |
| 80MB | (2) 8M x 36 | (2) 2M x 36 |
| 96MB | (2) 8M x 36 | (2) 4M x 36 |
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
| 128MB | (2) 16M x 36 | None |
| 136MB | (2) 16M x 36 | (2) 1M x 36 |
| 144MB | (2) 16M x 36 | (2) 2M x 36 |
| 160MB | (2) 16M x 36 | (2) 4M x 36 |
| 192MB | (2) 16M x 36 | (2) 8M x 36 |
| 256MB | (2) 16M x 36 | (2) 16M x 36 |
| Note: Board accepts EDO memory. | ||
CACHE CONFIGURATION
| Note: No information is provided for the location, amount or configuration of cache. |
CPU SPEED SELECTION
| Speed | J6D1 |
| 150MHz | Pins 17 & 19, 10 & 12, 11 & 13 closed |
| 166MHz | Pins 19 & 21, 10 & 12, 11 & 13 closed |
| 180MHz | Pins 17 & 19, 12 & 14, 9 & 11 closed |
| 200MHz | Pins 19 & 21, 12 & 14, 9 & 11 closed |
| Note: Pin 1 on J6D1 is not indicated. | |
