Huananzhi X99-f8 Motherboard User Manual

HUANANZHI X99-F8 Motherboard

Product Information

• Product: Motherboard
• Manufacturer: SZ HUANAN SANXIAN TECHNOLOGY CO.,LTD.
• Website: www.huananzhi.com
• Supported CPU: LGA2011-3CPU
• RAM: 8 x DIMM slots, supports up to 256GB DDR4 2400/2133/1866MHz ECC/ECC CPUDRAM
• I/O: 6 x SATA3.0(6GB/s), 2 x SSATA3.0, 4 x USB2.0, 4 x USB3.0, 1 x PS/2, 1 x RJ45, Realtek 7.1 audio, Realtek LAN
• Expansion Slots: 2 x PCIe 3.0 x16, 1 x PCIe 3.0 x4, 2 x PCIe 2.0 x1, 1 x M.2 NVME PCIe 3.0X4 (key M)2242/2260/2280, 1 x M.2 NVME PCIe 2.0X4 (key M)2242/2260/2280

Product Usage Instructions

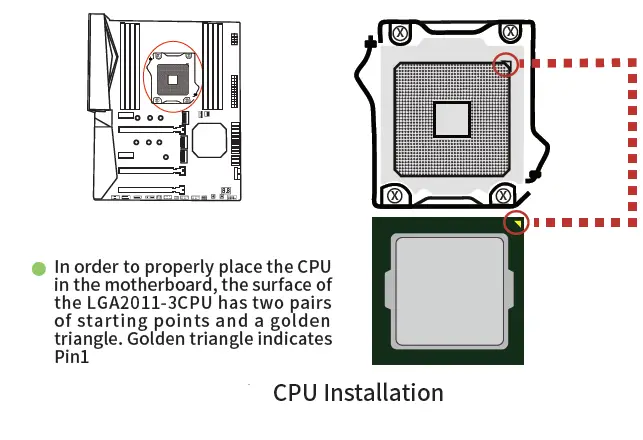

1. Ensure your CPU is compatible with the LGA2011-3CPU socket on the motherboard.
2. Insert RAM into the DIMM slots, ensuring they are securely in place and aligned correctly.
3. Connect SATA devices to the SATA3.0 or SSATA3.0 ports on the motherboard.
4. Connect USB devices to the USB2.0 or USB3.0 ports on the motherboard.
5. Connect a PS/2 keyboard and/or mouse to the respective port on the motherboard.
6. Connect an Ethernet cable to the RJ45 port on the motherboard for LAN connection.
7. Install expansion cards into the PCIe or M.2 slots on the motherboard.

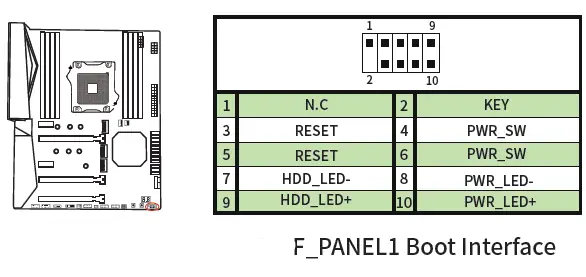

8. Connect the power switch, reset switch, HDD LED, and power LED to the respective pins on the F_PANEL1 header on the motherboard.

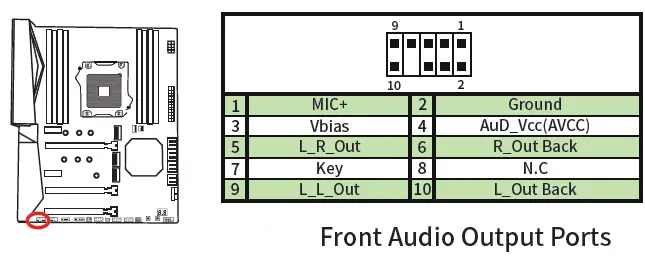

9. Connect audio devices to the Realtek 7.1 audio ports on the motherboard.
10. Install drivers for the motherboard and any connected devices.
11. Configure BIOS settings for optimal performance.

SAFETY PRECAUTIONS

• Products could probably be damaged due to electrostatic discharge(ESD). Please follow these steps below for a successful computer assembly.
• Make sure all parts are firmly connected; otherwise, it might lead to the failure of recognizing components or starting the computer.
• In order to prevent products from being damaged by ESD, please make sure to discharge your body static by touching other metal objects before taking the motherboard out of box.
• Hold the border of motherboard when taking it out. Do not touch the sensitive parts of motherboard.
• Please put the motherboard in an anti-static container or on anti-static pad if not needed .
• Before turning on the computer, make sure all parts inside the case are firmly connected without any loose screws or metal components.
• Do not start the computer before installation finished, otherwise it might result in permanent damage to the computer parts or even injury to the user.
• If you need any assistance in the process of installation，please contact our after-sales customer service or reach us on HUANANZHI official Email: [email protected] for professional technical support.
• Prior to installation or disassembly, please switch off the power and pull the power cable from the socket.
• Keep the motherboard away from moisture.
• Keep the user manual for future reference.
• Before plugging the power supply, please make sure the socket provides the corresponding voltage.
• In any of the following situations, please keep the mother -board and power cable in a safe place. Do not put anything onto the power cable.
• In the event of any of the following conditions, have the board checked by a service technician:
  • Liquid penetrated into the computer.
  • Motherboard is exposed to moisture.
  • Motherboard does not work even if you follow the instructions on user manual.
  • Motherboard fell off to the ground and got damaged.
  • Motherboard has clear signs of damage.

PACKING

Please confirm that the motherboard is properly packaged upon purchase of the product. If there is any damage to packaging or lack of accessories, contact us as soon as
possible.

• 1.1*HUANANZHI X99-F8 Motherboard
• 2.2*SATA data cable
• 3.1*I/O shield back plat
• 4.1* User manual
• 5.1*Warranty card

BRIEF INTRODUCTION

Features
CPU：

• Intel® LGA2011-3Pin Processor Intel® Xeon™
• Intel® LGA2011-3Pin Processor 5th6th Generation Intel® Core™

RAM：

• 8*DIMM supports up to 256GB DDR4
• 2400/2133/1866MHZ Non-ECC.ECC memory
• Quad-Channel Memory Architecture
• Actual memory data rate depends on CPU type and DRAM module

I/O effects：

• 6 x SATA3.0 (maximum transfer speed up to 6GB/s)
• 2 x SSATA3.0
• 4 x USB2.0 interface
• 4 x USB3.0 ports
• 1 x PS/2 Mouse and Keyboard port 1 x RJ45 Network card interface

Audio:

• Realtek Audio Transcoder
• Realtek 7.1 Surround Sound High Definition Audio Codec
• Audio output: Front Out/Front Speaker Out，Rear Speaker output，Center/Subwoofer output，Optical audio output
• Audio input: Microphone input，Audio input

Ethernet: 1 x Realtek PCle Gigabit LAN

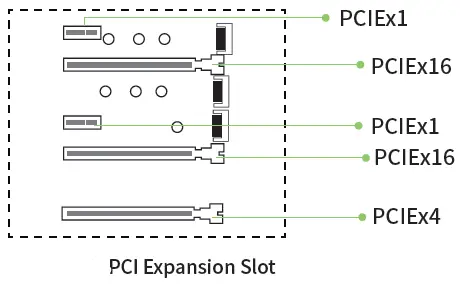

Expansion slot：

• 2 x PCIe 3.0 x16
• 1 x PCIe 3.0×4
• 2 x PCIe 2.0 x1
• 1 x M.2 NVME PCIe 3.0X4 (key M)2242/2260/2280
• 1 x M.2 NVME PCIe 2.0X4 (key M)2242/2260/2280

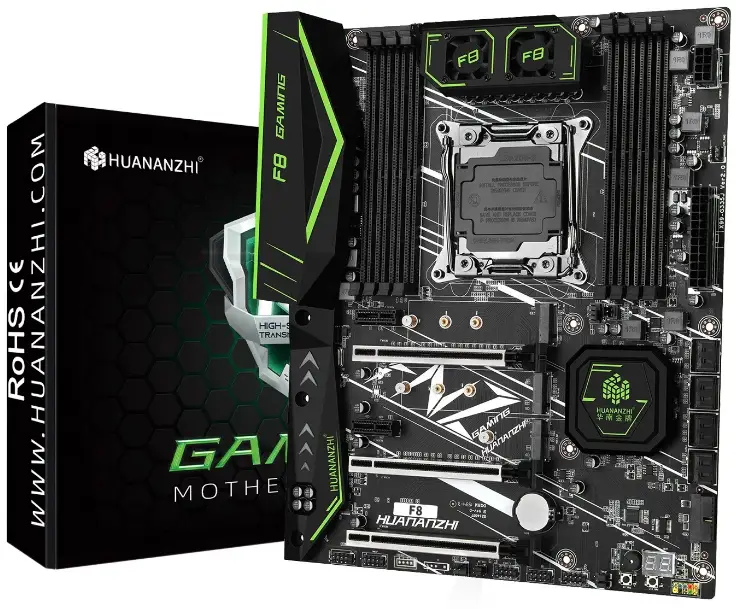

MOTHER BOARD IMAGE

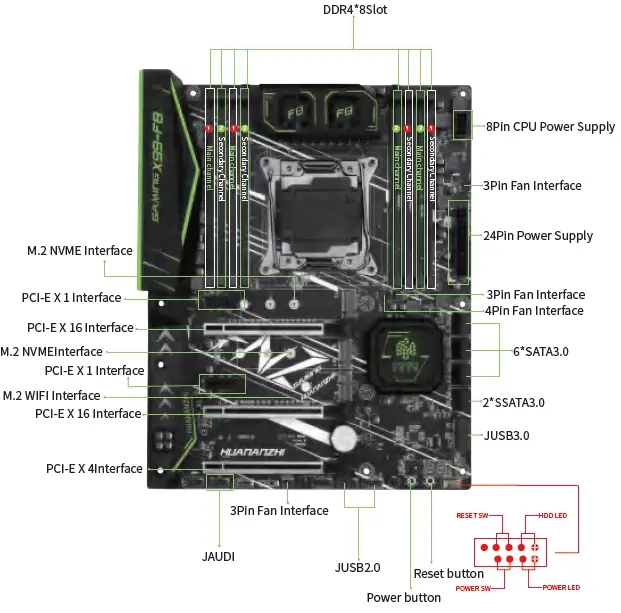

X99-F8 Motherboard Illustration

Rear I/O Panel

PS/2

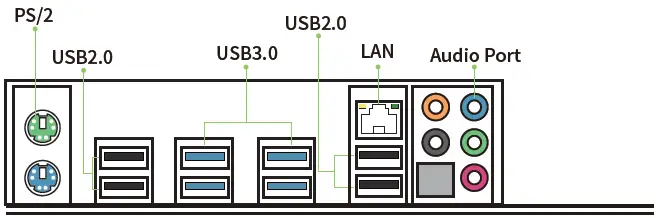

Overall Rear I/O Panel Display

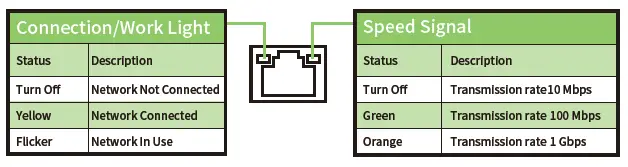

LAN Port Status Table

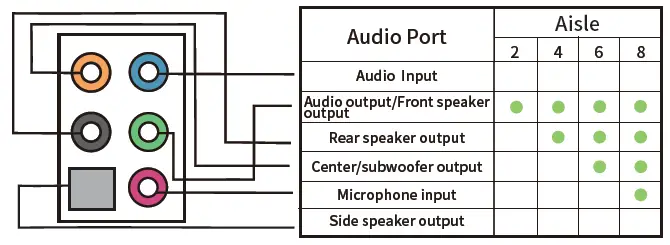

Audio Port Configuration

Installation And Settings

NOTICE

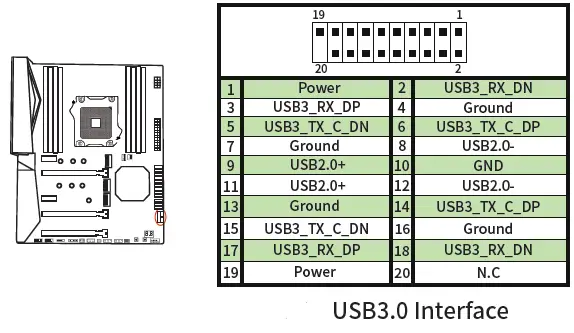

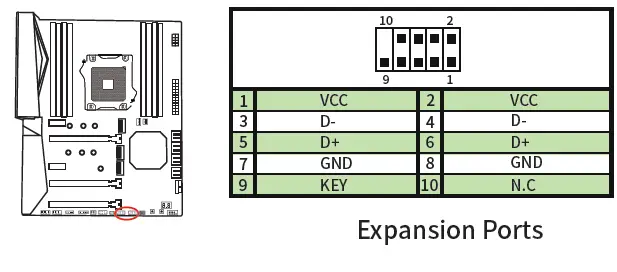

please check the motherboard where all pins marked with number “1” or white bold line are position “1”.

1. Remove the screw from the screw base
2. Remove the screw base

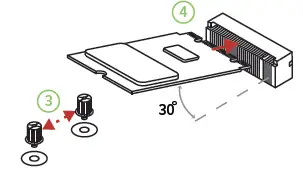

3. Tighten the screw base screwed into the length M.2 module to the M.2 interface distance hole
4. Insert your M.2 module into the M.2 interface at a 30 degree angle
5. Place the screw on the trailing edge notch of your M.2 module and tighten to the screw base

M.2 Interface Installation

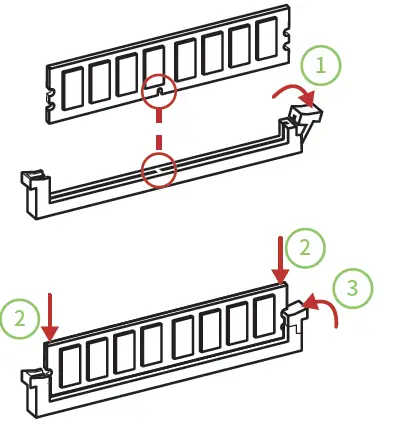

1. Pull the clips on b oth ends of the memory slot outward, and the memory strip corresponds to the protruding position of the slot to determine the direction of installation.
2. Align the memory module into the slot and press
3. Let the snaps on both ends of the slot automatically bounce

Memory Installation

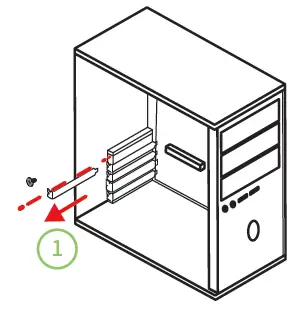

1. Use a screwdriver to remove the bezel and screws on the main unit

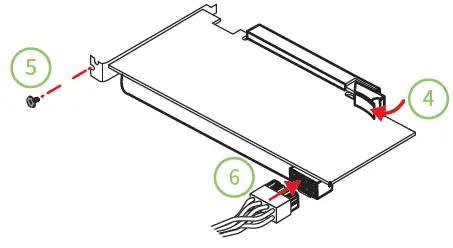

2. Need to pick up the card slot of the card slot when installing the graphics card
3. Insert the graphics card into the card slot of the graphics card
4. After the installation is in place, the chuck will automatically return to its position.
5. Secure the graphics card to the chassis with screws
6. Install the power cord

Graphics Card Installation

Drivers installation

Drivers listing

Intel Chip Information Installation

Run“ Control Panel – System – Hardware – Device Manager” Click the right mouse button to change the driver’s hardware device and proceed with the installation below：
Option: Propertyl – Update driverl – Not connect to Internet –
Manually installation
Find the corresponding directory
Select “Next step”

Audio driver installation
Before this installation, please check the model of the audio chip on the motherboard first(you may refer to this manual), Select the proper driver accordingly for installa-tion.

Audio driver installation (take HD Audio series for example)
Run “driver installer”: /X99-F8Audio DRIVER/0003-64bit_Win7_Win8 _Win81_R276.exe
Click on “next”to continue,and then”finished”
The system will automatically restart itself to finish the installation

Uninstallation of audio driver(take HD Audio series for example)
Setting into Windows desktop, choose “setting”/ “control”,and then “add/remove programs”. Later, choose “Realtek High Definition Audio Driver” in the menu and click on “add/re-move”so thatthe driver will be automatically removed.

Driver installation of external video card

Run “driver installer”, take Setup.exe, Click on “next”- “yes”
-“next”
-“next”and”finished”h
The system will automatically search for devices to complete the installation

Driver installation of network

Run “driver installer”: X99-F8 LAN DRIVER /Install_Win7_7126 _06242019/Install_Win10_10035_06242019/setup.exe click on “next”-
“installation”- “finished”and restart the computer，and restart the computer，The system will automatically search for devices to complete the installation.

BIOS Settings

In order to enable the computer to work well or execute specific functions, CMOS SETUP normally stores all kinds of data in CMOS SRAM of the motherboard. When the computer is shut down, motherboard’s battery will supply power to CMOS SRAM. When the computer is turned on and starts POST(Power On Self Test), press “Delete/Del” key to enter into AMI BIOS CMOS SETUP main page. Motherboard warm boot key is “F7”.
Menu: please pay attention to every option in the settings menu. When there is a triangle shaped symbol on the left side of menu, it means that you choose this sub-menu,so a pop-up sub-menu will be available.

Main Menu Function

• Main
• System Overview
• Date/Time settings, HDD specs/Monitor type settings.
• Advanced
• Advanced Settings
• BIOS special function settings, such as virus alert, booting disk priority etc.
• Chipest
• Advanced Chipest Settings
• Boot
• Boot Settings
• Security
• Security Settings
• Save
• Save Setting
• Exit
• Exit Options

Exit settings include loading of optimized defaults value/ loading of fail-safe defaults / discarding changes/ exiting without saving.Exit settings include loading of optimized defaults value/ loading of fail-safe defaults / discarding chang -es/ exiting without saving.
