Lockey 2230 Front Only Digital Lock Installation Guide

Lockey 2230 | 2435 | 3230
Installation Instructions
2230 | 2230 DC | 2435 | 3230 | 3230 DC

Step 1: Change User Code (OPTIONAL)

If you wish to change your code, see instructions on the reverse side.

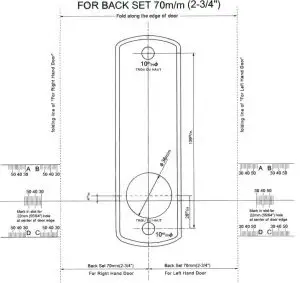

Step 2: Prep Door for Installation with Template

1. Place template (supplied) on the door and fold along the door’s edge.
2. Mark holes for 2 3/8” or 2 3/4” backset.
3. Drill holes as instructed.

NOTE: For Pre-Prepped 2 1/8” doors, you only need to drill top hole.

Step 3: Adjust Latch (if necessary) & Install

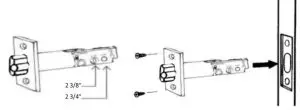

1. Adjustable latch (#3) is factory preset for a 2 3/8” backset.
2. For 2 3/4” backsets, slide the Cam assembly on the latch to 2 3/4”.
3. Insert latch into the door and secure with Wood Screws (#11).

Step 4: Install Support Pin & Hex Bolts

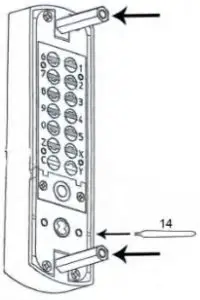

Install Brass Support Pin (#14) into either hole on Outside Body as shown in the figure to the Right.
Install/screw Hex Bolts into the top and bottom of the Outside Body as shown in the figure.

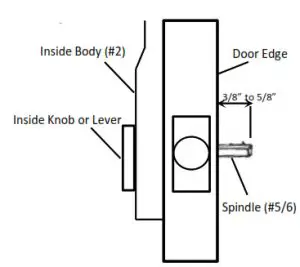

Step 5: Verify Correct Spindle Length

1. With latch (#3) installed, hold the Inside Body (#2) and Rubber Trim Plate (#4) to the door.
2. Place Spindle (#7/8) through the latch, into the Inside Body, as far as possible.
3. The spindle should extend from the exterior of door 3/8” min. – 5/8” max.
4. If the 30-45 mm (#8) is too long, cut it to the correct length.

IMPORTANT: If the spindle extends less than 3/8” it may not engage the lock. If the spindle extends more than 5/8”, it will cause the lock to bind.

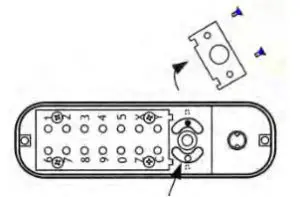

Step 6: Determine Knob Turn Direction (to unlock)

The lock is preset to unlock when turned clockwise after the combination is entered.
If desired, you can unlock the door with a counter-clockwise turn. Remove the two blue screws and move the pin to the opposite side as shown.
*2230 DC – Inside Body pin must on the opposite side from Outside Body.

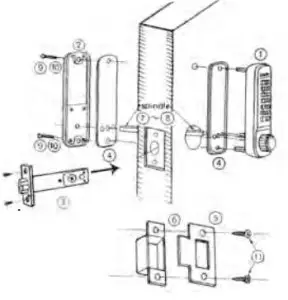

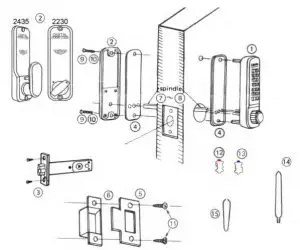

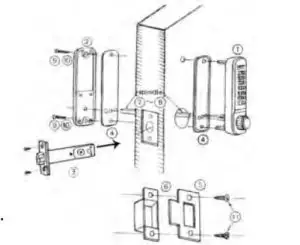

Step 7: Install the Lockey 2230/2435

1. Place the Rubber Trim Plate (#3) on the backside of the Outside Body (#1).
2. Place the Outside Body on the door.
   The hexagonal bolts should extend into the top and bottom holes.
3. The Support Pin (#14) on the Outside Body should fit into and extend through the hole in the Latch (#3).
   INSTRUCTIONS CONTINUED ON THE REVERSE SIDE
4. Insert the Spindle (#7/8) into the Outside Body (#1) ensuring it’s in the proper angled position.
   *(SEE FIGURES BELOW)
5. Using a screwdriver, secure the lock to the door with the Screws (#9 or #10).
   Screw length is dependent on door thickness.
6. Test the operation of the Latch by turning the inside knob/lever.
7. Locate position where Latch strikes door frame and install Mortised Strike (#5) and Strike Plate (#6).

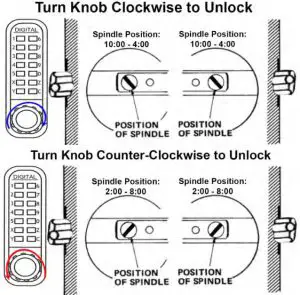

*IMPORTANT: SPINDLE POSITION/ANGLE
CLOCKWISE TURN TO UNLOCK WITH COMBINATION
2230/2435 is factory preset to unlock with a clockwise turn when the combination is entered. The Spindle MUST be placed through the latch, at a 10:00 – 4:00 angle as shown.
COUNTER-CLOCKWISE TURN TO UNLOCK WITH COMBINATION
If desired, 2230/2435 can be unlocked with a counter-clockwise turn when the combination is entered. To unlock 2230/2435 with a counter-clockwise turn, please refer to Step 6 to change the Handing Pin.
After changing the Handing Pin, the Spindle MUST be placed through the latch at a 2:00 – 8:00 angle as shown.

LOCKEY 2000 SERIES
HOW TO CHANGE CODE

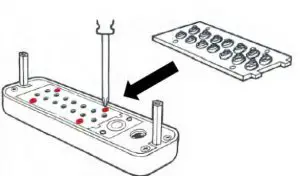

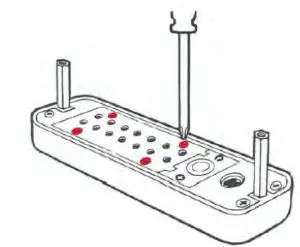

1. Using a #2 screwdriver, remove the four (4) Red Screws.
2. Carefully remove the cover plate.
   WARNING: Springs are attached to the plate.RED = CODE TUMBLERS
   BLUE = NON-CODE TUMBLERS
   ‘C’ = CLEAR (DO NOT REMOVE)
3. PRESS & HOLD ‘C’ BUTTON to release tumblers.

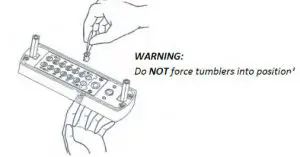

   IMPORTANT: ‘C’ Button must be pressed and held down when removing and inserting tumblers. Failure to do so will damage the lock and void the warranty.
4. While holding the ‘C’ BUTTON, remove/add CODE (Red) and NON-CODE (Blue) Tumblers to create your desired code.
   Ex: 3 Red = 3-Digit Code / 6 Red = 6-Digit Code
   IMPORTANT: Ensure the notched side of the tumbler fits into slot. (Below — Far Right).
5. After changing your code, release the ‘C’ BUTTON to secure the tumblers in place.
6. Replace the cover plate and secure with four (4) Red Screws, using a #2 screwdriver.
7. TEST CODE before installing/re-installing the lock.

DIGITAL DOOR LOCK ((DX TYPE))
TEMPLATE
NO.3230/3235
