INDUSTRIAL INJECTION Garrett G45-1125 Super Core G Series Turbochargers
A TURN AHEAD OF THE COMPETITION

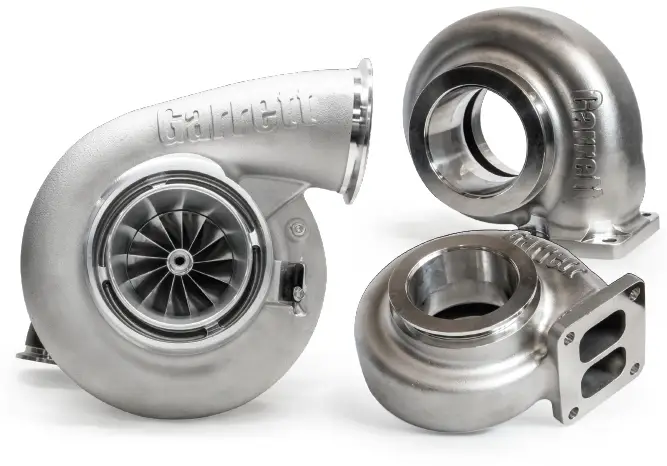

Garrett G45-1125 (67mm) | G45-1350 (72mm) | G45-1500 (76mm) Turbochargers
series turbochargers feature the latest innovations in turbocharger technology. Advanced compressor and turbine aero provide a wide range of performance boosting solutions for 2.0L – 8.0L engine platforms. Offered in standard rotation, with three compressor inducer options and a variety of T4 twin scroll inlet turbine housing configurations making it easy to select the right turbocharger for your application.

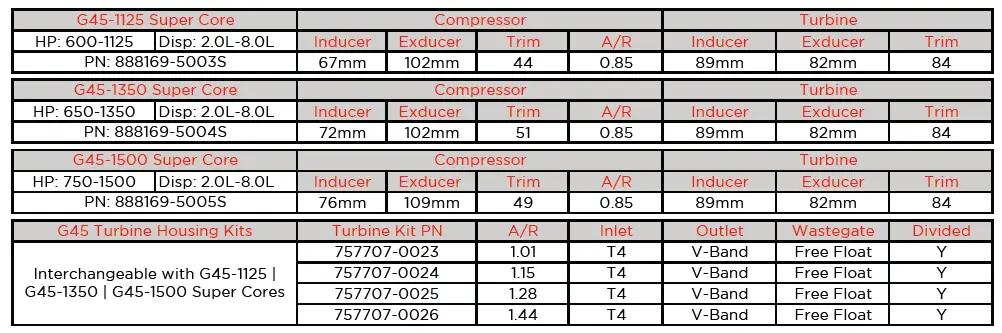

Garrett G45-1125 | G45-1350 | G45-1500 Turbochargers
Features
- G Series compressor aero increases flow up to 24% (compared to GTX4508R)
- 67mm, 72mm, and 76mm compressor inducer sizes
- Dual ceramic ball bearing with steel cages
- G Series turbine aero increases flow 14% (compared to GTX4508R)
- Inconel turbine wheel with 89mm inducer flows up to 56 lbs/min
- Lightweight aluminum backplate
- Fully machined speed sensor and pressure ports
- Water fittings included with super core
- Stainless steel turbine housings available in T4 divided inlet
- Sized for drag racing classes: Sport Front Wheel Drive, Ultimate Street, Super Street, Street Fighter

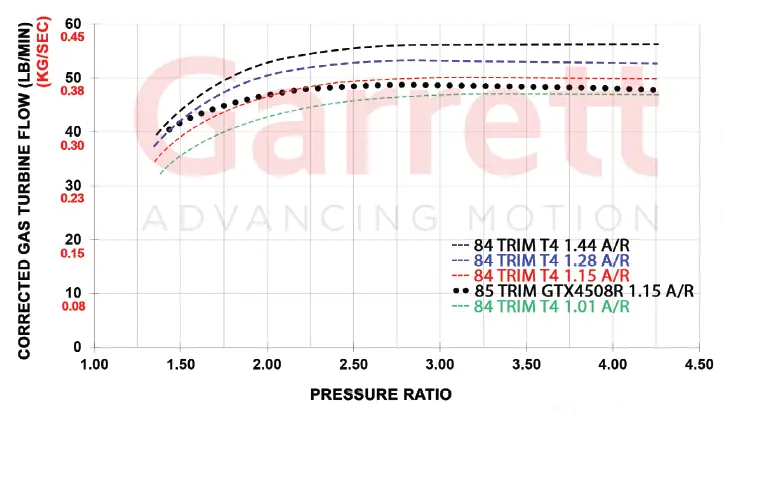

EXHAUST FLOW CHART
GARRETT G45-1125 | G45-1350 | G45-1500

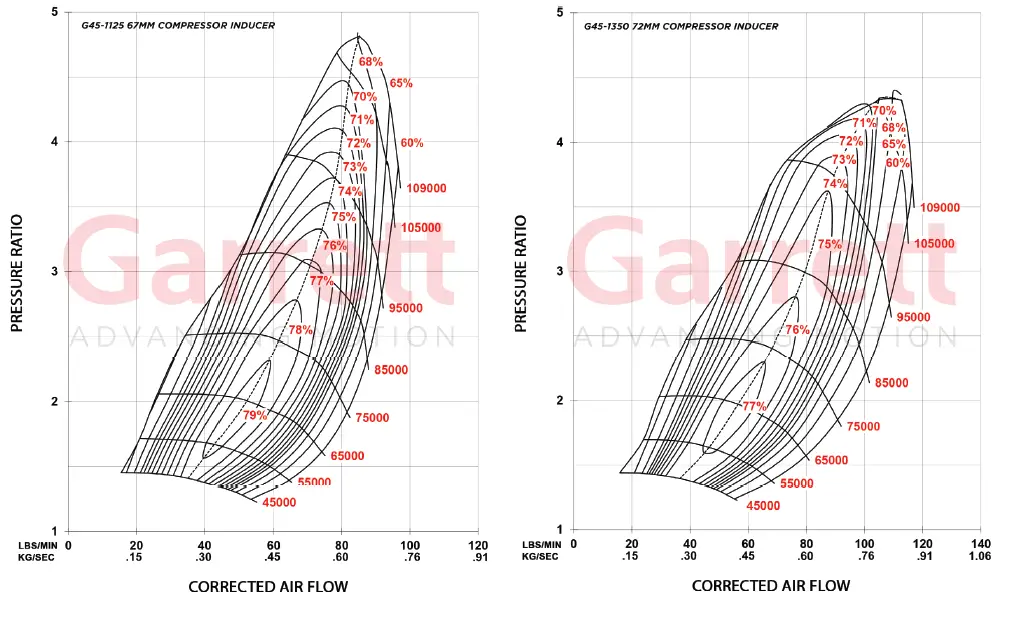

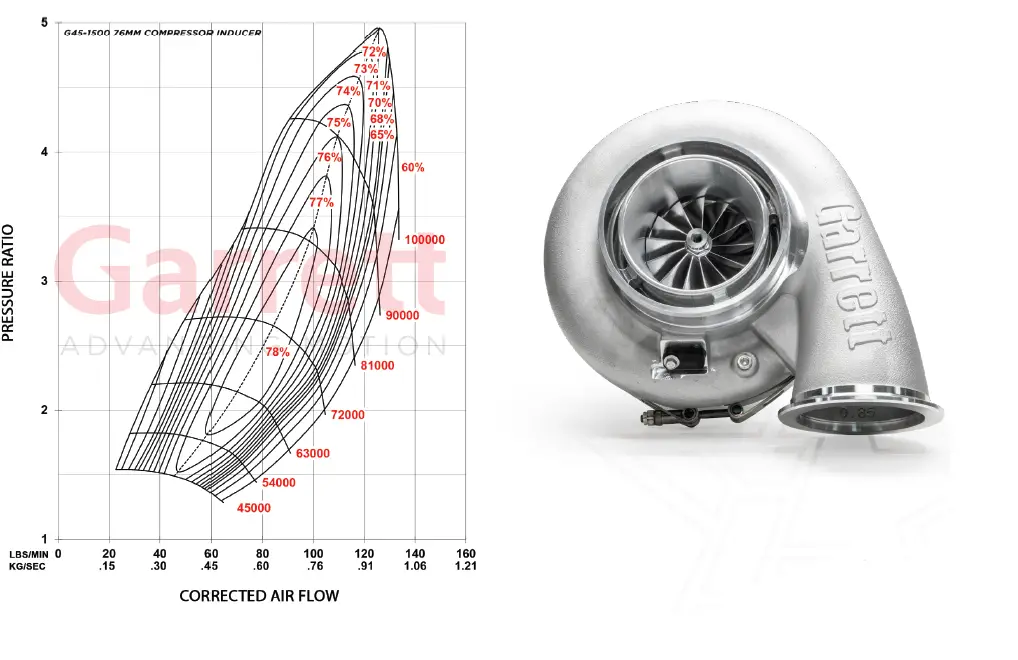

COMPRESSOR MAP

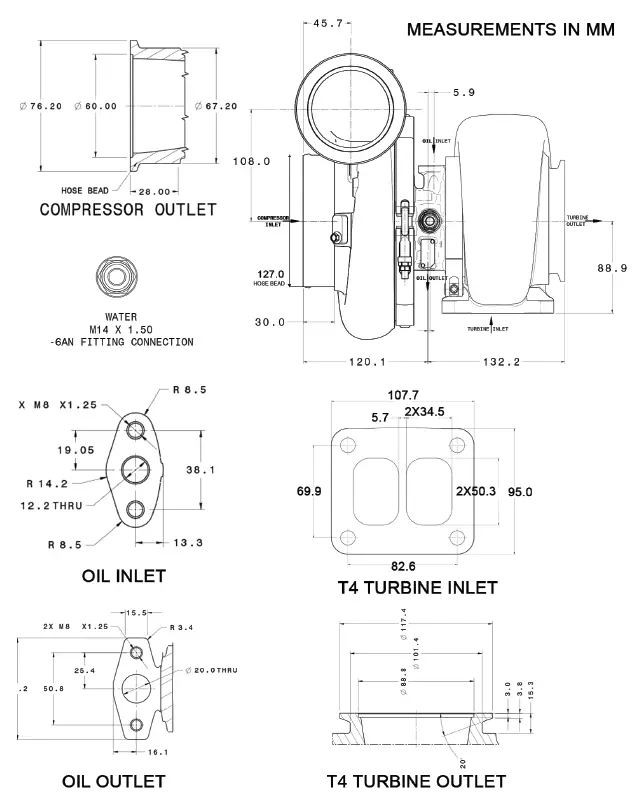

G45 FLANGE DIAGRAM
