105N46xx SLV Compressors
Instructions Manual
Instructions
SLV Compressors
220-240V 50/60Hz
105N46xx

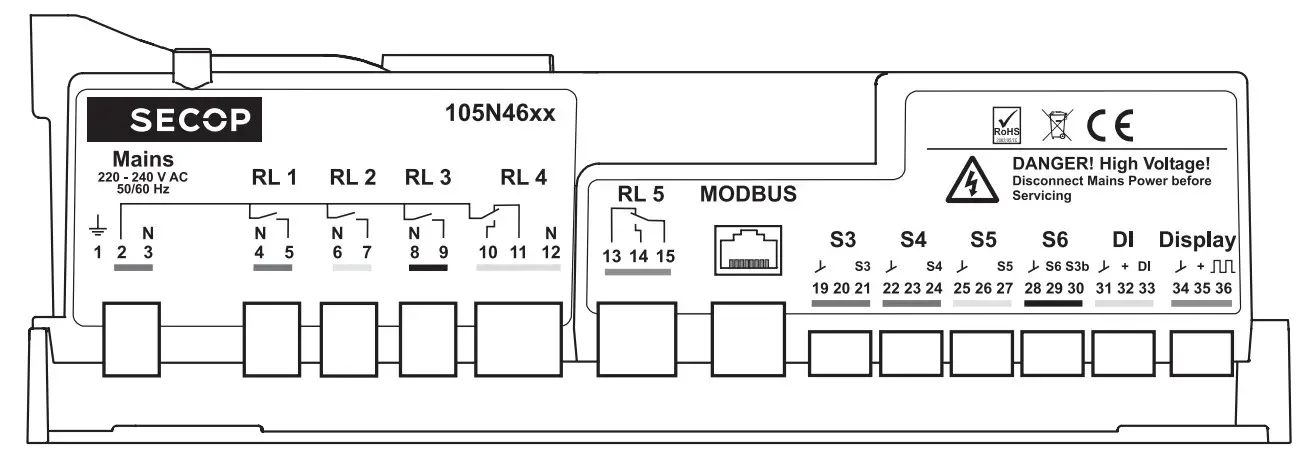

Series Controllers
| Mains | red |
| RL 1 | blue |
| RL 2 | yellow |
| RL 3 | black |
| RL 4 | grey |
| RL 5 | green |
| S3 | red |
| S4 | blue |
| S5 | yellow |
| S6 | black |
| DI | grey |
| Display | green |

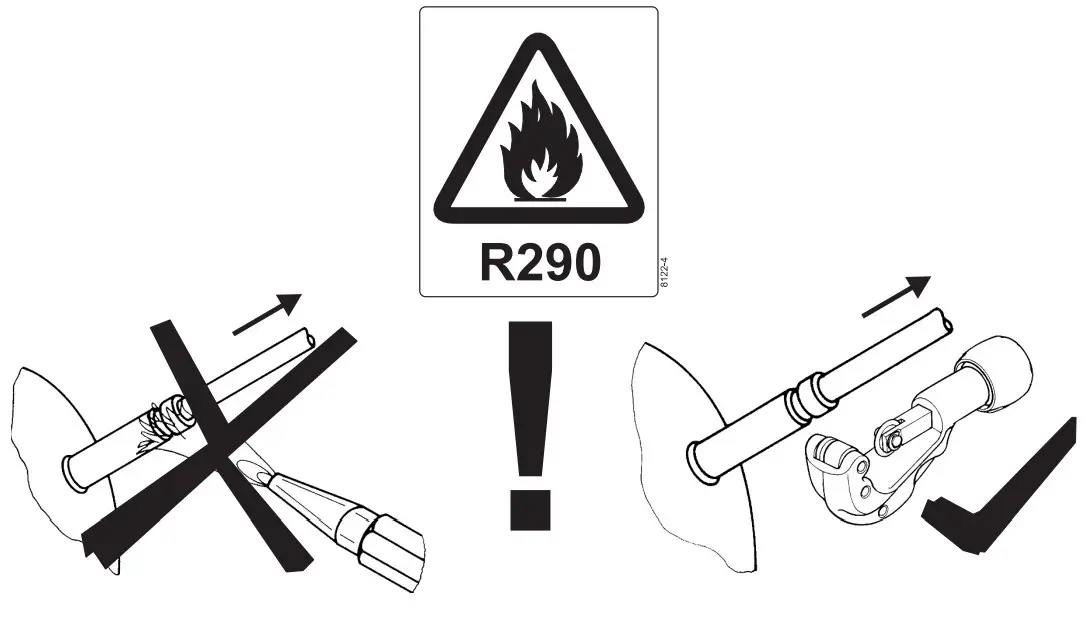

Service/Repair – R290

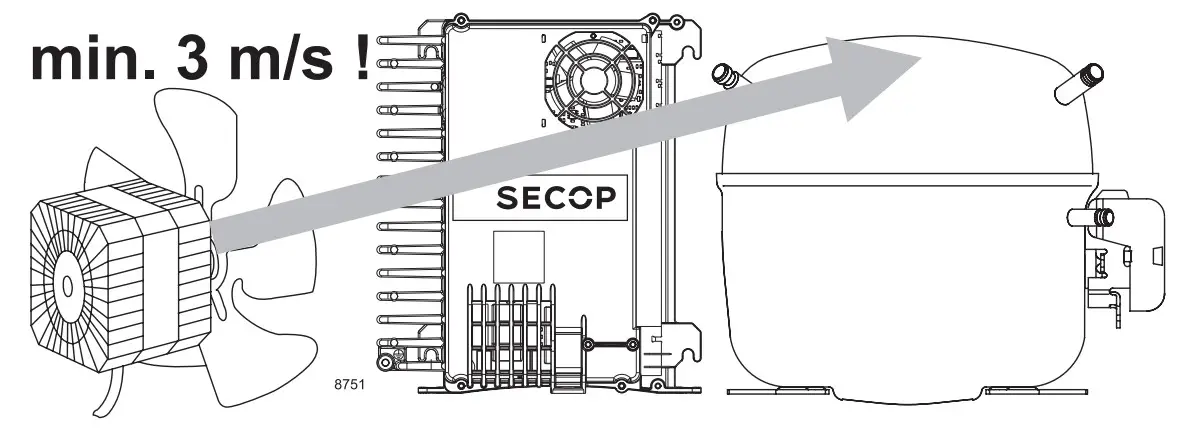

| Airflow | 3 m/s |
| Operating conditions | -10 °C to 43 °C – humidity < 90 % rH non condensing |
| Operating conditions 105N4630 | + 5 °C to 43 °C – humidity < 90 % rH non condensing |
| Storage conditions | -20 °C to 70 °C – humidity < 90 % rH non condensing |
| Supply voltage | 230 V (+15 % / – 20 %) |
| Frequency | 50/60 Hz |
| Input power rating | 1000 W at 230 V (+15 % / – 20 %) |
