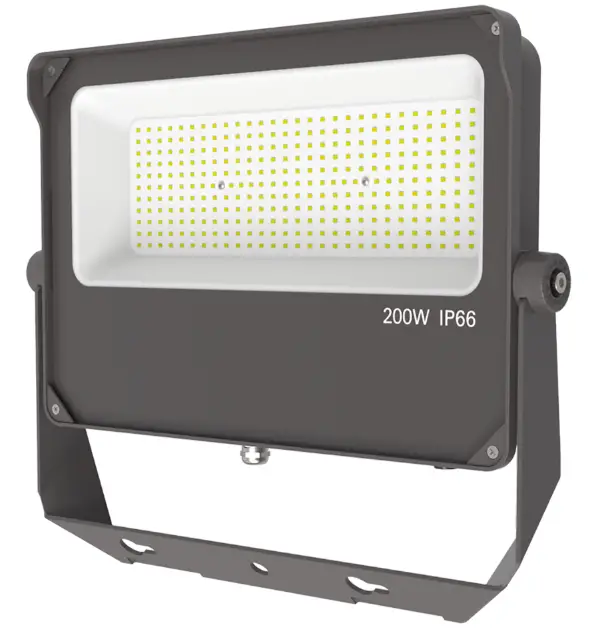

LEDone LED MUFL Flood Light Series
LED MUFL Flood Light Series
FEATURES
- IP65 rated
- Easy installation and maintenance
- No Mercury or UV
- Daylight sensor available
- 50,000 hours lifetime
SUITABLE APPLICATIONS
- Warehouses
- Stadiums
- Factories
- Parking Lots
- Shopping Malls
- Supermarkets
- Logistic Centers
- Auto dealerships
Special Order:
- Other CCTs
CONSTRUCTION
Aluminum housing with polyester powder-coated finish.
OPTICAL SYSTEM
Nichia 3030 LED chips. High quality tempered glass optics. 120° beam angle.
WARRANTY
5-year limited warranty. Actual performance may differ as a result of end-user environment and application.
ELECTRICAL:
Available as 120-347V input. -20°C to 50°C, -4°F to 122°F
INSTALLATION & MOUNTING:
Bracket mounting.
DIMMING:
Continuous dimming to 10% or below.
| MODEL NUMBER – 5,000K | WATTAGE | LUMENS | EFFICACY | CRI | POWER FACTOR | THD | REPLACES |
| LOC-MUFL-100W50KD | 100W | 14,200LM | 142LM/W | 70 | 0.9 | 15% | 200W – 250W |
| LOC-MUFL-150W50KD | 150W | 21,750LM | 145LM/W | 70 | 0.9 | 15% | 300W – 400W |
| LOC-MUFL-200W50KD | 200W | 29,000LM | 145LM/W | 70 | 0.9 | 15% | 500W – 600W |
| LOC-MUFL-240W50KD | 240W | 34,800LM | 145LM/W | 70 | 0.9 | 15% | 500W – 600W |

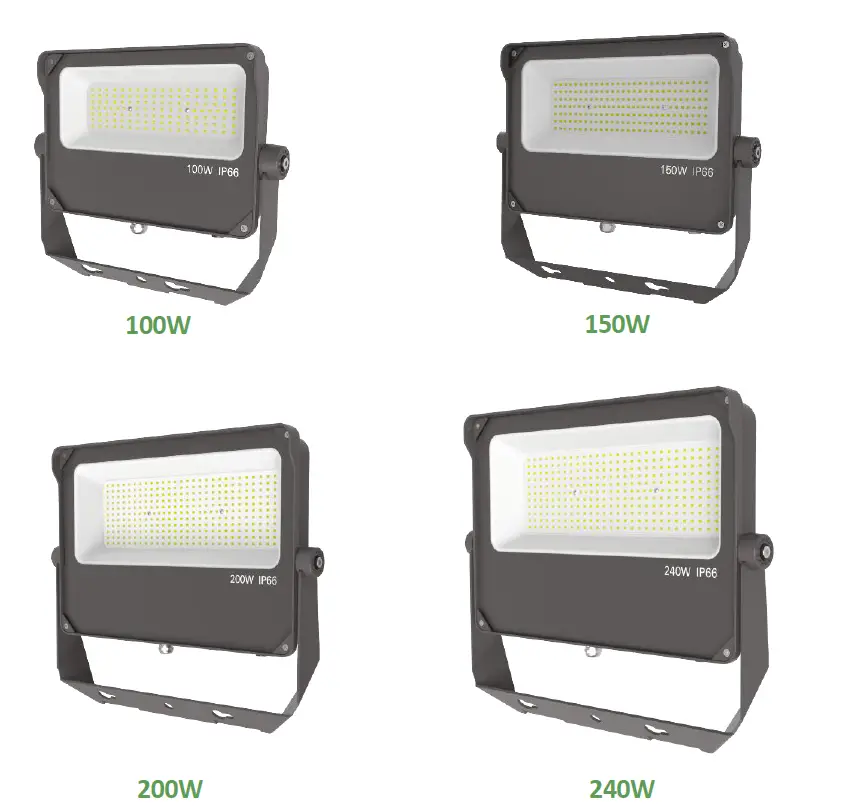

LED MUFL Flood Light Series
| Series | Wattage | Color Temperature | Voltage |
| LOC-MUFL | 100W 150W 200W 240W | 5000K | LV = 120-277V |

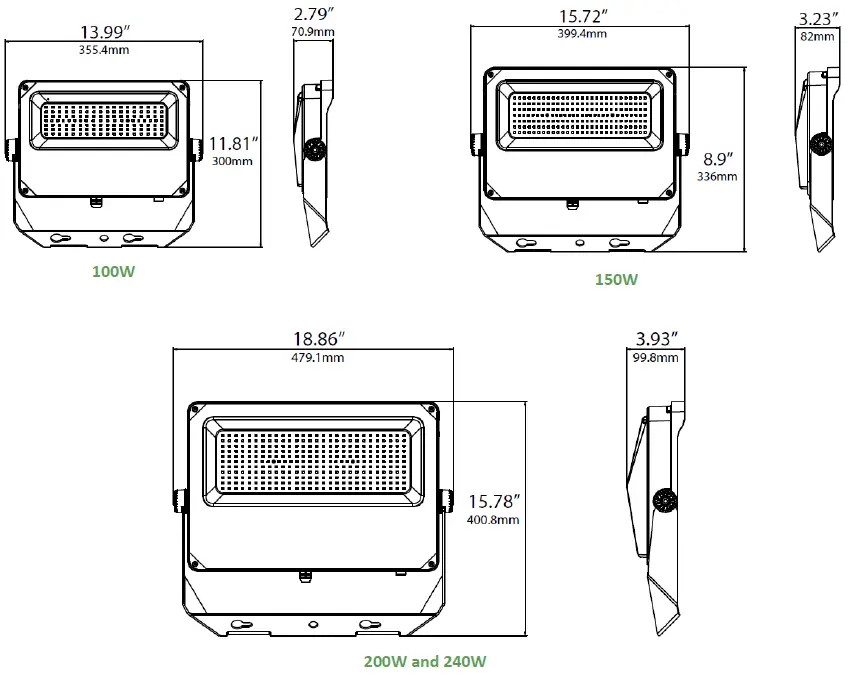

MEASUREMENTS
| MODEL | QUANTITY | WEIGHT | UPC CODE |
| LOC-MUFL-100W50KD | 1 | lbs | 00810050941389 |
| LOC-MUFL-150W50KD | 1 | lbs | 00810050941396 |
| LOC-MUFL-200W50KD | 1 | lbs | 00810050941402 |
| LOC-MUFL-240W50KD | 1 | lbs | 00810050941419 |
Warranty Card
- Date:
- Location:
- Product:
- Project:
- Quantity:
- Catalog :
Phone: (844) LEDONE6
Fax: 1-510-217-9461
Web: www.ledonecorp.com
