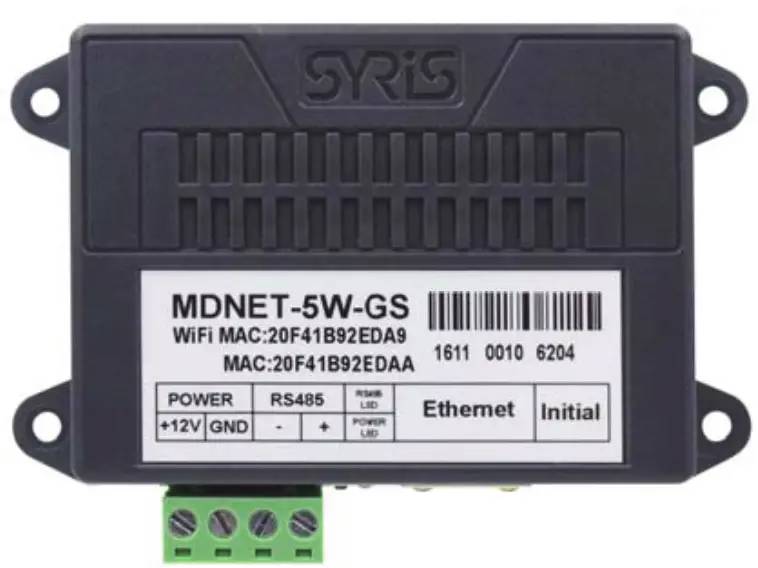

MDNET-5W
Wi-Fi // RS485
Wi-Fi / Ethernet / RS485
Converter
Install Instructions
VO200
SYRIS TECHNOLOGY CORP.
E10%414’041MAI:KO%Ocianci16-124t 12F,No.16,Sec.2,
TaiwanBlvd.,West Dist., Taichung City 40354,
Taiwan EgiiNTEL : +886-4-2207-8888
FAX : +886-4-2207-9999
Email : [email protected]
Web: http://www.syris.com/app
http://www.syris.com/page.php?cid=120
MONET-5W/Specification
| SPEC. | MONET-5W |
| Convert mode | Ethernet ←→ RS485 Wi-Fi ←→ RS485 Ethernet ←→ Wi-Fi |
| Interface | Wi-Fi / Ethernet / RS485 |
| Wi-Fi | 802.11 b/g/n |
| Ethernet | 10/100BaseT, RJ45 connector |
| Operating Mode | TCP Server, TCP Client, UDP |
| Connector port | 4 PIN (RS485 + DC power) |
| RS485 RS485 Baud Rate | 300 ~ 115,200 bps |
| Parity | None/ Even/ Odd |
| Data bits | 8 / 7 |
| Stop bits | 1 / 2 |
| Configuration tool | Windows Web Browser, Windows utility. |
| Reset function | (DHCP) Initial button (DHCP) |
| Status Indicator | 4 LED |
| Operating Temperature | -20°C ~ 70°C |
| Power | 8V ~ 28V DC / 1W ~ 2W |
| Size(mm) | 77W x 59H x 22.5D |

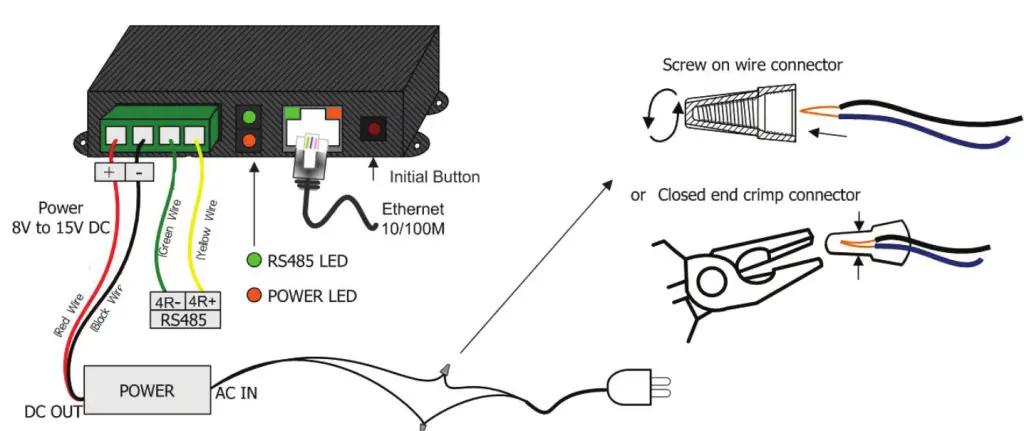

MDNET-5W WIRING DIAGRAM
MDNET-5W
Utility http://ftp.syris.com/SYRIS_ACS_DVD-ROM/Tools/MDNET-5W/NET_Discover_V0110.exe
Manual http://ftp.syris.com/index.php?folder=U1ISSVNfOUNTXORWRC1STOOvVG9vbHMvTURORVQtNVcvTWFudWFs
