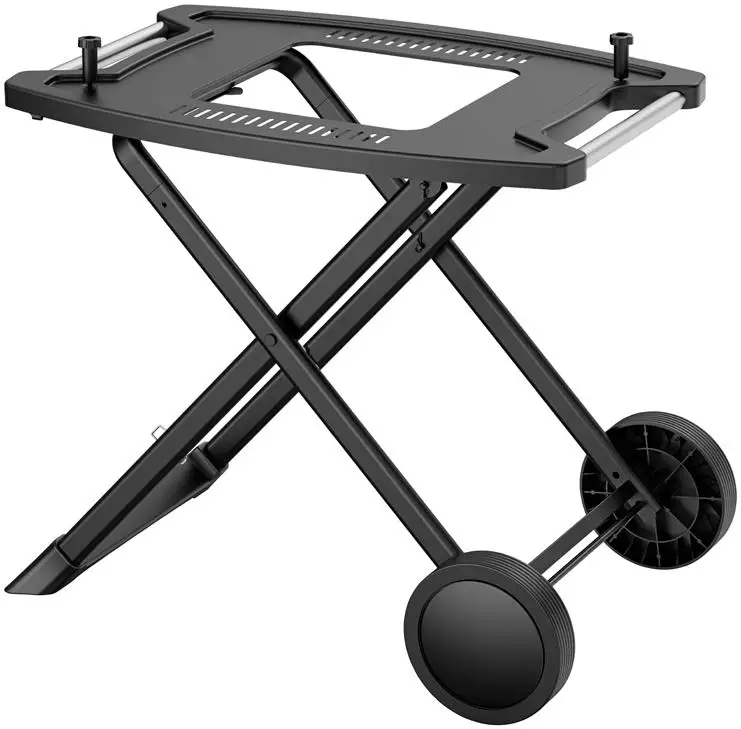

Burns and Barkles 019247 Barbecue Trolly
SAFETY INSTRUCTIONS
WARNING!

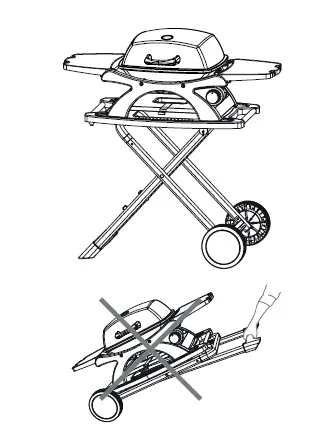

The product must only be used with a grill intended to be put on a grill trolley.
- Place the product on a horizontal and stable surface.
- The grill must be correctly mounted and anchored with the supplied parts before use.
- Keep onlookers, especially children, and pets at a safe distance.
- Do not use the product indoors.
- Store in a dry and cool place
| SYMBOLS | |
 | Read the instructions. |
| CE
| Approved in accordance with the relevant directives. |
 | Recycle discarded product in accordance with local regulations. |
TECHNICAL DATA
Size 76x54x69 cm
Weight 6.5 k
DESCRIPTION

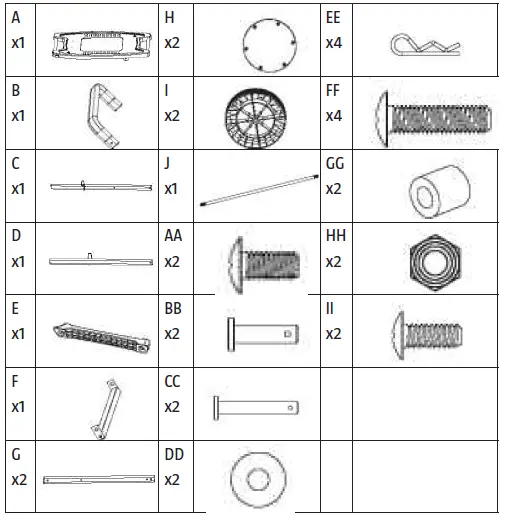

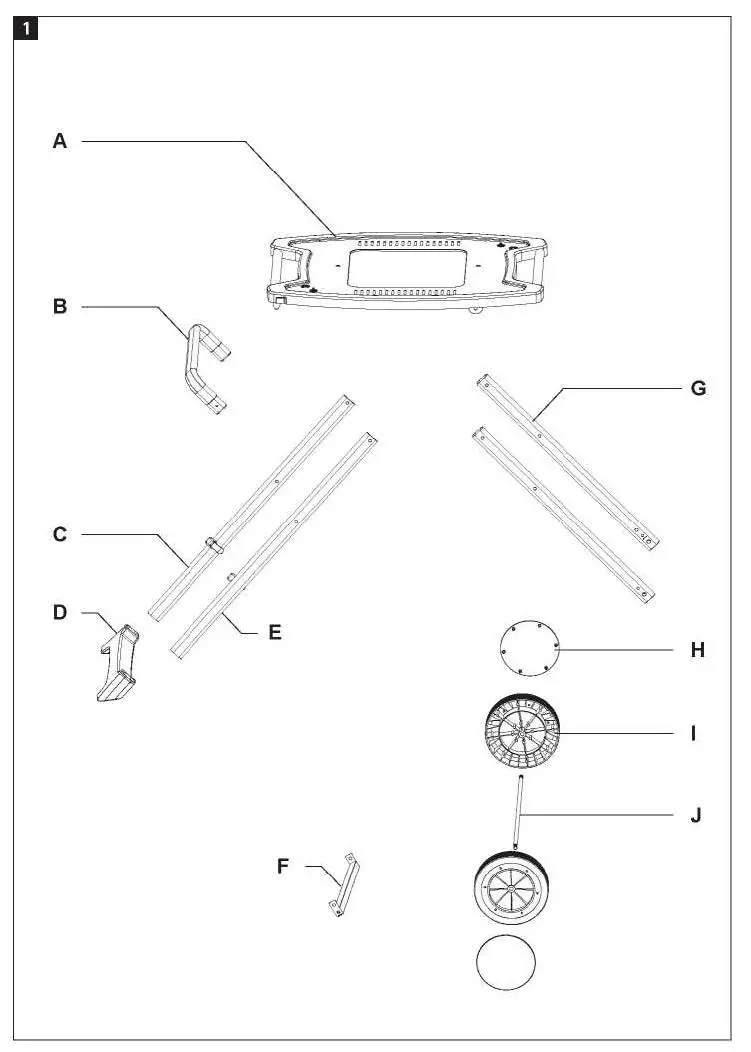

FIG. 1
- Upper panel
- Right leg, top part
- Left back leg
- Left front leg
- Foot
- Brace
- Right leg
- Wheel cap
- Wheel
- Wheel axle
- Screw M4 x 10
- Short pivot pin
- Long pivot pin
- Washer
- Cotter
- Screw M6 x 28
- Wheel axle bushing
- Nut M8
- Screw M6 x 12
ASSEMBLY
- Unpack all the parts and check that no parts are missing or damaged.
- Assemble the product on a level surface.

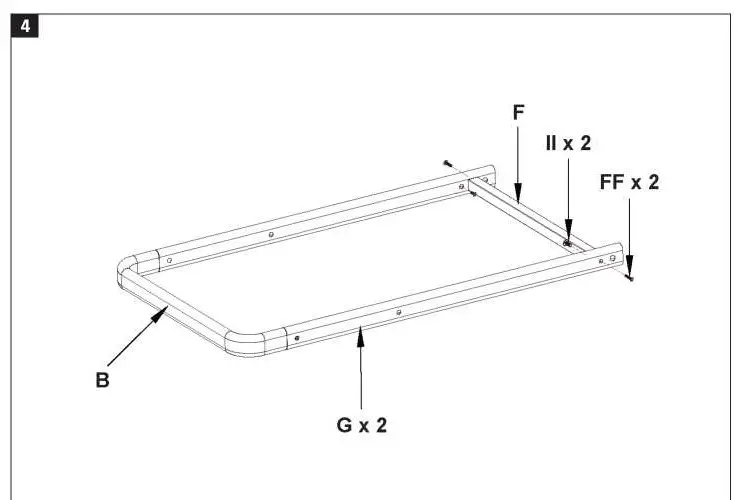

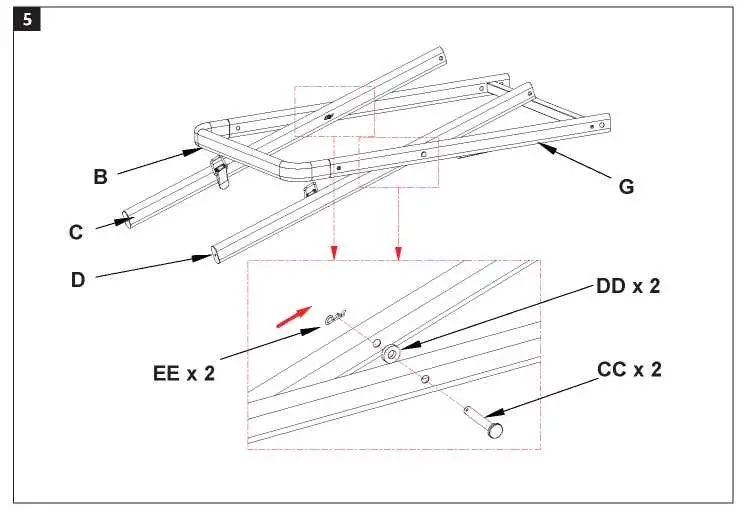

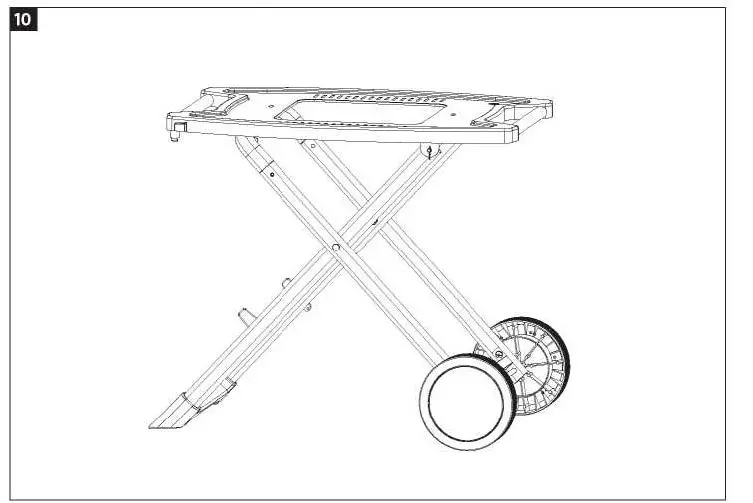

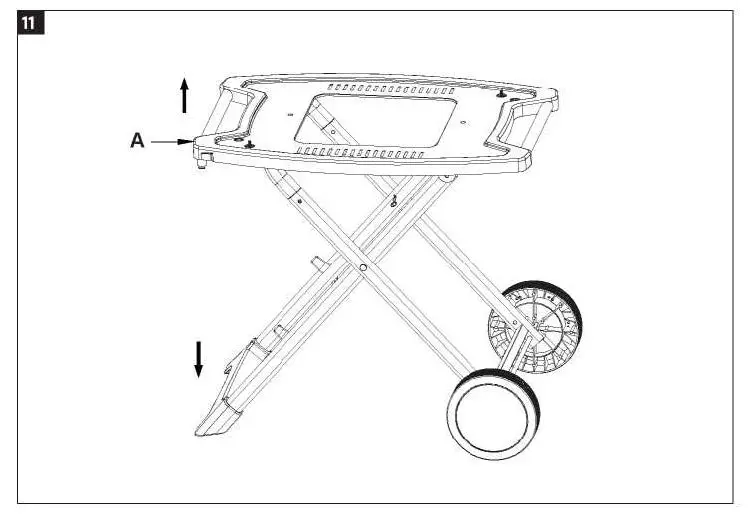

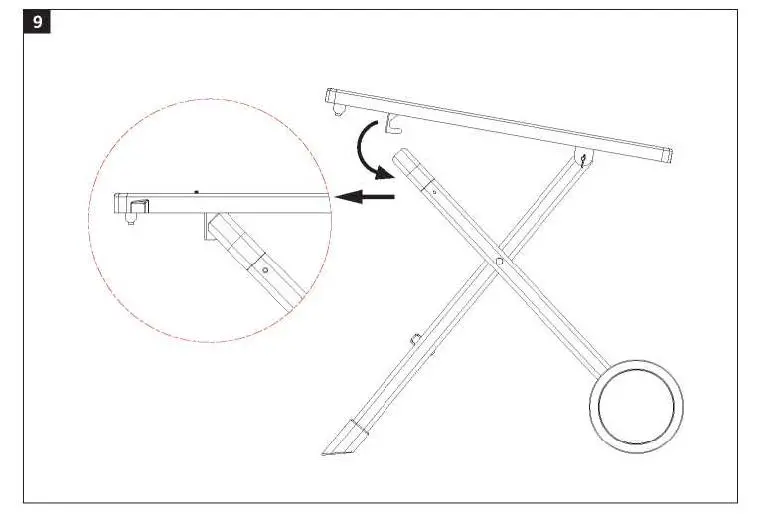

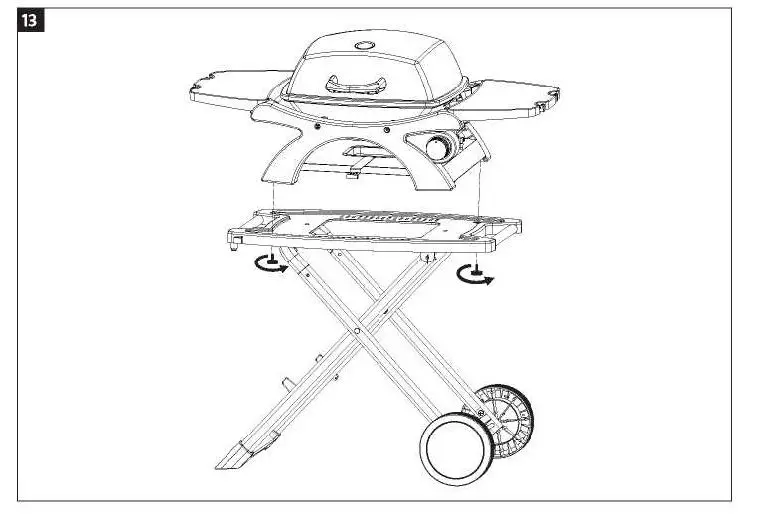

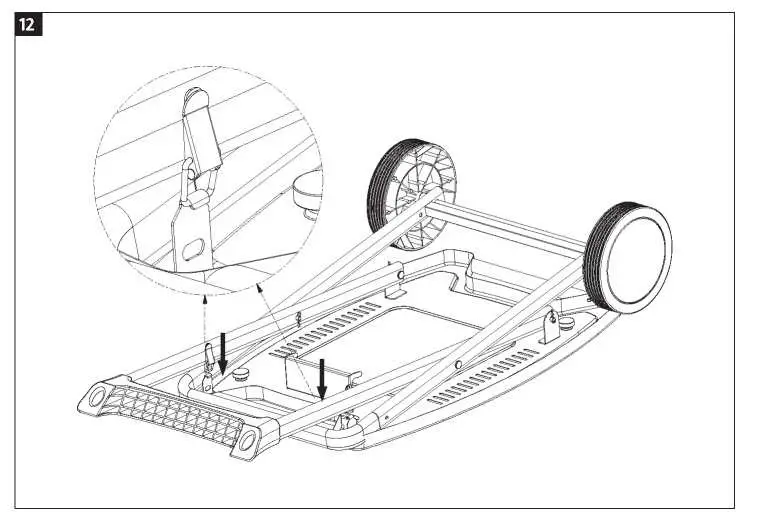

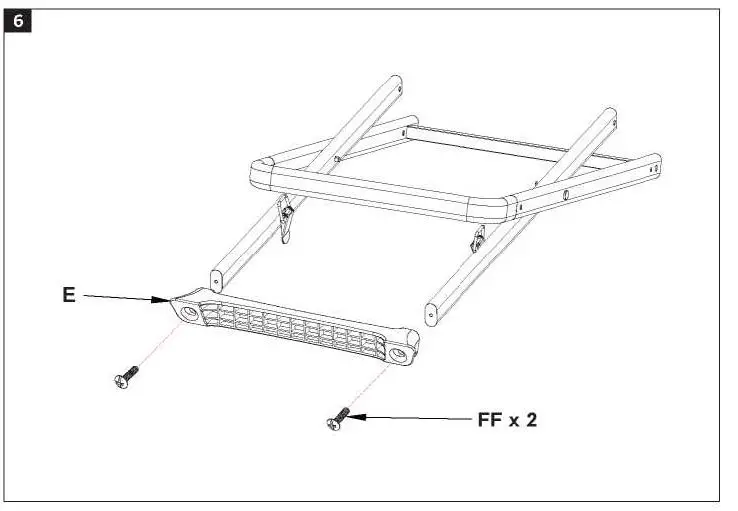

- Assemble the parts in the order shown in the figures 2 – 13.
