Burns Barkles 019247 Barbecue Trolley Instruction Manual

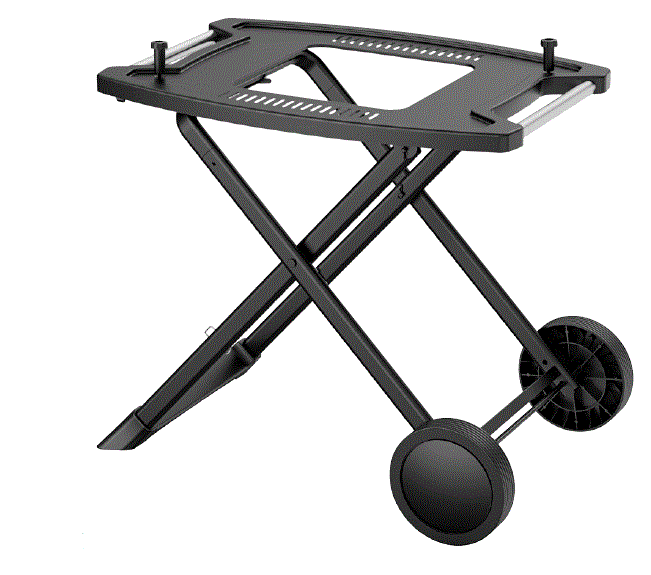

Burns Barkles 019247 Barbecue Trolley

SAFETY INSTRUCTIONS

WARNING!

•  The product must only be used with a grill intended to be put on a grill trolley.
• Place the product on a horizontal and stable surface.
• The grill must be correctly mounted and anchored with the supplied parts before use.
• Keep onlookers, especially children, and pets at a safe distance.
• Do not use the product indoors.
• Store in a dry and cool place.

SYMBOLS

TECHNICAL DATA

• Size 76x54x69 cm
• Weight 6.5 kg

DESCRIPTION

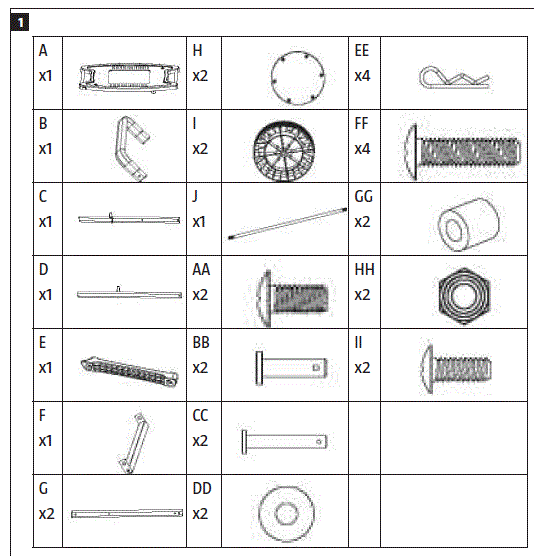

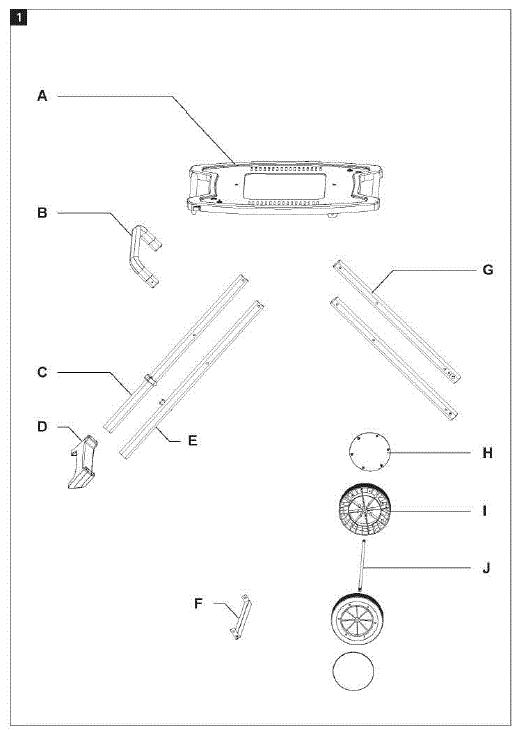

FIG. 1

• A. Upper panel
• B. Right leg, top part
• C. Left back leg
• D. Left front leg
• E. Foot
• F. Brace
• G. Right leg
• H. Wheel cap
• I. Wheel
• J. Wheel axle AA. Screw M4 x 10 BB. Short pivot pin
• CC. Long pivot pin DD. Washer
• EE. Cotter
• FF. Screw M6 x 28 GG. Wheel axle bushing HH. Nut M8
• II. Screw M6 x 12

ASSEMBLY

• Unpack all the parts and check that no parts are missing or damaged.
• Assemble the product on a level surface.

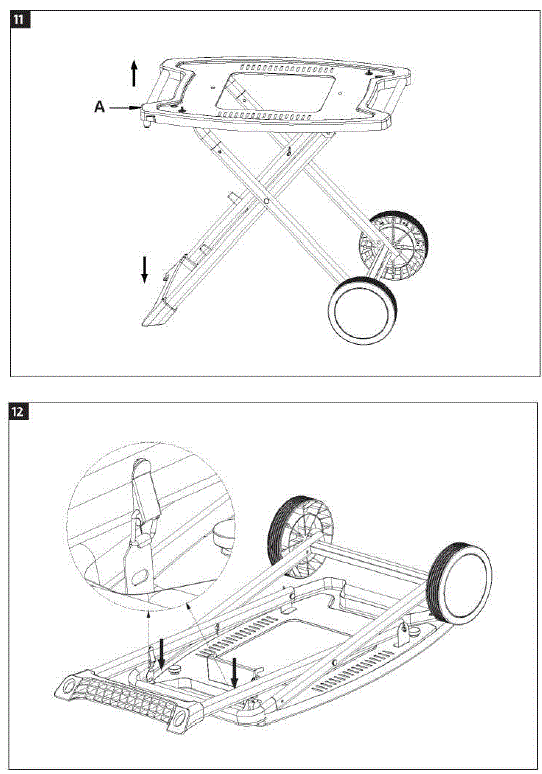

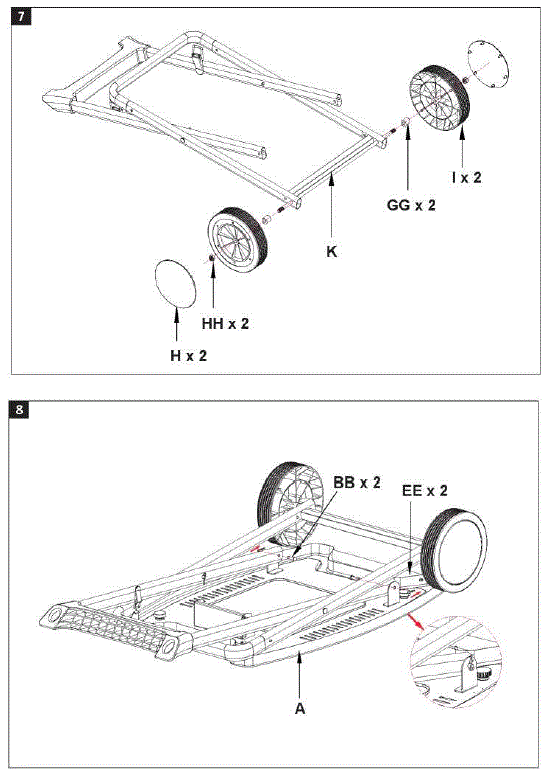

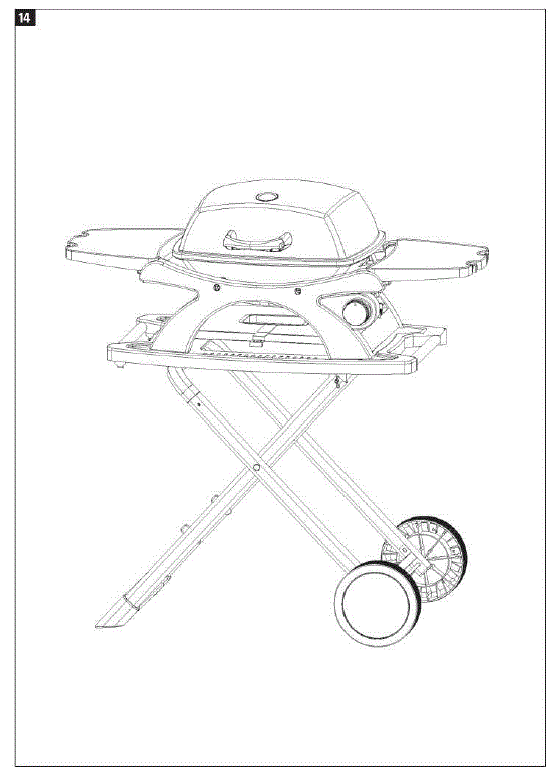

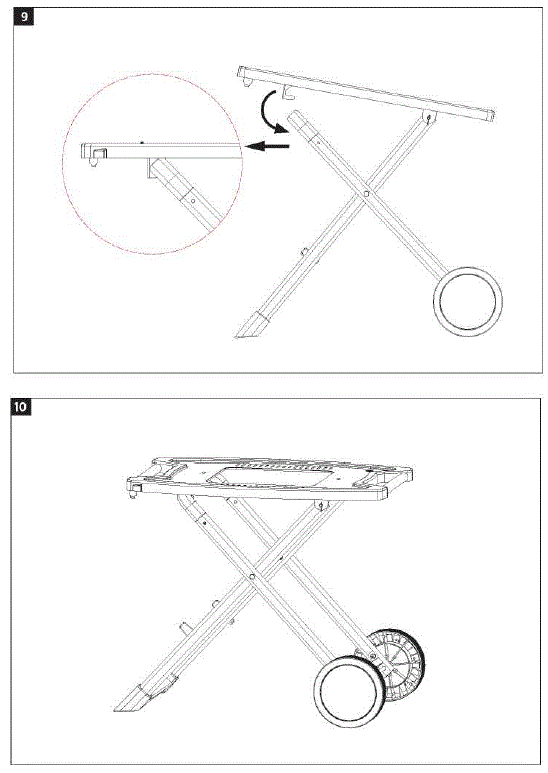

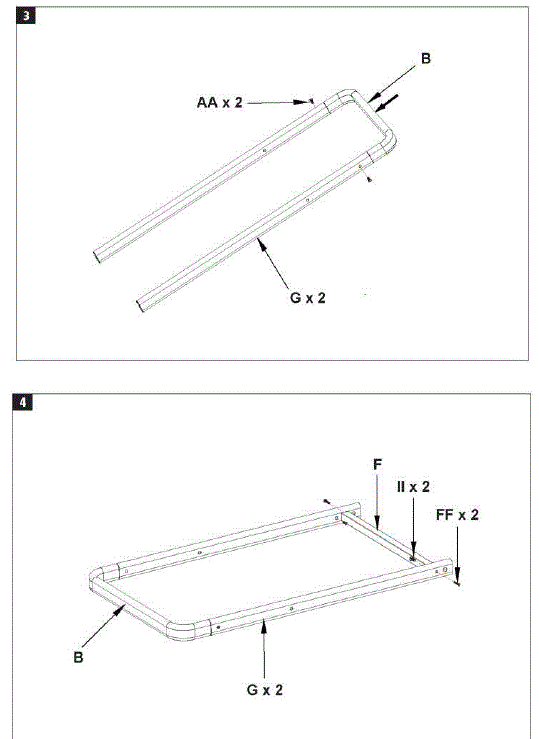

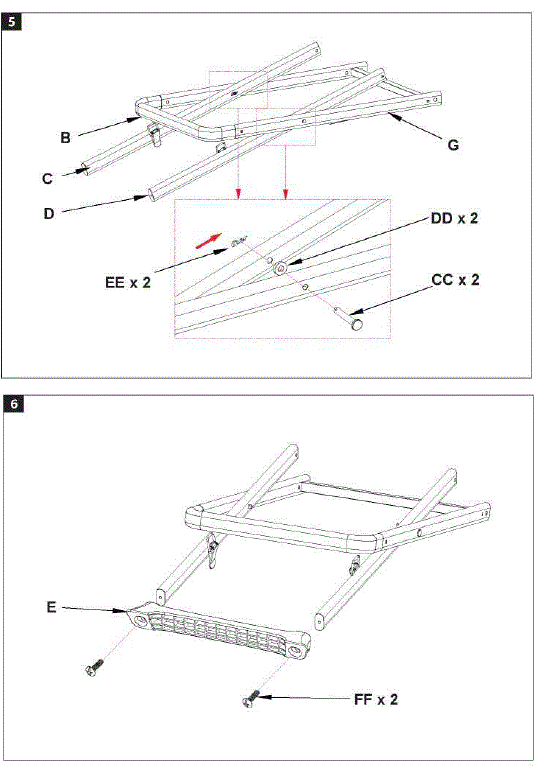

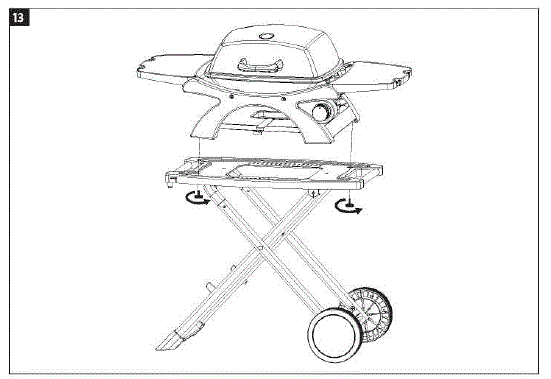

• Assemble the parts in the order shown in the figures 2 – 13.
