4P Kit Kawasaki Versys 250-300 X 17-20
Instruction Manual
4P Kit Kawasaki Versys 250-300 X 17-20
Advice for correct fitting of the kit : Do not fully tighten the bolt until it’s ensured that the KIT is correctly attached and aligned.

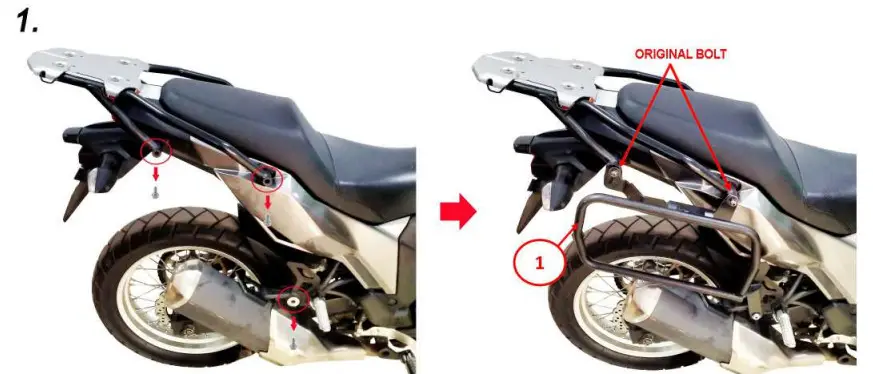

Remove the original bolts from the motorbike and install a 4P bracket with the original bolt and parts no. Z 3, 4

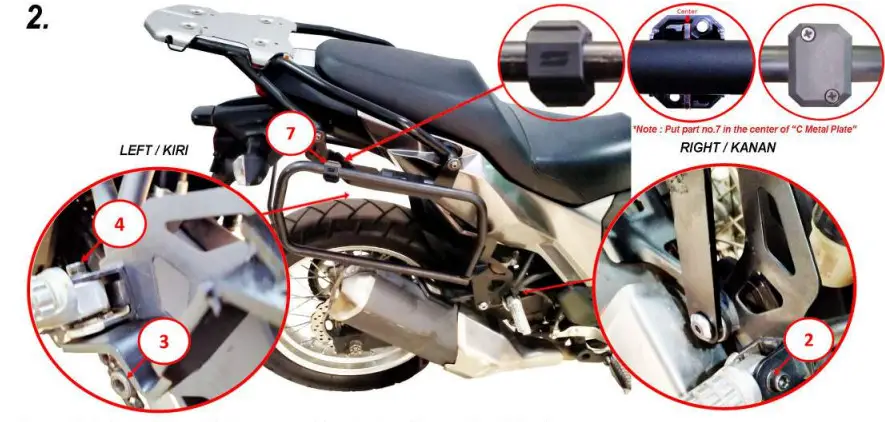

Ensure the bolt set are assembly in the correct position, then install part no. 7 to 4P bracket.

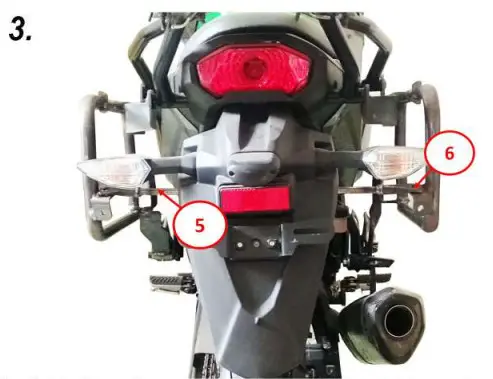

Install part no. 5 into 4P bracket. Don’t forget to ensure between left and right 4P are in balance and symmetric position
