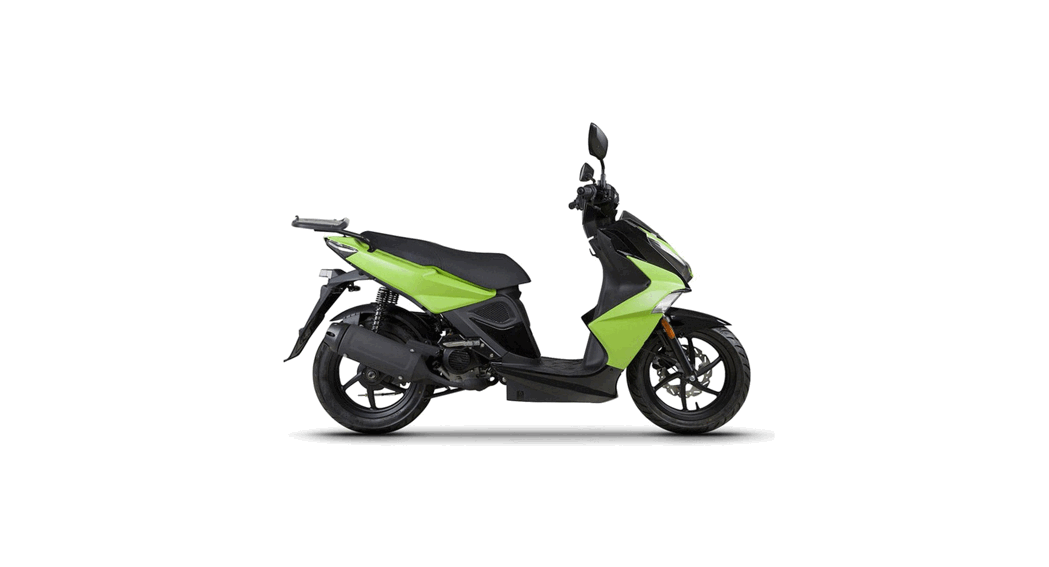

KYMCO SUPER 8 50/125/150
Instructions
KYMCO SUPER 8 50/125/150
 | ||

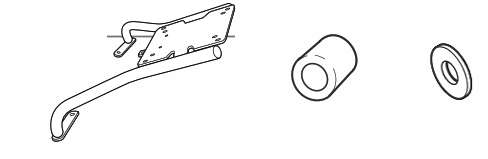

| 263031 x 1 | 260712 x 2 θ20 θ11 x 22 | 303045 x 3 θ8 |
 | |

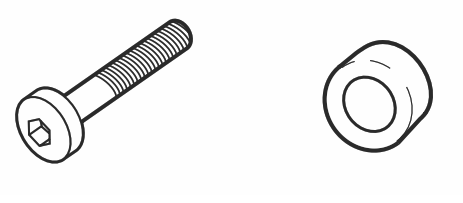

| 304039 x 3 M8140 DIN 7380 | 260760x 1 θ20 θ11 x 16 |
WARNING!
– Compatible with Small (D1B29PA), Medium (D1B4OPA), Large mounting plate (D1B48PA) & aluminium.
-(NOTE): Compatible with TOP CASES SH26 — SH48 only. –
– Do not fully tighten the screws until it is ensured that the KIT is correctly attached and aligned.
IMPORTANT; Based on European models. For compatibility with models in other continents, chek www.shad.es
WWW.SHAD.ES
REF500479Edition 1a
