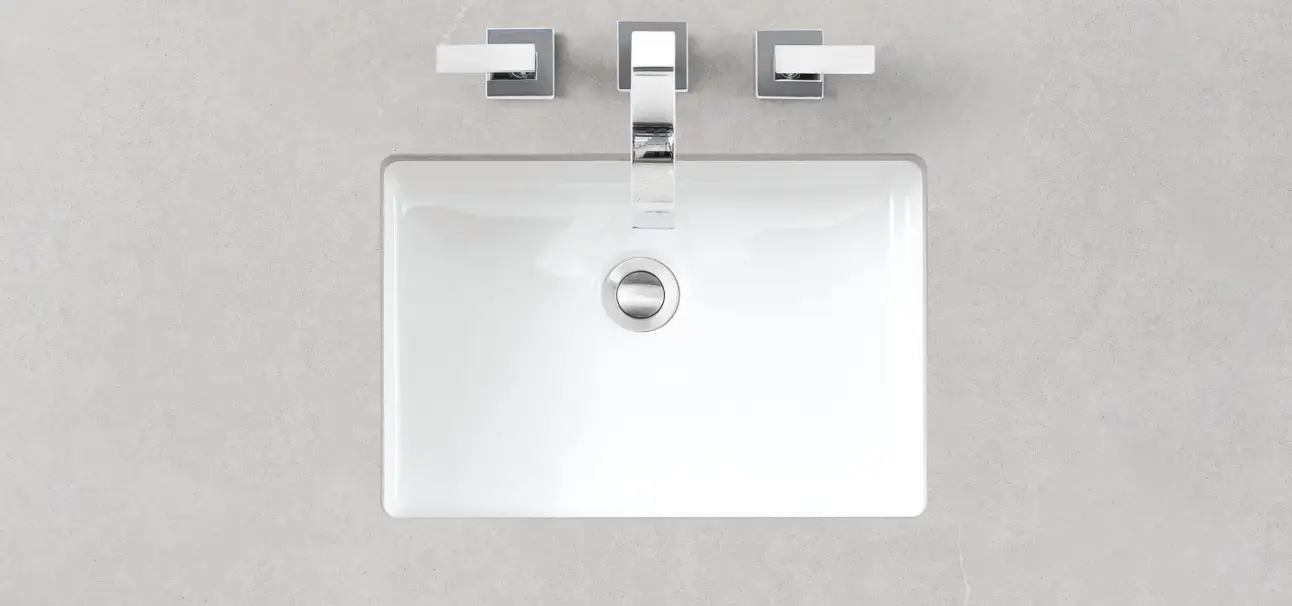

050 3cm Countertops and Undermount Sinks
Product Information: 3cm Countertops and Undermount Sinks
The 3cm Countertops and Undermount Sinks are packaged and
shipped separately. The product comes in models 050, 080, and 090.
The countertop is very fragile and needs to be handled with
caution. The sink mounting hardware is included in the sink carton
contents. The countertop carton contents include set screws, sink
clamps, washers, lock washers, and wing nuts.
Product Usage: Installation Instructions for 3cm Countertops
with Undermount Sink
Before removing the countertop from the carton, inspect the
carton for damage and package contents. If any damage is found,
contact your place of purchase. Make sure all surfaces are clean
before beginning the installation process.
Tools and Materials Required (Not Included):
- Sink Mounting Hardware (Included in the sink carton
contents) - Level
- Marker
- Tape Measure
- Pliers
- Caulk Gun
- Silicone Sealant
Proper Handling of 3cm Countertop:
Carefully unpack the countertop and place the finished side down
on a flat, soft, and sturdy surface. Rotate the carton from a flat
position and lift the top vertically with two people. NEVER LIFT OR
CARRY THE VANITY TOP FLAT.
Sink Installation:
- Using a tape measure, draw a straight line marking the center
points of all sides of the sink cut out on the countertop finished
side down on a soft surface. - Carefully unpack the undermount sink and place it on a soft
surface, bowl side up. Using a tape measure, identify and mark
center point on all sides of the bottom and profile of the lip of
the sink. - Carefully lift the sink and place it centered over the
countertop cutout, bowl side up, and with the overflow drain at the
opposite end from the faucet holes. Align all marked center points
along each side of the lip of the sink, with the marked center
points along cut out in the countertop. Ensure the sink is centered
over the opening and carefully trace around the perimeter of the
sink with a marker. - Carefully lift the sink from the countertop and place it on a
soft surface, bowl side down. Apply a bead of silicone sealant
around the top edge of the sink rim. - Carefully lift and turn the sink over on the countertop,
positioning it within your marked outline, ensuring again that the
overflow is opposite from the faucet holes. Once positioned, press
firmly in place. - Wipe away any excess sealant with a damp cloth and allow
sealant to dry according to manufacturer’s recommendations.
Preparing the Vanity Cabinet for Installation of Countertop and
Sink:
- Apply an adhesive around the top edge of the vanity cabinet.
Add an extra dot on all 4 corners of the vanity top. - If you are installing a wood backsplash (available on specific
models), place a generous amount of silicone sealant on the back of
it and press it into place against your bathroom wall. Fill any
gaps that are left with silicone sealant. Wipe away any excess
sealant with a damp cloth.
Installation Instructions for 3cm Countertops and Undermount Sinks
(Models: 050, 080 & 090)
BEFORE YOU REMOVE THE TOP FROM THE CARTON
Prior to removing the countertop from the carton inspect the carton for damage and package contents. If any damage is found, contact your place of purchase.
Products shown in this manual do not reflect a specific vanity or sink.
Installation Instructions for 3cm Countertops with Undermount Sink
IMPORTANT STEPS BEFORE YOU BEGIN
· Ensure the vanity cabinet is in place and has been properly installed to meet plumbing codes. For your safety and to achieve the best possible results, James Martin Vanities recommends you consult with a professional contractor.
· Shut off the water supply. Water supply and drain access must be in place prior to installing the countertop and sink.
· Ensure the vanity cabinet is level.
TOOLS AND MATERIALS: (Not included)
SINK MOUNTING HARDWARE (Included)
Level
Marker
Tape Measure
Pliers
Caulk Gun
Silicone Sealant
SINK CARTON CONTENTS
· Sink
The 3cm Countertop and Sink are packaged and shipped separately.
COUNTERTOP CARTON CONTENTS
· 3cm Countertop · Assembly
Instructions · Hardware
A
B
Part Description Quantity
C
A Set screw
4
B Sink clamp
4
D
C Washer
4
D Lock washer
4
E Wing nut
4
E
PROPER HANDLING OF 3CM COUNTER TOP
Carefully unpack the countertop and place finished side down on flat, soft and sturdy surface.
Important: The countertop is very fragile. Take caution when handling, and have someone assist you.
Rotate carton from flat position and lift
top vertically.
Lift top vertically with two people.
NEVER LIFT OR CARRY THE VANITY
TOP FLAT.
2
Installation Instructions for 3cm Countertops with Undermount Sink
SINK INSTALLATION
IMPORTANT: Make sure all surfaces are clean.
Place top finished side down on a soft surface. 1. Using a tape measure, draw a straight 3″ line marking the
center points of all sides of the sink cut out.
4. Carefully lift the sink from the countertop and place it on a soft surface, bowl side down. Apply a bead of silicone sealant around the top edge of the sink rim.
5. Carefully lift and turn the sink over on the countertop, positioning it within your marked outline, ensuring again that the overflow is opposite from the faucet holes. Once positioned, press firmly in place.
2. Carefully unpack the undermount sink and place on a soft surface, bowl side up. Using a tape measure, identify and mark center point on all sides of the bottom and profile of the lip of the sink.
OVERFLOW
3. Carefully lift the sink and place it centered over the countertop cutout, bowl side up and with the overflow drain at the opposite end from the faucet holes. Align all marked center points along each side of the lip of the sink, with the marked center points along cut out in the countertop. Ensure the sink is centered over the opening and carefully trace around the perimeter of the sink with a marker.
6. Wipe away any excess sealant with a damp cloth and allow sealant to dry according to manufacturer’s recommendations.
7. Attach sink clips by placing the long end of the bracket flat against the sink lip. Insert the set screw through the bracket, into the threaded holes. Twist to tighten. Thread the washer, lock washer and wing nut over the set screw and tighten. Pliers can be used do not over tighten. Allow sealant to dry as indicated by manufacturer.
OVERFLOW
3
OVERFLOW
Installation Instructions for 3cm Countertops with Undermount Sink
IMPORTANT
· Ensure the vanity cabinet is in place and has been properly installed to meet plumbing codes. For your safety and to achieve the best possible results, James Martin Vanities recommends you consult with a professional contractor.
· Shut off the water supply. Water supply and drain access must be in place prior to installing the countertop and sink.
· Ensure the vanity cabinet is level.
10. Once positioned, press firmly into place. Wipe away any excess sealant using a damp cloth.
PREPARING THE VANITY CABINET FOR INSTALLATION OF THE COUNTERTOP AND SINK
IMPORTANT: Make sure all surfaces are clean.
8. Apply an adhesive around the top edge of the vanity cabinet. Add an extra dot on all 4 corners of the vanity top.
11. If you are installing a wood back-splash (available on specific models), place a generous amount of silicone sealant on the back of it and press it into place against your bathroom wall. Fill any gaps that are left with silicone sealant. Wipe away any excess sealant with a damp cloth.
9. With assistance from another person, carefully lift the countertop with sink to a vertical position and ease onto the vanity cabinet, front edge first.
Important: The countertop is very fragile. Take caution when handling, and have someone assist you.
12. Once assembled allow the silicone sealant to fully dry according to the manufacturer’s recommendation. When dry, proceed to the installation of your faucet and drain.
13. For stone tops, such as marble and granite, it is recommended that you apply a high quality sealer to protect from staining and discoloration. Stone sealer should be reapplied once or twice per year, depending upon usage, according to sealer’s instructions.
4
