Streetwize Swwl13 Buried Folding Parking Post Instruction Manual

streetwize SWWL13 Buried Folding Parking Post Instruction

Read and understand these instructions before attempting any operation of this parking post and retain for future reference

INTENTION FOR USE

Thank you for purchasing the Streetwize Buired Folding Parking Post. This product is intended for use as a visual deterrent and protects your vehicle against theft. This parking post can be used to protect vehicles on driveways, car parks and caravan & motorhome parks.
This parking post can be placed in both hard and soft ground.

PRODUCT ELEMENTS

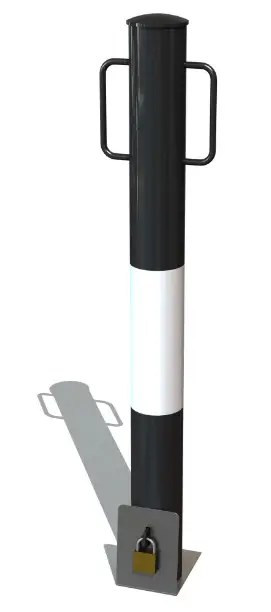

1. Streetwize Buried Folding Parking Post
2. Heavy-Duty Padlock with 2 keys

INSTALLING INTO SOFT GROUND

Requirements

• Shovel (or other digging equipment or tool)
• Fast drying concrete
• Stone
• Steel trowel
• Spirit Level

INSTRUCTIONS

1. With your shovel, dig a hole into the ground where you want to install the parking
   post. When digging, ensure your hole is wide enough for the post and deep
   enough for the spigot base (approx. 200mm). Ensure the locking base is
   between 2 to 5mm above ground.
2. Use the stone to lay a foundation of around 20mm.
3. Set the spigot-base into the foundation.
4. Use the spirit level to check for vertical alignment.
5. Pour more stone into the base until 40mm below surface. Recheck vertical alignment.
6. Prepare the fast drying concrete.
7. Pour the concrete upto 5 mm below the locking base.
8. Use the trowel and some of the remaining unused concrete for finishing.

INSTALLING INTO HARD GROUND

Requirements

• Pneumatic Drill
• Shovel (or other digging equipment or tool)
• Fast drying concrete
• Stone
• Steel trowel
• Spirit Level

Instructions

1. For hard ground, use a Pneumatic Drill to dig a hole. Ensure your hole is wide enough for the post and deep
   enough for the spigot base (approx. 200mm). Ensure the locking base is between 2 to 5mm above ground.
2. Use the stone to lay a foundation of around 20mm.
3. Set the spigot-base into the foundation.
4. Use the spirit level to check for vertical alignment.
5. Pour more stone into the base until 40mm below surface. Recheck vertical alignment.
6. Prepare the fast drying concrete.
7. Pour the concrete upto 5 mm below the locking base.
8. Use the trowel and some of the remaining unused concrete for finishing.

Locking/Unlocking the Parking Post

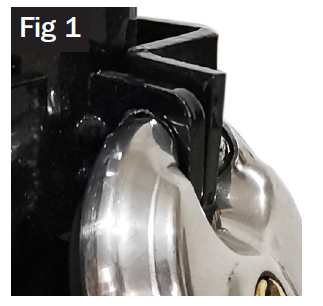

When the parking post is ready to use, lift into position and align all the holes towards the base of the post. Open the padlock by turning the key clockwise. Place through all the holes (Fig 1) and turn the key anti-clockwise to lock the padlock on the parking post. *Please take care of your keys as replacement keys are not available for security reasons.

Health and Safety

• Please wear protective equipment, including gloves and eye protection when installing the parking post.
• If you are kneeling on hard ground, we advise that you wear knee pads.
• When lifting rubble or other heavy object, please use correct procedure to prevent risk of injury
• When using the jackhammer, wear the correct protective equipment

Technical support
If you require any technical support, please contact us on [email protected] and provide the product name and supplier code (see Technical Specifications) along with the technical query.

Technical Specifications

Streetwize: Ashburton Road West, Trafford Park, Manchester M17 1RY

For product support: E: [email protected]
T: +44 (0)161 447 8597
For trade enquiries: E: [email protected]
T: +44 (0)161 447 8580
For spare parts: E: s[email protected]
