Robus Rvac8306550, Rvac8406550 Vegas Ac Strip 8w/m 240v Warm Instruction Manual

ROBUS RVAC8306550, RVAC8406550 Vegas AC Strip 8W/M 240V Warm

RVAC8306550 RVAC8406550

PLEASE READ INSTRUCTION BEFORE COMMENCING INSTALLATION AND RETAIN FOR FUTURE REFERENCES. ! Electrical products can cause death or injury, or damage to property. The Installation must be carried out by a qualified electrician.
Note:
The luminaire must be disconnected before carrying out any insulation resistance testing. Product technical information and specification may change over time without prior notification. For the latest technical information please visit our web site www.robus.com.auandwww.robusled.co.nz

-20°C < Ta < +45°C, 220-240V~50/60Hz, Class II, IP65 Luminaire is non dimmable Suitable for mounting on a normally flammable surface.

Installation

1. Ensure mains supply is switched off before commencing work. 2. Cut lengths are only provided through Robust Customized Conversions department.

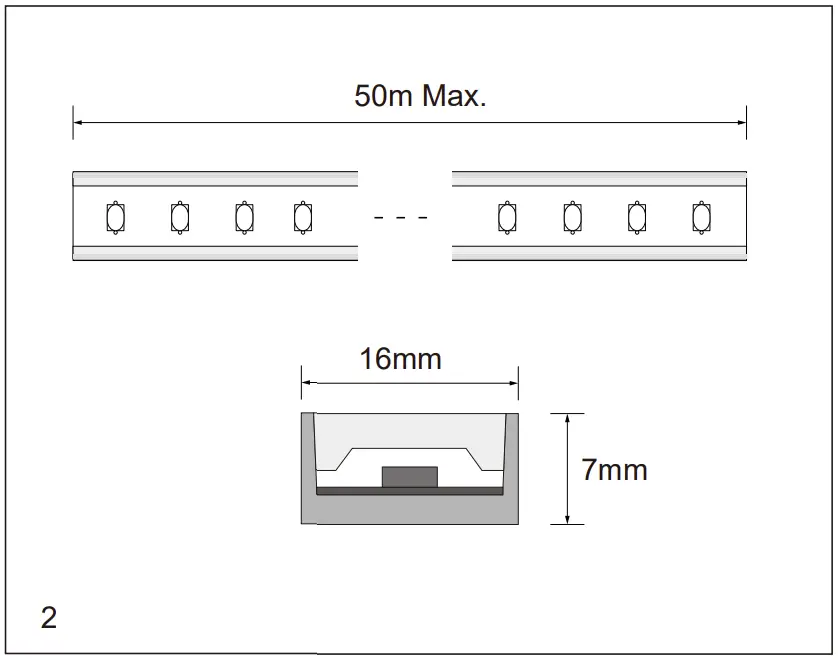

2. Maximum continuous length 50m Mounting:

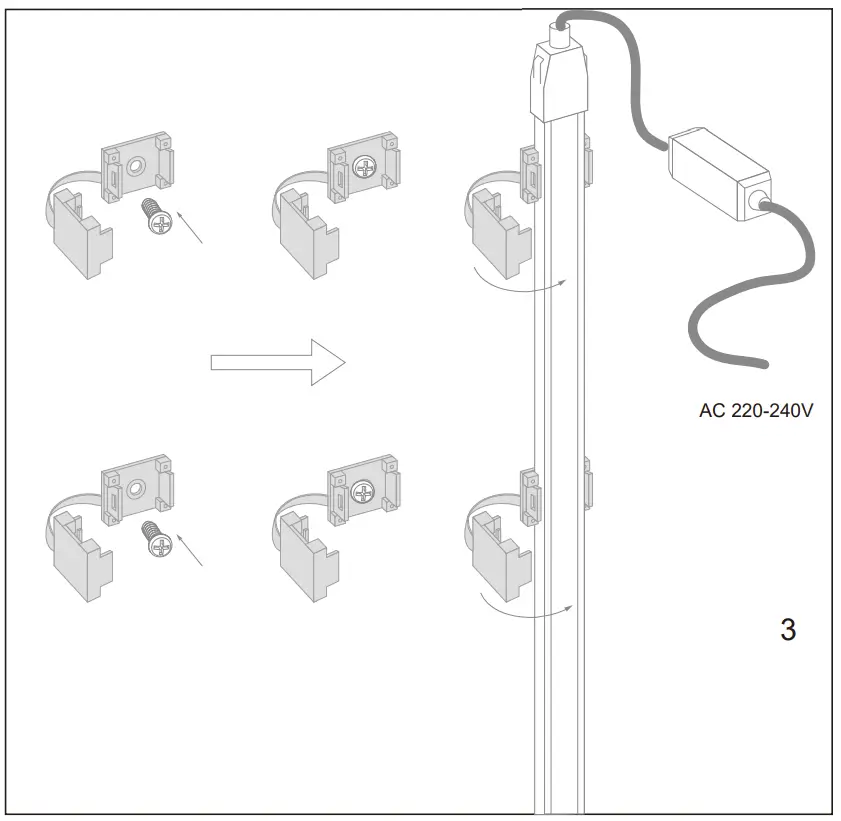

3. Using screws attach mounting bracket (RVACB ) onto the surface ( 4 x brackets for the first meter, then 3 x brackets every meter). Attach the LED strip onto the mounting kit and close clips. Avoid covering the LED chip as far as possible.
4. Make connections in suitable IP enclosure. Connect supply cables: L – Blown; N – Blue.

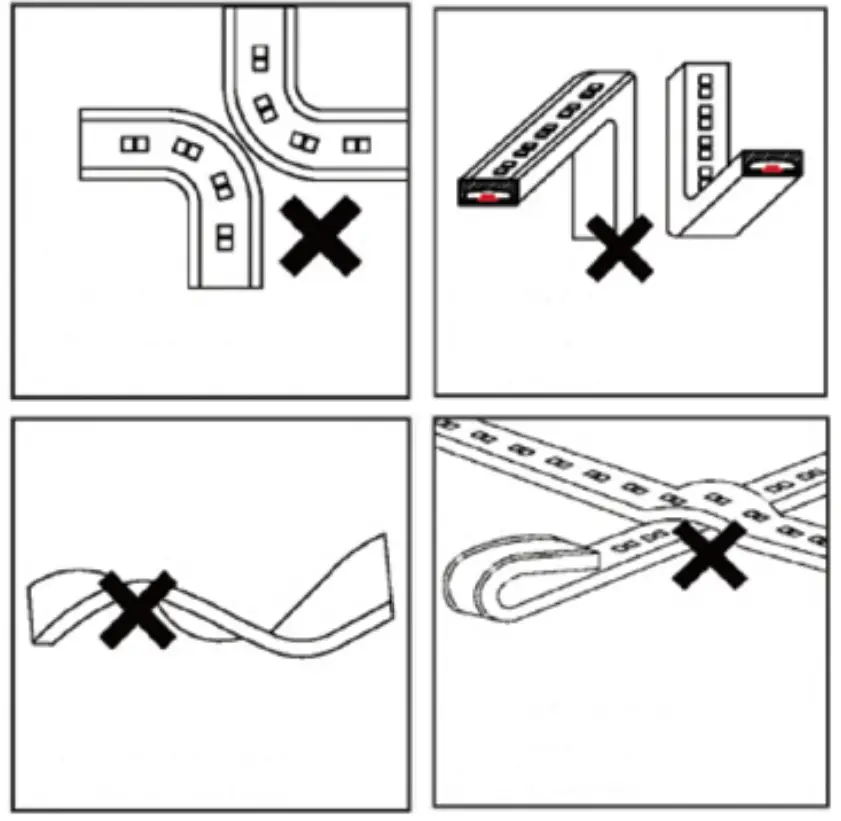

5. Please see installation diagrams and install the strip as per diagrams.
   ACCESSORIES:
   RVACB: VEGAS AC Strip Mounting Bracket Accessory Kit (pack of 2pcs)

LED Group Australia Pty Limited
Suite B, 2 Pittwin Road
Capalaba
Queensland 4157
Australia
Tel: 07 3890 5444
Fax: 07 3890 4777
Email: [email protected]
Website: www.robus.com.au
LED Group
Crowe Horwath
72 Trafalgar Street
NELSON 7010
New Zealand
Tel: +64 3668 5285
Email: [email protected]
Website: www.robusled.co.nz
