QUICK REFERENCE GUIDE > RHV3-484-N
Dual Fuel Range, 48″, 4
Burners, 4 Induction Zones,
Self-cleaning
Series 11 | Professional
Stainless Steel | Natural gas
With both induction and gas cooktops and two convection ovens, you’re ready to create a feast – guided by an intuitive touchscreen.
- Guided cooking using your touchscreen makes it simple to cook by food, function or recipe.
- Top burner heat of 23,500 BTU, for seriously fast boiling
- Four induction cooking zones, can be paired to form two SmartZones
- 6.9 cu ft total oven capacity across two oven cavities

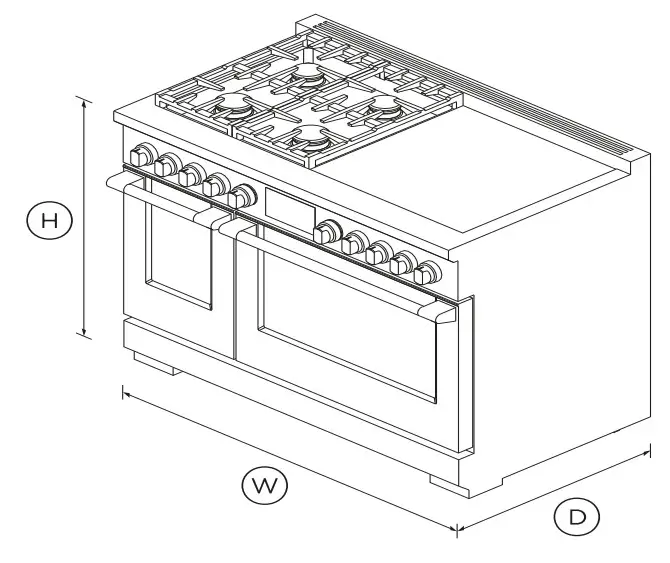

DIMENSIONS
| Height | 35 3/4 – 36 3/4″ |
| Width | 47 7/8″ |
| Depth | 29 1/8″ |
FEATURES & BENEFITS
Cook with confidence
Our touchscreen interface provides an intuitive guided cooking experience that helps deliver perfect results, whether you’ve been cooking all your life or just starting out. Cook with a favorite method, a hero ingredient, or a go-to cooking function or recipe. The screen tilts for improved ergonomics and optimal visibility while cooking.
Generous capacity
Two independently operating cavities provide a large total capacity of 4.8 cu. ft. in the main cavity and 2.1 cu. ft. in the secondary. That’s enough room for a 32 lb turkey in one oven, and your sides in the other.
Cooking flexibility
No matter what you’re cooking, you’ve got the right heat to get perfect results. Each of the 15 oven functions in the main cavity and 11 in the secondary have been extensively researched and carefully designed to cater to a broad range of dishes and cooking styles. The handy food probe helps you monitor your progress.
Cooktop power
On the gas side of the cooktop, Sealed dual flow burners deliver power up to 23,500 BTU, while the induction side delivers up to 3700W. This finely tuned cooktop provides instant and immediate control from the highest heat to the most gentle simmer.
Design quality
This range has craftsmanship in every detail, with real stainless steel, high-quality glass, and beautifully weighted, halo-illuminated dials. Each cavity features incandescent lights and full extension telescopic racks. From the robust legs to the powerful cooktop, this Range is built to last.
Easy to clean
The oven features a self-cleaning function and self-clean-proof side racks, which don’t need to be removed when using this function. The induction zones only need a quick wipe after use to keep them clean.
SPECIFICATIONS
Accessories
| Adjustable feet covers | • |
| Branded coin end cap | • |
| Square handle option | AH-R48 |
Burner ratings
| Maximum burner power | 23500 BTU |
| Power back left | 18500BTU |
| Power back right | 18500BTU |
| Power front left | 23500BTU |
| Power front right | 18500BTU |
| Total cooktop power | 79000 BTU |
Capacity
| Shelf positions | 5 |
| Shelf positions | 5 |
Capacity
| Easy clean porcelain baseman | • |
| Pyrolytic self-clean | • |
Controls
| Dial with illuminated halo | • |
| Dual control oven dials | • |
| Electric circuit | 4 wire |
| High resolution display | • |
| Metal illuminated dials | • |
| Multi-language interface | • |
| Precise cooking with food | • |
| Recipe and food based | • |
| Sabbath mode | • |
| Tilting touch screen interface | • |
| Wi-Fi connectivity | • |
Gas Requirements
| Fitting and pipe | ½ NPT, min. ⅝” flex line |
| Supply Pressure (natural gas) | 6″ to 9″ W.C |
Oven features
| Concealed element | • |
| Electronic oven control | • |
| Full extension telescopic | • |
| Internal light | • |
| True convection | • |
Oven functions
| Bake | • |
| Classic bake | • |
| Clean | • |
| Convection Broil | • |
| Convection bake | • |
| Dehydrate | • |
| Maxi Broil | • |
| Number of functions | • |
| Pastry bake | 15 |
| Pizza bake | • |
| Rapid proof | • |
| Roast | • |
| Slow cook | • |
| True convection | • |
| Warm | • |
| • |
Oven performance
| Bake power | 4600 |
| Broil | 3600W |
| Main oven – True convection | 2500W |
Power requirements
| Rated current | 50A |
| Supply frequency | 60Hz |
Product dimensions
| Depth | 29 1/8″ |
| Height | 35 3/4 – 36 3/4″ |
| Width | 47 7/8″ |
Rangetop features
| Gentle heat | • |
| Heat settings | 9 |
| Induction cooking technology | • |
| Sealed Dual Flow Burners™ | 4 |
| Sealed range top | • |
| SmartZone | 2 |
| Vent trim included | • |
| Zone bridging | • |
Rangetop Performance
| Left front zone rating | Left front zone rating |
| Left rear zone rating | Left rear zone rating |
| Number of burners | Number of burners |
| Number of cooking zones | Number of cooking zones |
| PowerBoost | PowerBoost |
| PowerBoost all zones | up to 3700W |
| Right front zone rating | 2100 (3700)W |
| Right rear zone rating | 2100 (3700)W |
Recommended Back Guards Ventilation
| Combustible situation | BGRV3-3048H |
| Non combustible situation | BGRV2-3048 / BGRV2-1248 |
| Recommended hood | HCB48-12_N (48″ Professional |
Safety
| ADA compliant | • |
| Pan detection system | • |
| Safety time out | • |
| Surface hot indicators | • |
Secondary oven features
| 3/4 Extension racks | 2 |
| Electronic oven control | • |
| Food probe | • |
| Internal light | • |
Secondary oven functions
| Air fry | • |
| Bake | • |
| Classic bake | • |
| Convection bake | • |
| Convection broil | • |
| Maxi broil | • |
| Number of secondary oven | 11 |
| Pastry bake | • |
| Pizza bake | • |
| Rapid proof | • |
| Roast | • |
| Warm | • |
| SKU | SKU |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
