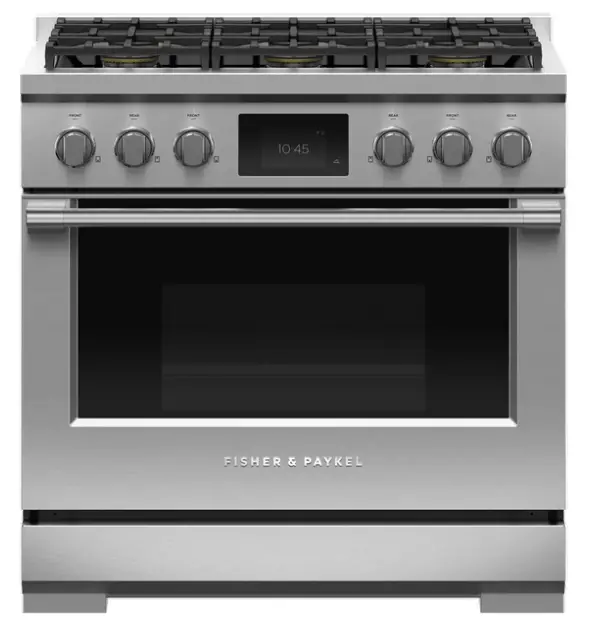

FISHER and PAYKEL RDV3-366-L Dual Fuel Range
DESCRIPTION
Get the best of gas and convection technology in this striking range with intuitive touchscreen and specialized cooking functions.
- Guided cooking using your touchscreen makes it simple to cook by food, function or recipe.
- Top burner heat of 19,000 BTU, for seriously fast boiling 4.8 cu ft total oven capacity.
- Beautiful LED halo-illuminated dials provide information at a glance.

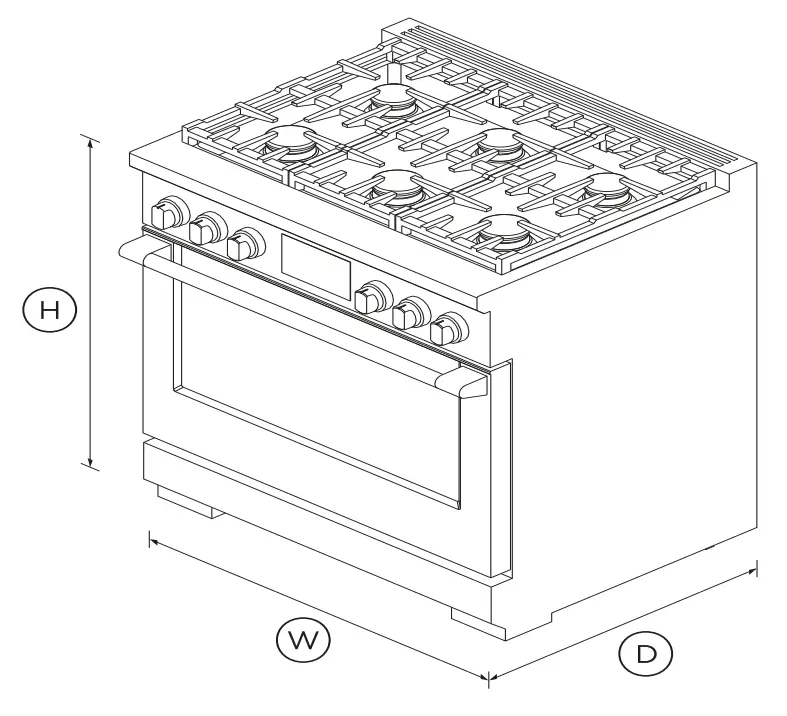

DIMENSIONS
| Height | 35 3/4 – 36 3/4″ |
| Width | 35 7/8″ |
| Depth | 29 1/8″ |
FEATURES & BENEFITS
COOK WITH CONFIDENCE
Our touchscreen interface provides an intuitive guided cooking experience that helps deliver perfect results, whether you’ve been cooking all your life or just starting out. Cook with a favorite method, a hero ingredient, or a go-to cooking function or recipe. The screen tilts for improved ergonomics and optimal visibility while cooking.
GENEROUS CAPACITY
Featuring a large 4.8 cu ft total capacity convection oven, with enough room to fit a 32 lb turkey and full-size baking sheets.
COOKING FLEXIBILITY
No matter what you’re cooking, you’ve got the right heat to get perfect results. Each of the 15 oven functions have been extensively researched and carefully designed to cater to a broad range of dishes and cooking styles. The handy food probe helps you monitor your progress.
COOKTOP POWER
Sealed dual flow burners deliver cooktop power up to 19,000 BTU for seriously fast boiling, and precise 140°F full surface, low temperature cooking with the gentlest of flames.
DESIGN QUALITY
This range has craftsmanship in every detail, with real stainless steel, cast-iron grates, and beautifully weighted, halo illuminated dials. Each cavity features incandescent lights and full extension telescopic racks. From the robust legs to the powerful cooktop, this Range is built to last.
EASY TO CLEAN
The oven features a self-cleaning function and self-clean proof side racks, which don’t need to be removed when using this function.
SPECIFICATIONS
Accessories
| Adjustable feet covers | • |
| Branded coin end cap | • |
Accessories (sold separately)
| Square handle option | AH-R36 |
Burner ratings
| Maximum burner power | 19000 BTU |
| Power back centre | 13000BTU |
| Power back left | 13000BTU |
| Power back right | 13000BTU |
| Power front centre | 15000BTU |
| Power front left | 19000BTU |
| Power front right | 19000BTU |
| Total cooktop power | 92000 BTU |
Capacity
| Shelf positions | 5 |
| Total capacity | 4.8cu ft |
| Usable capacity | 3.8cu ft |
Cleaning
| Easy clean porcelain basepan | • |
| Pyrolytic self-clean | • |
Controls
| Dial with illuminated halo | • |
| Electric circuit | 4 wire |
| High resolution display | • |
| Metal illuminated dials | • |
| Multi-language interface | • |
| Precise cooking with food | • |
| Recipe and food based | • |
| Sabbath mode | • |
| Tilting touch screen interface | • |
| Wi-Fi connectivity | • |
Gas Requirements
| Fitting and pipe | ½ NPT, min. ⅝”  flex line. |
| Supply Pressure (LPG) | 11″ to 14″ W. |
Oven features
| Auto re-ignition system | • |
| Concealed element | • |
| Electronic oven control | • |
| Food probe | • |
| Full extension telescopic | • |
| Internal light | • |
| Large broil pan | • |
| Self-clean proof side racks | • |
| True convection | • |
Oven functions
| Air fr | • |
| Bake | • |
| Classic bake | • |
| Clean | • |
| Convection Broil | • |
| Convection bake | • |
| Dehydrate | • |
| Maxi Broil | • |
| Number of functions | 15 |
| Pastry bake | • |
| Pizza bake | • |
| Rapid proof | • |
| Roast | • |
| Slow cook | • |
| True convection | • |
| Warm | • |
Oven performance
| Main oven – True convection | 2500 |
Power requirements
| Rated current | 30A |
| Supply frequency | 60Hz |
Product dimensions
| Dept | 29 1/8″ |
| Depth (excluding handles | 29 1/8″ |
| Heigh | 35 3/4 – 36 ¾” |
| Width | 35 7/8″ |
Rangetop feature
Recommended Back Guards Ventilation
| Combustible situation | BGRV3-3036 |
| Non combustible situation | BGRV2-3036 / BGRV2-123 |
| Recommended hood | HCB36-6_N (36″ Professional |
Safety
| ADA compliant | • |
| Full extension telescopic | • |
Secondary oven feature
Warranty
| Parts and labor | Limited 2 years |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
