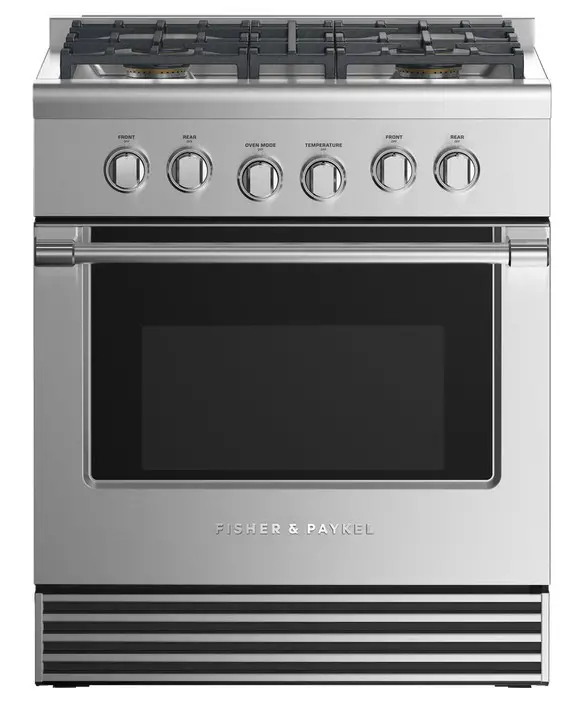

RDV2-304-N-N Dual Fuel Range
User Guide
Make a statement in your kitchen with this Professional style range for powerful gas and convection cooking.
- Top burner heat of 22,500 BTU, for seriously fast boiling
- Convection oven with 4 cu ft total capacity
- Non-tip full-extension shelves for safe removal of hot dishes

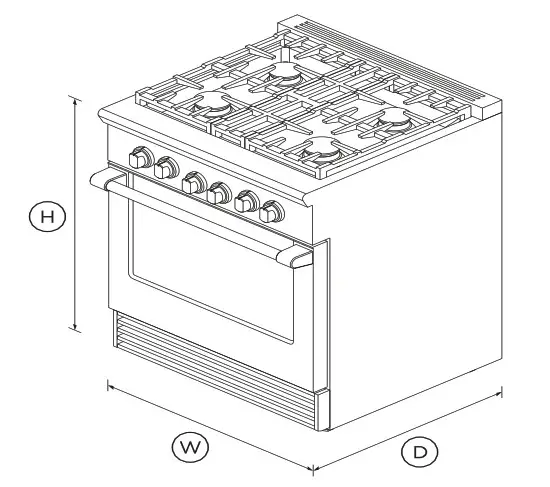

DIMENSIONS
| Height | 35 3/4 – 36 3/4″ |
| Width | 29 7/8″ |
| Depth | 29 1/8″ |
FEATURES & BENEFITS
Cooktop power
Sealed Dual Flow Burners™ deliver cooktop power up to 22,500 BTU (NG models) for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
Total control
Precise control across high and low settings is delivered through the halo-illuminated cooktop dials. The ovens have true convection and electronic oven control for precise and consistent temperatures.
Consistent broiling
The Dual Fuel Range broiler provides an even heat that covers a very large surface area — perfect for browning a fully loaded oven tray.
Easy to clean
The Dual Fuel Range oven has a self-cleaning function and removable side racks. The cooktop has sealed burners and an encapsulated cooking surface with a commercial-style stainless steel finish.
Instant visibility
Control dials have halo-illumination glowing white – heating up; orange – temperature reached; red – self-cleaning mode. The oven is illuminated by two powerful incandescent lights.
Cooking flexibility
The cooktop is designed for easy access to any burner, with grates you can smoothly slide pots across, while the oven cavity is large enough to allow you to cook multiple dishes at once.
SPECIFICATIONS
| Accessories | |
| Square handle option | AH-R48 |
| Burner ratings | |
| Maximum burner power | 17000 BTU |
| Power back centre | 13000BTU |
| Power back left | 13000BTU |
| Power back right | 13000BTU |
| Power front centre | 15000BTU |
| Power front left | 17000BTU |
| Power front right | 15000BTU |
| Power griddle | 15000BTU |
| Total cooktop power | 101000 BTU |
| Capacity | |
| Shelf positions | 5 |
| Cleaning | |
| Easy clean porcelain basepan | • |
| Controls | |
| Metal illuminated dials | • |
| Gas Requirements | |
| Fitting and pipe | ½ NPT, min. ⅝” flex line |
| Supply Pressure (LPG) | 11″ to 14″ W.C |
| Broil pan | • |
| Electronic oven control | • |
| Full extension telescopic | • |
| Infrared Broiler | • |
| Internal light | • |
| Oven functions | |
| Bake | • |
| Broil | • |
| Convection bake | • |
| Number of functions | 4 |
| Slow cook | • |
| Oven performance | |
| Bake | 16500 BTU |
| Power requirements | |
| Rated current | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
| Product dimensions | |
| Depth | 29 1/8″ |
| Height | 35 3/4 – 36 3/4″ |
| Width | 47 7/8″ |
| Rangetop features | |
| Sealed range top | |
| Recommended Back Guards’ Ventilation | |
| Combustible situation | BGRV3-3048H |
| Non combustible situation | BGRV2-3048 / BGRV2-1248 |
| Recommended hood | HCB48-12_N (48″ Professional |
| Safety | |
| ADA compliant | • |
| Secondary oven features | |
| 3/4 Extension racks | 2 |
| Electronic oven control | • |
| Internal light | • |
| Secondary oven functions | |
| Bake | • |
| Number of secondary ovens | 4 |
| Proof | • |
| Slow cook | • |
| Warranty | |
| Parts and labour | Limited 2 years |
| SKU | 82384 |
The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
