Gude Exs 125 E Eccentric Sander Instruction Manual

Translation of the original instructions

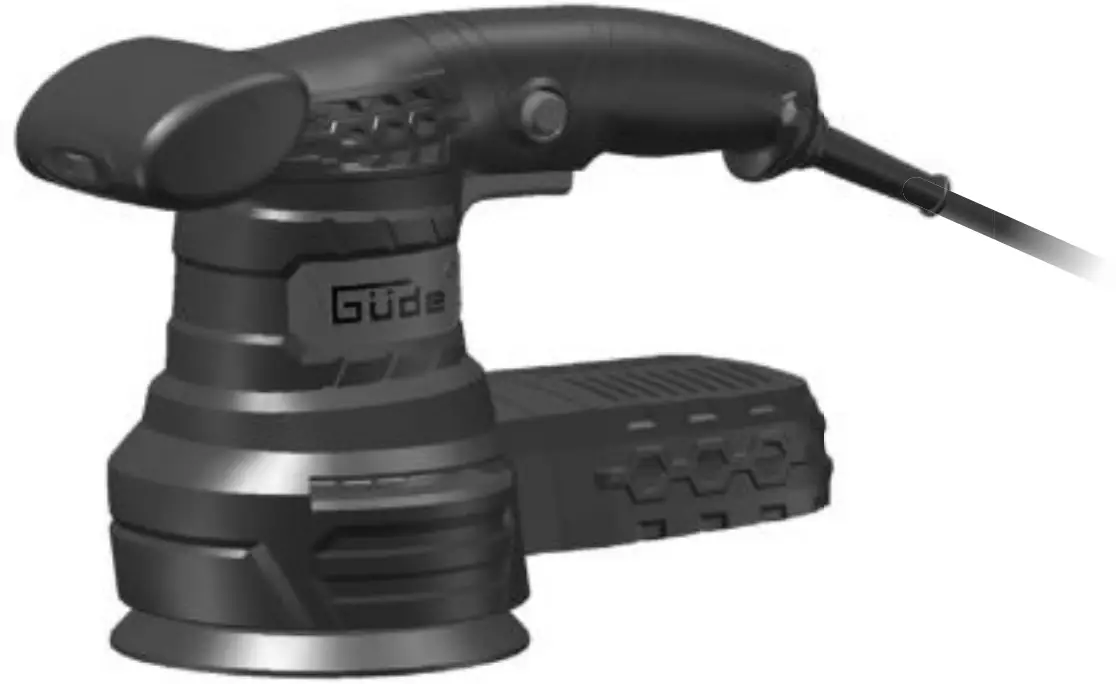

Eccentric sander EXS 125 E 58130
GÜDE GmbH & Co. KG
Birkichstrasse 6
74549 Wolpertshausen
Deutschland

Please read the instructions carefully before starting the machine.

STARTING-UP THE MACHINE
Original EG
Translation of the EC-Declaration of Conformity

DELIVERY RANGE

Starting-up the machine

Operation

Cleaning / Maintenance Starting-up the machine

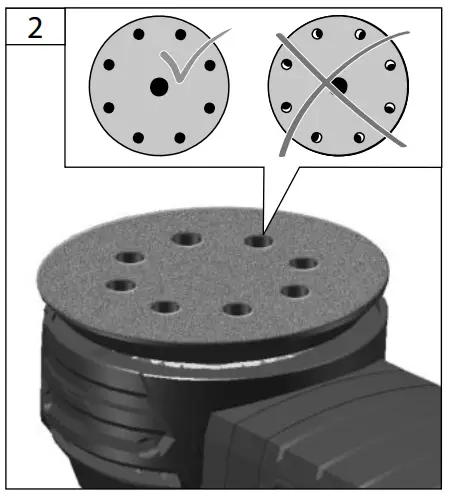

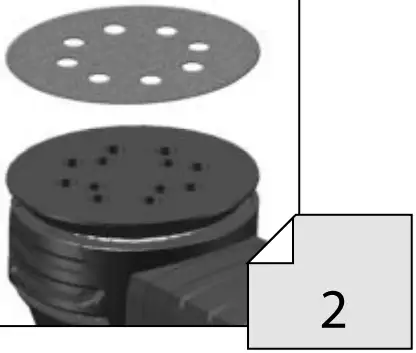

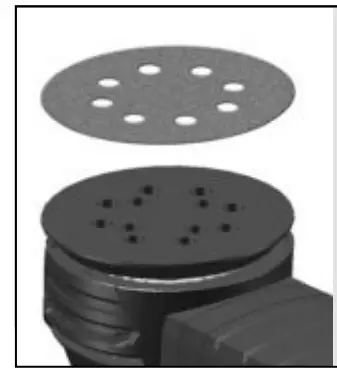

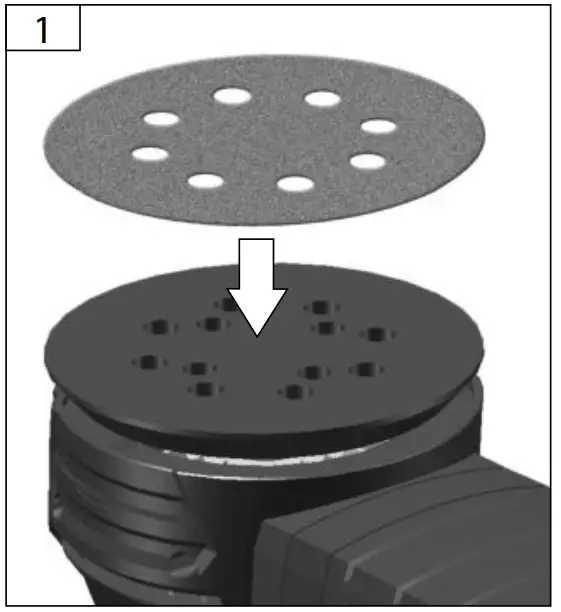

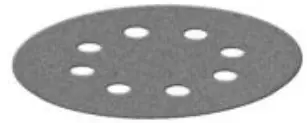

Press carefully the fuzzy side of the sanding disc against the packaging pad, as firmly as possible.

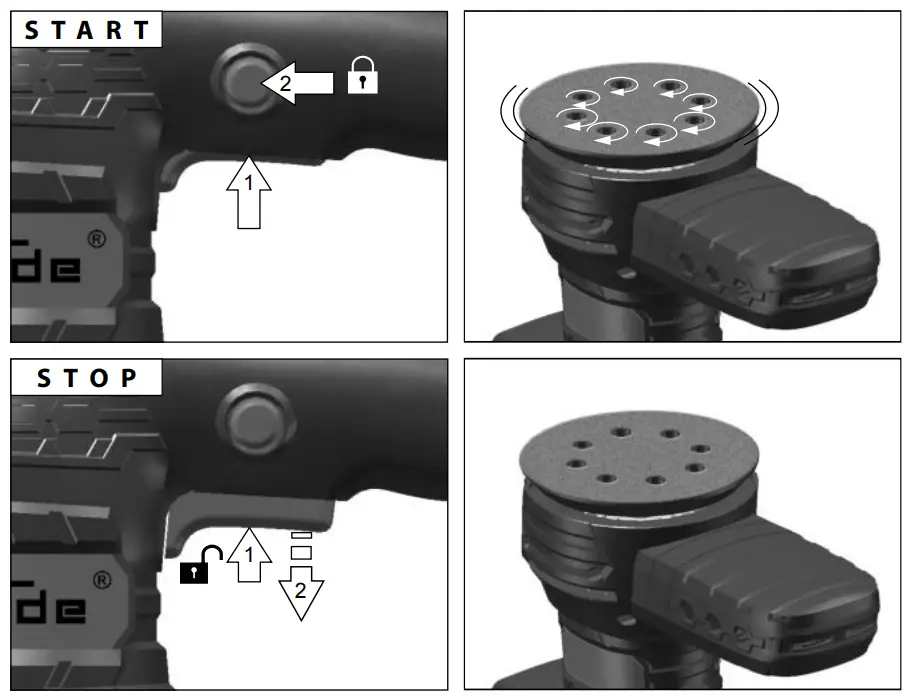

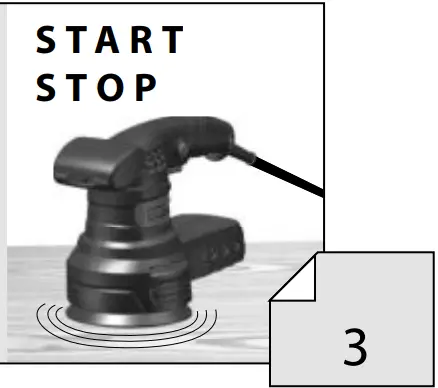

Operation

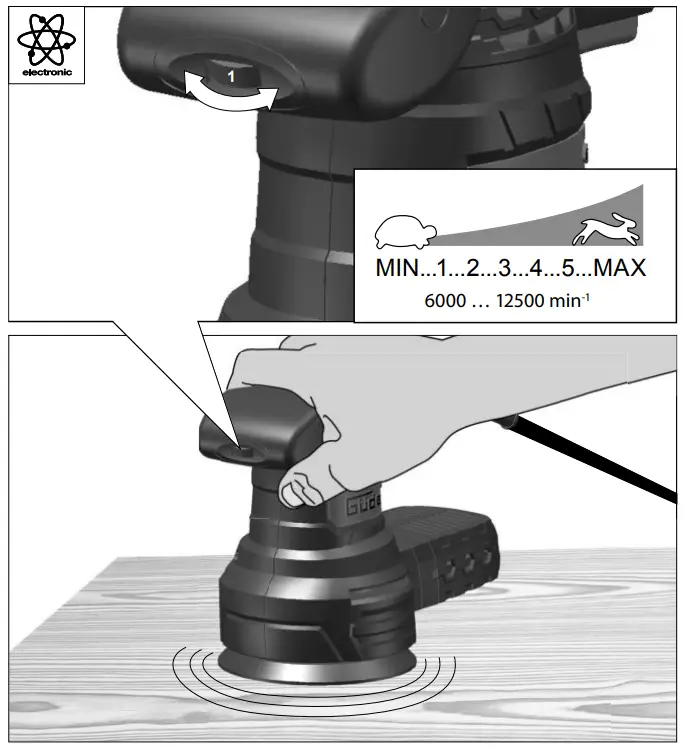

Operation

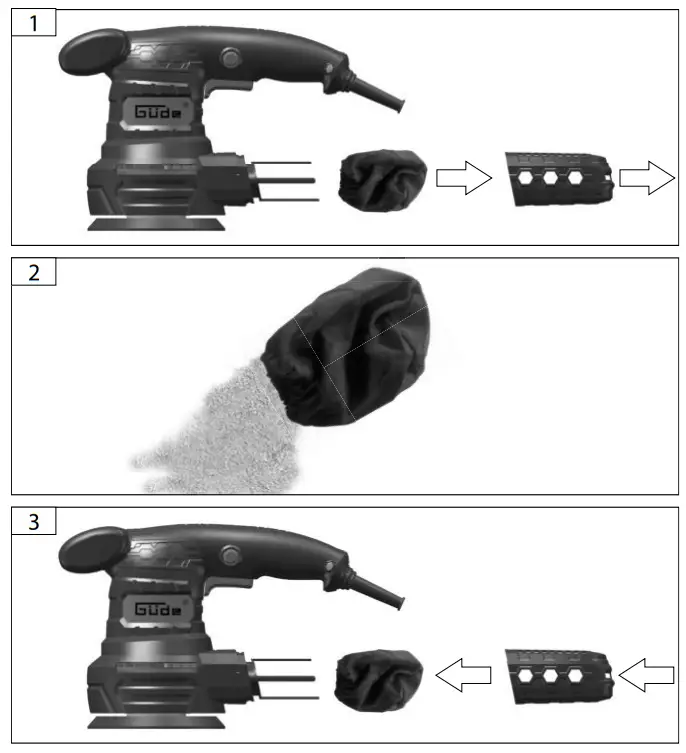

Cleaning / Maintenance

Technical Data

WARNING: The vibration emission level will vary because of the ways in which a power tool can be used and may increase above the level given in this information sheet. The vibration emission level may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.
An accurate estimate of the vibratory load should also take into account the times when the tool is shut down or when it is running but not actually in use. This may significantly educe the vibratory load over the total working period. Identify additional safety measures to protect the operator from the effects of vibration such as: maintaining the tool and the accessories, keeping the hands warm, and organization of work patterns.
Read and understand the operating instructions before using the appliance. Familiarise yourself with the control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties. The operator is responsible for accidents or risks to third parties. Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under the supervision of the trainer during occupational education. In case of any doubts about connection and operation refer please to our customer center

Specified Conditions Of Use

The sander can be used for sanding wood, plastics, and metal. This machine is suitable only for dry sanding. Do not use this product in any other way as stated for normal use.  ot observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.
Emergency procedure
Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm him down. If you seek help, state the following pieces of information: 1. Accident site, 2. Accident type, 3. A number of injured persons, 4. Injury type(s)Symbols

WARNING / Caution!

Read the operating instructions to reduce the risk of injury.
Wear eye-protective goggles! Wear ear protectors!

Wear a suitable dust protection mask.

Wear gloves!

Unplug the machine before any work on it.

Class II tool.

CE marking

Any damaged or disposed of electric or electronic devices must be delivered to appropriate collection centers.

WARNING Read all safety warnings and all instructions.  Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.

Sander safety warnings

Wear ear protectors. Exposure to noise can cause hearing loss. Use protective equipment. Always wear safety glasses when working with the machine. The use of protective clothing is recommended, such as dust masks, protective gloves, sturdy non-slip footwear, and ear defenders.

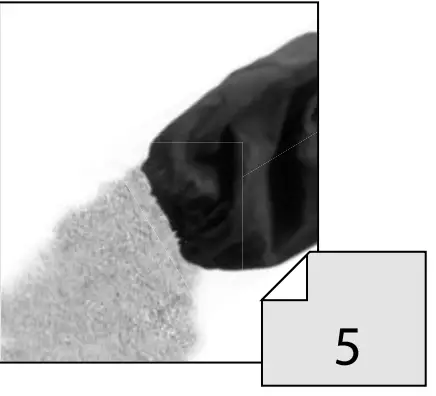

The dust produced when using this tool may be harmful to health. Do not inhale the dust. Use a dust absorption system and wear a suitable dust protection mask. Remove deposited dust thoroughly, e.g. with a vacuum cleaner. Do not machine any materials that present a danger to health (e.g. asbestos).

Mains Connection
Operation is only allowed with a safety switch against stray current (RCD max. stray current of 30mA).
Connect only to single-phase AC system voltage as indicated on the rating plate. It is also possible to connect to sockets without an earthing contact as the design conforms to safety class II. Only plug in when the machine is switched off. Do not let any metal parts reach the airing slots – the danger of a short circuit!

Maintenance

Unplug the machine before any work on it.
Repairs and works specified in these Instructions may only be performed by qualified authorized staff.

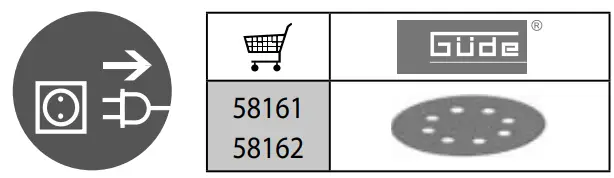

Use only original accessories and original spare parts.
Keep the device, in particular the air vents, clean at all times. Never spray water on the device’s body!
Do not clean the plastics with solvents, flammable or toxic fluids. For cleaning, use a damp cloth only.
Caution! If the power cord of the appliance gets damaged, it must be replaced by the manufacturer or its customer service or a similarly qualified person to avoid danger.
Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries. If necessary, a  ist of spare parts can be found at www.guede.com.

Original – EG

Translation of the EC-Declaration of Conformity

We, hereby declare the conception and construction of the below-mentioned appliances correspond – at the type of construction being launched – to the appropriate basic safety and hygienic requirements of EC Directives. In case of any change to the appliance not discussed with us the Declaration expires.

Appropriate EU Directive

2014/35/EU	2014/30/EU
2009/105/EC	1907/2006/EC
2011/65/EC ROHS	2009/142/EC
89/686/EEC (PPE	1935/2004/EC
2006/42/EC
Annex IV  Notified Body Name: Adress: No: Type Ex. Cert.-No.:

Type Ex. Cert.-No.:
97/68/EC_
Emission No.:
2000/14/EC_2005/88/EC

Method of compliance assessment

Harmonized standards used

EN 60745-1:2009+A11:2010
EN 60745-2-4:2009+A11:2011
EN 55014-1:2006+A1:2009+A2:2011
EN 55014-2-1997+A1:2001+A2:2008
EN 61000-3-2:20
EN 61000-3-3:20

Guaranteed sound power level
Measured sound power level |

Wolpertshausen, .02 .08.2016

Managing Director
Authorized to compile the technical file

GÜDE GmbH & Co. KG
Birkichstrasse 6
74549 Wolpertshausen
Deutschland
Tel.: +49-(0)7904/700-0
Fax.: +49-(0)7904/700-250
eMail: [email protected]
