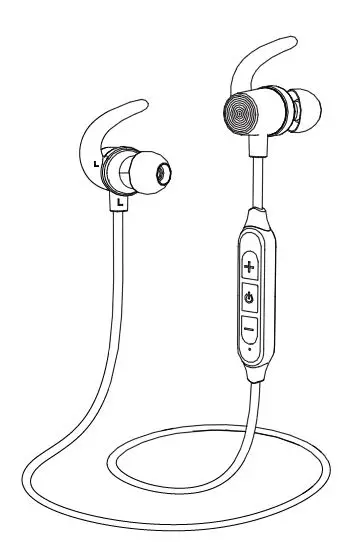

motorola MOTO SP105 Sport In Ear Headphone
SPECIFICATION
- Product Name: MOTO SP
- Model: MOTO SP105
- Frequency Band: 2.402 – 2.480GHz
- Maximum RF power: 4 dBm
- FCC ID: 2ARRB-VL105
- IC: 20353-VL105
- Working temperature: 0°C–45°C

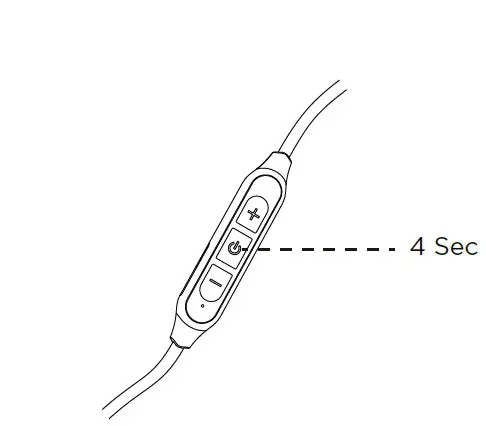

Pairing:
Hold: for 4 seconds.
Select MOTO SP105 from the phone Bluetooth menu.

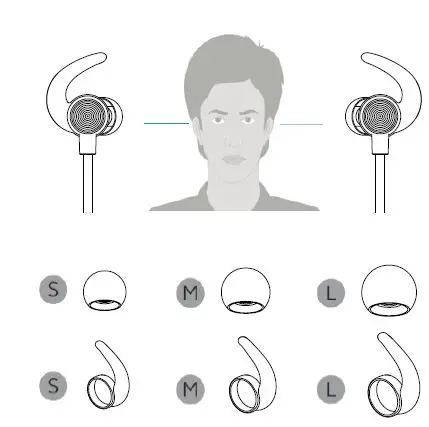

Fitting:
To optimal the best fitting and audio experience, it is recommended to try each of the different earbud sizes
| Additional Operation | |
| Call | |
| Reject a call | Long Press – / + |
| Receive incoming call and end ongoing call | Triple press MFB |
| Receive incoming and on hold ongoing call | Press MFB |
| Mute during call | Press – and + |
| LED Indicator | |
| Pairing | Red-blue flash |
| Standby | Blue flash |
| Charging | Red steady |
| Fully charged | Blue steady |
| Battery low | Red flash |

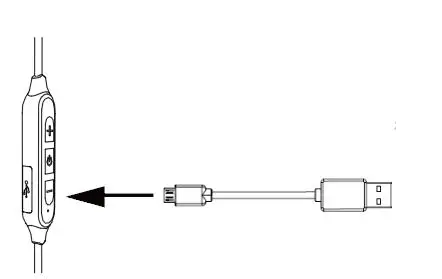

Charging:
Fully charge before use The device can be powered through a micro USB from any CE-compliant power source that implements the European interface as requested by EN 301 489-52.
FCC Warning:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- this device must accept any interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
NOTE: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment
IC WARNING:
This device contains licence-exempt transmitter(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:
- This device may not cause interference.
- This device must accept any interference, including interference that may cause undesired operation of the device.
