AJAX MotionProtect Curtain Jeweller Wireless Indoor Curtain Type Ir Motion Detector

Contents hide

1 Motion Protect Curtain Jeweller

2 PIR sensors coverage angles

3 Motion detection distance

4 communication technology

5 Technical specifications

6 Documents / Resources

6.1 References

7 Related Posts

Motion Protect Curtain Jeweller

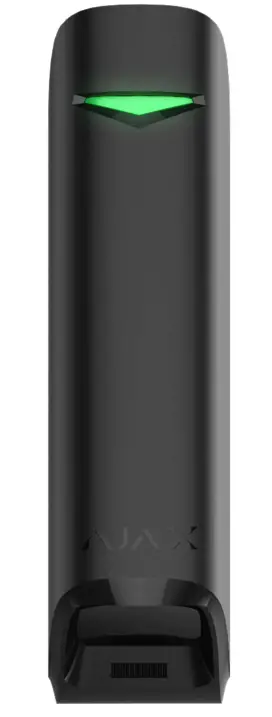

Wireless indoor curtain-type IR motion detector with a narrow view angle

An Ajax hub is required for operation. Find the detailed information on the device by the link:

ajax.systems/support/devices/motionprotectcurtain/

Up to 15 m detection distance
IP54 enclosure protection
False alarms prevention algorithm

Up to 3 years of operation on pre-installed battery
Remote control and setup via the app

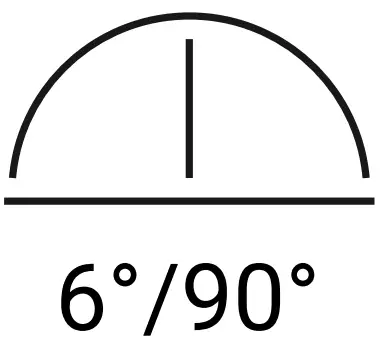

6°/90° viewing angles
Temperature compensation

Up to 1,700 m of two-way wireless communication
Effortless installation and replacement
Connecting via QR code

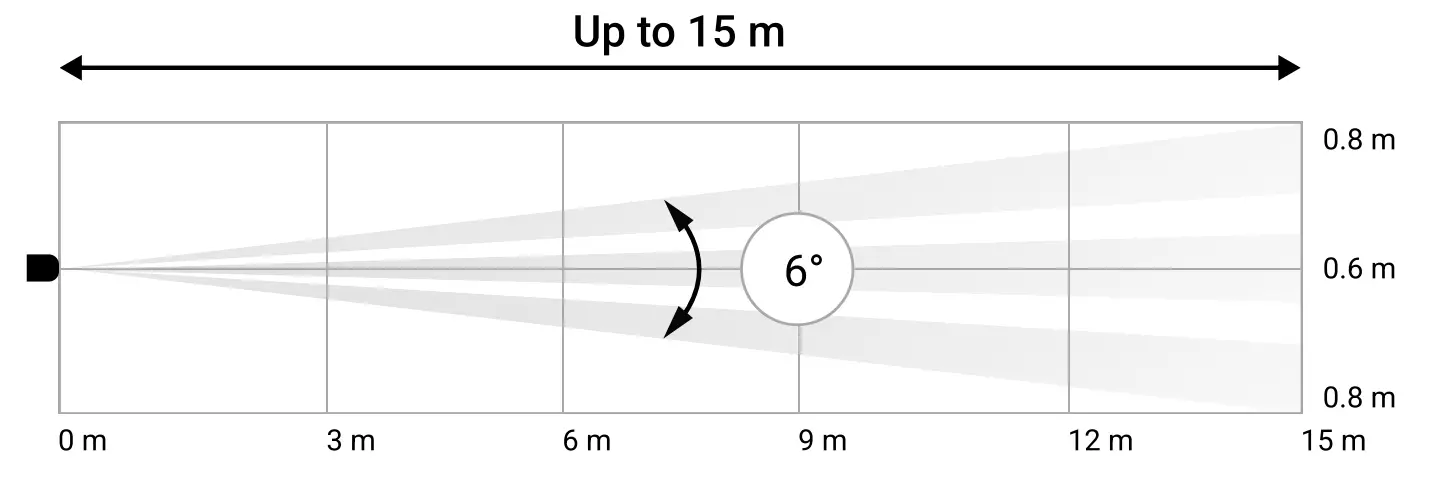

PIR sensors coverage angles

Motion detection distance

Sensitivity	Motion detection range w/ Signal Correlation Processing*	Motion detection range w/o Signal Correlation Processing*
Low	Up to 6 m	Up to 11 m
Normal	Up to 7 m	Up to 13 m
High	Up to 8 m	Up to 15 m

*in an ambient temperature of 23°C

Correlation Signal Processing (CSP) is a protection method against false alarms. CSP is optional and can be activated in the detector settings. When the option is enabled, MotionProtect Curtain raises an alarm only if both PIR sensors detect infrared radiation and signals from PIR sensors are identical.

Jeweller

communication technology

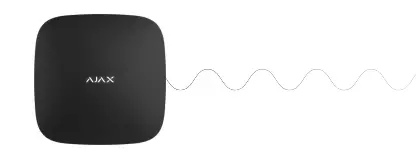

Jeweller is a two-way wireless data transfer protocol that provides fast and reliable communication between hubs and devices. The protocol delivers instant data-rich alarms: security companies and users know which device was triggered, when and where it happened.

Jeweller features encryption and authentication to prevent forgery, and polling to display devices status in real time. Supporting up to 1,700 m of wireless connectivity, Jeweller is ready to protect facilities and deliver the best user experience for both end users and installers.

Technical specifications

Compliance with standards	EN 50131 (Grade 2) PD 6662:2017	Compatibility	Hubs All Ajax hubs
Communication with control panel	Jeweller communication technology Frequency bands 866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz Depends on the region of sales. Maximum effective radiated power (ERP) ≤ 20 mW Communication range up to 1,700 m In an open space. Polling interval 12–300 s Adjusted by PRO or user with admin rights in the Ajax app.	Motion detection	Range extenders All Ajax radio signal range extenders
			Sensing element 2 × PIR sensor
			Motion detection distance Up to 15/13/11 m without CS Up to 8/7/6 m with CSP Depends on sensitivity settings
			Sensitivity 3 levels Adjusted by PRO or user with admin rights in the Ajax app. Detection angles horizontal 6 vertical 90Temperature compensation yes
Power supply	Battery 1 × CR123A, 3 V Pre-installed. Battery life up to 3 years	Installation	Operating temperature range from –25°С to +60°С Operating humidity up to 95% Ingress protection IP54
Enclosure	Colour white, black Dimensions 134 × 44 × 34 mm Weight 118 g Tampering alarm yes	Complete set	Motion Protect Curtain Jeweller Smart Bracket mounting panel Side mount bracket 1 × CR123А Pre-installed Installation kit Quick Start Guide
