Paul Neuhaus 836734 Loop Led Pendant Light Instruction Manual

Paul Neuhaus 836734 Loop LED Pendant Light Instruction

This product contains light sources of energy efficiency class <F>.

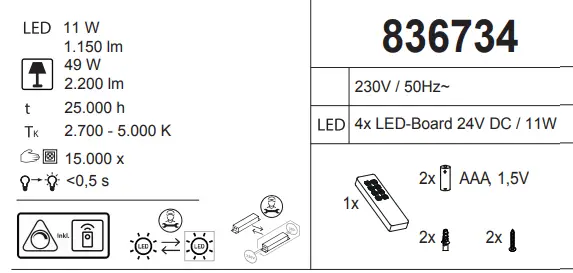

DIMENSIONS

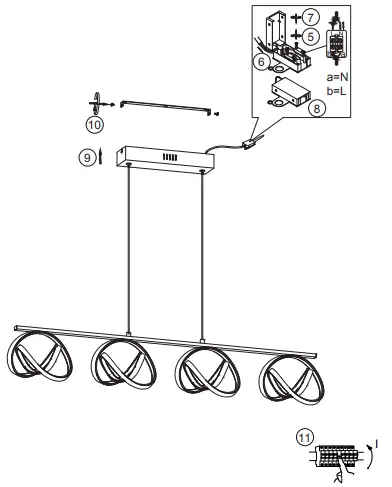

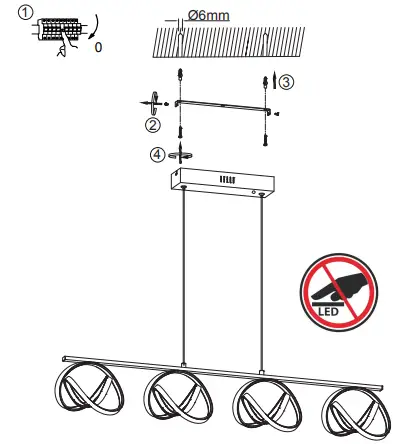

INSTRUCTIONS

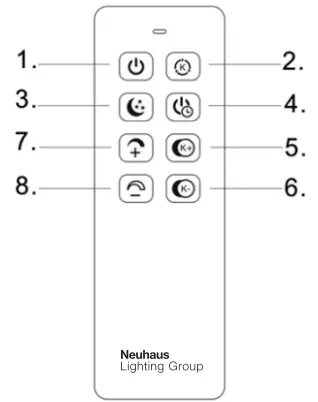

Remote Control Instructions

1. On/Off
2. Change color temperature
3. Night light (yellow 5%)
4. Turn off the light after 1 minute
5. Increase color temperature
6. Reduce color temperature
7. Dim up the brightness (max. 100%) Short press: max. brightness
8. Dim down the brightness (min. 5%) Short press: min. brightness

Specifications

• Operation voltage: 3V DC
• Operation current:<15mA
• Remote distance:6m
• Remote Control: Infrared

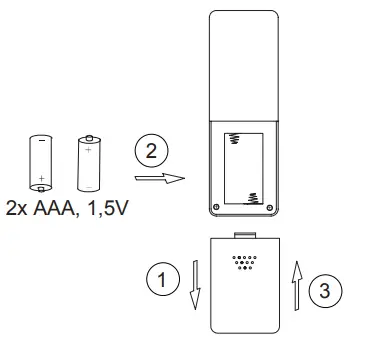

• Battery: 2x 1,5V AAA

Paul Neuhaus GmbH Olakenweg 36 · D-59457 Werl
+49(0)2922 9721 9290 [email protected]
www.paul-neuhaus.de
