Black+decker Ir1350s Professional Steam Iron User Guide

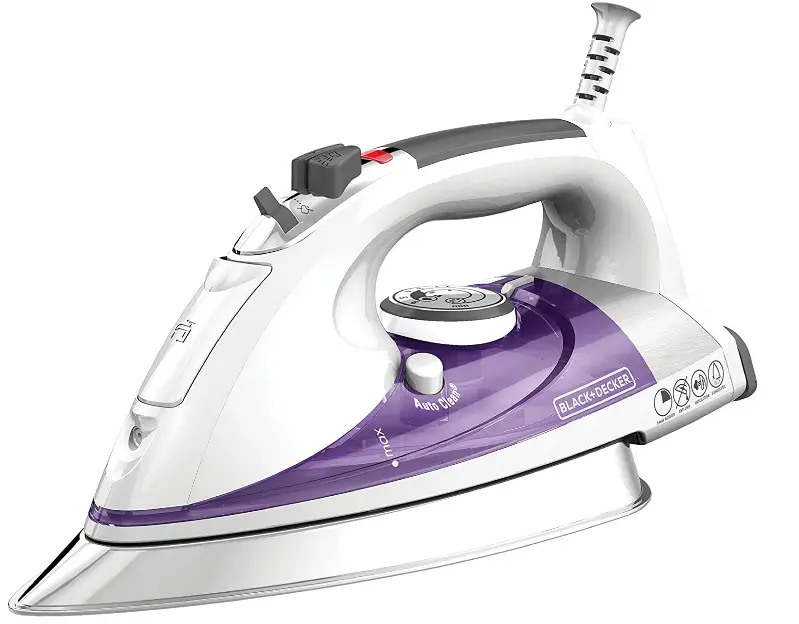

BLACK+DECKER IR1350S Professional Steam Iron

IMPORTANT SAFETY INSTRUCTIONS

When using your iron, basic safety precautions should always be followed, including the following:

• READ ALL INSTRUCTIONS BEFORE USING.
• Use iron only for its intended use.
• To protect against a risk of electric shock, do not immerse the iron in water or other liquids.
• The iron should always be turned to the minimum (min) setting before plugging or unplugging from outlet. Never yank cord to disconnect from the outlet; instead grasp plug and pull to disconnect.
• Do not allow cord to touch hot surfaces. Let iron cool completely before putting away. Loop cord loosely around iron when storing.
• Always disconnect iron from electrical outlet when filling with water or emptying, and when not in use.
• Do not operate iron with a damaged cord, or if the iron has been dropped or damaged. To avoid the risk of electric shock, do not disassemble the iron; take it to a qualified service person for examination and repair, or call the appropriate toll-free number on the cover of this manual. Incorrect reassembly can cause a risk of electric shock when the iron is used.
• Close supervision is necessary for any appliance being used by or near children. Do not leave iron unattended while connected or on an ironing board.
• Burns can occur from touching hot metal parts, hot water or steam. Use caution when you turn a steam iron upside down or use the surge of steam—there may be hot water in the reservoir. Avoid rapid movement of iron to minimize hot water spillage.
• The iron must be used and rested on a stable surface.
  • When placing the iron on its stand, ensure that the surface on which the stand is placed is stable.
  • The iron is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.

SPECIAL INSTRUCTIONS

• To avoid a circuit overload, do not operate another high-wattage appliance on the same circuit.
• If an extension cord is absolutely necessary, a 15-ampere and 120-volt should be used. Cords rated for less amperage may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

SAVE THESE INSTRUCTIONS

This product is for household use only.

POLARIZED PLUG

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.
Note: If the power supply cord is damaged, it should be replaced by qualified personnel or in Latin America by an authorized service center.

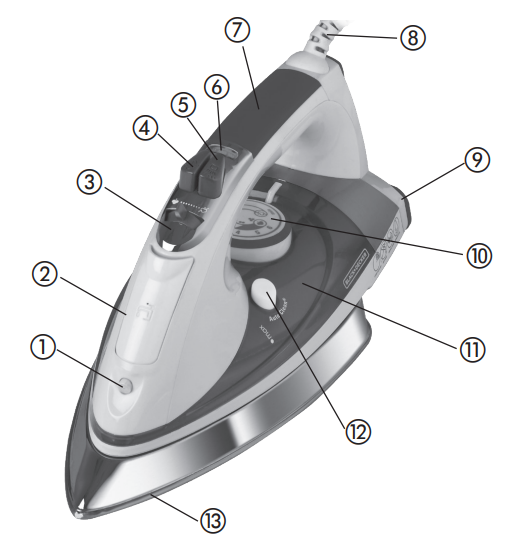

PRODUCT MAY VARY SLIGHTLY FROM WHAT IS ILLUSTRATED

1. Spray nozzle
2. Water-fill cover
3. Variable steam selector
4. Steam button
5. Spray button
6. Power indicator light
7. Comfort Grip handle
8. 360° pivoting cord
9. Heel rest
10. Fabric-select dial
11. Water tank
12. Auto Clean® button
13. Soleplate

HOW TO USE

This product is for household use only.

GETTING STARTED

• Remove any labels, stickers or tags attached to the body or soleplate of the iron.
• Please go to www.prodprotect.com/applica to register your warranty.
  Note: Use ordinary tap water for ironing. Do not use water processed through a home softening system.
  Important: For optimum performance, let the iron stand for 90 seconds before beginning to iron.
  Tip: If unsure of a garment’s fiber, test a small area (on an inside seam or hem) before ironing.

FILLING WATER TANK

1. With iron on a flat surface with soleplate down or tilted at a 45-degree angle, open the water-fill cover.
2. Using a clean measuring cup, pour water into opening until water reaches the MAX level mark on the side of the water tank. Do not overfill.

AUTOMATIC SHUTOFF IN 3 POSITIONS

1. The iron will automatically turn to stand by mode after 30 seconds of inactivity if left on its soleplate or on its side. If left vertically on its heel rest, it will turn off after 8 minutes.
2. The red power indicator light starts blinking to let you know the iron has stopped heating.
   Important: The iron will have turned off but will still be hot.
3. Once the iron is picked up, an internal motion sensor is activated and the iron starts heating again.
4. Allow iron to reheat completely before resuming ironing.

SELECTING FABRIC SETTING

1. Read fabric labels to help determine fabric type to be ironed.
2. Once you determine the fabric type, turn the fabric-select dial to select the appropriate fabric setting.
   Important: Always stand the iron on its heel when powered on but not in use.

USING VARIABLE STEAM

Note: Be sure the water tank is filled.

1. This iron produces steam at settings 4 through 6. Turn the fabric-select dial to the appropriate setting for your fabric.
2. Push the variable steam selector to desired amount of steam. The higher the setting selected, the more powerful the steam.
   Note: For no steam, the variable steam selector should be set.

STEAM BUTTON

Note: Be sure the water tank is filled.

1. With the water tank filled to the MAX mark, turn the fabric select dial to appropriate setting (between 4 and 6) and let iron stand on its heel rest about 90 seconds.
2. Press the steam button to generate a burst of steam. For best performance, leave an interval of 5 seconds between bursts.
   Note: On first use, pump the steam button several times.

HORIZONTAL STEAM IRONING

1. Fill water reservoir to MAX line.
2. Turn the fabric select dial to select desired setting.
3. Set the variable steam selector to desired amount of steam.
4. When finished ironing, turn the fabric-select dial to the lowest setting. Make sure the variable steam selector is set to dry and unplug the iron.
5. Stand the iron on its heel rest and allow it to cool off.

VERTICAL STEAMING

Use to remove wrinkles or creases from hanging garments or drapes.

1. Turn the fabric-select dial to select desired setting for the fabric to be ironed.
2. Hold iron close to, but not touching fabric.
3. Pull fabric taut with your free hand and press the steam button as you move the iron over the fabric.
   Important: Do not bring iron too close to hand holding fabric to avoid heat.
4. For best performance, leave an interval of 5 seconds between bursts.

SPRAY BUTTON

Note: Be sure the water tank is filled.

1. Press the spray button to generate a spray of water.
   Note: On first use, pump the spray button several times.
   Important: Do not spray silk.

DRY IRONING

1. Set the variable steam selector to .
2. Turn the fabric-select dial to appropriate setting for your fabric.
3. When finished ironing, make sure to unplug the iron.
   Important: Always stand the iron on its heel rest when powered on or not in use.

CARE AND CLEANING

This product contains no user serviceable parts. Refer service to qualified service personnel.

CLEANING

1. Make sure iron is unplugged and has cooled completely. Wipe the soleplate and outer surfaces with a soft cloth dampened with water and mild household detergent. Never use abrasives, heavy-duty cleansers, vinegar or scouring pads that may scratch or discolor the iron.
2. After cleaning, steam iron over an old cloth to remove any residue from the steam vents.

AUTO CLEANTM SYSTEM

To keep the steam vents free of any buildup, follow these instructions about once a month.

1. Fill the water tank well below MAX line. Plug in the iron.
2. Select fabric setting 6 on the fabric-select dial and stand the iron on its heel rest.
3. Wait 2 minutes for the iron to heat fully, then unplug the iron.
4. Hold iron over a sink with the soleplate facing down.
5. Press the Auto Clean button.
   Important: Be careful, as after several seconds, hot water and steam will come out of the steam vents.
6. Continue to hold Auto Clean button until all the water has emptied. If necessary, move iron side-to-side and front-to-back.
7. When finished, release the button, stand the iron on its heel rest and plug it in. Heat for about 2 minutes to dry out any remaining water

STORING YOUR IRON

1. Unplug the iron and let it cool completely.
2. Check that the fabric-select dial is set.
3. Store iron on its heel rest.

SUPPORT

Argentina SERVICIO DE MAQUINAS Y HERRAMIENTAS LTDA. Portugal Nº 644 Santiago – Chile

Fonos: 02-6355208 / 02-6341169

Email: [email protected]

Call center: 800-171-051

FAQs

What shortcomings might the steam iron BLACK+DECKER IR1350S have?

Because steam irons require more frequent refills and produce less heat than steam generators or other steaming systems, it may take some time to iron your clothes with one.

What is the normal lifespan of a BLACK+DECKER IR1350S steam iron?

Even the most expensive steam irons should last between 10 and 20 years. Consider the possibility that technology will improve significantly over the next 20 years before deciding whether to update now or wait until your iron becomes outdated.

What happens if you use the steam iron BLACK+DECKER IR1350S without any water?

Yes. You may simply disconnect your steam iron, let it cool, and then drain the water tank to remove any lingering water. Choose the dry/steam setting if your iron has one; otherwise, choose “MIN.” Choose the dry/steam setting on your iron if it has one.

What benefits do steam irons like the BLACK+DECKER IR1350S offer?

The simplest method for giving your garments a freshly pressed look and at-home feel is to use a steam iron. Your clothing’s fibres become moistened by the iron’s steam, which makes pressing them easier. The steam also extends the durability of the fibres. Yes. You may simply disconnect your steam iron, let it cool, and then drain the water tank to remove any lingering water. Choose the dry/steam setting if your iron has one; otherwise, choose “MIN.” Choose the dry/steam setting on your iron if it has one.

How much electricity does the steam iron BLACK+DECKER IR1350S use?

Every day, a steam iron or flatiron requires roughly 800-2000 watts. For instance, you would use roughly 5 kWh of electricity if you left your iron on for 10 minutes each day for a month. Despite having one of the highest rates of electricity consumption among your equipment, you can determine the precise amount your model requires.

How should I care for my BLACK+DECKER IR1350S steam iron?

Clean the anti-calc valve completely. To accomplish this, turn off the iron’s power and give it time to cool. Keep your soleplate smooth and spotless. Use a moist, slippery cloth to clean the soleplate of your Tefal Access. It’s easy to keep it functioning properly. Observe the post-use instructions.

When using my BLACK+DECKER IR1350S steam iron, how much steam should I use?

Each iron we recommend has a minimum 1,500 watt power output, which is adequate for the task. Through testing, I’ve discovered that low-wattage irons can’t generate enough heat and steam to remove stubborn wrinkles.

For steam irons like the BLACK+DECKER IR1350S, what kind of water is best?

Use distilled or demineralized water in order to increase the lifespan of your steamer or iron (50 percent tap water and 50 percent demineralized water could also be used).

When used on garments, does the BLACK+DECKER IR1350S steam iron produce superior results?

According to The Laundress, steaming clothes not only removes wrinkles but also also kills bacteria that causes odours, keeping clothes fresh between washes—ideal for clothing that you can’t wash frequently (or at all) or that is only suitable for dry cleaning.

How long does it take a steam iron like the BLACK+DECKER IR1350S to heat up?

Normally, it takes two minutes for your iron to begin heating up. Your iron will alert you when it reaches the optimal temperature for the cloth type you chose using the “Wait” and “Ready” indicators.

How can corrosion be prevented in the BLACK+DECKER IR1350S steam iron?

Always use fresh water to fill steam irons. Even municipally generated, unfiltered water includes minerals that could harm or clog your iron.

After each use, empty the iron’s water tank. A microfiber towel can be used to dry any leaks.

In a steam iron like the BLACK+DECKER IR1350S, is boiling water permissible?

In addition, it could damage your iron and leave stains on your clothes. Even though using cooled, boiled water and avoiding letting water sit in your iron between uses may help reduce the formation of lime scale, you should get into the habit of routinely descaling your iron.

When using a steam iron like the BLACK+DECKER IR1350S, may vinegar be added?

If you have a steam iron, you may also clean the vents by putting water and distilled white vinegar in the water reservoir.

How can you clean a smelly BLACK+DECKER IR1350S steam iron?

The iron should be mixed with half a cup of distilled white vinegar and half a cup of distilled water. Look within the steam vents for any buildup of white residue or other debris, and if you find any, carefully clean them with a toothbrush or toothpick dipped in vinegar. The iron needs to be plugged in, set to steam, and let to cool for five minutes.

Can you use fragrance with the steam iron BLACK+DECKER IR1350S?

The use of water that has been chemically descaled, perfumed water, water directly from the dryer, vinegar, starch, descaling agents, ironing aids, or other chemicals may cause water to spit out, brown stains to appear on your clothing, damage to your steam iron, or breakage of your garment steamer.
