Black&decker F67e Classic Steam Iron User Guide

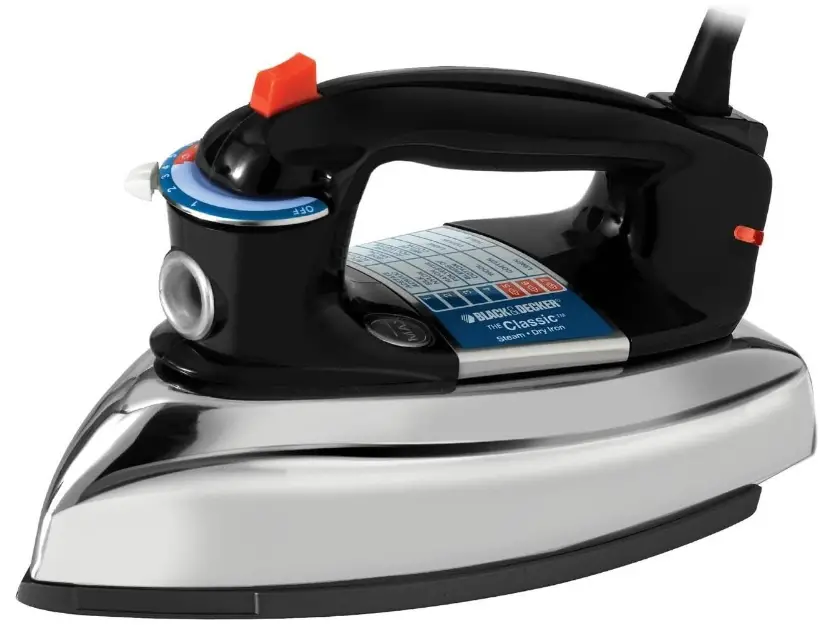

BLACK&DECKER F67E Classic Steam Iron

IMPORTANT SAFEGUARDS

When using your iron, basic safety precautions should always be followed, including the following:

• Read all instructions before using.
• Use iron only for its intended use.
• To protect against a risk of electric shock, do not immerse the iron in water or other liquid.
• The iron should always be turned oFF (refer to HoW To USe section) before plugging into or unplugging from an outlet. Never yank cord to disconnect from outlet; instead grasp plug and pull to disconnect.
• Do not allow cord to touch hot surfaces. let iron cool completely before putting away. loop cord loosely around cord wrap when storing.
• Always disconnect iron from electrical outlet when filling with or emptying of water and when not in use.
• Do not operate iron with a damaged cord or if the iron has been dropped or damaged. To avoid the risk of electric shock, do not disassemble the iron, take it to a qualified serviceman for examination and repair. Incorrect reassembly can cause a risk of electric shock when the iron is used.
• Close supervision is necessary for any appliance being used by or near children. do not leave iron unattended while connected or on an ironing board.
• Burns can occur from touching hot metal parts, hot water, or steam. Use caution when you turn a steam iron upside down or use the surge of steam — there may be hot water in the water tank. Avoid rapid movement of iron to minimize hot water spillage.

SPECIAL INSTRUCTIONS

• To avoid a circuit overload, do not operate another high-wattage appliance on the same circuit.
• If an extension cord is absolutely necessary, a 10-ampere cord should be used. Cords rated for less amperage may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.

POLARIZED PLUG

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. do not attempt to modify the plug in any way.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.
Note: If the power supply cord is damaged, it should be replaced by qualified personnel; in latin America, by an authorized service center.

PRODUCT MAY VARY SLIGHTLY FROM WHAT IS ILLUSTRATED

1. Water-fill opening
2. Temperature selector
3. Steam button
4. Pivoting cord
5. Power indicator light
6. Heel rest
7. Fabric guide
8. Water tank
9. Button groove
10. Soleplate

HOW TO USE

This appliance is for household use only.

GETTING STARTED

• Remove any labels, stickers or tags attached to the body or soleplate of the iron.
• Please go to www.prodprotect.com/applica to register your warranty.
  Note: Use ordinary tap water for ironing. Do not use water processed through a home softening system.
  Important: For optimum performance, let the iron stand for 90 seconds before beginning to iron.

FILLING WATER TANK

1. With the iron unplugged and the steam button locked in the DOWN position, use a clean measuring cup and pour water into the water-fill opening (A). Refill as needed.
2. Plug in the iron and let it stand on its heel rest. The power indicator light will turn on.

SELECTING TEMPERATURE

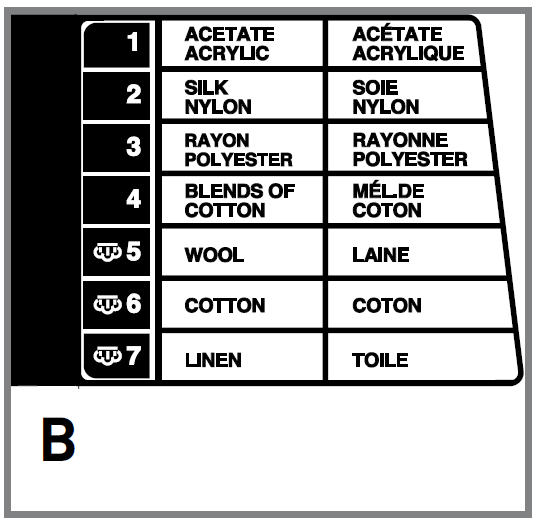

1. Use the fabric guide on the iron to select the proper temperature setting for the fabric (B).
   Tip: If unsure of a garment’s fiber, test a small area (on an inside seam or hem) before ironing. If there is a brown buildup on the soleplate, lower the setting and/or reduce starch.

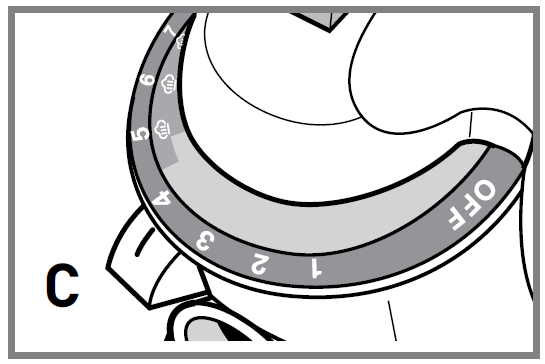

2. Once you determine the fabric type, set the temperature selector to the appropriate setting for your fabric (C). O nce the iron reaches the selected temperature, the power indicator light will turn off. The light will cycle on an off during ironing.
3. When finished ironing, place iron on its heel rest, turn temperature selector to O FF and unplug the iron.

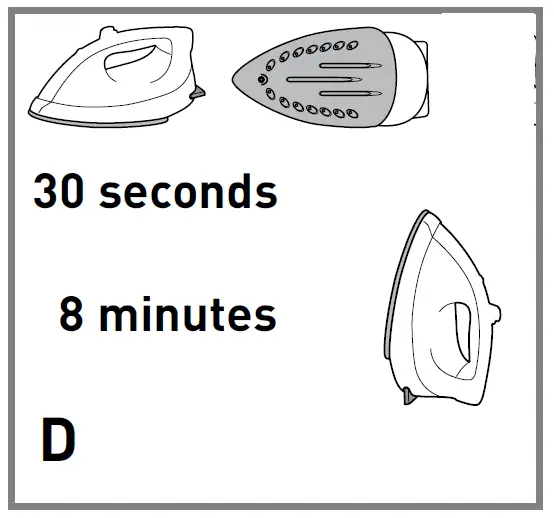

3-WAY AUTOMATIC SHUTOFF

The automatic shutoff feature in your iron works as follows:

• Once the iron reaches appropriate temperature, it will turn off after 30 seconds of inactivity if left on its soleplate or tipped over on its side. If left vertically on its heel rest, it will shut off after 8 minutes (D).
• As soon as you pick up the iron, it will start heating again. Wait for iron to reheat completely before resuming operation.

STEAM IRONING

1. Be sure there is water in the water tank.
2. Turn the temperature selector between settings 5 and 7.

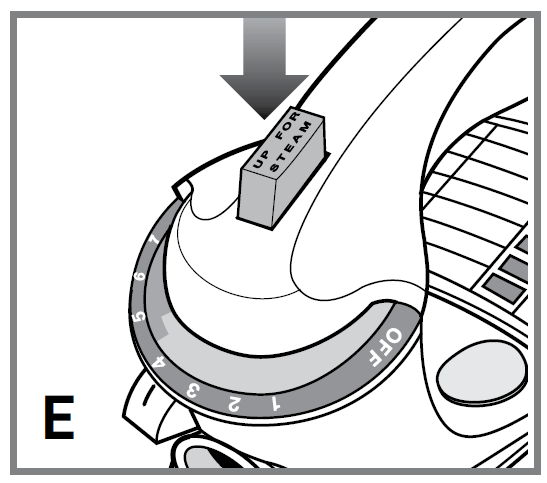

3. Unlock the steam button to the Up position (E). If steam does not start, gently bump the soleplate on the ironing board a few times. If water drips from vents, turn the selector to a higher setting.

DRY IRONING

1. Turn the temperature selector to the desired setting and lock the steam button in the DO WN position. For extended periods of dry ironing, empty the water from the iron.
2. If you want to empty the water, hold the iron over a sink with the tip pointing down. Water will empty out the fill hole. Stay clear of splashing hot water.

ANTI DRIP SYSTEM

The anti-drip system prevents water spotting at low temperatures.

EMPTYING WATER TANK (OPTIONAL)

1. Unplug the iron and let it cool.
2. To release the water, hold the iron over a sink with the tip pointing down and to one side. Water will empty out of the water-fill opening.

CARE AND CLEANING

This product contains no user serviceable parts. Refer service to qualified service personnel.

CLEANING

1. Move the temperature selector to O FF, unplug the iron and allow the iron to cool completely.
2. Wipe the soleplate and outer surfaces with a soft cloth or sponge dampened in water. Never use abrasives, heavy duty cleansers, or scouring pads that may scratch or discolor the iron.

STORAGE

1. Turn the temperature selector to O FF, unplug the iron and allow to cool completely.
2. Lock the steam button in the DO WN position. This helps keep the water valve clean and prevents water from entering the steam chamber, which could cause spitting during next use.
3. Store iron on its heel rest. Storing the iron on its soleplate can cause leaks or damage.
4. Wrap the cord.

NEED HELP?

For service, repair or any questions regarding your appliance, call the appropriate 800 number on cover of this book. Please DO NOT return the product to the place of purchase. Also, please DO NOT mail product back to manufacturer, nor bring it to a service center. You may also want to consult the website listed on the cover of this manual.

TWO-YEAR LIMITED WARRANTY

(Applies only in the United States and Canada)

What does it cover?

Any defect in material or workmanship provided; however, Applica’s liability will not exceed the purchase price of product.

For how long?

Two years after date of purchase.

What will we do to help you?

Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

• Save your receipt as proof of date of sale.
• Visit the online service website at www.prodprotect.com/applica, or call toll-free 1-800-231-9786, for general warranty service.
• If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

• Damage from commercial use
• Damage from misuse, abuse or neglect
• Products that have been modified in any way
• Products used or serviced outside the country of purchase
• Glass parts and other accessory items that are packed with the unit
• Shipping and handling costs associated with the replacement of the unit
• Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

• This warranty gives you specific legal rights. You may also have other rights that Vary from state to state or province to province.

FAQs

What are the drawbacks of a steam iron like the BLACK&DECKER F67E?

It could take some time to iron your materials using a steam iron because they don’t create as much heat as steam generators or other steaming systems, and they also need to be refilled more frequently.

How long does a BLACK&DECKER F67E steam iron typically last?

Even the priciest steam irons should last 10 to 20 years. But given the likelihood that technology will advance greatly over the next 20 years, you could decide to update before your iron loses its usefulness.

What occurs if a steam iron like the BLACK&DECKER F67E is used without water?

Yes. Simply unplug your steam iron, let it cool, and then drain the water tank to get rid of the remaining water in the iron. If your iron has a dry/steam setting, select it; if not, select “MIN”. If your iron has a dry/steam setting, select it.

What are the advantages of a steam iron like the BLACK&DECKER F67E?

Using a steam iron is the simplest way to give your clothes a freshly pressed appearance and at-home feel. The steam from the iron moistens the fibres of your clothing, making pressing them less difficult. Additionally, the steam maintains the fibres in place for a longer amount of time.

Does the steam iron BLACK&DECKER F67E use a lot of electricity?

A steam iron or flatiron needs about 800-2000 watts each day. For instance, if you leave your iron on for 10 minutes per day for a month, it will use around 5 kWh of electricity. Despite the fact that your model has one of the highest rates of electricity consumption among your appliances, you can calculate the specific amount it uses.

How is a BLACK&DECKER F67E steam iron maintained?

Be sure to clean the anti-calc valve. To achieve this, turn off the iron’s power and let it cool for 45 minutes. Keep your soleplate clean and squeaky-smooth. To maintain your Tefal Access Easy operating smoothly, wipe the soleplate with a damp, smooth cloth. Follow the after-use instructions.

What is the ideal steam iron wattage for the BLACK&DECKER F67E?

Each iron we advise has at least 1,500 watts, which is sufficient for the job. Through testing, I’ve found that low-wattage irons can’t produce enough heat and steam to get rid of tough wrinkles.

Which water is ideal for steam irons like the BLACK&DECKER F67E?

In order to lengthen the lifespan of your iron or steamer, it is advisable to use distilled or demineralized water (50 percent tap water and 50 percent demineralized water could also be used).

Do clothing respond better to the BLACK&DECKER F67E steam iron?

The Laundress asserts that steaming your clothing not only eliminates wrinkles but also kills bacteria that cause odours, keeping clothes fresh between washes—perfect for items that you can’t wash frequently (or at all) or those are dry-clean-only.

How much time does it take a BLACK&DECKER F67E steam iron to heat up?

Your iron will typically start to heat up in two minutes. The “Wait” and “Ready” indicators on your iron will let you know when it has reached the ideal temperature for the fabric type you selected.

How can you prevent the corrosion of a BLACK&DECKER F67E steam iron?

Whenever filling a steam iron, only use pure water. Even filtered-free, municipally produced water contains minerals that could damage or clog your iron.

Empty the iron’s water tank after every usage. Use a microfiber cloth to dry up any leaks.

Can you use boiling water in a steam iron like the BLACK&DECKER F67E?

Additionally, it could shorten the life of your iron and leave stains on your clothes. You should still develop the practice of routinely descaling your iron even though using cooled, boiled water and avoiding leaving water in your iron between usage might help decrease lime scale buildup.

Can you put vinegar in a steam iron like the BLACK&DECKER F67E?

If you have a steam iron, you can also fill the water reservoir with a solution made of half distilled white vinegar and half water to clean the vents.

How can a stinky BLACK&DECKER F67E steam iron be cleaned?

Half a cup of distilled white vinegar and half a cup of distilled water should be poured into the iron. Look for any accumulation of white residue or other items in the steam vents, and then carefully clean them with a toothbrush or toothpick dipped in vinegar. After being plugged in, the iron should be set to steam and given five minutes to cool.

Does the BLACK+DECKER F67E steam iron accept fragrance?

Using water that has been chemically descaled, perfumed water, water straight from the dryer, vinegar, starch, descaling agents, ironing aids, or other chemicals could result in water spitting, brown stains on your clothes, or damage to your steam iron or garment steamer.
